Viewing OSPF Areas

To illustrate one method of adding Inter-Area LSP tunnels to a network, we will use the network shown in Figure 309. There are three OSPF Areas in this network: AREA0, 1 and 2. This information can also be retrieved by going to Network > Protocols > OSPF Areas in View mode, or Modify > Protocols > OSPF Areas in Modify mode.

Figure 1: Initial Network with Area LegendNetwork topology map with nodes labeled SFO, LAX, DEN, NYC connected by color-coded lines. Legend shows AREA0, 1, and 2.
Figure 2: View of Areas from Modify > OSPF AreasNetwork management interface screenshot showing OSPF areas and nodes. Lists OSPF area IDs with names, node and link counts, and color identifiers. Includes node IDs, names, hardware icons, IP addresses, and gateway status. Contains navigation options for network sections and control buttons for actions.

To facilitate the viewing of the OSPF areas, you can first group nodes by OSPF Area. Right-click on the Map window and choose Grouping > AutoGroup from the popup menu. In the AutoGroup window, first choose Area. Then, click Done.

The nodes are automatically grouped by Area and identified by Area ID. If you choose the Network Elements > Nodes legend from the top selection box to the left of the Map, you will see a tree-view structure of the newly created groups. Clicking on the groups in the tree view will expand the group and reveal the member nodes. Alternatively, they can be expanded by right-clicking the Map window and selecting Grouping>Expand All.

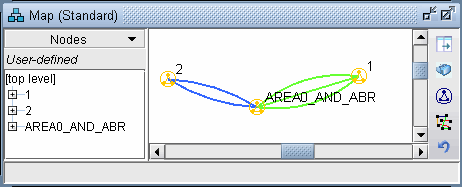

Figure 3: Grouped by OSPF AreaGraphical interface showing nodes panel with entries like 1, 2, AREA0_AND_ABR. Nodes 1 and 2 connect to AREA0_AND_ABR with blue and green lines. Toolbar on the right.
