Using The Compliance Assessment Tool

To open the Compliance Assessment window, select Tools > Compliance Assessment. This window is used primarily by network operators to run CAT scans on the network configuration files. The CAT scans are a collection of test cases or rules that search the configuration files for keywords, strings, and statement matches or non-matches to determine configuration compliance. These test cases are created using CAT template syntax by template designers. The templates syntax can use logical operators, conditional expressions, and variables to support more complex searches.

  • The Choose screen allows for selection of the test case(s) and network for the CAT scan. Initially this screen will have no test cases displayed until the test cases are created and published from the CAT Testcase Design window. The CAT Testcase Design window is opened by clicking Manage Templates.

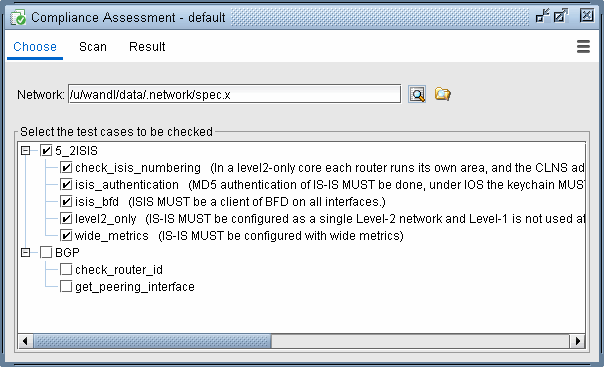

    Figure 1: Compliance Assessment Choose screenCompliance Assessment software window with tabs Choose, Scan, Result. Network file path shown. Selected test cases: ISIS category includes check_isis_numbering, isis_authentication, isis_bfd, level2_only. BGP category test cases not selected.

  • The Scan screen allows for selection of the device(s) and their configuration files for the CAT scan. Press the green button to start the scan.

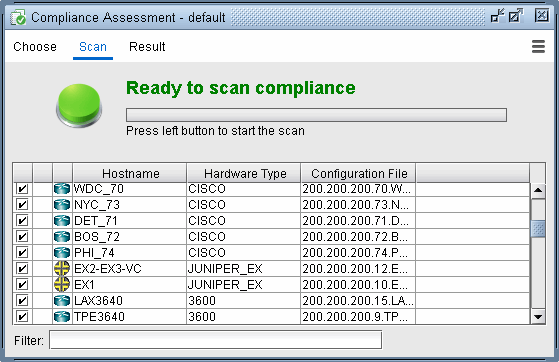

    Figure 2: Compliance Assessment Scan screenCompliance Assessment tool interface on Scan tab, ready to scan network devices compliance. Title bar shows Compliance Assessment - default. Status message reads Ready to scan compliance with a green button. Instruction states Press left button to start the scan. Table lists devices with columns Hostname, Hardware Type, Configuration File. Filter field for table entries.

  • The Result screen displays the results of the CAT scan. The results can be viewed in detailed, summarized by device, or summarized by rule name. The summary reports also calculate a Score which represents the device’s configuration compliance to the test cases. A higher score means better compliance, and a lower score means worse compliance comparatively. The Score Weights can be defined under Settings.

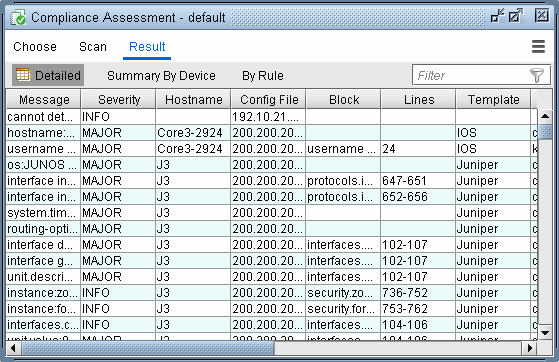

    Figure 3: Compliance Assessment Result screenCompliance Assessment tool interface with Result tab selected showing Detailed view of compliance issues such as missing usernames and protocol configs

  • The Actions button provides options to save and open projects, manage templates, and change the Results Score Weight. Saving projects in this CAT window saves the selected test cases in the Choose screen.

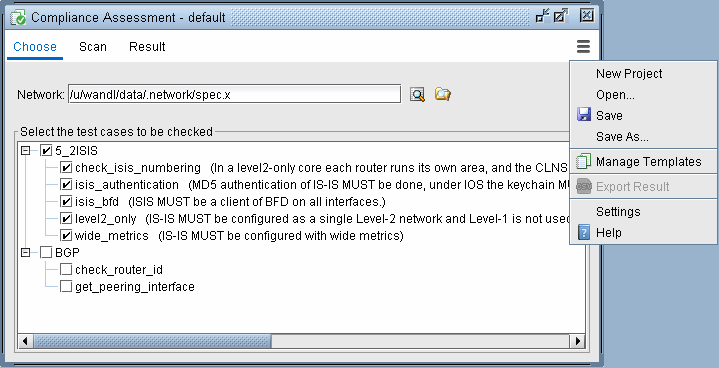

    Figure 4: Compliance Assessment Actions optionsCompliance Assessment tool interface with menu options for Choose, Scan, Result. Network field for file input. Test cases listed with checkboxes for protocols like IS-IS and BGP. Context menu open with options like New Project, Open, Save, Export Result.
