VPLS-LDP VPN

The VPLS-LDP VPN, based on the IETF Lasserre/Kompella draft, is implemented by Cisco and all other vendors except Juniper. To configure a VPLS-LDP VPN, perform the following steps:

  1. First identify, for the VPLS-LDP, a set of PEs with available PE-facing-CE interfaces that can be assigned as VPLS attachment circuits.
  2. Next, bring up the Add VPN window and select VPLS-LDP VPN. In this example, we will configure a VPLS instance named VPLS-LDP0.

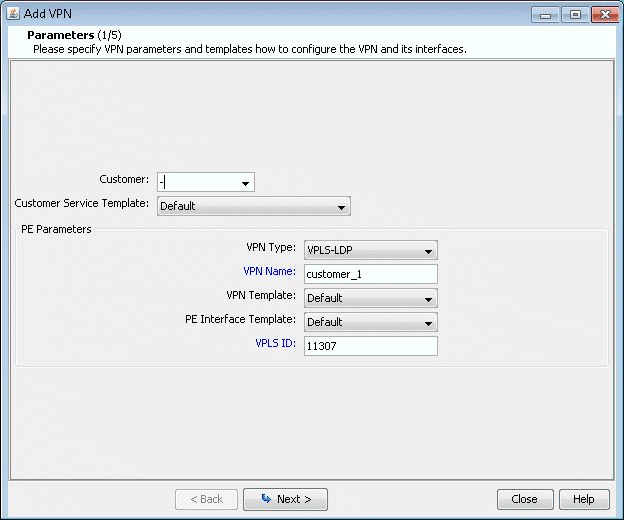

    Figure 1: Creating a VPLS-LDP VPNAdd VPN configuration window showing step 1 of 5 with fields for Customer, Customer Service Template, VPN Type VPLS-LDP, VPN Name customer_1, VPN Template Default, PE Interface Template Default, and VPLS ID 11307. Options to proceed Next, go Back, Close, or access Help.
  3. Click on Next to take you to the screen to specify a VCID and to select the PEs for the VPLS instance, as shown in the following screen. If you prefer, you may select some or all the PEs in the PE Selection tab in the next screen, as described in the next step. Click on Next to continue.

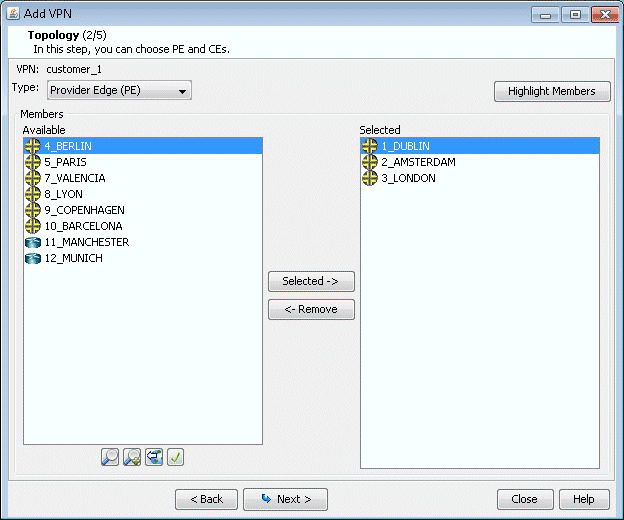

    Figure 2: Select PEs and Specify a VCIDAdd VPN wizard step 2 of 5: Topology. VPN Name: customer_1. Type: Provider Edge. Selected locations: Dublin, Amsterdam, London. Available locations: Berlin, Paris, Valencia.
  4. As described in the previous step, you may select PEs in the PE Selection tab, as shown in the following screen. If you have already selected all the PEs in the previous step, then click on the Details tab to continue.

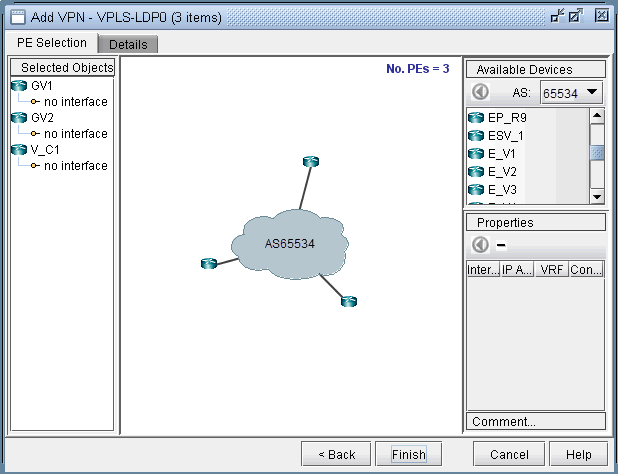

    Figure 3: Additional PEs may be select in the PE Selection tabNetwork configuration interface for setting up VPLS using LDP, showing AS65534 cloud connected to three routers, selected/available devices, and properties section.
  5. Next, you are ready to configure the PE-facing-CE attachment circuits; this includes specifying the interface and circuit ID, bandwidth, and encapsulation.

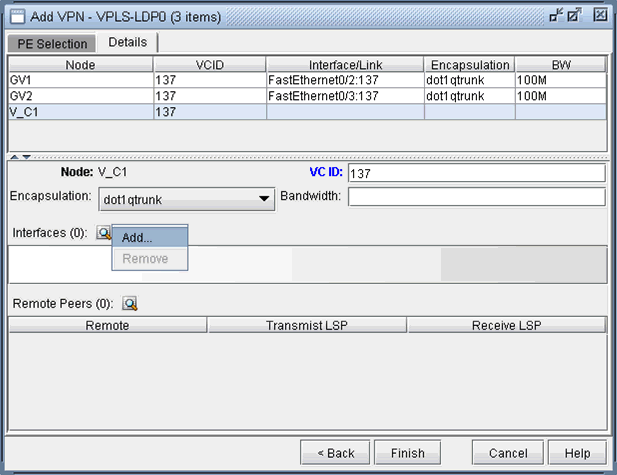

    Figure 4: Configure VPLS-LDP DetailsNetwork configuration interface for VPN setup using VPLS with LDP. PE Selection tab lists nodes with VCID, interface, encapsulation, bandwidth. Details section configures node encapsulation, bandwidth, interfaces, remote peers. Navigation buttons: Back, Finish, Cancel, Help.

    The encapsulation types for various vendors are:

    • Cisco: dot1qaccess, dot1qtunnel, dot1qtrunk.

    • Foundry: tagged, untagged.

    • Tellabs, Riverstone: tagged, untagged, q-in-q.

    The following figures show how an interface is assigned: First, click on the magnifying glass next to Interfaces and choose Add. Then in the Select Interface window, pick an available interface. Finally, type in the VCID for the interface

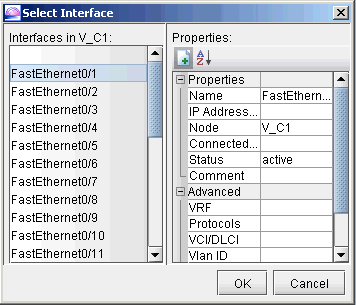

    Figure 5: Select an interfaceGraphical user interface for selecting and configuring network interfaces in a network simulation tool, showing interface list and properties panel.

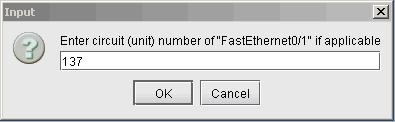

    Figure 6: Assign the Circuit ID to the interfaceDialog box titled Input prompting circuit unit number entry for FastEthernet0/1 with 137 entered. Buttons OK and Cancel below.
  6. Next, you will specify, in turn, each remote peer and the transmit LSP used to reach the peer. Click on the magnifying glass next to Remote Peers to bring up the Add Remote Peer window, where you can choose the remote peer and the transmit LSP from the dropdown selection menus.
    Figure 7: Configure PE peersAdd Remote Peer dialog box for configuring network settings with dropdowns for Remote GV2 and Transmit LSP LSP_81 with Add and Cancel buttons.
  7. The following figure shows the assignment details completed for our VPLS instance, VPLS-LDP0. Click on Finish to add the VPLS instance to the model.

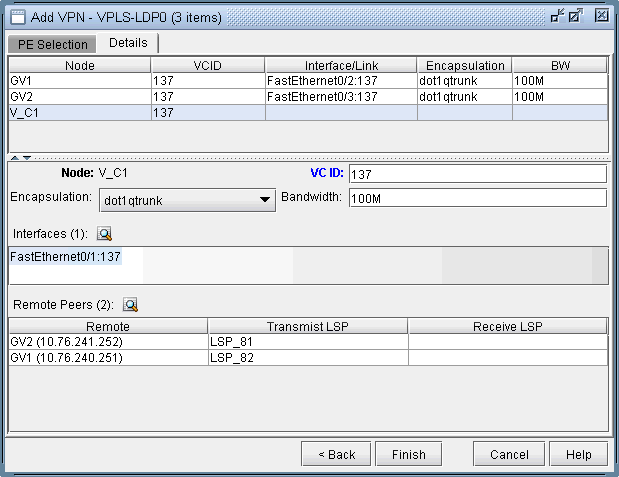

    Figure 8: VPLS-LDP instance details configuredNetwork configuration interface for setting up a VPN using VPLS with LDP. Title bar: Add VPN - VPLS-LDP0. PE Selection tab lists nodes GV1, GV2, V_C1 with VCID, Interface/Link, Encapsulation type dot1qtrunk, and Bandwidth 100M. Details tab focuses on node V_C1 with VC ID 137, interface FastEthernet0/1:137, and remote peers GV2 and GV1 with IPs 10.76.241.252 and 10.76.240.251. Buttons: Back, Finish, Cancel, Help.
