Viewing Multicast Trees

To view the multicast trees configured in the network, on the main topology map select Subview > Multicast Tree as shown in the following figure. From this subview, the (S,G) or (*,G) tree can be selected at a particular node.

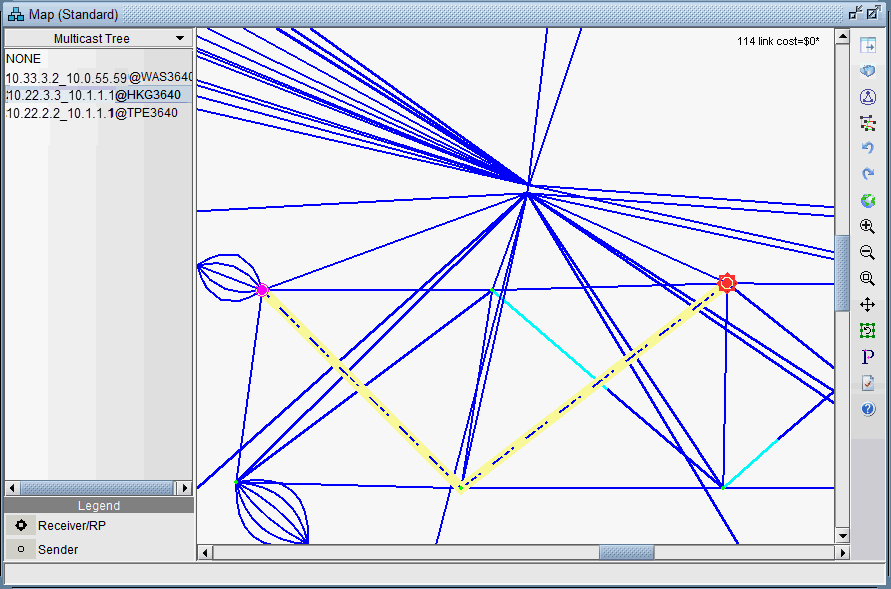

Figure 1: Multicast Tree Network topology visualization showing nodes as circles or shapes, blue lines as links, yellow dashed line as highlighted path, and a legend indicating roles like Receiver/RP and Sender.

Network topology visualization showing nodes as circles or shapes, blue lines as links, yellow dashed line as highlighted path, and a legend indicating roles like Receiver/RP and Sender.

Since the mcpath.x file uses the same format as the demand file; it can be used for network planning (as known flows) or for failure simulation. For example, links can be failed and the multicast tree (more specifically the demands making up the multicast tree) will be rerouted.
