Viewing GRE Tunnels

  1. Select Network > Elements > Tunnels.

  2. To filter for all GRE tunnels, click the Filter icon and type GRE in the Type field. (Alternatively, filter on “Type=GRE” in the Advanced Filter).

    Figure 1: Filtered GRE TunnelsScreenshot of a network management tool showing tunnels between nodes. Columns: ID, NodeA.ID, IP_A, NodeZ.ID, IP_Z, BW, Type, Pri, Pre, Current_Route, Co. Example: Tunnel1 from ATL to BOS via ATL->WDC->CHI->DET->BOS.

  3. Select the GRE tunnel to view and then click Show Path to view its path.

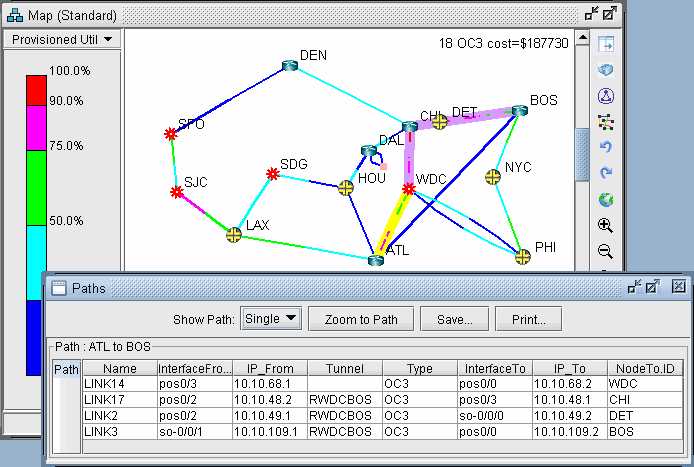

    Figure 2: GRE Tunnel routed over LSP TunnelNetwork topology map showing nodes such as ATL, BOS, and NYC with connections labeled by interface names, IPs, and types. Color-coded links indicate utilization levels with red for high congestion. Detailed path info from ATL to BOS is provided at the bottom.

  4. Note that a tunnel itself can route over a tunnel (in this case, an LSP tunnel). The portion that travels over another tunnel is colored in purple.
