Path Analysis

To see how Routing Instances affect the routing in a network, assign a Routing Instance to the Demand Type of demands (Network > Elements > Demands) or path traces (Network > Path & Capacity > Path) as shown in Figure 196. This window is accessed by clicking on the Type button of the Modify Demand or Demand Path window. Demands with a Routing Instance assignment can only be routed over links with the same Routing Instance setting.

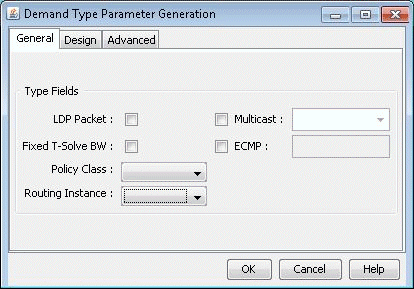

Figure 1: Demand Type Window Demand Type Parameter Generation window with General tab visible. Fields for LDP Packet checkbox, Multicast dropdown, Fixed T-Solve BW checkbox, ECMP text field, Policy Class dropdown, and Routing Instance dropdown. OK, Cancel, and Help buttons at the bottom.

Demand Type Parameter Generation window with General tab visible. Fields for LDP Packet checkbox, Multicast dropdown, Fixed T-Solve BW checkbox, ECMP text field, Policy Class dropdown, and Routing Instance dropdown. OK, Cancel, and Help buttons at the bottom.

Reports

Navigate to Report > Report Manager. Select the Route Instance report from Network Reports > Protocols. This report (RTINSTRPT) displays several integrity checks:

Asymmetric Route Instance Definition: Indicates links whose interfaces are associated with different Routing Instances
Unexpected OSPF process number: Indicates if an unexpected OSPF process number is defined
Site Diverse Statistics: An Isolated Site is defined as a site which has the given routing instance configured on at least one of its routers, but that site is not accessible via this routing instance from outside the site. A Single Link Site is defined as a site which only has one link of the given routing instance that can be used to reach the site from outside the site. If that link goes down, there is no other way to access that site for this routing instance.
BGP community definition errors: Indicates if the next-hop for any given community is in a different Routing Instance
Isolated colored PoP: Indicates if a Routing Instance has no outgoing link
Note that routing instance definitions via the routeinstance file or the Network > Protocols > OSPF/ISIS Routing Instance menu are prerequisites to generating the report.

Figure 2: Routing Instance Integrity Check Report Report Manager interface showing Route Instance Integrity Check Report for network analysis. Key details: Software Release Version 6.1.181, Customer WANDL_Robert, Report Date 2014-11-05. No asymmetric route violations or isolated sites.

Report Manager interface showing Route Instance Integrity Check Report for network analysis. Key details: Software Release Version 6.1.181, Customer WANDL_Robert, Report Date 2014-11-05. No asymmetric route violations or isolated sites.

File Format

ROUTEINSTANCE File

This file should be referenced in the specification file as “routeinst= filename”.

Note:

Because OSPF process names do not need to be specified for Juniper routers, a special keyword “NOID” is used, as seen in the third entry. The keyword “NOID” indicates that the interface is OSPF-enabled but is not listed in the [edit routing-instances] section for a Juniper router
