Forming VPN Customer Groups

Often times, many VPNs belong to the same customer, so you may group together multiple VPNs into a Customer Group. Once a particular Customer Group has been formed, you may create demands for it. Reports can also be filtered to show information relavant to the group only. The following steps describe how to form Customer Groups.

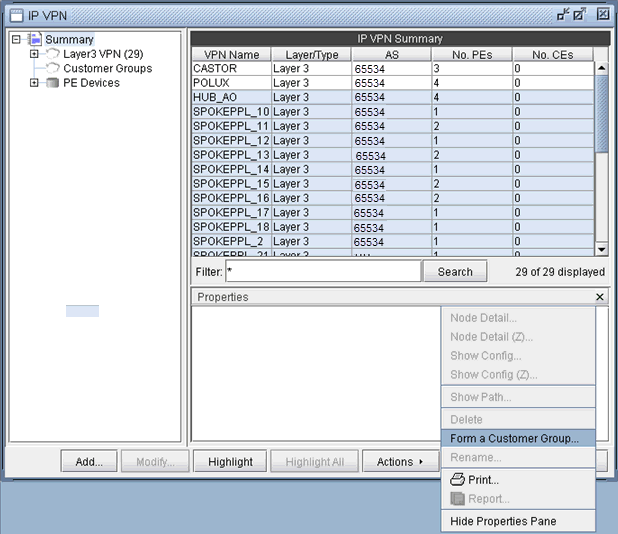

  1. First go to Summary to see a list of all the VPNs. Select one or more VPNs and choose Form a Customer Group from the Actions menu. As shown in the following figure, VPNs HUB_AO and SPOKEPPL_* have been selected to be grouped into a Customer Group.
    Figure 1: Forming a Customer GroupNetwork management tool screenshot showing IP VPN configurations. Left pane lists categories like Layer3 VPN 29 and Customer Groups. Right pane displays a table with columns: VPN Name, Layer/Type, AS, No. PEs, and No. CEs. Filter bar and actions menu with options like Form a Customer Group are visible.

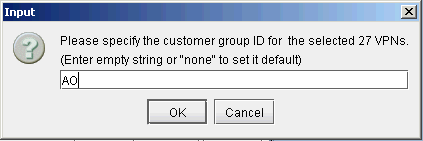

  2. Next, supply a customer group ID for the selected VPNs to group together as shown in the following figure.
    Figure 2: Supply a customer IDDialog box prompting for customer group ID for 27 VPNs with input AO and OK and Cancel buttons.

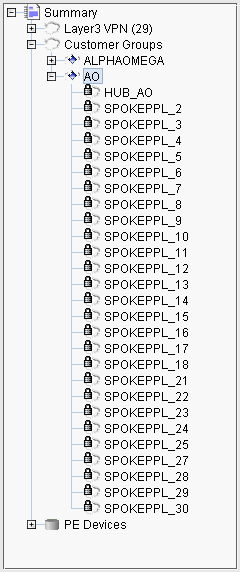

  3. In the following figure, the resultant Customer Group, AO, is shown expanded in the structured list.
    Figure 3: Customer Group AOHierarchical network interface with Summary, Layer3 VPN 29, Customer Groups with ALPHAOMEGA, AO group with HUB_AO and SPOKEPPL_2 to SPOKEPPL_30, and PE Devices. Entries may be secured.
