VPLS-LDP VPN

The VPLS-LDP VPN, based on the IETF Lasserre/Kompella draft, is implemented by Cisco and all other vendors except Juniper. To configure a VPLS-LDP VPN, perform the following steps:

  1. First identify, for the VPLS-LDP, a set of PEs with available PE-facing-CE interfaces that can be assigned as VPLS attachment circuits.
  2. Next, bring up the Add VPN window and select VPLS-LDP VPN. In this example, we will configure a VPLS instance named VPLS-LDP0.

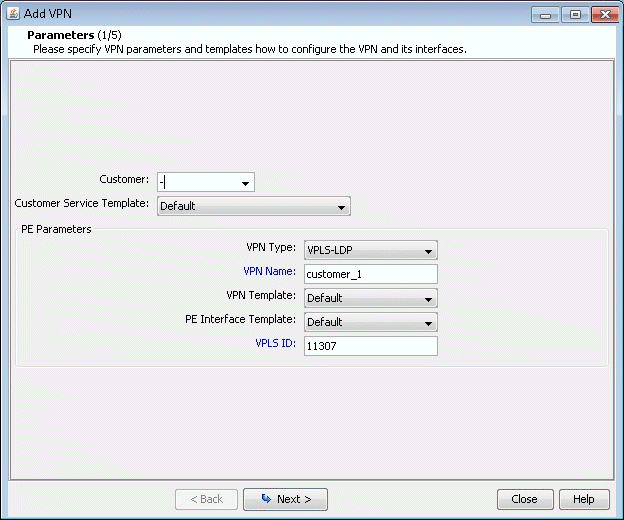

    Figure 1: Creating a VPLS-LDP VPNAdd VPN configuration window displaying step 1 of 5 with dropdowns for customer and service template, PE parameters with VPN type VPLS-LDP, VPN name customer_1, and VPLS ID 11307. Buttons: Next, Close, Help.
  3. Click on Next to take you to the screen to specify a VCID and to select the PEs for the VPLS instance, as shown in the following screen. If you prefer, you may select some or all the PEs in the PE Selection tab in the next screen, as described in the next step. Click on Next to continue.

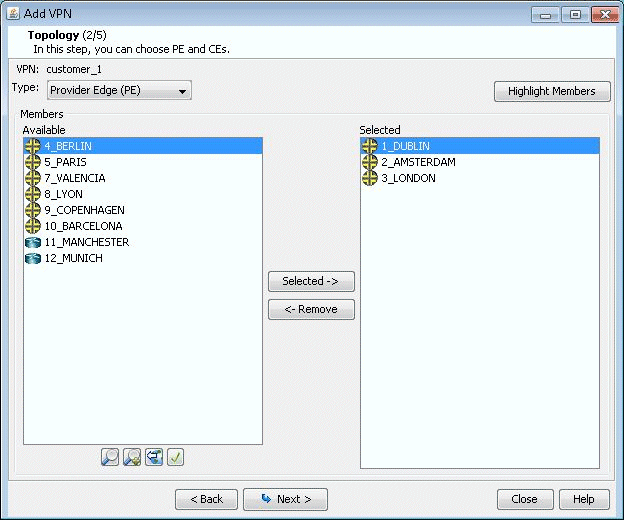

    Figure 2: Select PEs and Specify a VCIDVPN setup interface at Topology step 2 of 5. Select VPN members. Available cities: Berlin, Paris, Valencia. Selected: Dublin, Amsterdam, London.
  4. As described in the previous step, you may select PEs in the PE Selection tab, as shown in the following screen. If you have already selected all the PEs in the previous step, then click on the Details tab to continue.

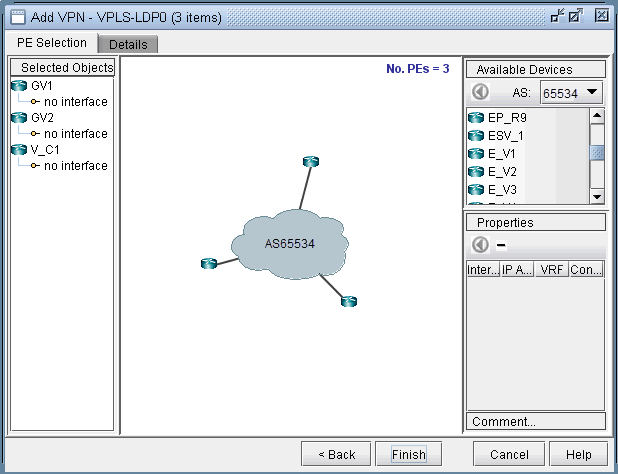

    Figure 3: Additional PEs may be select in the PE Selection tabNetwork configuration interface for setting up VPLS using LDP; central cloud AS65534, three connected PE devices, and panels for selected and available devices.
  5. Next, you are ready to configure the PE-facing-CE attachment circuits; this includes specifying the interface and circuit ID, bandwidth, and encapsulation.
    Figure 4: Configure VPLS-LDP DetailsNetwork configuration interface for adding a VPN using VPLS with LDP. Displays node, VCID, interface, encapsulation, and bandwidth details.

    The encapsulation types for various vendors are:

    • Cisco: dot1qaccess, dot1qtunnel, dot1qtrunk.

    • Foundry: tagged, untagged.

    • Tellabs, Riverstone: tagged, untagged, q-in-q.

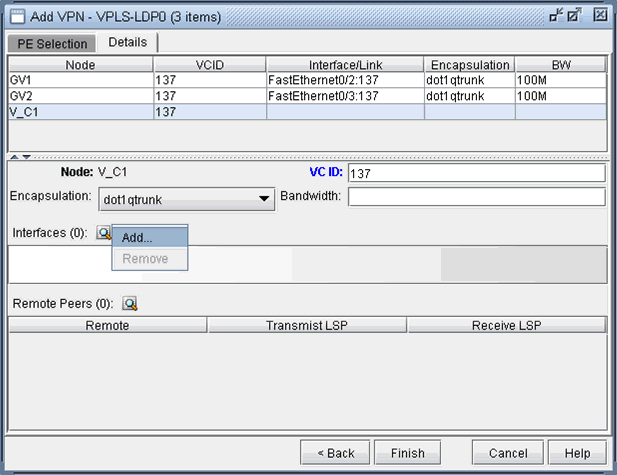

    The following figures show how an interface is assigned: First, click on the magnifying glass next to Interfaces and choose Add. Then in the Select Interface window, pick an available interface. Finally, type in the VCID for the interface

    Figure 5: Select an interfaceGUI for selecting and configuring network interfaces in a network simulation tool. Left panel lists interfaces like FastEthernet0/1. Right panel shows properties including name, status, and node. Contains OK and Cancel buttons.
    Figure 6: Assign the Circuit ID to the interfaceDialog box titled Input prompts for circuit unit number for FastEthernet0/1, text field shows 137, with OK and Cancel buttons.
  6. Next, you will specify, in turn, each remote peer and the transmit LSP used to reach the peer. Click on the magnifying glass next to Remote Peers to bring up the Add Remote Peer window, where you can choose the remote peer and the transmit LSP from the dropdown selection menus.
    Figure 7: Configure PE peersDialog box titled Add Remote Peer for network configuration with dropdowns for Remote GV2 and Transmit LSP LSP_81 plus Add and Cancel buttons.

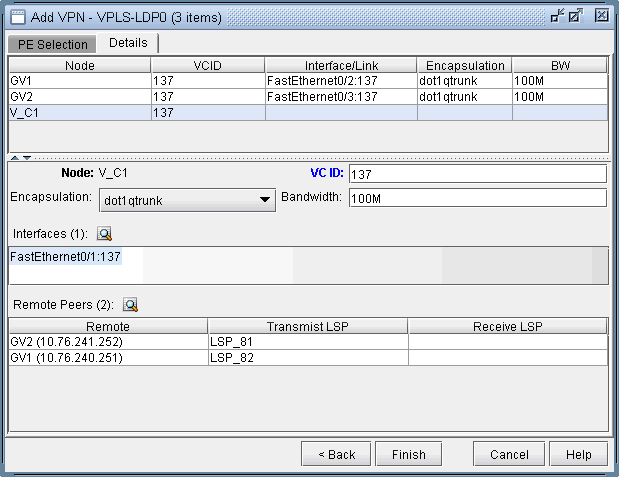

  7. The following figure shows the assignment details completed for our VPLS instance, VPLS-LDP0. Click on Finish to add the VPLS instance to the model.
    Figure 8: VPLS-LDP instance details configuredNetwork configuration interface for setting up a VPLS using LDP; includes VPN details, PE nodes, VCID, encapsulation, bandwidth, and remote peers.
