Designing Tunnel Paths Overview

  1. Select the Tunnel layer button to switch to the Tunnel layer.
  2. In Design mode, select Design > TE Tunnels > Path Design to open the Tune Paths window. This window lists all of the tunnels whose paths can be designed for. For each tunnel or group, the details of the first, second, and third path are provided in this window. The Div Level column indicates the current level of diversity satisfied between the 2 or 3 paths that belong to this tunnel or group

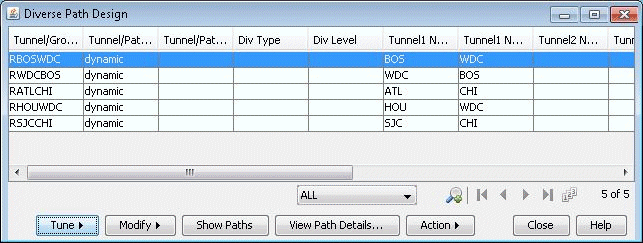

    Figure 1: Diverse Paths TableScreenshot of Diverse Path Design software interface for network path design with columns for Tunnel Group, Tunnel Path Type, Div Type, Div Level, Tunnel1 Name, and Tunnel2 Name. Contains buttons for Tune, Modify, Show Paths, View Path Details, and Action.
  3. Select the tunnels to design and select Tune > Selected Paths. Alternatively, select Tune > All Paths to design all tunnels for diversity. This will open up the following window.

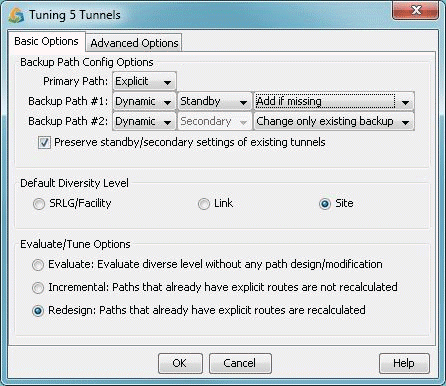

    Figure 2: Tuning OptionsSoftware configuration window titled Tuning 5 Tunnels for network setup with tabs for Basic and Advanced Options, Backup Path Config, Default Diversity Level, and Evaluate/Tune Options.
