Configuring a Loose Route

The default setting for the tunnel is to route it dynamically. Note that for Cisco tunnels, the path should be configured with loose routes to the ABR. To change the paths to configured loose routes, open the LSP Tunnel window in Modify mode from Modify > Elements > Tunnels. Click Modify and then select “All Entries” and change the Path Config. Options to “Add” “Config” to configure the route.

Notice that a loose route is now given in the Configured column, indicated by **.

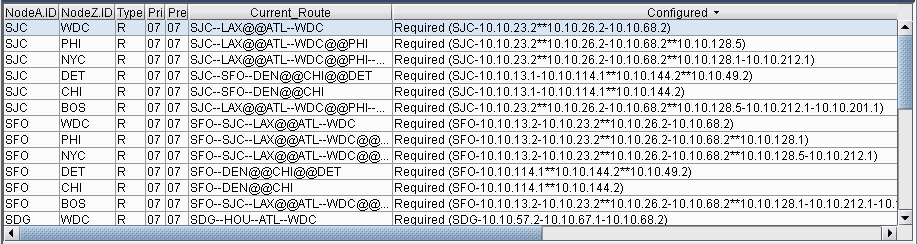

Figure 1: Configured Loose Routes Table displaying network configuration: Source Node IDs SJC, SFO; Destination Node IDs WDC, PHI; Route Type R; Priority 07; Precedence 07; Current Route with hops; Configured routing paths with IP addresses.

Table displaying network configuration: Source Node IDs SJC, SFO; Destination Node IDs WDC, PHI; Route Type R; Priority 07; Precedence 07; Current Route with hops; Configured routing paths with IP addresses.

A route can also be manually configured. For example, select a tunnel and click Modify and then select “Selected Entries.” In the bottom half of the window, there is a table with the route for the tunnel. To configure the path, double-click the cell underneath the column “Configured Route”. Here you can enter in the path, using ** to indicate a loose route after the area border routers.

Note:

The Exclude-IP-Address feature is not currently supported for inter-area tunnels.

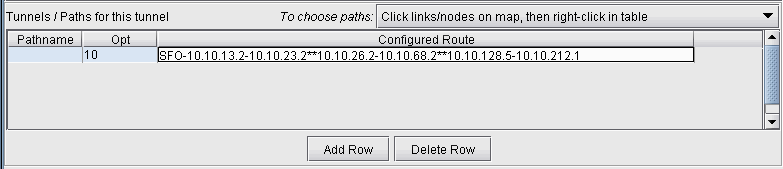

Figure 2: Configuring a Route for a Specific LSP Tunnel Network tunnel configuration interface with a table labeled Tunnels/Paths. Shows Pathname 10 and an empty Opt field. Configured Route displays IP addresses. Buttons Add Row and Delete Row are below.

Network tunnel configuration interface with a table labeled Tunnels/Paths. Shows Pathname 10 and an empty Opt field. Configured Route displays IP addresses. Buttons Add Row and Delete Row are below.

After configuring the routes as indicated in the previous step, LSP configlets can be generated for the newly created LSP tunnels. This is accomplished in Design mode, through Design > Confligets/Delta > LSP Configlet. For more information, see LSP Configlet Generation Overview.

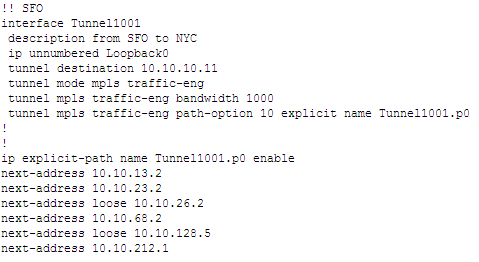

Figure 3: Example of an LSP Configlet MPLS Traffic Engineering configuration for Tunnel11001 from SFO to NYC, using explicit path and reserving 1000 bandwidth units.

MPLS Traffic Engineering configuration for Tunnel11001 from SFO to NYC, using explicit path and reserving 1000 bandwidth units.
