Reviewing and Saving the Template

After you have added your rules, right-click in the right panel and select Save to save the template, or use the shortcut <Ctrl>-s.

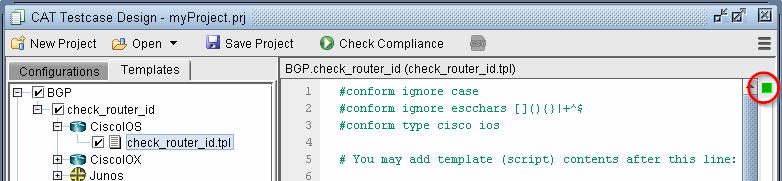

If the box in the upper right corner of the CAT Testcase Design window is green, it indicates that no errors have been found in the template.

Figure 1: Template with green box indicates no errorsSoftware interface for CAT Testcase Design tool showing project myProject.prj, toolbar with options, configurations tree, script editor with check_router_id.tpl, green play button.

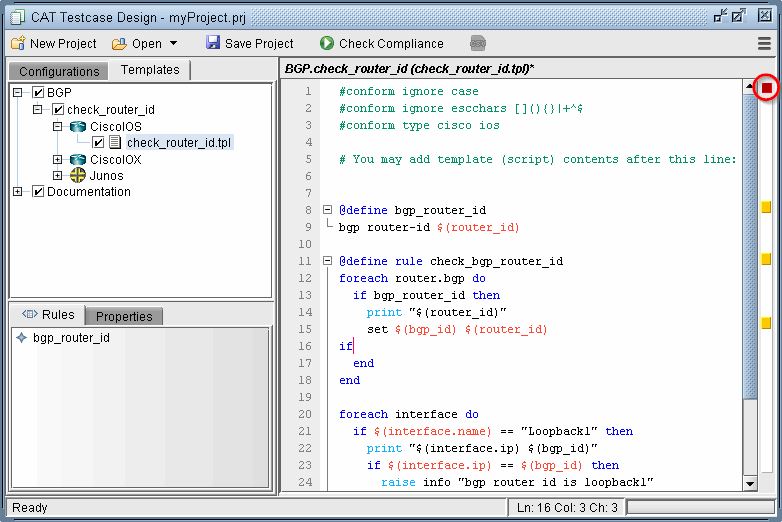

Otherwise, if an error has been found, the box in the upper right corner will be red. Double-click on the orange-colored segment on the right hand side bar to jump to the line with the error. For example, the error could be related to an incomplete if statement (with no matching “end” statement).

Figure 2: Template with red box indicates errorsSoftware interface showing CAT Testcase Design tool for network configuration. Left panel lists BGP configurations and templates. Right panel displays a script for checking BGP router IDs.

Clicking Save Project will also save any changes to the template.
