Configuring a DiffServ-Aware LSP

If Single-Class LSP is selected as the type of LSP, the user can specify the class type to be assigned to the single-class LSP.

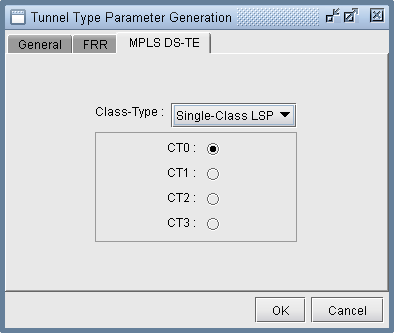

Figure 1: Assigning Class Type to a Single-cCass LSPTunnel Type Parameter Generation window: MPLS DS-TE tab with Class-Type dropdown set to Single-Class LSP, CT0 selected, OK and Cancel buttons below.

If Multi-Class LSP is selected as the type of LSP, the user can specify the amount of bandwidth to be reserved for up to four classes on the multi-class LSP.

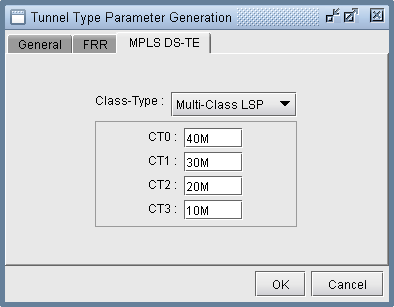

Figure 2: Assigning Bandwidth per Class to a Multi-Class LSPMPLS DS-TE tab showing Multi-Class LSP with class types CT0, CT1, CT2, CT3 and bandwidths 40M, 30M, 20M, 10M. OK and Cancel buttons included.
