VPLS-LDP VPN

The VPLS-LDP VPN, based on the IETF Lasserre/Kompella draft, is implemented by Cisco and all other vendors except Juniper. To configure a VPLS-LDP VPN, perform the following steps:

  1. First identify, for the VPLS-LDP, a set of PEs with available PE-facing-CE interfaces that can be assigned as VPLS attachment circuits.
  2. Next, bring up the Add VPN window and select VPLS-LDP VPN. In this example, we will configure a VPLS instance named VPLS-LDP0.

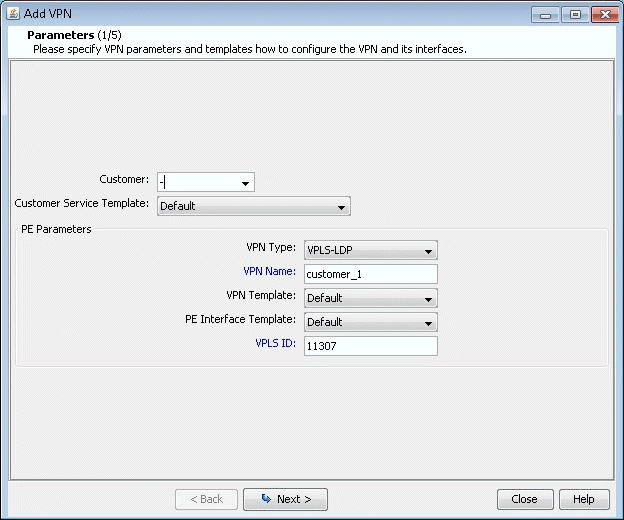

    Figure 1: Creating a VPLS-LDP VPNAdd VPN configuration window step 1 of 5 with fields for customer, VPN type VPLS-LDP, VPN name, and VPLS ID 11307. Buttons for Next, Close, and Help.
  3. Click on Next to take you to the screen to specify a VCID and to select the PEs for the VPLS instance, as shown in the following screen. If you prefer, you may select some or all the PEs in the PE Selection tab in the next screen, as described in the next step. Click on Next to continue.

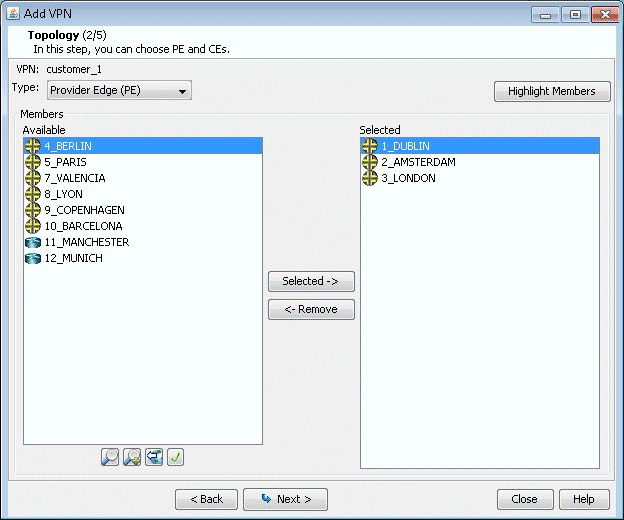

    Figure 2: Select PEs and Specify a VCIDAdd VPN wizard step 2 of 5, Topology. VPN Name: customer_1. Type: Provider Edge. Available locations: Berlin, Paris. Selected locations: Dublin, Amsterdam, London.
  4. As described in the previous step, you may select PEs in the PE Selection tab, as shown in the following screen. If you have already selected all the PEs in the previous step, then click on the Details tab to continue.
    Figure 3: Additional PEs may be select in the PE Selection tabScreenshot of a network configuration interface for VPLS setup using LDP, showing AS65534 cloud, PE devices, selected objects GV1 GV2 V_C1 with no interface, available devices like EP_R9, and configuration properties.
  5. Next, you are ready to configure the PE-facing-CE attachment circuits; this includes specifying the interface and circuit ID, bandwidth, and encapsulation.
    Figure 4: Configure VPLS-LDP DetailsVPN configuration interface for adding a Virtual Private Network using VPLS with LDP. Lists nodes GV1, GV2, V_C1 with VCID, link, encapsulation type, and bandwidth. Options to configure interfaces and remote peers. Buttons for navigation and help available.

    The encapsulation types for various vendors are:

    • Cisco: dot1qaccess, dot1qtunnel, dot1qtrunk.

    • Foundry: tagged, untagged.

    • Tellabs, Riverstone: tagged, untagged, q-in-q.

    The following figures show how an interface is assigned: First, click on the magnifying glass next to Interfaces and choose Add. Then in the Select Interface window, pick an available interface. Finally, type in the VCID for the interface

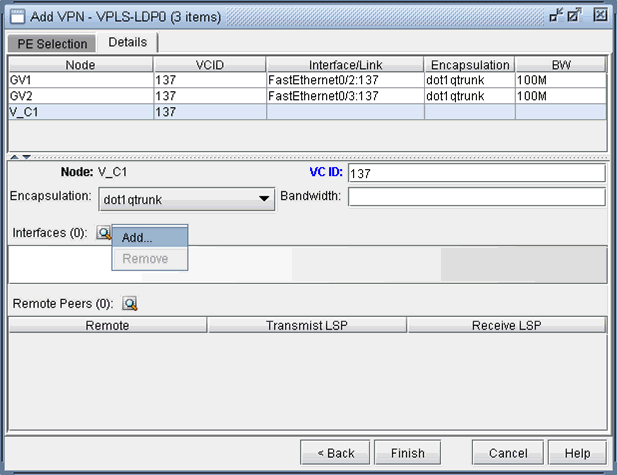

    Figure 5: Select an interfaceGraphical user interface for selecting and configuring network interfaces with interface list and properties panel.

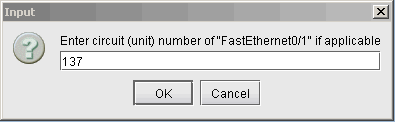

    Figure 6: Assign the Circuit ID to the interfaceDialog box titled Input prompting for circuit unit number FastEthernet0/1 with input 137 and OK and Cancel buttons.
  6. Next, you will specify, in turn, each remote peer and the transmit LSP used to reach the peer. Click on the magnifying glass next to Remote Peers to bring up the Add Remote Peer window, where you can choose the remote peer and the transmit LSP from the dropdown selection menus.
    Figure 7: Configure PE peersDialog box titled Add Remote Peer for network configuration with dropdowns for Remote GV2 and Transmit LSP LSP_81 plus Add and Cancel buttons.
  7. The following figure shows the assignment details completed for our VPLS instance, VPLS-LDP0. Click on Finish to add the VPLS instance to the model.

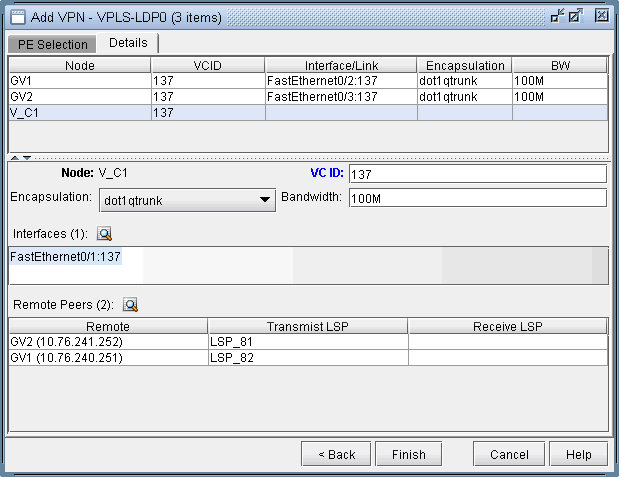

    Figure 8: VPLS-LDP instance details configuredVPN configuration interface for VPLS with LDP, showing nodes GV1, GV2, V_C1 with VCID 137, and details for node V_C1 with remote peers IPs 10.76.241.252, 10.76.240.251.
