Viewing Demands Through a Tunnel

To view all demands routed over a tunnel, right-click over the tunnel and select Show Demands Routed on Tunnel.

In the Demands window, examine the Current Route column which indicates the path taken bythe demands. Open and closed brackets in the path indicate where a tunnel is entered and exited.

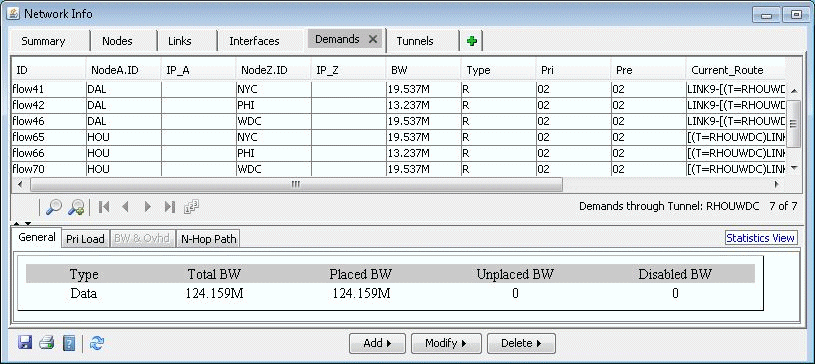

Figure 1: Demands (or Flows) Routed Through a Particular Tunnel Network management software interface displaying Network Info window with network demands details like ID, IP addresses, bandwidth, type, priority, and route. Tabs include Summary, Nodes, Links, Interfaces, Demands, and Tunnels.

Network management software interface displaying Network Info window with network demands details like ID, IP addresses, bandwidth, type, priority, and route. Tabs include Summary, Nodes, Links, Interfaces, Demands, and Tunnels.

In Figure 1, the selected demand between HOU and NYC. has the route HOU[--DAL--CHI--]WDC--PHI--NYC, indicating that the demand traversed a tunnel from Houston (HOU) to Washington D.C. (WDC).

Clicking on “Show Path” displays the path of the demand on the map. Notice that a purple color is used to indicate the portion where the demand is travelling through a tunnel.

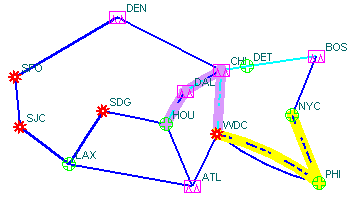

Figure 2: Path of Demand Through a Tunnel Network diagram showing connections between US cities, labeled with abbreviations like SFO, DEN, and NYC. Lines indicate routes or relationships. Different colors and symbols such as stars, squares, and circles denote node types or attributes.
