Inter-AS VPN

To construct an inter-AS VPN, you would follow the same steps as those used to construct a L3 VPN, with the additional step of specifying routers from more than one AS. The following figure shows three PEs (along with completed interface assignments) from a particular AS (65301) already added.

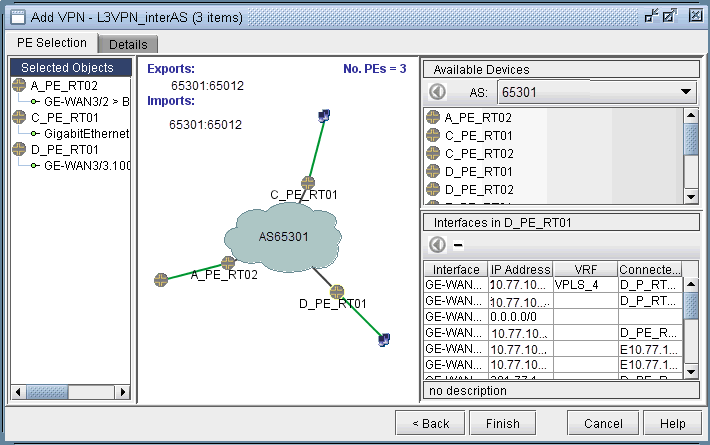

Figure 1: An inter-AS VPN being constructed, with three PEs from AS 65301 already addedAn inter-AS VPN being constructed, with three PEs from AS 65301 already added

The next step would be to choose another AS (from the AS dropdown box under Available Devices), and then select routers from it. As the following figure shows, two routers from AS 65222 were added to the VPN to create an inter-AS VPN. Interfaces were then assigned to the two routers to complete the process.

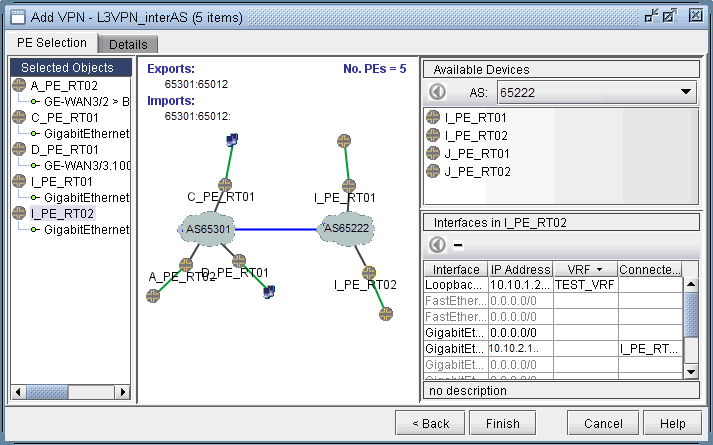

Figure 2: Adding two more PEs from another AS (65222)Adding two more PEs from another AS (65222)
