Forming VPN Customer Groups

Often times, many VPNs belong to the same customer, so you may group together multiple VPNs into a Customer Group. Once a particular Customer Group has been formed, you may create demands for it. Reports can also be filtered to show information relavant to the group only. The following steps describe how to form Customer Groups.

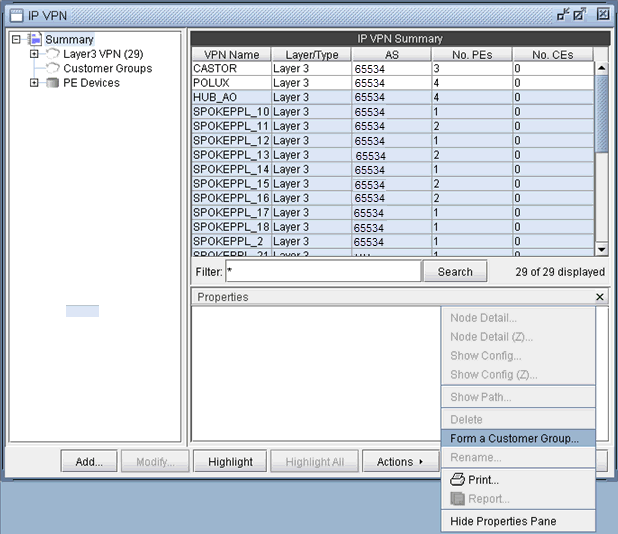

  1. First go to Summary to see a list of all the VPNs. Select one or more VPNs and choose Form a Customer Group from the Actions menu. As shown in the following figure, VPNs HUB_AO and SPOKEPPL_* have been selected to be grouped into a Customer Group.
    Figure 1: Forming a Customer GroupScreenshot of a software interface showing a summary of Layer 3 VPNs with details like VPN Name, Layer Type, AS number, and router counts.

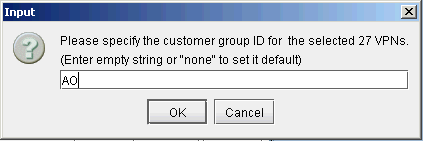

  2. Next, supply a customer group ID for the selected VPNs to group together as shown in the following figure.
    Figure 2: Supply a customer IDDialog box titled Input prompting user to specify customer group ID for 27 VPNs with AO entered in text field and OK and Cancel buttons.

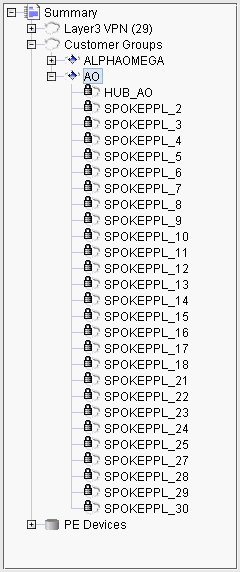

  3. In the following figure, the resultant Customer Group, AO, is shown expanded in the structured list.
    Figure 3: Customer Group AOHierarchical network configuration interface showing Summary, 29 Layer 3 VPNs, Customer Groups including ALPHAOMEGA, AO site, HUB_AO, and secured SPOKEPPL sites.
