Add/Modify/Delete Static Routes

Switch to Modify mode.

From the Map window, right-click on the node of interest and select Modify Static Route Table. Alternatively, select Modify > Protocols > Static Route Table from the main menu.

Adding a Static Route

In the Static Routing Table window, click on the Add button to open the Add Static Route window shown below.

Figure 1: Adding a static route Dialog box for adding a static route with fields for node, VRF, destination IP and mask, destination node, admin distance, next hop options, and buttons for add, reset, close, and help.

Dialog box for adding a static route with fields for node, VRF, destination IP and mask, destination node, admin distance, next hop options, and buttons for add, reset, close, and help.

Fill in the appropriate fields. Click OK when finished. The Static Routing Table window should now contain a new entry reflecting the newly added static route.

Modifying a Static Route

To modify a static route table entry, highlight the row(s) you want to edit and click the Modify button. A Modify Static Route window will appear as shown in Figure 2.

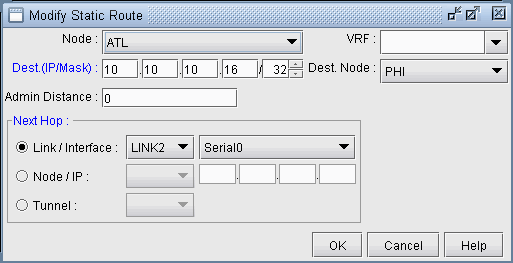

Figure 2: Modifying a static route Graphical user interface for configuring static network routes; includes fields for Node, VRF, Dest IP/Mask, Dest Node, Admin Distance, and Next Hop, with OK, Cancel, and Help buttons.

Graphical user interface for configuring static network routes; includes fields for Node, VRF, Dest IP/Mask, Dest Node, Admin Distance, and Next Hop, with OK, Cancel, and Help buttons.

Edit the appropriate fields. Click OK when finished.

The modifications to the static route should be reflected in the Static Routing Table window.

Deleting a Static Route

To delete static route(s), select the desired entries from the Static Routing Table window and click the Delete button.
