Integrating Pulse Policy Secure with Juniper Networks Connected Security


This topic provides instructions on how to integrate the third-party device Pulse Policy Secure (PPS) with Juniper Networks Connected Security solution to remediate threats from infected hosts for enterprises. The Juniper Connected Security solution provides end-to-end network visibility that enables enterprises to secure their entire physical and virtual networks. PPS provides visibility into the network by detecting and continuously monitoring the network. Using the threat detection and policy enforcement, the PPS and Juniper Connected Security solution automates the network security and supports centralised management, in a multi-vendor environment.

PPS integrates with Juniper Networks Connected Security solution through RESTful APIs and takes appropriate action based on the admission control policies. The PPS integration with Juniper Connected Security solution detects and enforces threat prevention policies and provides a collaborative and comprehensive approach towards complete network security. It enables users to leverage the existing trusted threat feed sources to provide a consistent and automated defense across diverse environments.

Benefits of the Pulse Policy Secure Integration with Juniper Connected Security

  • PPS has more visibility of endpoints connected to the network.

  • Based on the threat alerts received from Juniper Connected Security, PPS enhances the security by isolating or acting at the endpoint level.

Deployment of Pulse Policy Secure with Juniper Connected Security

The following high level workflow describes the deployment of PPS with Juniper Connected Security. PPS receives the threat alert information from Juniper Connected Security solution and takes an action on the endpoint based on the admission control policies.

  1. User successfully authenticates with the PPS server.

  2. User downloads a file from the Internet. The perimeter firewall (SRX Series device) scans the file and based on the user-defined policies, sends the scanned file to Juniper ATP Cloud for analysis.

  3. Juniper ATP Cloud detects that the file contains malware, identifies the endpoint as an infected host, and notifies the SRX Series device and Policy Enforcer.

  4. Policy Enforcer downloads the infected host feed and sends a threat action to PPS.

  5. The PPS server quarantines or blocks the endpoint.

    PPS tracks the infected host and does not allow the infected host to acquire full access until the endpoint is disinfected. When the host is disinfected and cleared from Juniper ATP Cloud or Policy Enforcer, PPS receives a clear event from the Policy Enforcer connector. After receiving the clear event, PPS removes the infected host. The host is now authenticated and an appropriate role is assigned to it.

Configuring Pulse Policy Secure with Juniper Connected Security

The network security devices are configured with PPS for admission access control.

A high-level overview of the configuration steps required to set up and run the integration is described below:

  1. The administrator configures the basic PPS configurations such as creating an authentication server, authenticating realm, user roles, and role mapping rules. To know more about configuring your PPS, see Pulse Policy Secure Administration Guide.

  2. Configure Policy Enforcer as a client in PPS. PPS acts as a RESTful API server for Policy Enforcer.

    The RESTful API access for the admin user must be enabled by accessing the serial console or alternatively from the PPS admin user interface (UI). Select Authentication>Auth Server>Administrators>Users. Click Admin and enable the Allow access to REST APIs option.

  3. Configure PPS to block or quarantine the endpoint based on the threat prevention policy.

    You must configure the admission control client to obtain the Policy Enforcer IP address that sends events to PPS and admission control policy to understand the PPS event types such as, events-block-endpoint, quarantine-endpoint, clear-blocked-endpoint, and clear-quarantine-endpoint.

  4. Configure the Switches or WLC as RADIUS Client in PPS by selecting Endpoint Policy>Network Access>Radius Clients>New Radius Client. The switch is configured with PPS as a RADIUS server.

  5. Configure RADIUS return attribute policies, to define the action upon receiving the quarantine event.

    • Quarantine using VLANs:

      The PPS determines which quarantine VLAN to send to RADIUS Client when a quarantine-endpoint event is received, as shown in Figure 1.

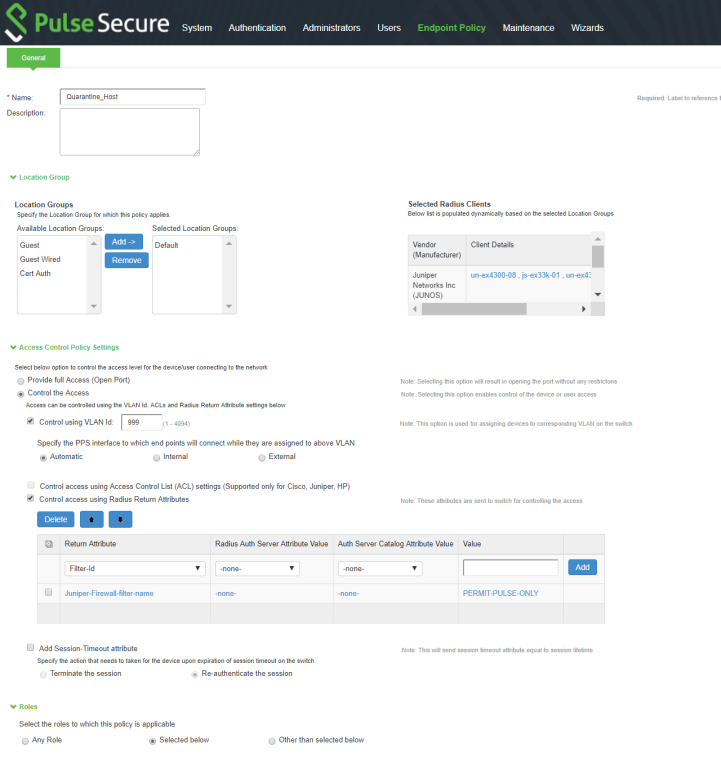

      Figure 1: RADIUS Return Attributes for Quarantine-HostRADIUS Return Attributes for Quarantine-Host
    • Quarantine using ACLs:

      For environments that has flat VLAN, the PPS provides the ability to quarantine users by applying a preconfigured firewall filter. Also, this is a preferred method in environments that use static IP address assignment for end devices.

      The following example shows the firewall filter configuration on the switch. The firewall filter name is then passed on as RADIUS return attribute, as shown in Figure 2.

      Configure the PERMIT-PULSE-ONLY and PERMIT-ALL firewall filters on the switch using the following commands:

      set firewall family ethernet-switching filter PERMIT-PULSE-ONLY term pps from destination-address

      set firewall family ethernet-switching filter PERMIT-PULSE-ONLY term pps then accept

      set firewall family ethernet-switching filter PERMIT-PULSE-ONLY term dhcp_allow from destination-port 67

      set firewall family ethernet-switching filter PERMIT-PULSE-ONLY term dhcp_allow then accept

      set firewall family ethernet-switching filter PERMIT-PULSE-ONLY term pps-discard then discard

      deactivate firewall family ethernet-switching filter PERMIT-PULSE-ONLY

      set firewall family ethernet-switching filter PERMIT-ALL term ALLOW-ALL from destination-address

      set firewall family ethernet-switching filter PERMIT-ALL term ALLOW-ALL then accept

      deactivate firewall family ethernet-switching filter PERMIT-ALL

    To assign these filters in PPS, select Endpoint Policy>Network Access>Radius Attributes>Return Attributes.

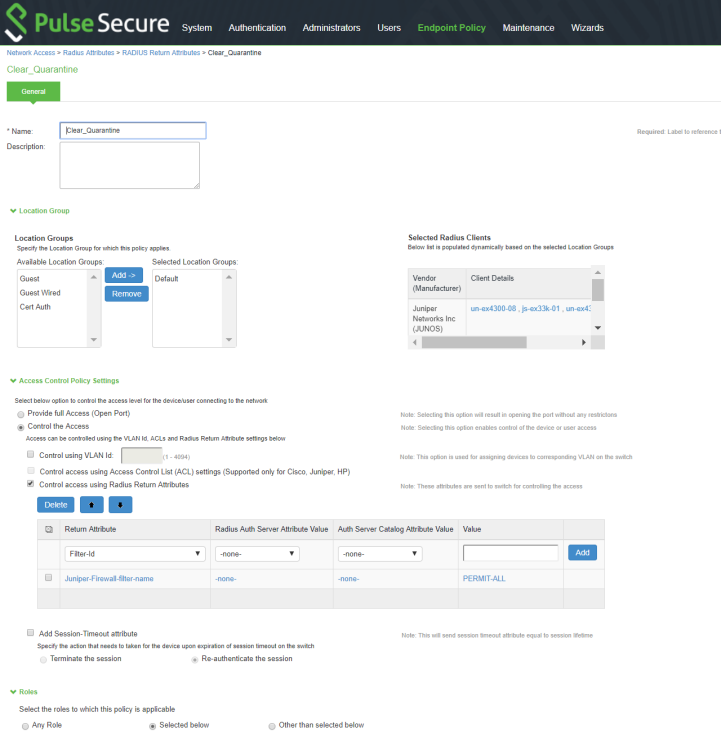

    Figure 2: RADIUS Return Attributes for Clear-QuarantineRADIUS Return Attributes for Clear-Quarantine
  • Ensure that PPS has the endpoint IP address for the enforcement to work correctly.

  • Since the endpoint IP address is mandatory, deployments where the user is behind a NAT might not work as expected. This is because PPS might have the actual IP address, and Juniper Connected Security might send the NATed IP address.

  • To receive the endpoint IP address (accounting information) by PPS, you must use the Pulse Secure client on endpoints when they are connected to EX4300 Series switches.

Admission Control Template

The admission control template provides a list of possible events that can be received from the network security device along with the regular expression to parse the message. The template also provides possible actions that can be taken for an event.

PPS is loaded with default templates for Policy Enforcer. The administrators can create templates for other security devices and upload those templates.

To view the admission control templates, select Endpoint Policy>Admission Control>Templates, as shown in Figure 3. You can view the list of configured integration templates with the list of network security devices and the supported protocol types.

Figure 3: Pulse Secure Templates PagePulse Secure Templates Page

Admission Control Policies

The admission control policies define the list of actions to be performed on PPS for the user sessions. The actions are based on the event and the severity of the information received from the network security device.

To view and add the new integration policy:

  1. Select Endpoint Policy>Admission Control>Policies.
  2. Click New Policy.

    The New Policy page appears, as shown in Figure 4.

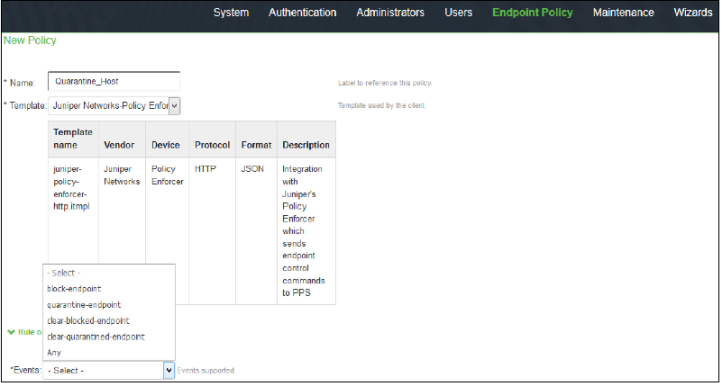

    Figure 4: Pulse Secure - New Policy PagePulse Secure - New Policy Page
  3. Enter the policy name.
  4. Select Juniper Networks Policy Enforcer as a template.
  5. In the Rule on receiving section, select one of the following event types and the severity level. The event types and the severity level are based on the selected template.

    The following event types are supported on sessions:

    • Block-endpoint—Blocks the host MAC Address on the PPS permanently. If the administrator chooses to clear the blocked endpoint, it can be cleared either by using the Junos Space Security Director application or by using the PPS Administration UI.

    • Quarantine-endpoint (Change user roles)—Changes the roles assigned to the user on PPS so that restrictions or privileges for the user can be changed. The administrator can choose to apply these roles permanently or temporarily. If it is permanent, system is directly quarantined regardless of which network it connects to.

    • Clear Blocked Endpoint—Clears a previously blocked MAC Address.

    • Clear Quarantined Endpoint—Clears a previously quarantined MAC Address.

  6. In the then perform this action section, select the following desired action:
    • Select a role and assign it to the endpoint to put that endpoint into a quarantine network.

    • In the Make this role assignment option, specify the following actions:

      • Permanent—To apply the role assignment permanently. This is the recommended option. Choose this option for the action to persist.

      • For this session only—To apply the role assignment only for the current session.

  7. In the Roles section, specify the following options:
    • Policy applies to ALL roles—To apply the policy to all users.

    • Policy applies to SELECTED roles—To apply this policy only to users who are mapped to roles in the Selected roles list. You must add roles to this list from the Available roles list.

    • Policy applies to all roles OTHER THAN those selected below—To apply this policy to all users except for those who are mapped to the roles in the Selected roles list. You must add roles to this list from the Available roles list.


    These options are applicable to both quarantine and block actions.

  8. Click Save changes.

Once the policy is created, you can see the summary page. Figure 5 shows the different policies created for different events with different user roles.

Figure 5: Pulse Secure - Policies Configure PagePulse Secure - Policies Configure Page

Admission Control Client

The admission control clients are the network security devices on which the syslog forwarding is enabled. The messages are received by the syslog server module running on PPS.

To add a client:

  1. Select Endpoint Policy>Admission Control>Clients.
  2. Click New Client.

    The New Client page appears, as shown in Figure 6.

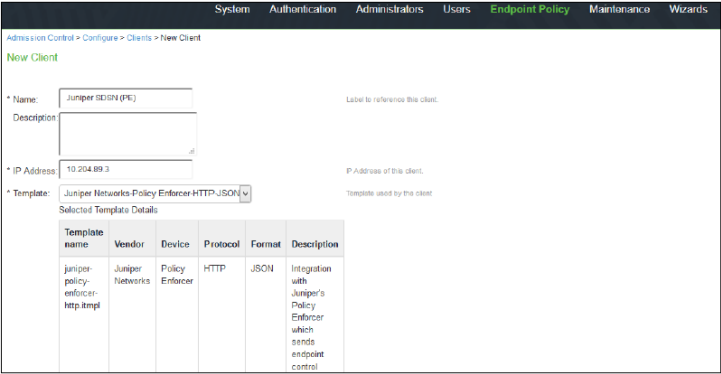

    Figure 6: Pulse Secure - New Client PagePulse Secure - New Client Page
  3. Enter the name of the Juniper Networks Policy Enforcer. This is added as a client in the PPS.
  4. Enter the description.
  5. Enter the IP address of the client.
  6. Select the template used by the client: JuniperNerworks-Policy Enforcer-HTTP-JSON.
  7. Click Save Changes.

    Policy Enforcer is added a new client in the PPS.

Creating Pulse Policy Secure Connector in Security Director

Once you add Policy Enforcer as a client in PPS, create a connector for PPS to configure the Juniper Connected Security to send the event information.

To create a connector for PPS and configure Juniper Connected Security using Security Director:

  1. Select Security Director>Administration>Policy Enforcer>Connectors.

    The Connectors page appears.

  2. Click the create icon (+).

    The Create Connector page appears, as shown in Figure 7.

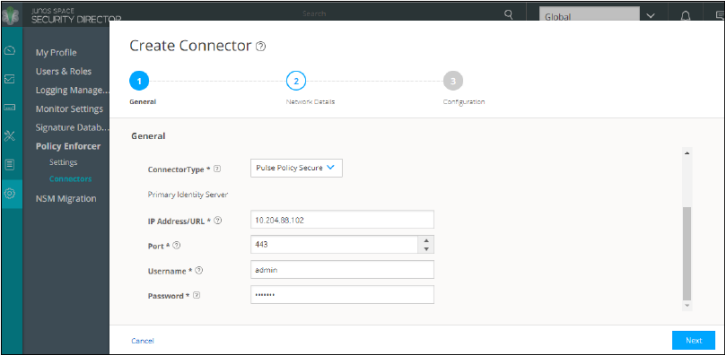

    Figure 7: Create Connector PageCreate Connector Page
  3. In the General tab, select Pulse Policy Secure in the ConnectorType list.
  4. In the IP Address/URL field, enter the IP address of PPS.
  5. Retain the default port number as 443.
  6. Enter the username and password of PPS.

    Note that you must have enabled the REST API access on PPS (Authentication > Auth Server > Administrators > Users > click “admin”, enable Allow access to REST APIs).

  7. Click Next.
  8. In the Network Details section, configure the IP subnets, as shown in Figure 8.

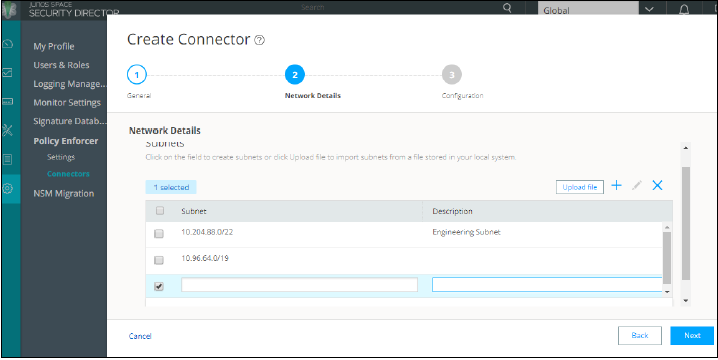

    Figure 8: Create Connector Network Details PageCreate Connector Network Details Page
  9. In the Configuration tab, provide any additional information required for this specific connector connection.
  10. Click Finish.

    Once the configuration is successful the following page is displayed, as shown in Figure 9.

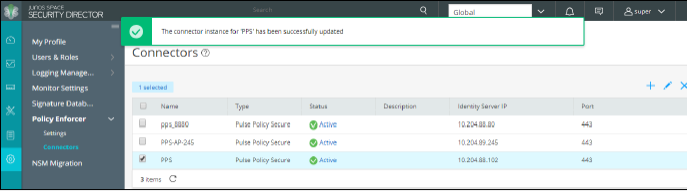

    Figure 9: Connectors PageConnectors Page
  11. Verify that the communication between Policy Enforcer and PPS is working.

    After installing PPS and configuring a connector, in the PPS UI, create policies for PPS to take the necessary action on the infected hosts.


The following troubleshooting logs are available:

  • To verify the event logs on PPS, select System>Log/Monitoring>Events.

    You can verify that the event logs are generated every time when an event is received from Policy Enforcer, as shown in Figure 10.

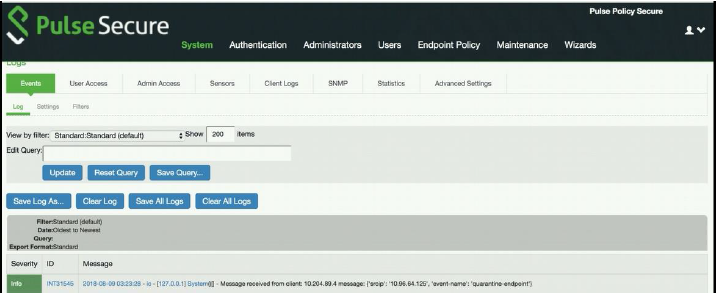

    Figure 10: Pulse Secure Events PagePulse Secure Events Page
  • To verify the user login related logs such as realm, roles, username, and IP address, select System>Logs & Monitoring>User Access.

  • To verify the reports, select System>Reports>Infected Hosts.

    You can verify whether the quarantined or blocked host is listed in the Infected Devices report. This report lists the MAC address, IP address, and the device status, as shown in Figure 11.

    Figure 11: Infected Hosts Reports PageInfected Hosts Reports Page
  • To enable the debug logs for troubleshooting, select Maintenance>Troubleshooting>Monitoring>Debug Log, as shown in Figure 12.

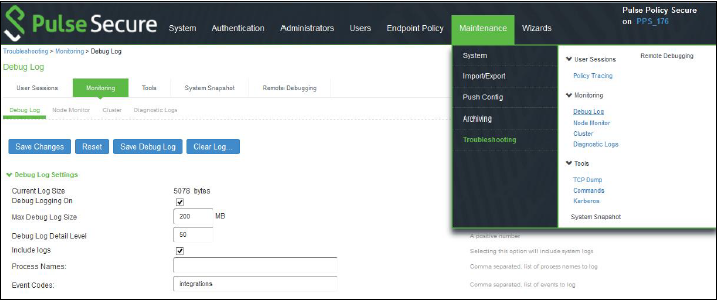

    Figure 12: Debug Log Monitoring PageDebug Log Monitoring Page
  • To troubleshoot any issues on the Policy Enforcer, download and verify the Policy Enforcer logs from Security Director>Administration>Policy Enforcer>Settings page, as shown in Figure 13.

    Figure 13: Policy Enforcer Settings PagePolicy Enforcer Settings Page
  • The administrators can also verify the Hosts table from Juniper ATP Cloud to check the status of the host, as shown in Figure 14.

    You can clear the host entry if the State Of Investigation field value is Resolved-Fixed.

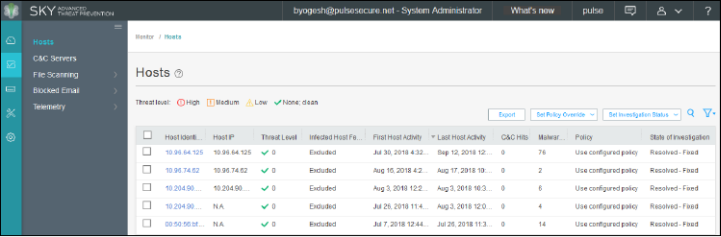

    Figure 14: Juniper ATP Cloud Hosts PageJuniper ATP Cloud Hosts Page
