Example: Configuring Data Center Interconnect with Bare Metal Server EVPN Type 5
This example describes how to interconnect data centers with bare metal server (BMS) EVPN type 5 and the Juniper Networks QFX5100 and QFX10002 line of switches.
Requirements
Table 1 lists the hardware and software components used in this example.
Device |
Hardware |
Software |
|---|---|---|
Core Routers |
MX480 |
Junos OS Release 14.2R2.8 |
Fabric Layer |
QFX5100-24Q |
Junos OS Release 14.1X53-D27.3 |
Spine Layer |
QFX10002-78Q |
Junos OS Release 14.1X53-D27.3 |
Leaf Devices |
QFX5100-48S |
Junos OS Release 14.1X53-D27.3 |
Route Server |
QFX10002-78Q |
Junos OS Release 14.1X53-D27.3 |
Servers |
IBM Flex and IBMx3750 |
VMware ESXi 5.1 |
Overview and Topology
The topology used in this example consists of two MX480 devices as core routers; a series of QFX5100 and QFX10002 devices at the fabric, spine, and leaf layers; a QFX10002-78Q device as a router server; and various bare metal servers (BMS) in the server racks as shown in Figure 1.

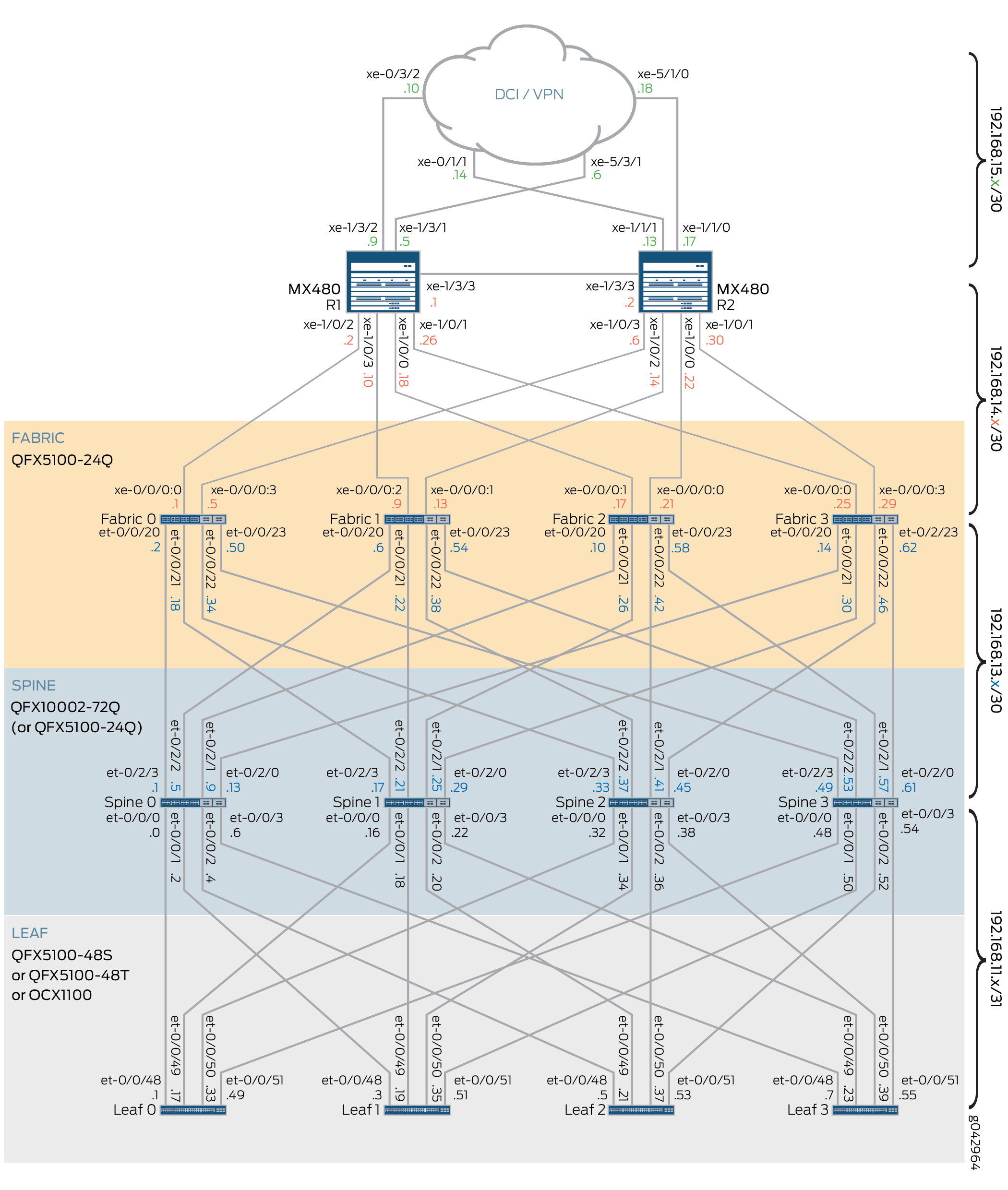

Figure 1: BMS EVPN Type 5 Solution Topology
In this example, the leaf layer uses four QFX5100-48S switches. The spine layer uses four QFX10002-78Q switches. The fabric layer uses four QFX5100-24Q switches. The core layer uses two MX480 routers. A series of servers are attached to the leaf layer to serve as typical data center end hosts.
Table 2 and Table 3 list the IP addressing used in this example.
IPv4 Network Subnets |
Network |
|---|---|
Fabric to Spine point-to-point (PTP) links |
110.100.1.0/24, 110.100.2.0/24,110.100.3.0/24, 110.100.4.0/24 |
Spine to Leaf PTP links |
101.1.0.0/16 |
Loopback IP range for all VRFs |
101.1/16 |
Inet.0 for route-server |
100.100.101.1/24 |
TOR-1 IRB |
1.1.0.0/16 |
TOR-2 IRB |
2.2.0.0/16 |
TOR-3 IRB |
3.3.0.0/16 |
TOR-4 IRB |
4.4.0.0/16 |
Route server IP addresses |
100.100.250.1 and 100.100.250.2 |
IPv6 Network Subnets |
Network |
|---|---|
Spine to Leaf PTP links |
::ffff.101.1.../127 |
Loopback IP range for all VRFs |
::ffff:100.100.../127 |
TOR-1 IRB |
1001:0:1::1/64 |
TOR-2 IRB |
2001:0:1::1/64 |
TOR-3 IRB |
3001:0:1::1/64 |
TOR-4 IRB |
4001:0:1::1/64 |
Table 4 lists the AS numbering used in this example.
Device |
AS Number |
|---|---|
TOR-1 |
65100 |
TOR-2 |
65100 |
TOR-3 |
65101 |
TOR-4 |
65101 |
Spine-1 |
65200 |
Spine-2 |
65200 |
Spine-3 |
65201 |
Spine-4 |
65201 |
Fabric-1 |
65300 |
Fabric-2 |
65300 |
Fabric-3 |
65300 |
Fabric-4 |
65300 |
Configuration
To configure data center interconnect with BMS EVPN type 5, perform these tasks:
CLI Quick Configuration
Configuration Snippets of VRFs on Leaf Towards Spine
To quickly configure the additional elements for the leaf devices, enter the following configuration statements on each device:
Note:
The configuration shown here applies to device Leaf-0.
Leaf-0 Global Configuration
[edit] set routing-options router-id 100.100.255.100 set routing-options route-distinguisher-id 100.100.255.101 set routing-options autonomous-system 65410 set routing-options autonomous-system loops 2
set chassis fpc 0 pic 0 port 22 channel-speed 10g set chassis fpc 0 pic 0 port 23 channel-speed 10g set chassis forwarding-options 13-profile
Leaf-0 ECMP Configuration
[edit] set policy-options policy-statement LOAD_BALANCE term 1 then load-balance per-packet set policy-options policy-statement LOAD_BALANCE term 1 then accept set routing-options forwarding-table export LOAD_BALANCE
Leaf-0 BGP Policy Configuration
[edit] set policy-options policy-statement DIST-IN term t1 then load-balance per-packet set policy-options policy-statement DIST-IN-COSTOUT from policy DIST-IN set policy-options policy-statement DIST-IN-COSTOUT then as-path-prepend 65001
set policy-options policy-statement EXPORT-CONNECTED term inet-loopback from family inet set policy-options policy-statement EXPORT-CONNECTED term inet-loopback from protocol direct set policy-options policy-statement EXPORT-CONNECTED term inet-loopback from route-filter 0.0.0.0/0 prefix-length-range /32-/32 set policy-options policy-statement EXPORT-CONNECTED term inet-loopback then accept set policy-options policy-statement EXPORT-CONNECTED term inet6-loopback from family inet6 set policy-options policy-statement EXPORT-CONNECTED term inet6-loopback from protocol direct set policy-options policy-statement EXPORT-CONNECTED term inet6-loopback from route-filter ::0/0 prefix-length-range /128-/128 set policy-options policy-statement EXPORT-CONNECTED term inet6-loopback then accept set policy-options policy-statement EXPORT-CONNECTED term deny-em0 from protocol direct set policy-options policy-statement EXPORT-CONNECTED term deny-em0 from interface em0.0 set policy-options policy-statement EXPORT-CONNECTED term deny-emo then reject set policy-options policy-statement EXPORT-CONNECTED term inet-irb from family inet set policy-options policy-statement EXPORT-CONNECTED term inet-irb from protocol direct set policy-options policy-statement EXPORT-CONNECTED term inet-irb then accept set policy-options policy-statement EXPORT-CONNECTED term iinet6-irb from family inet6 set policy-options policy-statement EXPORT-CONNECTED term inet6-irb from protocol direct set policy-options policy-statement EXPORT-CONNECTED term inet6-irb then accept set policy-options policy-statement EXPORT-CONNECTED term bgp-routes from protocol bgp set policy-options policy-statement EXPORT-CONNECTED term bgp-routes then accept set policy-options policy-statement EXPORT-CONNECTED-COSTOUT from policy EXPORT-CONNECTED set policy-options policy-statement EXPORT-CONNECTED-COSTOUT then as-path-prepend 65100
set policy-options policy-statement export-RS term RS from route-filter 100.110.250.1/32 exact set policy-options policy-statement export-RS term RS then accept
set policy-options policy-statement spine-lo term 1o from protocol bgp set policy-options policy-statement spine-lo term 1o from route-filter 100.100.250.1/32 exact set policy-options policy-statement spine-lo term 1o from route-filter 100.100.250.2/32 exact set policy-options policy-statement spine-lo term 1o from route-filter 100.100.250.2/32 exact set policy-options policy-statement spine-lo term 1o from route-filter 100.100.250.2/32 exact set policy-options policy-statement spine-lo term 1o then accept
Customer-1 Leaf-to-Spine
Uplink 40G Configuration for VRF-lite1 (6 x uplinks to Spine1 and Spine2)
[edit] set interfaces et-0/0/0 flexible-vlan-tagging set interfaces et-0/0/0 unit 1 vlan-id 1 set interfaces et-0/0/0 unit 1 family inet address 101.1.101.1/31 set interfaces et-0/0/0 unit 1 family inet6 address ::ffff:101.1.101.1/127
set interfaces et-0/0/1 flexible-vlan-tagging set interfaces et-0/0/1 unit 1 vlan-id 1 set interfaces et-0/0/1 unit 1 family inet address 101.1.101.3/31 set interfaces et-0/0/1 unit 1 family inet6 address ::ffff:101.1.101.3/127
set interfaces et-0/0/2 flexible-vlan-tagging set interfaces et-0/0/2 unit 1 vlan-id 1 set interfaces et-0/0/2 unit 1 family inet address 101.1.101.13/31 set interfaces et-0/0/2 unit 1 family inet6 address ::ffff:101.1.101.13/127
set interfaces et-0/0/3 flexible-vlan-tagging set interfaces et-0/0/3 unit 1 vlan-id 1 set interfaces et-0/0/3 unit 1 family inet address 101.1.101.15/31 set interfaces et-0/0/3 unit 1 family inet6 address ::ffff:101.1.101.15/127
set interfaces et-0/0/4 flexible-vlan-tagging set interfaces et-0/0/4 unit 1 vlan-id 1 set interfaces et-0/0/4 unit 1 family inet address 101.1.101.5/31 set interfaces et-0/0/4 unit 1 family inet6 address ::ffff:101.1.101.5/127
set interfaces et-0/0/5 flexible-vlan-tagging set interfaces et-0/0/5 unit 1 vlan-id 1 set interfaces et-0/0/5 unit 1 family inet address 101.1.101.7/31 set interfaces et-0/0/5 unit 1 family inet6 address ::ffff:101.1.101.7/127
set interfaces et-0/0/6 flexible-vlan-tagging set interfaces et-0/0/6 unit 1 vlan-id 1 set interfaces et-0/0/6 unit 1 family inet address 101.1.101.17/31 set interfaces et-0/0/6 unit 1 family inet6 address ::ffff:101.1.101.17/127
set interfaces et-0/0/7 flexible-vlan-tagging set interfaces et-0/0/7 unit 1 vlan-id 1 set interfaces et-0/0/7 unit 1 family inet address 101.1.101.19/31 set interfaces et-0/0/7 unit 1 family inet6 address ::ffff:101.1.101.19/127
set interfaces et-0/0/8 flexible-vlan-tagging set interfaces et-0/0/8 unit 1 vlan-id 1 set interfaces et-0/0/8 unit 1 family inet address 101.1.101.9/31 set interfaces et-0/0/8 unit 1 family inet6 address ::ffff:101.1.101.9/127
set interfaces et-0/0/9 flexible-vlan-tagging set interfaces et-0/0/9 unit 1 vlan-id 1 set interfaces et-0/0/9 unit 1 family inet address 101.1.101.11/31 set interfaces et-0/0/9 unit 1 family inet6 address ::ffff:101.1.101.11/127
set interfaces et-0/0/10 flexible-vlan-tagging set interfaces et-0/0/10 unit 1 vlan-id 1 set interfaces et-0/0/10 unit 1 family inet address 101.1.101.21/31 set interfaces et-0/0/10 unit 1 family inet6 address ::ffff:101.1.101.21/127
set interfaces et-0/0/11 flexible-vlan-tagging set interfaces et-0/0/11 unit 1 vlan-id 1 set interfaces et-0/0/11 unit 1 family inet address 101.1.101.23/31 set interfaces et-0/0/11 unit 1 family inet6 address ::ffff:101.1.101.23/127
Customer Routing Instance Configuration (VRF-1)
[edit] set routing-instance VRF_lite1 instance-type vrf set routing-instance VRF_lite1 interface et-0/0/0.1 set routing-instance VRF_lite1 interface et-0/0/1.1 set routing-instance VRF_lite1 interface et-0/0/2.1 set routing-instance VRF_lite1 interface et-0/0/3.1 set routing-instance VRF_lite1 interface et-0/0/4.1 set routing-instance VRF_lite1 interface et-0/0/5.1 set routing-instance VRF_lite1 interface et-0/0/6.1 set routing-instance VRF_lite1 interface et-0/0/7.1 set routing-instance VRF_lite1 interface et-0/0/8.1 set routing-instance VRF_lite1 interface et-0/0/9.1 set routing-instance VRF_lite1 interface et-0/0/10.1 set routing-instance VRF_lite1 interface et-0/0/11.1 set routing-instance VRF_lite1 interface irb.1 set routing-instance VRF_lite1 interface irb.2 set routing-instance VRF_lite1 interface irb.3 set routing-instance VRF_lite1 interface irb.4 set routing-instance VRF_lite1 interface irb.5 set routing-instance VRF_lite1 interface lo0.1 set routing-instance VRF_lite1 vrf-target target:65100:1 set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 type external set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 advertise-peer-as set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 import DIST-IN set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 family inet unicast set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 family inet6 unicast set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 export EXPORT-CONNECTED set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 peer-as 65200 set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 multipath
####### Spine-2 6 X BGP sessions for multipath #####
set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 neighbor 101.1.101.12 set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 neighbor 101.1.101.14 set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 neighbor 101.1.101.16 set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 neighbor 101.1.101.18 set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 neighbor 101.1.101.20 set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 neighbor 101.1.101.22
####### Spine-1 6 X BGP sessions for multipath #####
set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 neighbor 101.1.101.0 set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 neighbor 101.1.101.2 set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 neighbor 101.1.101.4 set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 neighbor 101.1.101.6 set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 neighbor 101.1.101.8 set routing-instance VRF_lite1 protocols bgp group dist-eBGPv4 neighbor 101.1.101.10
VLAN Configuration for VRF-1 (5 VLANs per Customer VRF)
[edit] set vlans VRF1 vlan-id 1 set vlans VRF1 l3-interface irb-1 set vlans VRF1 vlan-id 2 set vlans VRF1 l3-interface irb-2 set vlans VRF1 vlan-id 3 set vlans VRF1 l3-interface irb-3 set vlans VRF1 vlan-id 4 set vlans VRF1 l3-interface irb-4 set vlans VRF1 vlan-id 5 set vlans VRF1 l3-interface irb-5
IRB Interface Configuration
[edit] set interfaces irb unit 1 family inet address 1.1.1.1/24 set interfaces irb unit 1 family inet6 address 1001:0:1::1/64 set interfaces irb unit 2 family inet address 1.1.2.1/24 set interfaces irb unit 2 family inet6 address 1002:0:1::1/64 set interfaces irb unit 3 family inet address 1.1.3.1/24 set interfaces irb unit 3 family inet6 address 1003:0:1::1/64 set interfaces irb unit 4 family inet address 1.1.4.1/24 set interfaces irb unit 4 family inet6 address 1004:0:1::1/64 set interfaces irb unit 5 family inet address 1.1.5.1/24 set interfaces irb unit 5 family inet6 address 1005:0:1::1/64
Customer-2 Leaf-to-Spine
Uplink 40G Configuration for VRF-lite2 (6 x uplinks to Spine1 and Spine2)
[edit] set interfaces et-0/0/0 unit 2 vlan-id 2 set interfaces et-0/0/0 unit 2 family inet address 101.2.101.1/31 set interfaces et-0/0/0 unit 2 family inet6 address ::ffff:101.2.101.1/127
set interfaces et-0/0/1 unit 2 vlan-id 2 set interfaces et-0/0/1 unit 2 family inet address 101.2.101.3/31 set interfaces et-0/0/1 unit 2 family inet6 address ::ffff:101.2.101.3/127
set interfaces et-0/0/2 unit 2 vlan-id 2 set interfaces et-0/0/2 unit 2 family inet address 101.2.101.13/31 set interfaces et-0/0/2 unit 2 family inet6 address ::ffff:101.2.101.13/127
set interfaces et-0/0/3 unit 2 vlan-id 2 set interfaces et-0/0/3 unit 2 family inet address 101.2.101.15/31 set interfaces et-0/0/3 unit 2 family inet6 address ::ffff:101.2.101.15/127
set interfaces et-0/0/4 unit 2 vlan-id 2 set interfaces et-0/0/4 unit 2 family inet address 101.2.101.5/31 set interfaces et-0/0/4 unit 2 family inet6 address ::ffff:101.2.101.5/127
set interfaces et-0/0/5 unit 2 vlan-id 2 set interfaces et-0/0/5 unit 2 family inet address 101.2.101.7/31 set interfaces et-0/0/5 unit 2 family inet6 address ::ffff:101.2.101.7/127
set interfaces et-0/0/6 unit 2 vlan-id 2 set interfaces et-0/0/6 unit 2 family inet address 101.2.101.17/31 set interfaces et-0/0/6 unit 2 family inet6 address ::ffff:101.2.101.17/127
set interfaces et-0/0/7 unit 2 vlan-id 2 set interfaces et-0/0/7 unit 2 family inet address 101.2.101.19/31 set interfaces et-0/0/7 unit 2 family inet6 address ::ffff:101.2.101.19/127
set interfaces et-0/0/8 unit 2 vlan-id 2 set interfaces et-0/0/8 unit 2 family inet address 101.2.101.9/31 set interfaces et-0/0/8 unit 2 family inet6 address ::ffff:101.2.101.9/127
set interfaces et-0/0/9 unit 2 vlan-id 2 set interfaces et-0/0/9 unit 2 family inet address 101.2.101.11/31 set interfaces et-0/0/9 unit 2 family inet6 address ::ffff:101.2.101.11/127
set interfaces et-0/0/10 unit 2 vlan-id 2 set interfaces et-0/0/10 unit 2 family inet address 101.2.101.21/31 set interfaces et-0/0/10 unit 2 family inet6 address ::ffff:101.2.101.21/127
set interfaces et-0/0/11 unit 2 vlan-id 2 set interfaces et-0/0/11 unit 2 family inet address 101.2.101.23/31 set interfaces et-0/0/11 unit 2 family inet6 address ::ffff:101.2.101.23/127
Customer Routing Instance Configuration (VRF-2)
[edit] set routing-instance VRF_lite2 instance-type vrf set routing-instance VRF_lite2 interface et-0/0/0.2 set routing-instance VRF_lite2 interface et-0/0/1.2 set routing-instance VRF_lite2 interface et-0/0/2.2 set routing-instance VRF_lite2 interface et-0/0/3.2 set routing-instance VRF_lite2 interface et-0/0/4.2 set routing-instance VRF_lite2 interface et-0/0/5.2 set routing-instance VRF_lite2 interface et-0/0/6.2 set routing-instance VRF_lite2 interface et-0/0/7.2 set routing-instance VRF_lite2 interface et-0/0/8.2 set routing-instance VRF_lite2 interface et-0/0/9.2 set routing-instance VRF_lite2 interface et-0/0/10.2 set routing-instance VRF_lite2 interface et-0/0/11.2 set routing-instance VRF_lite2 interface irb.6 set routing-instance VRF_lite2 interface irb.7 set routing-instance VRF_lite2 interface irb.8 set routing-instance VRF_lite2 interface irb.9 set routing-instance VRF_lite2 interface irb.10 set routing-instance VRF_lite2 interface lo0.1 set routing-instance VRF_lite2 vrf-target target:65100:21 set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 type external set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 advertise-peer-as set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 import DIST-IN set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 family inet unicast set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 family inet6 unicast set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 export EXPORT-CONNECTED set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 peer-as 65200 set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 multipath
####### Spine-1 6 X BGP sessions for multipath #####
set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 neighbor 101.2.101.12 set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 neighbor 101.2.101.14 set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 neighbor 101.2.101.16 set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 neighbor 101.2.101.18 set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 neighbor 101.2.101.20 set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 neighbor 101.2.101.22
####### Spine-2 6 X BGP sessions for multipath #####
set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 neighbor 101.2.101.0 set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 neighbor 101.2.101.2 set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 neighbor 101.2.101.4 set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 neighbor 101.2.101.6 set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 neighbor 101.2.101.8 set routing-instance VRF_lite2 protocols bgp group dist-eBGPv4 neighbor 101.2.101.10
VLAN Configuration for VRF-2 (5 VLANs per Customer VRF)
[edit] set vlans VRF1 vlan-id 6 set vlans VRF1 l3-interface irb-6 set vlans VRF1 vlan-id 7 set vlans VRF1 l3-interface irb-7 set vlans VRF1 vlan-id 8 set vlans VRF1 l3-interface irb-8 set vlans VRF1 vlan-id 9 set vlans VRF1 l3-interface irb-9 set vlans VRF1 vlan-id 10 set vlans VRF1 l3-interface irb-10
IRB Interface Configuration (VRF-2)
[edit] set interfaces irb unit 6 family inet address 1.1.6.1/24 set interfaces irb unit 6 family inet6 address 1006:0:1::1/64 set interfaces irb unit 7 family inet address 1.1.7.1/24 set interfaces irb unit 7 family inet6 address 1007:0:1::1/64 set interfaces irb unit 8 family inet address 1.1.8.1/24 set interfaces irb unit 8 family inet6 address 1008:0:1::1/64 set interfaces irb unit 9 family inet address 1.1.9.1/24 set interfaces irb unit 9 family inet6 address 1009:0:1::1/64 set interfaces irb unit 10 family inet address 1.1.10.1/24 set interfaces irb unit 10 family inet6 address 100a:0:1::1/64
Leaf-0 Port Configurtion for VRF_lite1 and VRF_lite2
[edit] set interfaces xe-0/0/22:3 mtu 9192 set interfaces xe-0/0/22:3 unit 0 family ethernet-switching interface-mode trunk set interfaces xe-0/0/22:3 unit 0 family ethernet-switching vlan members VRF1 set interfaces xe-0/0/22:3 unit 0 family ethernet-switching vlan members VRF2
Configure Interfaces Toward Fabric: Two Links to each of Four Fabrics
[edit] set interfaces et-0/0/36 description Fabric-1:et-0/0/4 set interfaces et-0/0/36 unit 0 family inet address 110.100.1.1/31 set interfaces et-0/0/36 unit 0 family inet6 address ::ffff:110.100.1.1/127
set interfaces et-0/0/40 description Fabric-1:et-0/0/5 set interfaces et-0/0/40 unit 0 family inet address 110.100.1.3/31 set interfaces et-0/0/40 unit 0 family inet6 address ::ffff:110.100.1.3/127
set interfaces et-0/0/37 description Fabric-2:et-0/0/4 set interfaces et-0/0/37 unit 0 family inet address 110.100.1.5/31 set interfaces et-0/0/37 unit 0 family inet6 address ::ffff:110.100.1.5/127
set interfaces et-0/0/41 description Fabric-2:et-0/0/5 set interfaces et-0/0/41 unit 0 family inet address 110.100.1.7/31 set interfaces et-0/0/41 unit 0 family inet6 address ::ffff:110.100.1.7/127
set interfaces et-0/0/38 description Fabric-3:et-0/0/4 set interfaces et-0/0/38 unit 0 family inet address 110.100.1.9/31 set interfaces et-0/0/38 unit 0 family inet6 address ::ffff:110.100.1.9/127
set interfaces et-0/0/42 description Fabric-3:et-0/0/5 set interfaces et-0/0/42 unit 0 family inet address 110.100.1.13/31 set interfaces et-0/0/42 unit 0 family inet6 address ::ffff:110.100.1.13/127
set interfaces et-0/0/39 description Fabric-4:et-0/0/4 set interfaces et-0/0/39 unit 0 family inet address 110.100.1.13/31 set interfaces et-0/0/39 unit 0 family inet6 address ::ffff:110.100.1.13/127
set interfaces et-0/0/43 description Fabric-4:et-0/0/5 set interfaces et-0/0/43 unit 0 family inet address 110.100.1.15/31 set interfaces et-0/0/43 unit 0 family inet6 address ::ffff:110.100.1.15/127
Configure eBGP Underlay Toward Fabric: Two Links to each of Four Fabrics
[edit] set protocols bgp group Fabric-eBGPv4 type external set protocols bgp group Fabric-eBGPv4 import BGP-INBOUND set protocols bgp group Fabric-eBGPv4 family inet unicast set protocols bgp group Fabric-eBGPv4 family inet6 unicast set protocols bgp group Fabric-eBGPv4 export Fabric-ROUTES set protocols bgp group Fabric-eBGPv4 peer-as 65300 set protocols bgp group Fabric-eBGPv4 bfd-liveness-detection minimum-interval 2000 set protocols bgp group Fabric-eBGPv4 multipath set protocols bgp group Fabric-eBGPv4 neighbor 110.100.1.0 description Fabric-1 set protocols bgp group Fabric-eBGPv4 neighbor 110.100.1.2 description Fabric-1 set protocols bgp group Fabric-eBGPv4 neighbor 110.100.1.4 description Fabric-2 set protocols bgp group Fabric-eBGPv4 neighbor 110.100.1.6 description Fabric-2 set protocols bgp group Fabric-eBGPv4 neighbor 110.100.1.8 description Fabric-3 set protocols bgp group Fabric-eBGPv4 neighbor 110.100.1.10 description Fabric-3 set protocols bgp group Fabric-eBGPv4 neighbor 110.100.1.12 description Fabric-4 set protocols bgp group Fabric-eBGPv4 neighbor 110.100.1.14 description Fabric-4
Configure eBGP Underlay for Reachability of the Route Servers
[edit] set protocols bgp group access-eBGPv4 type external set protocols bgp group access-eBGPv4 advertise-peer-as set protocols bgp group access-eBGPv4 import ACCESS-in set protocols bgp group access-eBGPv4 family inet unicast set protocols bgp group access-eBGPv4 family inet6 unicast set protocols bgp group access-eBGPv4 export Spines-1o set protocols bgp group access-eBGPv4 peer-as 65100 set protocols bgp group access-eBGPv4 multipath set protocols bgp group access-eBGPv4 neighbor 100.100.101.1 description TOR-1 set protocols bgp group access-eBGPv4 neighbor 100.100.101.3 description TOR-1 set protocols bgp group access-eBGPv4 neighbor 100.100.102.1 description TOR-2 set protocols bgp group access-eBGPv4 neighbor 100.100.102.3 description TOR-2
Configure EVPN Type-5 Route Server Peering
[edit] set protocols bgp group Inter-POD-EVPN type external set protocols bgp group Inter-POD-EVPN multihop set protocols bgp group Inter-POD-EVPN local-address 100.100.255.1 set protocols bgp group Inter-POD-EVPN family evpn signaling loops 2 set protocols bgp group Inter-POD-EVPN peer-as-65500 set protocols bgp group Inter-POD-EVPN bfd-liveness-detection minimum-interval 2000 set protocols bgp group Inter-POD-EVPN bfd-liveness-detection session-mode multihop set protocols bgp group Inter-POD-EVPN neighbor 100.100.255.3 deactivate protocols bgp group Inter-POD-EVPN neighbor 100.100.255.3 set protocols bgp group Inter-POD-EVPN neighbor 100.100.255.4 deactivate protocols bgp group Inter-POD-EVPN neighbor 100.100.255.4 set protocols bgp group Inter-POD-EVPN neighbor 100.100.250.1 set protocols bgp group Inter-POD-EVPN neighbor 100.100.250.2
Configure Global BGP Policies
[edit] set policy-options policy-statement ACCESS-ROUTES term ANNOUNCE-DEFAULT-V4 from route-filter 0.0.0.0/0 exact set policy-options policy-statement ACCESS-ROUTES term ANNOUNCE-DEFAULT-V4 then accept set policy-options policy-statement ACCESS-ROUTES term ANNOUNCE-DEFAULT-V6 from route-filter ::0/0 exact set policy-options policy-statement ACCESS-ROUTES term ANNOUNCE-DEFAULT-V6 then accept set policy-options policy-statement ACCESS-ROUTES term LOCAL-LOOPBACK-V4 from family inet set policy-options policy-statement ACCESS-ROUTES term LOCAL-LOOPBACK-V4 from protocol direct set policy-options policy-statement ACCESS-ROUTES term LOCAL-LOOPBACK-V4 from route-filter 0.0.0.0/0 prefix-length-range /32-/32 set policy-options policy-statement ACCESS-ROUTES term LOCAL-LOOPBACK-V4 then accept set policy-options policy-statement ACCESS-ROUTES term LOCAL-LOOPBACK-V6 from family inet6 set policy-options policy-statement ACCESS-ROUTES term LOCAL-LOOPBACK-V6 from protocol direct set policy-options policy-statement ACCESS-ROUTES term LOCAL-LOOPBACK-V6 from route-filter ::0/0 prefix-length-range /128-/128 set policy-options policy-statement ACCESS-ROUTES term LOCAL-LOOPBACK-V6 then accept set policy-options policy-statement ACCESS-ROUTES term BUBBLE-ROUTES from as-path tor_routes set policy-options policy-statement ACCESS-ROUTES term BUBBLE-ROUTES then accept deactivate policy-options policy-statement ACCESS-ROUTES term BUBBLE-ROUTES set policy-options policy-statement ACCESS-ROUTES term evpn from protocol evpn set policy-options policy-statement ACCESS-ROUTES term evpn then accept set policy-options policy-statement ACCESS-ROUTES term DENY-ALL then reject deactivate policy-options policy-statement ACCESS-ROUTES term DENY-ALL set policy-options policy-statement ACCESS-ROUTES-COSTOUT from policy ACCESS-ROUTES set policy-options policy-statement ACCESS-ROUTES-COSTOUT then as-path-prepend 65200 set policy-options policy-statement ACCESS-in term t1 then accept set policy-options policy-statement Fabric-ROUTES term SUMMARIZE-LOCAL from protocol aggregate set policy-options policy-statement Fabric-ROUTES term SUMMARIZE-LOCAL then accept set policy-options policy-statement Fabric-ROUTES term LOCAL-LOOPBACK-V4 from family inet set policy-options policy-statement Fabric-ROUTES term LOCAL-LOOPBACK-V4 from protocol direct set policy-options policy-statement Fabric-ROUTES term LOCAL-LOOPBACK-V4 from route-filter 0.0.0.0/0 prefix-length-range /32-/32 set policy-options policy-statement Fabric-ROUTES term LOCAL-LOOPBACK-V4 then accept set policy-options policy-statement Fabric-ROUTES term LOCAL-LOOPBACK-V6 from family inet6 set policy-options policy-statement Fabric-ROUTES term LOCAL-LOOPBACK-V6 from protocol direct set policy-options policy-statement Fabric-ROUTES term LOCAL-LOOPBACK-V6 from route-filter ::0/0 prefix-length-range /128-/128 set policy-options policy-statement Fabric-ROUTES term LOCAL-LOOPBACK-V6 then accept set policy-options policy-statement Fabric-ROUTES term DENY-ALL then reject set policy-options policy-statement Fabric-ROUTES-COSTOUT from policy Fabric-ROUTES set policy-options policy-statement FabricROUTES-COSTOUT then as-path-prepend 65200 set policy-options policy-statement LOAD_BALANCE term 1 then load-balance per-packet set policy-options policy-statement LOAD_BALANCE term 1 then accept set policy-options policy-statement Spines-lo term lo from route-filter 100.100.255.2/32 exact set policy-options policy-statement Spines-lo term lo from route-filter 100.100.255.1/32 exact set policy-options policy-statement Spines-lo term lo from route-filter 100.100.255.3/32 exact set policy-options policy-statement Spines-lo term lo from route-filter 100.100.255.4/32 exact set policy-options policy-statement Spines-lo term lo then accept set policy-options policy-statement aggregate-route from protocol direct set policy-options policy-statement aggregate-route from route-filter 100.100.0.0/16 orlonger set policy-options policy-statement aggregate-route then accept set policy-options community drop-route members 65000:65535 set policy-options community setcomm-100 members 65000:100 set policy-options community setcomm-150 members 65000:150 set policy-options community setcomm-200 members 65000:200 set policy-options community setcomm-250 members 65000:250 set policy-options community setcomm-50 members 65000:50 set policy-options as-path tor_routes “^65300_*”
Configure EVPN Type-5 Import and Export VRF Policies
[edit] set policy-options policy-statement EVPN-TYPE5-EXPORT-VRF-1 term 1 from protocol bgp set policy-options policy-statement EVPN-TYPE5-EXPORT-VRF-1 term 1 from route-filter 0.0.0.0/0 orlonger set policy-options policy-statement EVPN-TYPE5-EXPORT-VRF-1 term 1 then accept set policy-options policy-statement EVPN-TYPE5-EXPORT-VRF-2 term 1 from protocol bgp set policy-options policy-statement EVPN-TYPE5-EXPORT-VRF-2 term 1 from route-filter 0.0.0.0/0 orlonger set policy-options policy-statement EVPN-TYPE5-EXPORT-VRF-2 term 1 then accept
Configure EVPN Auto-RD and ECMP Load Balancing
[edit] set routing-options router-id 100.100.255.1 set routing-options route-distinguisher-id 100.100.255.1 set routing-options autonomous-system 65200 set routing-options autonomous-system loops 2 set routing-options forwarding-table export LOAD_BALANCE set routing-options forwarding-table ecmp-fast-reroute
Configure Interfaces Toward TORs for VRF_lite1
[edit]
### Toward TOR-1 ###
set interfaces et-0/0/0 flexible-vlan-tagging set interfaces et-0/0/0 unit 1 vlan-id 1 set interfaces et-0/0/0 unit 1 family inet address 101.1.101.0/31 set interfaces et-0/0/0 unit 1 family inet6 address ::ffff:101.1.101.0/127 set interfaces et-0/0/1 unit 1 vlan-id 1 set interfaces et-0/0/1 unit 1 family inet address 101.1.101.2/31 set interfaces et-0/0/1 unit 1 family inet6 address ::ffff:101.1.101.2/127
set interfaces et-0/0/4 flexible-vlan-tagging set interfaces et-0/0/4 unit 1 vlan-id 1 set interfaces et-0/0/4 unit 1 family inet address 101.1.101.4/31 set interfaces et-0/0/4 unit 1 family inet6 address ::ffff:101.1.101.4/127
set interfaces et-0/0/5 flexible-vlan-tagging set interfaces et-0/0/5 unit 1 vlan-id 1 set interfaces et-0/0/5 unit 1 family inet address 101.1.101.6/31 set interfaces et-0/0/5 unit 1 family inet6 address ::ffff:101.1.101.6/127
set interfaces et-0/0/6 flexible-vlan-tagging set interfaces et-0/0/6 unit 1 vlan-id 1 set interfaces et-0/0/6 unit 1 family inet address 101.1.101.8/31 set interfaces et-0/0/6 unit 1 family inet6 address ::ffff:101.1.101.8/127
set interfaces et-0/0/7 flexible-vlan-tagging set interfaces et-0/0/7 unit 1 vlan-id 1 set interfaces et-0/0/7 unit 1 family inet address 101.1.101.10/31 set interfaces et-0/0/7 unit 1 family inet6 address ::ffff:101.1.101.10/127
### Toward TOR-2 ###
set interfaces et-0/0/2 flexible-vlan-tagging set interfaces et-0/0/2 unit 1 vlan-id 1 set interfaces et-0/0/2 unit 1 family inet address 101.1.102.0/31 set interfaces et-0/0/2 unit 1 family inet6 address ::ffff:101.1.102.0/127
set interfaces et-0/0/3 flexible-vlan-tagging set interfaces et-0/0/3 unit 1 vlan-id 1 set interfaces et-0/0/3 unit 1 family inet address 101.1.102.2/31 set interfaces et-0/0/3 unit 1 family inet6 address ::ffff:101.1.102.2/127
set interfaces lo0 unit 1 family inet address 101.1.255.1/32 set interfaces lo0 unit 1 family inet6 address ::ffff:101.1.255.1/128
Configure Interfaces Toward TORs for VRF_lite2
[edit]
### Toward TOR-1 ###
set interfaces et-0/0/0 unit 2 vlan-id 2 set interfaces et-0/0/0 unit 2 family inet address 101.2.101.0/31 set interfaces et-0/0/0 unit 2 family inet6 address ::ffff:101.2.101.0/127
set interfaces et-0/0/1 flexible-vlan-tagging set interfaces et-0/0/1 unit 2 vlan-id 2 set interfaces et-0/0/1 unit 2 family inet address 101.2.101.2/31 set interfaces et-0/0/1 unit 2 family inet6 address ::ffff:101.2.101.2/127
set interfaces et-0/0/4 unit 2 vlan-id 2 set interfaces et-0/0/4 unit 2 family inet address 101.2.101.4/31 set interfaces et-0/0/4 unit 2 family inet6 address ::ffff:101.2.101.4/127
set interfaces et-0/0/5 unit 2 vlan-id 2 set interfaces et-0/0/5 unit 2 family inet address 101.2.101.6/31 set interfaces et-0/0/5 unit 2 family inet6 address ::ffff:101.2.101.6/127
set interfaces et-0/0/6 unit 2 vlan-id 2 set interfaces et-0/0/6 unit 2 family inet address 101.2.101.8/31 set interfaces et-0/0/6 unit 2 family inet6 address ::ffff:101.2.101.8/127
set interfaces et-0/0/7 unit 2 vlan-id 2 set interfaces et-0/0/7 unit 2 family inet address 101.2.101.10/31 set interfaces et-0/0/7 unit 2 family inet6 address ::ffff:101.2.101.10/127
### Toward TOR-2 ###
set interfaces et-0/0/2 unit 2 vlan-id 2 set interfaces et-0/0/2 unit 2 family inet address 101.2.102.0/31 set interfaces et-0/0/2 unit 2 family inet6 address ::ffff:101.2.102.0/127
set interfaces et-0/0/3 unit 2 vlan-id 2 set interfaces et-0/0/3 unit 2 family inet address 101.2.102.2/31 set interfaces et-0/0/3 unit 2 family inet6 address ::ffff:101.2.102.2/127
set interfaces lo0 unit 2 family inet address 101.2.255.1/32 set interfaces lo0 unit 2 family inet6 address ::ffff:101.2.255.1/128
Configure VRF_lite1 Routing Instances
[edit] set routing-instances VRF_lite1 instance-type vrf set routing-instances VRF_lite1 interface et-0/0/0.1 set routing-instances VRF_lite1 interface et-0/0/1.1 set routing-instances VRF_lite1 interface et-0/0/2.1 set routing-instances VRF_lite1 interface et-0/0/3.1 set routing-instances VRF_lite1 interface et-0/0/4.1 set routing-instances VRF_lite1 interface et-0/0/5.1 set routing-instances VRF_lite1 interface et-0/0/6.1 set routing-instances VRF_lite1 interface et-0/0/7.1 set routing-instances VRF_lite1 interface lo0.1 set routing-instances VRF_lite1 vrf-target target:65100:1 set routing-instances VRF_lite1 routing-options rib VRF_lite1.inet6.0 aggregate route ::ffff:101.1.0.0/112 set routing-instances VRF_lite1 routing-options aggregate route 101.1.0.0/16 set routing-instances VRF_lite1 routing-options multipath
set routing-instances VRF_lite1 protocols bgp export ACCESS-in set routing-instances VRF_lite1 protocols bgp export ACCESS-ROUTES set routing-instances VRF_lite1 protocols bgp group access-eBGPv4 type external set routing-instances VRF_lite1 protocols bgp group access-eBGPv4 advetise-peer-as set routing-instances VRF_lite1 protocols bgp group access-eBGPv4 import ACCESS-in set routing-instances VRF_lite1 protocols bgp group access-eBGPv4 family inet unicast set routing-instances VRF_lite1 protocols bgp group access-eBGPv4 family inet6 unicast set routing-instances VRF_lite1 protocols bgp group access-eBGPv4 export ACCESS-ROUTES set routing-instances VRF_lite1 protocols bgp group access-eBGPv4 peer-as 65100 set routing-instances VRF_lite1 protocols bgp group access-eBGPv4 multipath
set routing-instances VRF_lite1 protocols bgp group access-eBGPv4 neighbor 101.1.101.1 set routing-instances VRF_lite1 protocols bgp group access-eBGPv4 neighbor 101.1.101.3 set routing-instances VRF_lite1 protocols bgp group access-eBGPv4 neighbor 101.1.101.5 set routing-instances VRF_lite1 protocols bgp group access-eBGPv4 neighbor 101.1.101.7 set routing-instances VRF_lite1 protocols bgp group access-eBGPv4 neighbor 101.1.101.9 set routing-instances VRF_lite1 protocols bgp group access-eBGPv4 neighbor 101.1.101.11 set routing-instances VRF_lite1 protocols bgp group access-eBGPv4 neighbor 101.1.102.1 set routing-instances VRF_lite1 protocols bgp group access-eBGPv4 neighbor 101.1.102.3
########### EVPN Type-5-specific Configuration to Enable Type-5 ###
set routing-instances VRF_lite1 protocols evpn ip-prefix-support forwarding-mode symmetric set routing-instances VRF_lite1 protocols evpn ip-prefix-support encapsulation vxlan set routing-instances VRF_lite1 protocols evpn ip-prefix-support vni 1 set routing-instances VRF_lite1 protocols evpn ip-prefix-support export EVPN-TYPE5-EXPORT-VRF_lite1
Configure VRF_lite1 Routing Instances
[edit] set routing-instances VRF_lite2 instance-type vrf set routing-instances VRF_lite2 interface et-0/0/0.2 set routing-instances VRF_lite2 interface et-0/0/1.2 set routing-instances VRF_lite2 interface et-0/0/2.2 set routing-instances VRF_lite2 interface et-0/0/3.2 set routing-instances VRF_lite2 interface et-0/0/4.2 set routing-instances VRF_lite2 interface et-0/0/5.2 set routing-instances VRF_lite2 interface et-0/0/6.2 set routing-instances VRF_lite2 interface et-0/0/7.2 set routing-instances VRF_lite2 interface lo0.2 set routing-instances VRF_lite2 vrf-target target:65100:2 set routing-instances VRF_lite2 routing-options rib VRF_lite2.inet6.0 aggregate route ::ffff:101.2.0.0/112 set routing-instances VRF_lite2 routing-options aggregate route 101.2.0.0/16 set routing-instances VRF_lite2 routing-options multipath
set routing-instances VRF_lite2 protocols bgp export ACCESS-in set routing-instances VRF_lite2 protocols bgp export ACCESS-ROUTES set routing-instances VRF_lite2 protocols bgp group access-eBGPv4 type external set routing-instances VRF_lite2 protocols bgp group access-eBGPv4 advetise-peer-as set routing-instances VRF_lite2 protocols bgp group access-eBGPv4 import ACCESS-in set routing-instances VRF_lite2 protocols bgp group access-eBGPv4 family inet unicast set routing-instances VRF_lite2 protocols bgp group access-eBGPv4 family inet6 unicast set routing-instances VRF_lite2 protocols bgp group access-eBGPv4 export ACCESS-ROUTES set routing-instances VRF_lite2 protocols bgp group access-eBGPv4 peer-as 65100 set routing-instances VRF_lite2 protocols bgp group access-eBGPv4 multipath
set routing-instances VRF_lite2 protocols bgp group access-eBGPv4 neighbor 101.2.101.1 set routing-instances VRF_lite2 protocols bgp group access-eBGPv4 neighbor 101.2.101.3 set routing-instances VRF_lite2 protocols bgp group access-eBGPv4 neighbor 101.2.101.5 set routing-instances VRF_lite2 protocols bgp group access-eBGPv4 neighbor 101.2.101.7 set routing-instances VRF_lite2 protocols bgp group access-eBGPv4 neighbor 101.2.101.9 set routing-instances VRF_lite2 protocols bgp group access-eBGPv4 neighbor 101.2.101.11 set routing-instances VRF_lite2 protocols bgp group access-eBGPv4 neighbor 101.2.102.1 set routing-instances VRF_lite2 protocols bgp group access-eBGPv4 neighbor 101.2.102.3
########### EVPN Type-5-specific Configuration to Enable Type-5 ###
set routing-instances VRF_lite2 protocols evpn ip-prefix-support forwarding-mode symmetric set routing-instances VRF_lite2 protocols evpn ip-prefix-support encapsulation vxlan set routing-instances VRF_lite2 protocols evpn ip-prefix-support vni 2 set routing-instances VRF_lite2 protocols evpn ip-prefix-support export EVPN-TYPE5-EXPORT-VRF_lite2
Configure Interfaces for Fabric Toward Spine
[edit] set interfaces et-0/0/4 description Spine-1:et-0/0/36 set interfaces et-0/0/4 unit 0 family inet address 110.100.1.0/31 set interfaces et-0/0/4 unit 0 family inet6 address ::ffff:110.100.1.0/127
set interfaces et-0/0/5 description Spine-1:et-0/0/40 set interfaces et-0/0/5 unit 0 family inet address 110.100.1.2/31 set interfaces et-0/0/5 unit 0 family inet6 address ::ffff:110.100.1.2/127
set interfaces et-0/0/6 description Spine-2:et-0/0/36 set interfaces et-0/0/6 unit 0 family inet address 110.100.2.0/31 set interfaces et-0/0/6 unit 0 family inet6 address ::ffff:110.100.2.0/127
set interfaces et-0/0/7 description Spine-2:et-0/0/40 set interfaces et-0/0/7 unit 0 family inet address 110.100.2.2/31 set interfaces et-0/0/7 unit 0 family inet6 address ::ffff:110.100.2.2/127
set interfaces et-0/0/8 description Spine-3:et-0/0/36 set interfaces et-0/0/8 unit 0 family inet address 110.100.3.0/31 set interfaces et-0/0/8 unit 0 family inet6 address ::ffff:110.100.3.0/127
set interfaces et-0/0/9 description Spine-3:et-0/0/40 set interfaces et-0/0/9 unit 0 family inet address 110.100.3.2/31 set interfaces et-0/0/9 unit 0 family inet6 address ::ffff:110.100.3.2/127
set interfaces et-0/0/10 description Spine-4:et-0/0/36 set interfaces et-0/0/10 unit 0 family inet address 110.100.4.0/31 set interfaces et-0/0/10 unit 0 family inet6 address ::ffff:110.100.4.0/127
set interfaces et-0/0/11 description Spine-4:et-0/0/40 set interfaces et-0/0/11 unit 0 family inet address 110.100.4.2/31 set interfaces et-0/0/11 unit 0 family inet6 address ::ffff:110.100.4.2/127
Configure ECMP and Fast Reroute
[edit] set routing-options autonomous-system 65200 set routing-options forwarding-table export pbib set routing-options forwarding-table export LOAD_BALANCE set routing-options forwarding-table ecmp-fast-reroute
Configure eBGP Underlay Toward POD1 Spines
[edit] set protocols bgp group SPINE-eBGPv4-POD1 type external set protocols bgp group SPINE-eBGPv4-POD1 advertise-peer-as set protocols bgp group SPINE-eBGPv4-POD1 family inet unicast set protocols bgp group SPINE-eBGPv4-POD1 family inet6 unicast set protocols bgp group SPINE-eBGPv4-POD1 export SPINE-ROUTES set protocols bgp group SPINE-eBGPv4-POD1 peer-as 65200 set protocols bgp group SPINE-eBGPv4-POD1 multipath set protocols bgp group SPINE-eBGPv4-POD1 neighbor 110.100.1.1 description Spine-1 set protocols bgp group SPINE-eBGPv4-POD1 neighbor 110.100.1.3 description Spine-1 set protocols bgp group SPINE-eBGPv4-POD1 neighbor 110.100.2.1 description Spine-2 set protocols bgp group SPINE-eBGPv4-POD1 neighbor 110.100.2.3 description Spine-2
Configure eBGP Underlay Toward POD2 Spines
[edit] set protocols bgp group SPINE-eBGPv4-POD2 type external set protocols bgp group SPINE-eBGPv4-POD2 advertise-peer-as set protocols bgp group SPINE-eBGPv4-POD2 family inet unicast set protocols bgp group SPINE-eBGPv4-POD2 family inet6 unicast set protocols bgp group SPINE-eBGPv4-POD2 export SPINE-ROUTES set protocols bgp group SPINE-eBGPv4-POD2 peer-as 65201 set protocols bgp group SPINE-eBGPv4-POD2 multipath set protocols bgp group SPINE-eBGPv4-POD2 neighbor 110.100.3.1 description Spine-3 set protocols bgp group SPINE-eBGPv4-POD2 neighbor 110.100.3.3 description Spine-3 set protocols bgp group SPINE-eBGPv4-POD2 neighbor 110.100.4.1 description Spine-4 set protocols bgp group SPINE-eBGPv4-POD2 neighbor 110.100.4.3 description Spine-4
Verification
- Verifying eBPG Sessions to Spine-1 and Spine-2 for VRF_lite1
- Verifying eBPG Sessions to Spine-1 and Spine-2 for VRF_lite2
- Verify the Type-5 Inter-pod Routes Received from TOR-3 on TOR-1 for VRF-lite1
- Verify the Type-5 Inter-pod Forwarding Table Information Received from TOR-3 on TOR-1 for VRF-lite1
- Verify the Type-5 Inter-pod Routes Received from TOR-2 on TOR-1 for VRF-lite1
- Verify the Type-5 Inter-pod Forwarding Table Information Received from TOR-2 on TOR-1 for VRF-lite1
- Verify the Type-5 Inter-pod Routes Received from TOR-3 on TOR-1 for VRF-lite2
- Verify the Type-5 Inter-pod Forwarding Table Information Received from TOR-3 on TOR-1 for VRF-lite2
- Verify the Type-5 Inter-pod Routes Received from TOR-2 on TOR-1 for VRF-lite2
- Verify the Type-5 Inter-pod Forwarding Table Information Received from TOR-2 on TOR-1 for VRF-lite2
- Verify Traffic Load Balancing
- Verify SPINE-1 eBGP Session Toward the Route Server
- Verify SPINE-1 eBGP Session Toward the Route Server
- Verify SPINE-1 eBGP Session Toward Fabric Devices with IPv6 Tunneling over IPv4
- Verify SPINE-1 VRF_lite1 (Customer 1) BGP Sessions Toward TOR
- Verify SPINE-1 VRF_lite2 (Customer 2) BGP Sessions Toward TOR
- Verify SPINE-1 EVPN Type 5 Route Learned from TOR-3 with VXLAN Information
- Verify SPINE-1 EVPN Type 5 Forwarding Table Next-Hop Type for VRF_Lite1
- Verify SPINE-1 EVPN Type-5 Routes Learned from TOR-2 with Inet only (no VXLAN info )
- Verify SPINE-1 Intra-pod Route to TOR-2 Uses Unicast Next-Hop
- Verify Fabric-1 Interfaces
- Verify Fabric-1 BGP Sessions
- Verify BGP Scaling on TOR-3
- Verify Fabric-1 BGP Sessions
- Verify BGP Scaling on SPINE-1
Verifying eBPG Sessions to Spine-1 and Spine-2 for VRF_lite1
Purpose
The top of rack (TOR) switches establish eBGP sessions to Spine-1 and Spine-2 devices using VRF_lite1. This verifies that the sessions are active.
Action
Verify sessions for VRF_lite1:
user@TOR-1> show bgp summary exact-instance VRF_lite1
Groups: 1 Peers: 12 Down peers: 0
Table Tot Paths Act Paths Suppressed History Damp State Pending
VRF_lite1.inet.0
5662 5532 0 0 0 0
VRF_lite1.inet6.0
384 264 0 0 0 0
VRF_lite1.mdt.0
0 0 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn
State|#Active/Received/Accepted/Damped...
101.1.101.0 65200 58 55 0 2 14:19 Establ
VRF_lite1.inet.0: 461/461/461/0
VRF_lite1.inet6.0: 22/22/22/0
101.1.101.2 65200 45 53 0 2 14:22 Establ
VRF_lite1.inet.0: 461/474/474/0
VRF_lite1.inet6.0: 22/34/34/0
101.1.101.4 65200 52 49 0 2 14:23 Establ
VRF_lite1.inet.0: 461/474/474/0
VRF_lite1.inet6.0: 22/34/34/0
101.1.101.6 65200 71 53 0 2 14:23 Establ
VRF_lite1.inet.0: 461/474/474/0
VRF_lite1.inet6.0: 22/34/34/0
101.1.101.8 65200 46 53 0 2 14:22 Establ
VRF_lite1.inet.0: 461/474/474/0
VRF_lite1.inet6.0: 22/34/34/0
101.1.101.10 65200 45 53 0 2 14:22 Establ
VRF_lite1.inet.0: 461/474/474/0
VRF_lite1.inet6.0: 22/34/34/0
101.1.101.12 65200 28543 28041 0 1 1w2d 6:49:30 Establ
VRF_lite1.inet.0: 461/461/461/0
VRF_lite1.inet6.0: 22/22/22/0
101.1.101.14 65200 28504 28125 0 1 1w2d 6:49:26 Establ
VRF_lite1.inet.0: 461/474/474/0
VRF_lite1.inet6.0: 22/34/34/0
101.1.101.16 65200 28561 28165 0 1 1w2d 6:49:28 Establ
VRF_lite1.inet.0: 461/474/474/0
VRF_lite1.inet6.0: 22/34/34/0
101.1.101.18 65200 28568 28168 0 1 1w2d 6:49:30 Establ
VRF_lite1.inet.0: 461/474/474/0
VRF_lite1.inet6.0: 22/34/34/0
101.1.101.20 65200 28568 28168 0 1 1w2d 6:49:29 Establ
VRF_lite1.inet.0: 461/474/474/0
VRF_lite1.inet6.0: 22/34/34/0
101.1.101.22 65200 28567 28160 0 1 1w2d 6:49:20 Establ
VRF_lite1.inet.0: 461/474/474/0
VRF_lite1.inet6.0: 22/34/34/0
Meaning
The eBPG sessions for VRF_lite1 are all established and functioning correctly.
Verifying eBPG Sessions to Spine-1 and Spine-2 for VRF_lite2
Purpose
The top of rack (TOR) switches establish eBGP sessions to Spine-1 and Spine-2 devices using VRF_lite2. This verifies that the sessions are active.
Action
Verify sessions for VRF_lite2:
user@TOR-1> show bgp summary exact-instance VRF_lite2
Groups: 1 Peers: 12 Down peers: 0
Table Tot Paths Act Paths Suppressed History Damp State Pending
VRF_lite2.inet.0
5640 5520 0 0 0 0
VRF_lite2.inet6.0
384 264 0 0 0 0
VRF_lite2.mdt.0
0 0 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn
State|#Active/Received/Accepted/Damped...
101.2.101.0 65200 115 87 0 2 15:50 Establ
VRF_lite2.inet.0: 460/460/460/0
VRF_lite2.inet6.0: 22/22/22/0
101.2.101.2 65200 135 85 0 2 15:51 Establ
VRF_lite2.inet.0: 460/472/472/0
VRF_lite2.inet6.0: 22/34/34/0
101.2.101.4 65200 134 85 0 2 15:49 Establ
VRF_lite2.inet.0: 460/472/472/0
VRF_lite2.inet6.0: 22/34/34/0
101.2.101.6 65200 114 85 0 2 15:41 Establ
VRF_lite2.inet.0: 460/472/472/0
VRF_lite2.inet6.0: 22/34/34/0
101.2.101.8 65200 133 85 0 2 15:48 Establ
VRF_lite2.inet.0: 460/472/472/0
VRF_lite2.inet6.0: 22/34/34/0
101.2.101.10 65200 133 85 0 2 15:47 Establ
VRF_lite2.inet.0: 460/472/472/0
VRF_lite2.inet6.0: 22/34/34/0
101.2.101.12 65200 28755 28271 0 1 1w2d 6:50:41 Establ
VRF_lite2.inet.0: 460/460/460/0
VRF_lite2.inet6.0: 22/22/22/0
101.2.101.14 65200 28770 28387 0 1 1w2d 6:50:58 Establ
VRF_lite2.inet.0: 460/472/472/0
VRF_lite2.inet6.0: 22/34/34/0
101.2.101.16 65200 28838 28410 0 1 1w2d 6:50:55 Establ
VRF_lite2.inet.0: 460/472/472/0
VRF_lite2.inet6.0: 22/34/34/0
101.2.101.18 65200 28838 28415 0 1 1w2d 6:50:51 Establ
VRF_lite2.inet.0: 460/472/472/0
VRF_lite2.inet6.0: 22/34/34/0
101.2.101.20 65200 28837 28413 0 1 1w2d 6:50:47 Establ
VRF_lite2.inet.0: 460/472/472/0
VRF_lite2.inet6.0: 22/34/34/0
101.2.101.22 65200 28838 28394 0 1 1w2d 6:50:56 Establ
VRF_lite2.inet.0: 460/472/472/0
VRF_lite2.inet6.0: 22/34/34/0
Meaning
The eBPG sessions for VRF_lite2 are all established and functioning correctly.
Verify the Type-5 Inter-pod Routes Received from TOR-3 on TOR-1 for VRF-lite1
Purpose
Each TOR switch must receive EVPN Type-5 inter-pod route information for VRF_lite1.This verifies that the information is present.
Action
Verify route information from TOR-3 for VRF_lite1:
user@TOR-1> show route 3.3.1.1 table VRF_lite1
VRF_lite1.inet.0: 499 destinations, 5697 routes (499 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
3.3.1.0/24 *[BGP/170] 03:28:22, localpref 100
AS path: 65200 I, validation-state: unverified
to 101.1.101.0 via et-0/0/0.1
to 101.1.101.2 via et-0/0/1.1
> to 101.1.101.12 via et-0/0/2.1
to 101.1.101.14 via et-0/0/3.1
to 101.1.101.4 via et-0/0/4.1
to 101.1.101.6 via et-0/0/5.1
to 101.1.101.16 via et-0/0/6.1
to 101.1.101.18 via et-0/0/7.1
to 101.1.101.8 via et-0/0/8.1
to 101.1.101.10 via et-0/0/9.1
to 101.1.101.20 via et-0/0/10.1
to 101.1.101.22 via et-0/0/11.1
[BGP/170] 02:44:44, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.1.101.0 via et-0/0/0.1
[BGP/170] 02:44:49, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.1.101.2 via et-0/0/1.1
[BGP/170] 02:44:53, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.1.101.4 via et-0/0/4.1
[BGP/170] 02:44:51, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.1.101.6 via et-0/0/5.1
[BGP/170] 02:44:49, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.1.101.8 via et-0/0/8.1
[BGP/170] 02:44:49, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.1.101.10 via et-0/0/9.1
[BGP/170] 03:28:22, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.1.101.14 via et-0/0/3.1
[BGP/170] 03:28:22, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.1.101.16 via et-0/0/6.1
[BGP/170] 03:28:22, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.1.101.18 via et-0/0/7.1
[BGP/170] 03:28:22, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.1.101.20 via et-0/0/10.1
[BGP/170] 03:28:22, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.1.101.22 via et-0/0/11.1
Verify the Type-5 Inter-pod Forwarding Table Information Received from TOR-3 on TOR-1 for VRF-lite1
Purpose
Each TOR switch must receive EVPN Type-5 inter-pod forwarding table information for VRF_lite1.This verifies that the information is present.
Action
Verify forwarding table information from TOR-3 for VRF_lite1:
user@TOR-1> show route forwarding-table destination 3.3.1.1 table VRF_lite1
Routing table: VRF_lite1.inet
Internet:
Destination Type RtRef Next hop Type Index NhRef Netif
3.3.1.0/24 user 0 ulst 131170 459
101.1.101.0 ucst 5098 4 et-0/0/0.1
101.1.101.2 ucst 5202 4 et-0/0/1.1
101.1.101.12 ucst 5414 4 et-0/0/2.1
101.1.101.14 ucst 5267 5 et-0/0/3.1
101.1.101.4 ucst 5174 5 et-0/0/4.1
101.1.101.6 ucst 5191 4 et-0/0/5.1
101.1.101.16 ucst 5334 4 et-0/0/6.1
101.1.101.18 ucst 5365 4 et-0/0/7.1
101.1.101.8 ucst 4991 4 et-0/0/8.1
101.1.101.10 ucst 5101 4 et-0/0/9.1
101.1.101.20 ucst 5425 4 et-0/0/10.1
101.1.101.22 ucst 5477 4 et-0/0/11.1
Verify the Type-5 Inter-pod Routes Received from TOR-2 on TOR-1 for VRF-lite1
Purpose
Each TOR switch must receive EVPN Type-5 inter-pod route information for VRF_lite1. This verifies that the information is present.
Action
Verify route information from TOR-2 for VRF_lite1:
user@TOR-1> show route 2.2.1.1 table VRF_lite1
VRF_lite1.inet.0: 499 destinations, 5697 routes (499 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
2.2.1.0/24 *[BGP/170] 03:29:12, localpref 100, from 101.1.101.12
AS path: 65200 65100 I, validation-state: unverified
to 101.1.101.0 via et-0/0/0.1
to 101.1.101.2 via et-0/0/1.1
to 101.1.101.12 via et-0/0/2.1
to 101.1.101.14 via et-0/0/3.1
to 101.1.101.4 via et-0/0/4.1
to 101.1.101.6 via et-0/0/5.1
to 101.1.101.16 via et-0/0/6.1
> to 101.1.101.18 via et-0/0/7.1
to 101.1.101.8 via et-0/0/8.1
to 101.1.101.10 via et-0/0/9.1
to 101.1.101.20 via et-0/0/10.1
to 101.1.101.22 via et-0/0/11.1
[BGP/170] 02:48:00, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.1.101.0 via et-0/0/0.1
[BGP/170] 02:48:01, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.1.101.2 via et-0/0/1.1
[BGP/170] 02:48:04, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.1.101.4 via et-0/0/4.1
[BGP/170] 02:48:03, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.1.101.6 via et-0/0/5.1
[BGP/170] 02:48:01, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.1.101.8 via et-0/0/8.1
[BGP/170] 02:48:01, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.1.101.10 via et-0/0/9.1
[BGP/170] 03:29:12, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.1.101.14 via et-0/0/3.1
[BGP/170] 03:29:12, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.1.101.16 via et-0/0/6.1
[BGP/170] 03:29:12, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.1.101.18 via et-0/0/7.1
[BGP/170] 03:29:12, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.1.101.20 via et-0/0/10.1
[BGP/170] 03:29:12, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.1.101.22 via et-0/0/11.1
{master:0}
Verify the Type-5 Inter-pod Forwarding Table Information Received from TOR-2 on TOR-1 for VRF-lite1
Purpose
Each TOR switch must receive EVPN Type-5 inter-pod forwarding table information for VRF_lite1.This verifies that the information is present.
Action
Verify forwarding table information from TOR-2 for VRF_lite1:
user@TOR-1> show route forwarding-table destination 2.2.1.1 table VRF_lite1
Routing table: VRF_lite1.inet
Internet:
Destination Type RtRef Next hop Type Index NhRef Netif
2.2.1.0/24 user 0 ulst 131170 459
101.1.101.0 ucst 5098 4 et-0/0/0.1
101.1.101.2 ucst 5202 4 et-0/0/1.1
101.1.101.12 ucst 5414 4 et-0/0/2.1
101.1.101.14 ucst 5267 5 et-0/0/3.1
101.1.101.4 ucst 5174 5 et-0/0/4.1
101.1.101.6 ucst 5191 4 et-0/0/5.1
101.1.101.16 ucst 5334 4 et-0/0/6.1
101.1.101.18 ucst 5365 4 et-0/0/7.1
101.1.101.8 ucst 4991 4 et-0/0/8.1
101.1.101.10 ucst 5101 4 et-0/0/9.1
101.1.101.20 ucst 5425 4 et-0/0/10.1
101.1.101.22 ucst 5477 4 et-0/0/11.1
{master:0}
Verify the Type-5 Inter-pod Routes Received from TOR-3 on TOR-1 for VRF-lite2
Purpose
Each TOR switch must receive EVPN Type-5 inter-pod route information for VRF_lite2.This verifies that the information is present.
Action
Verify route information from TOR-3 for VRF_lite2:
user@TOR-1> show route 3.3.6.1 table VRF_lite2
VRF_lite2.inet.0: 497 destinations, 5674 routes (497 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
3.3.6.0/24 *[BGP/170] 02:56:46, localpref 100, from 101.2.101.12
AS path: 65200 I, validation-state: unverified
to 101.2.101.0 via et-0/0/0.2
to 101.2.101.2 via et-0/0/1.2
to 101.2.101.12 via et-0/0/2.2
to 101.2.101.14 via et-0/0/3.2
to 101.2.101.4 via et-0/0/4.2
to 101.2.101.6 via et-0/0/5.2
to 101.2.101.16 via et-0/0/6.2
to 101.2.101.18 via et-0/0/7.2
to 101.2.101.8 via et-0/0/8.2
> to 101.2.101.10 via et-0/0/9.2
to 101.2.101.20 via et-0/0/10.2
to 101.2.101.22 via et-0/0/11.2
[BGP/170] 02:56:47, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.2.101.0 via et-0/0/0.2
[BGP/170] 02:56:47, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.2.101.2 via et-0/0/1.2
[BGP/170] 02:56:47, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.2.101.4 via et-0/0/4.2
[BGP/170] 02:56:47, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.2.101.6 via et-0/0/5.2
[BGP/170] 02:56:47, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.2.101.8 via et-0/0/8.2
[BGP/170] 02:56:47, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.2.101.10 via et-0/0/9.2
[BGP/170] 02:56:47, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.2.101.14 via et-0/0/3.2
[BGP/170] 02:56:46, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.2.101.16 via et-0/0/6.2
[BGP/170] 02:56:45, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.2.101.18 via et-0/0/7.2
[BGP/170] 02:56:48, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.2.101.20 via et-0/0/10.2
[BGP/170] 02:56:48, localpref 100
AS path: 65200 I, validation-state: unverified
> to 101.2.101.22 via et-0/0/11.2
Verify the Type-5 Inter-pod Forwarding Table Information Received from TOR-3 on TOR-1 for VRF-lite2
Purpose
Each TOR switch must receive EVPN Type-5 inter-pod forwarding table information for VRF_lite2.This verifies that the information is present.
Action
Verify forwarding table information from TOR-3 for VRF_lite2:
user@TOR-1> show route forwarding-table destination 3.3.6.1 table VRF_lite2
Routing table: VRF_lite2.inet
Internet:
Destination Type RtRef Next hop Type Index NhRef Netif
3.3.6.0/24 user 0 ulst 131178 458
101.2.101.0 ucst 5199 4 et-0/0/0.2
101.2.101.2 ucst 5187 5 et-0/0/1.2
101.2.101.12 ucst 5232 4 et-0/0/2.2
101.2.101.14 ucst 5326 5 et-0/0/3.2
101.2.101.4 ucst 5023 4 et-0/0/4.2
101.2.101.6 ucst 5176 4 et-0/0/5.2
101.2.101.16 ucst 5242 4 et-0/0/6.2
101.2.101.18 ucst 5356 4 et-0/0/7.2
101.2.101.8 ucst 5367 4 et-0/0/8.2
101.2.101.10 ucst 5224 4 et-0/0/9.2
101.2.101.20 ucst 5383 4 et-0/0/10.2
101.2.101.22 ucst 5275 5 et-0/0/11.2
Verify the Type-5 Inter-pod Routes Received from TOR-2 on TOR-1 for VRF-lite2
Purpose
Each TOR switch must receive EVPN Type-5 inter-pod route information for VRF_lite2. This verifies that the information is present.
Action
Verify route information from TOR-2 for VRF_lite2:
user@TOR-1> show route 2.2.6.1 table VRF_lite2
VRF_lite2.inet.0: 497 destinations, 5674 routes (497 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both
2.2.6.0/24 *[BGP/170] 03:39:19, localpref 100, from 101.2.101.12
AS path: 65200 65100 I, validation-state: unverified
> to 101.2.101.0 via et-0/0/0.2
to 101.2.101.2 via et-0/0/1.2
to 101.2.101.12 via et-0/0/2.2
to 101.2.101.14 via et-0/0/3.2
to 101.2.101.4 via et-0/0/4.2
to 101.2.101.6 via et-0/0/5.2
to 101.2.101.16 via et-0/0/6.2
to 101.2.101.18 via et-0/0/7.2
to 101.2.101.8 via et-0/0/8.2
to 101.2.101.10 via et-0/0/9.2
to 101.2.101.20 via et-0/0/10.2
to 101.2.101.22 via et-0/0/11.2
[BGP/170] 02:58:03, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.2.101.0 via et-0/0/0.2
[BGP/170] 02:58:03, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.2.101.2 via et-0/0/1.2
[BGP/170] 02:58:05, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.2.101.4 via et-0/0/4.2
[BGP/170] 02:58:03, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.2.101.6 via et-0/0/5.2
[BGP/170] 02:58:05, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.2.101.8 via et-0/0/8.2
[BGP/170] 02:58:05, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.2.101.10 via et-0/0/9.2
[BGP/170] 03:39:19, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.2.101.14 via et-0/0/3.2
[BGP/170] 03:39:19, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.2.101.16 via et-0/0/6.2
[BGP/170] 03:39:19, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.2.101.18 via et-0/0/7.2
[BGP/170] 03:39:19, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.2.101.20 via et-0/0/10.2
[BGP/170] 03:39:19, localpref 100
AS path: 65200 65100 I, validation-state: unverified
> to 101.2.101.22 via et-0/0/11.2
[master:0}
Verify the Type-5 Inter-pod Forwarding Table Information Received from TOR-2 on TOR-1 for VRF-lite2
Purpose
Each TOR switch must receive EVPN Type-5 inter-pod forwarding table information for VRF_lite2. This verifies that the information is present.
Action
Verify forwarding table information from TOR-2 for VRF_lite2:
user@TOR-1> show route forwarding-table destination 2.2.6.1 table VRF_lite2
Routing table: VRF_lite2.inet
Internet:
Destination Type RtRef Next hop Type Index NhRef Netif
2.2.6.0/24 user 0 ulst 131178 458
101.2.101.0 ucst 5199 4 et-0/0/0.2
101.2.101.2 ucst 5187 5 et-0/0/1.2
101.2.101.12 ucst 5232 4 et-0/0/2.2
101.2.101.14 ucst 5326 5 et-0/0/3.2
101.2.101.4 ucst 5023 4 et-0/0/4.2
101.2.101.6 ucst 5176 4 et-0/0/5.2
101.2.101.16 ucst 5242 4 et-0/0/6.2
101.2.101.18 ucst 5356 4 et-0/0/7.2
101.2.101.8 ucst 5367 4 et-0/0/8.2
101.2.101.10 ucst 5224 4 et-0/0/9.2
101.2.101.20 ucst 5383 4 et-0/0/10.2
101.2.101.22 ucst 5275 5 et-0/0/11.2
Verify Traffic Load Balancing
Purpose
Multiple paths exist between devices and it is most efficient to load balance among the operational links. This step verifies the process.
Action
Verify forwarding table information from TOR-2 for VRF_lite2:
user@TOR-1> ***COMMAND ABSENT FROM PAGE 24 OF STR*** TOR-1 Seconds: 0 Time: 01:51:51 Interface Link Input packets (pps) Output packets (pps) et-0/0/0 Up 579662562 (4815) 595534289 (4970) gr-0/0/0 Up 0 (0) 0 (0) pfh-0/0/0 Up 0 0 et-0/0/1 Up 594957343 (4926) 598188009 (4983) et-0/0/2 Up 592697357 (5060) 622877588 (4993) et-0/0/3 Up 627680700 (4837) 660697862 (5045) et-0/0/4 Up 599781410 (5145) 607069362 (5088) et-0/0/5 Up 586896362 (5009) 600024296 (5021) et-0/0/6 Up 666184267 (5092) 666575768 (5171) et-0/0/7 Up 667281541 (4970) 625305955 (4992) et-0/0/8 Up 596158194 (4949) 589452792 (4934) et-0/0/9 Up 593055123 (4990) 578589887 (4873) et-0/0/10 Up 630547537 (5062) 653776901 (4969) et-0/0/11 Up 660275615 (5139) 620683157 (4981) et-0/0/16 Up 663003 (0) 764318 (1) et-0/0/17 Up 724533 (1) 645813 (0) et-0/0/18 Up 983144 (0) 1002551 (0) et-0/0/19 Up 1001141 (0) 981832 (0) xe-0/0/22:0 Down 0 (0) 0 (0) xe-0/0/22:1 Down 0 (0) 0 (0) xe-0/0/22:2 Down 0 (0) 0 (0) xe-0/0/22:3 Up 49189 (0) 135214 (0) xe-0/0/23:0 Up 7119144176 (59998) 7054539062 (59995) <<< SPirent xe-0/0/23:1 Up 0 (0) 0 (0) xe-0/0/23:2 Down 0 (0) 0 (0) xe-0/0/23:3 Down 0 (0) 0 (0)
Verify SPINE-1 eBGP Session Toward the Route Server
Purpose
The eBGP underlay must establish sessions to the route server. This step verifies the process.
Action
Verify eBGP Toward Route Server:
user@SPINE-1> show bgp summary | find 100.100 100.100.101.1 65100 3361 3316 0 0 1d 3:11:25 Establ inet.0: 6/8/8/0 inet6.0: 0/0/0/0 100.100.101.3 65100 3361 3319 0 0 1d 3:11:26 Establ inet.0: 6/8/8/0 inet6.0: 0/0/0/0 100.100.102.1 65100 3414 3314 0 0 1d 3:11:25 Establ inet.0: 5/7/7/0 inet6.0: 0/0/0/0 100.100.102.3 65100 3414 3317 0 0 1d 3:11:25 Establ inet.0: 5/7/7/0
Verify SPINE-1 eBGP Session Toward the Route Server
Purpose
The eBGP underlay must establish sessions to the route server. This step verifies the process.
Action
Verify eBGP Toward Route Server:
user@SPINE-1> show bgp summary | find 100.100.250.1 100.100.250.1 65500 4943 3938 0 0 1d 3:10:33 Establ bgp.evpn.0: 19770/19770/19770/0 VRF_lite1.evpn.0: 926/926/926/0 VRF_lite2.evpn.0: 924/924/924/0
Verify SPINE-1 eBGP Session Toward Fabric Devices with IPv6 Tunneling over IPv4
Purpose
The eBGP underlay must establish sessions fabric devices. This step verifies the process.
Action
Verify eBGP Toward Fabric:
user@SPINE-1> show bgp summary | find 110.100 110.100.1.0 65300 3554 3313 0 0 1d 3:13:39 Establ inet.0: 3/5/5/0 inet6.0: 4/4/4/0 110.100.1.2 65300 3558 3312 0 0 1d 3:13:38 Establ inet.0: 3/6/6/0 inet6.0: 4/5/5/0 110.100.1.4 65300 3550 3312 0 0 1d 3:13:36 Establ inet.0: 3/4/4/0 inet6.0: 4/4/4/0 110.100.1.6 65300 3552 3312 0 0 1d 3:13:37 Establ inet.0: 3/5/5/0 inet6.0: 4/5/5/0 110.100.1.8 65300 3570 3312 0 0 1d 3:13:35 Establ inet.0: 3/5/5/0 inet6.0: 4/4/4/0 110.100.1.10 65300 3570 3312 0 0 1d 3:13:35 Establ inet.0: 3/6/6/0 inet6.0: 4/5/5/0 110.100.1.12 65300 3570 3311 0 0 1d 3:13:26 Establ inet.0: 3/4/4/0 inet6.0: 4/4/4/0 110.100.1.14 65300 3568 3312 0 0 1d 3:13:33 Establ inet.0: 3/5/5/0 inet6.0: 4/5/5/08
Verify SPINE-1 VRF_lite1 (Customer 1) BGP Sessions Toward TOR
Purpose
The BGP sessions for VRF_lite1 must be up toward the TOR. This step verifies the process.
Action
Verify BGP for VRF_lite1Toward TOR:
user@SPINE-1> show bgp summary exact-instance VRF_lite1
Groups: 1 Peers: 8 Down peers: 0
Table Tot Paths Act Paths Suppressed History Damp State Pending
VRF_lite1.inet.0
3846 96 0 0 0 0
VRF_lite1.inet6.0
325 88 0 0 0 0
VRF_lite1.mdt.0
0 0 0 0 0 0
VRF_lite1.evpn.0
926 926 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
101.1.101.1 65100 3376 3327 0 0 1d 3:08:24 Establ
VRF_lite1.inet.0: 13/479/479/0
VRF_lite1.inet6.0: 12/39/39/0
101.1.101.3 65100 3374 3315 0 0 1d 3:08:27 Establ
VRF_lite1.inet.0: 13/482/482/0
VRF_lite1.inet6.0: 12/42/42/0
101.1.101.5 65100 3370 3321 0 0 1d 3:08:28 Establ
VRF_lite1.inet.0: 13/482/482/0
VRF_lite1.inet6.0: 12/42/42/0
101.1.101.7 65100 3374 3340 0 0 1d 3:08:27 Establ
VRF_lite1.inet.0: 13/482/482/0
VRF_lite1.inet6.0: 12/42/42/0
101.1.101.9 65100 3373 3315 0 0 1d 3:08:27 Establ
VRF_lite1.inet.0: 13/482/482/0
VRF_lite1.inet6.0: 12/42/42/0
101.1.101.11 65100 3374 3315 0 0 1d 3:08:27 Establ
VRF_lite1.inet.0: 13/482/482/0
VRF_lite1.inet6.0: 12/42/42/0
101.1.102.1 65100 3426 3311 0 0 1d 3:08:27 Establ
VRF_lite1.inet.0: 8/475/475/0
VRF_lite1.inet6.0: 8/34/34/0
101.1.102.3 65100 3430 3315 0 0 1d 3:08:27 Establ
VRF_lite1.inet.0: 10/482/482/0
VRF_lite1.inet6.0: 8/42/42/0
Verify SPINE-1 VRF_lite2 (Customer 2) BGP Sessions Toward TOR
Purpose
The BGP sessions for VRF_lite2 must be up toward the TOR. This step verifies the process.
Action
Verify BGP for VRF_lite2Toward TOR:
user@SPINE-1> show bgp summary exact-instance VRF_lite2
Groups: 1 Peers: 8 Down peers: 0
Table Tot Paths Act Paths Suppressed History Damp State Pending
VRF_lite2.inet.0
3404 88 0 0 0 0
VRF_lite2.inet6.0
326 88 0 0 0 0
VRF_lite2.mdt.0
0 0 0 0 0 0
VRF_lite2.evpn.0
924 924 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
101.2.101.1 65100 3408 3383 0 0 1d 3:09:36 Establ
VRF_lite2.inet.0: 12/51/51/0
VRF_lite2.inet6.0: 12/39/39/0
101.2.101.3 65100 3406 3403 0 0 1d 3:09:37 Establ
VRF_lite2.inet.0: 12/480/480/0
VRF_lite2.inet6.0: 12/42/42/0
101.2.101.5 65100 3405 3402 0 0 1d 3:09:35 Establ
VRF_lite2.inet.0: 12/480/480/0
VRF_lite2.inet6.0: 12/42/42/0
101.2.101.7 65100 3405 3381 0 0 1d 3:09:27 Establ
VRF_lite2.inet.0: 12/480/480/0
VRF_lite2.inet6.0: 12/42/42/0
101.2.101.9 65100 3406 3402 0 0 1d 3:09:34 Establ
VRF_lite2.inet.0: 12/480/480/0
VRF_lite2.inet6.0: 12/42/42/0
101.2.101.11 65100 3405 3402 0 0 1d 3:09:33 Establ
VRF_lite2.inet.0: 12/480/480/0
VRF_lite2.inet6.0: 12/42/42/0
101.2.102.1 65100 3482 3398 0 0 1d 3:09:36 Establ
VRF_lite2.inet.0: 8/473/473/0
VRF_lite2.inet6.0: 8/35/35/0
101.2.102.3 65100 3498 3380 0 0 1d 3:09:27 Establ
VRF_lite2.inet.0: 8/480/480/0
VRF_lite2.inet6.0: 8/42/42/0
172.16.93.1 Up xe-0/0/47.0 7.500 2.500 3
192.168.11.2 Up et-0/0/48.0 0.750 0.250 3
192.168.11.18 Up et-0/0/49.0 0.750 0.250 3
Verify SPINE-1 EVPN Type 5 Route Learned from TOR-3 with VXLAN Information
Purpose
The Spine-1 device must learn EVPN Type 5 routes from TOR-3 (inter-pod) containing VXLAN infommation. This step verifies the process.
Action
Verify EVPN Type 5 route learned from TOR-3 with VXLAN information:
user@SPINE-1> route 3.3.1.1 table VRF_lite1 extensive
VRF_lite1.inet.0: 491 destinations, 4317 routes (491 active, 0 holddown, 0 hidden)
3.3.1.0/24 (9 entries, 1 announced)
TSI:
KRT in-kernel 3.3.1.0/24 -> {composite(15808), composite(16947)}
Page 0 idx 0, (group access-eBGPv4 type External) Type 1 val 0xee70238 (adv_entry)
Advertised metrics:
Nexthop: Self
AS path: [65200] I
Communities:
Path 3.3.1.0 Vector len 4. Val: 0
*EVPN Preference: 170
Next hop type: Indirect, Next hop index: 0
Address: 0x9dfdf90
Next-hop reference count: 898
Next hop type: Router, Next hop index: 524822
Next hop: 110.100.1.0 via et-0/0/36.0, selected
Session Id: 0x0
Next hop: 110.100.1.4 via et-0/0/37.0
Session Id: 0x0
Next hop: 110.100.1.8 via et-0/0/38.0
Session Id: 0x0
Next hop: 110.100.1.12 via et-0/0/39.0
Session Id: 0x0
Next hop: 110.100.1.2 via et-0/0/40.0
Session Id: 0x0
Next hop: 110.100.1.6 via et-0/0/41.0
Session Id: 0x0
Next hop: 110.100.1.10 via et-0/0/42.0
Session Id: 0x0
Next hop: 110.100.1.14 via et-0/0/43.0
Session Id: 0x0
Next hop type: Router, Next hop index: 524822
Next hop: 110.100.1.0 via et-0/0/36.0
Session Id: 0x0
Next hop: 110.100.1.4 via et-0/0/37.0
Session Id: 0x0
Next hop: 110.100.1.8 via et-0/0/38.0
Session Id: 0x0
Next hop: 110.100.1.12 via et-0/0/39.0
Session Id: 0x0
Next hop: 110.100.1.2 via et-0/0/40.0
Session Id: 0x0
Next hop: 110.100.1.6 via et-0/0/41.0
Session Id: 0x0
Next hop: 110.100.1.10 via et-0/0/42.0
Session Id: 0x0
Next hop: 110.100.1.14 via et-0/0/43.0
Session Id: 0x0
Protocol next hop: 100.100.255.3
Composite next hop: 0xe52e190 15808 INH Session ID: 0x0
VXLAN tunnel rewrite:
MTU: 0, Flags: 0x0
Encap table ID: 0, Decap table ID: 5
Encap VNI: 1680, Decap VNI: 1
Source VTEP: 100.100.255.1, Destination VTEP: 100.100.255.3
SMAC: 54:4b:8c:cd:13:f8, DMAC: 54:4b:8c:5e:77:f8
Indirect next hop: 0xdc43840 524373 INH Session ID: 0x0
Protocol next hop: 100.100.255.4
Composite next hop: 0xe52f450 16947 INH Session ID: 0x0
VXLAN tunnel rewrite:
MTU: 0, Flags: 0x0
Encap table ID: 0, Decap table ID: 5
Encap VNI: 1690, Decap VNI: 1
Source VTEP: 100.100.255.1, Destination VTEP: 100.100.255.4
SMAC: 54:4b:8c:cd:13:f8, DMAC: 0c:86:10:d6:51:fe
Indirect next hop: 0xed4b840 524358 INH Session ID: 0x0
State: <Active Int Ext>
Age: 1d 3:16:39 Metric2: 0
Validation State: unverified
Task: VRF_lite1-EVPN-L3-context
Announcement bits (2): 2-KRT 5-BGP_RT_Background
AS path: I
Composite next hops: 2
Protocol next hop: 100.100.255.3
Composite next hop: 0xe52e190 15808 INH Session ID: 0x0
VXLAN tunnel rewrite:
MTU: 0, Flags: 0x0
Encap table ID: 0, Decap table ID: 5
Encap VNI: 1680, Decap VNI: 1
Source VTEP: 100.100.255.1, Destination VTEP: 100.100.255.3
SMAC: 54:4b:8c:cd:13:f8, DMAC: 54:4b:8c:5e:77:f8
Indirect next hop: 0xdc43840 524373 INH Session ID: 0x0
Indirect path forwarding next hops: 8
Next hop type: Router
Next hop: 110.100.1.0 via et-0/0/36.0
Session Id: 0x0
Next hop: 110.100.1.4 via et-0/0/37.0
Session Id: 0x0
Next hop: 110.100.1.8 via et-0/0/38.0
Session Id: 0x0
Next hop: 110.100.1.12 via et-0/0/39.0
Session Id: 0x0
Next hop: 110.100.1.2 via et-0/0/40.0
Session Id: 0x0
Next hop: 110.100.1.6 via et-0/0/41.0
Session Id: 0x0
Next hop: 110.100.1.10 via et-0/0/42.0
Session Id: 0x0
Next hop: 110.100.1.14 via et-0/0/43.0
Session Id: 0x0
100.100.255.3/32 Originating RIB: inet.0
Node path count: 1
Forwarding nexthops: 8
Nexthop: 110.100.1.0 via et-0/0/36.0
Protocol next hop: 100.100.255.4
Composite next hop: 0xe52f450 16947 INH Session ID: 0x0
VXLAN tunnel rewrite:
MTU: 0, Flags: 0x0
Encap table ID: 0, Decap table ID: 5
Encap VNI: 1690, Decap VNI: 1
Source VTEP: 100.100.255.1, Destination VTEP: 100.100.255.4
SMAC: 54:4b:8c:cd:13:f8, DMAC: 0c:86:10:d6:51:fe
Indirect next hop: 0xed4b840 524358 INH Session ID: 0x0
Indirect path forwarding next hops: 8
Next hop type: Router
Next hop: 110.100.1.0 via et-0/0/36.0
Session Id: 0x0
Next hop: 110.100.1.4 via et-0/0/37.0
Session Id: 0x0
Next hop: 110.100.1.8 via et-0/0/38.0
Session Id: 0x0
Next hop: 110.100.1.12 via et-0/0/39.0
Session Id: 0x0
Next hop: 110.100.1.2 via et-0/0/40.0
Session Id: 0x0
Next hop: 110.100.1.6 via et-0/0/41.0
Session Id: 0x0
Next hop: 110.100.1.10 via et-0/0/42.0
Session Id: 0x0
Next hop: 110.100.1.14 via et-0/0/43.0
Session Id: 0x0
100.100.255.4/32 Originating RIB: inet.0
Node path count: 1
Forwarding nexthops: 8
Nexthop: 110.100.1.0 via et-0/0/36.0
BGP Preference: 170/-101
Next hop type: Router, Next hop index: 0
Address: 0xdee7d30
Next-hop reference count: 466
Source: 101.1.102.1
Next hop: 101.1.102.1 via et-0/0/2.1, selected
Session Id: 0x0
State: <Ext>
Inactive reason: AS path
Peer AS: 65100
Age: 1d 3:16:43
Validation State: unverified
Task: BGP_65100.101.1.102.1
AS path: 65100 65200 I
Accepted
Localpref: 100
Router ID: 2.2.1.1
BGP Preference: 170/-101
Next hop type: Router, Next hop index: 0
Address: 0xdef3b50
Next-hop reference count: 482
Source: 101.1.102.3
Next hop: 101.1.102.3 via et-0/0/3.1, selected
Session Id: 0x0
State: <NotBest Ext>
Inactive reason: Not Best in its group - Update source
Peer AS: 65100
Age: 1d 3:16:42
Validation State: unverified
Task: BGP_65100.101.1.102.3
AS path: 65100 65200 I
Accepted
Localpref: 100
Router ID: 2.2.1.1
BGP Preference: 170/-101
Next hop type: Router, Next hop index: 0
Address: 0xf35fa70
Next-hop reference count: 466
Source: 101.1.101.1
Next hop: 101.1.101.1 via et-0/0/0.1, selected
Session Id: 0x0
State: <NotBest Ext>
Inactive reason: Not Best in its group - Router ID
Peer AS: 65100
Age: 1d 3:16:40
Validation State: unverified
Task: BGP_65100.101.1.101.1
AS path: 65100 65200 I
Accepted
Localpref: 100
Router ID: 10.10.10.1
BGP Preference: 170/-101
Next hop type: Router, Next hop index: 0
AS path: 65100 65200 I
Accepted
Localpref: 100
Router ID: 10.10.10.1
BGP Preference: 170/-101
Next hop type: Router, Next hop index: 0
Address: 0xdef2710
Next-hop reference count: 482
Source: 101.1.101.9
Next hop: 101.1.101.9 via et-0/0/6.1, selected
Session Id: 0x0
State: <NotBest Ext>
Inactive reason: Not Best in its group - Router ID
Peer AS: 65100
Age: 1d 3:16:42
Validation State: unverified
Task: BGP_65100.101.1.101.9
AS path: 65100 65200 I
Accepted
Localpref: 100
Router ID: 10.10.10.1
BGP Preference: 170/-101
Next hop type: Router, Next hop index: 0
Address: 0xdef0df0
Next-hop reference count: 482
Source: 101.1.101.11
Next hop: 101.1.101.11 via et-0/0/7.1, selected
Session Id: 0x0
State: <NotBest Ext>
Inactive reason: Not Best in its group - Router ID
Peer AS: 65100
Age: 1d 3:16:42
Validation State: unverified
Task: BGP_65100.101.1.101.11
AS path: 65100 65200 I
Accepted
Localpref: 100
Router ID: 10.10.10.1
Verify SPINE-1 EVPN Type 5 Forwarding Table Next-Hop Type for VRF_Lite1
Purpose
The EVPN Type 5 Forwarding Table Next-Hop Type with Unilist with Comp Next-Hops. This step verifies the process.
Action
Verify EVPN Type 5 forwarding table next-hop:
user@SPINE-1> show route forwarding-table destination 3.3.1.1 table VRF_lite1
Routing table: VRF_lite1.inet
Internet:
Destination Type RtRef Next hop Type Index NhRef Netif
3.3.1.0/24 user 0 ulst 524359 449
comp 15808 4
comp 16947 4
Verify SPINE-1 EVPN Type-5 Routes Learned from TOR-2 with Inet only (no VXLAN info )
Purpose
The Spine-1 device must learn EVPN Type 5 routes from TOR-2 (inter-pod) without VXLAN information. This step verifies the process.
Action
Verify EVPN Type 5 route learned from TOR-2 without VXLAN information:
user@SPINE-1> show route 2.2.1.1 table VRF_lite1 extensive
VRF_lite1.inet.0: 491 destinations, 4317 routes (491 active, 0 holddown, 0 hidden)
2.2.1.0/24 (8 entries, 1 announced)
TSI:
KRT in-kernel 2.2.1.0/24 -> {101.1.102.1, 101.1.102.3}
Page 0 idx 0, (group access-eBGPv4 type External) Type 1 val 0xee701ac (adv_entry)
Advertised metrics:
Nexthop: 101.1.102.1
AS path: [65200] 65100 I
Communities:
Advertise: 000000bf
Path 2.2.1.0 from 101.1.102.1 Vector len 4. Val: 0
*BGP Preference: 170/-101
Next hop type: Router, Next hop index: 524374
Address: 0x9dff990
Next-hop reference count: 16
Source: 101.1.102.1
Next hop: 101.1.102.1 via et-0/0/2.1
Session Id: 0x0
Next hop: 101.1.102.3 via et-0/0/3.1, selected
Session Id: 0x0
State: <Active Ext>
Peer AS: 65100
Age: 1d 3:34:23
Validation State: unverified
Task: BGP_65100.101.1.102.1
Announcement bits (4): 0-Resolve tree 54 1-VRF_lite1-EVPN-L3-context 2-KRT 5-BGP_RT_Background
AS path: 65100 I
Accepted Multipath
Localpref: 100
Router ID: 2.2.1.1
BGP Preference: 170/-101
Next hop type: Router, Next hop index: 0
Address: 0xdef3b50
Next-hop reference count: 482
Source: 101.1.102.3
Next hop: 101.1.102.3 via et-0/0/3.1, selected
Session Id: 0x0
State: <NotBest Ext>
Inactive reason: Not Best in its group - Update source
Peer AS: 65100
Age: 1d 3:34:22
Validation State: unverified
Task: BGP_65100.101.1.102.3
AS path: 65100 I
Accepted MultipathContrib
Localpref: 100
Router ID: 2.2.1.1
BGP Preference: 170/-101
Next hop type: Router, Next hop index: 0
Address: 0xf35fa70
Next-hop reference count: 466
Source: 101.1.101.1
Next hop: 101.1.101.1 via et-0/0/0.1, selected
Session Id: 0x0
State: <Ext>
Inactive reason: AS path
Peer AS: 65100
Age: 1d 3:34:20
Validation State: unverified
Task: BGP_65100.101.1.101.1
AS path: 65100 65200 65100 I
Accepted
Localpref: 100
Router ID: 10.10.10.1
BGP Preference: 170/-101
Next hop type: Router, Next hop index: 0
Address: 0xdef60d0
Next-hop reference count: 482
Source: 101.1.101.3
Next hop: 101.1.101.3 via et-0/0/1.1, selected
Session Id: 0x0
State: <NotBest Ext>
Inactive reason: Not Best in its group - Update source
Peer AS: 65100
Age: 1d 3:34:22
Validation State: unverified
Task: BGP_65100.101.1.101.3
AS path: 65100 65200 65100 I
Accepted
Localpref: 100
Router ID: 10.10.10.1
BGP Preference: 170/-101
Next hop type: Router, Next hop index: 0
Address: 0xdeda110
Next-hop reference count: 482
Source: 101.1.101.5
Next hop: 101.1.101.5 via et-0/0/4.1, selected
Session Id: 0x0
State: <NotBest Ext>
Inactive reason: Not Best in its group - Update source
Peer AS: 65100
Age: 1d 3:34:22
Validation State: unverified
Task: BGP_65100.101.1.101.11
AS path: 65100 65200 65100 I
Accepted
Localpref: 100
Router ID: 10.10.10.1
Verify SPINE-1 Intra-pod Route to TOR-2 Uses Unicast Next-Hop
Purpose
The Spine-1 Intrapod Route to TOR-2 Must Use the Unicast Next-Hop. This step verifies the process.
Action
Verify the Spine-1 intrapod route to TOR-2 uses unicast next-hop:
user@SPINE-1> show route forwarding-table destination 2.2.2.1 table VRF_lite1 detail
Routing table: VRF_lite1.inet
Internet:
Destination Type RtRef Next hop Type Index NhRef Netif
2.2.2.0/24 user 0 ulst 524374 8
101.1.102.1 ucst 15122 4 et-0/0/2.1
101.1.102.3 ucst 15324 4 et-0/0/3.1
Verify Fabric-1 Interfaces
Purpose
The Fabric-1 Intrapod interfaces must be configured properly. This step verifies the process.
Action
Verify the cloud-Fabric-sw01 interfaces are configured properly:
user@cloud-Fabric-sw01> show interfaces terse | match 110.100
et-0/0/4.0 up up inet 110.100.1.0/31
inet6 ::ffff:110.100.1.0/127
et-0/0/5.0 up up inet 110.100.1.2/31
inet6 ::ffff:110.100.1.2/127
et-0/0/6.0 up up inet 110.100.2.0/31
inet6 ::ffff:110.100.2.0/127
et-0/0/7.0 up up inet 110.100.2.2/31
inet6 ::ffff:110.100.2.2/127
et-0/0/8.0 up up inet 110.100.3.0/31
inet6 ::ffff:110.100.3.0/127
et-0/0/9.0 up up inet 110.100.3.2/31
inet6 ::ffff:110.100.3.2/127
et-0/0/10.0 up up inet 110.100.4.0/31
inet6 ::ffff:110.100.4.0/127
et-0/0/11.0 up up inet 110.100.4.2/31
inet6 ::ffff:110.100.4.2/127
110.100.255.7 --> 0/0
inet6 ::ffff:110.100.255.7/32
Verify Fabric-1 BGP Sessions
Purpose
The Fabric-1 BGP sessions must be configured properly. This step verifies the process.
Action
Verify the cloud-Fabric-sw01 BGP sessions:
user@cloud-Fabric-sw01> show bgp summary | find 110.100 110.100.1.1 65200 37 48 0 0 16:40 Establ inet.0: 1/1/1/0 inet6.0: 1/1/1/0 110.100.1.3 65200 38 48 0 0 17:00 Establ inet.0: 1/1/1/0 inet6.0: 1/1/1/0 110.100.2.1 65200 39 46 0 0 16:56 Establ inet.0: 2/2/2/0 inet6.0: 1/1/1/0 110.100.2.3 65200 39 49 0 0 16:52 Establ inet.0: 2/2/2/0 inet6.0: 1/1/1/0 110.100.3.1 65201 3701 3828 0 0 1d 5:11:33 Establ inet.0: 1/1/1/0 inet6.0: 1/1/1/0 110.100.3.3 65201 3704 3837 0 0 1d 5:11:42 Establ inet.0: 1/1/1/0 inet6.0: 1/1/1/0 110.100.4.1 65201 3557 3831 0 0 1d 5:11:48 Establ inet.0: 1/1/1/0 inet6.0: 1/1/1/0 110.100.4.3 65201 3555 3834 0 0 1d 5:11:38 Establ inet.0: 1/1/1/0 inet6.0: 1/1/1/0
Verify BGP Scaling on TOR-3
Purpose
The TOR-3 BGP sessions must be configured properly and appear and TOR-3. This step verifies the process.
Action
Verify the TOR-4 BGP sessions:
user@TOR-4> show route summary
Autonomous system number: 65101
Router ID: 100.100.255.104
inet.0: 45 destinations, 45 routes (44 active, 0 holddown, 1 hidden)
Direct: 3 routes, 2 active
Local: 1 routes, 1 active
Static: 41 routes, 41 active
VRF_lite1.inet.0: 489 destinations, 518 routes (489 active, 0 holddown, 0 hidden)
Direct: 8 routes, 8 active
Local: 7 routes, 7 active
BGP: 503 routes, 474 active
VRF_lite10.inet.0: 486 destinations, 514 routes (486 active, 0 holddown, 0 hidden)
Direct: 7 routes, 7 active
Local: 7 routes, 7 active
BGP: 500 routes, 472 active
VRF_lite11.inet.0: 486 destinations, 514 routes (486 active, 0 holddown, 0 hidden)
Direct: 7 routes, 7 active
Local: 7 routes, 7 active
BGP: 500 routes, 472 active
VRF_lite12.inet.0: 486 destinations, 514 routes (486 active, 0 holddown, 0 hidden)
Direct: 7 routes, 7 active
Local: 7 routes, 7 active
BGP: 500 routes, 472 active
VRF_lite13.inet.0: 486 destinations, 514 routes (486 active, 0 holddown, 0 hidden)
Direct: 7 routes, 7 active
Local: 7 routes, 7 active
BGP: 500 routes, 472 active
VRF_lite14.inet.0: 486 destinations, 514 routes (486 active, 0 holddown, 0 hidden)
Direct: 7 routes, 7 active
Local: 7 routes, 7 active
BGP: 500 routes, 472 active
VRF_lite15.inet.0: 486 destinations, 514 routes (486 active, 0 holddown, 0 hidden)
Direct: 7 routes, 7 active
Local: 7 routes, 7 active
BGP: 500 routes, 472 active
VRF_lite16.inet.0: 486 destinations, 514 routes (486 active, 0 holddown, 0 hidden)
Direct: 7 routes, 7 active
Local: 7 routes, 7 active
BGP: 500 routes, 472 active
VRF_lite2.inet.0: 487 destinations, 515 routes (487 active, 0 holddown, 0 hidden)
Direct: 7 routes, 7 active
Local: 7 routes, 7 active
BGP: 501 routes, 473 active
VRF_lite3.inet.0: 487 destinations, 515 routes (487 active, 0 holddown, 0 hidden)
Direct: 7 routes, 7 active
Local: 7 routes, 7 active
BGP: 501 routes, 473 active
VRF_lite4.inet.0: 487 destinations, 515 routes (487 active, 0 holddown, 0 hidden)
Direct: 7 routes, 7 active
Local: 7 routes, 7 active
BGP: 501 routes, 473 active
VRF_lite5.inet.0: 487 destinations, 515 routes (487 active, 0 holddown, 0 hidden)
Direct: 7 routes, 7 active
Local: 7 routes, 7 active
BGP: 501 routes, 473 active
VRF_lite6.inet.0: 487 destinations, 515 routes (487 active, 0 holddown, 0 hidden)
Direct: 7 routes, 7 active
Local: 7 routes, 7 active
BGP: 501 routes, 473 active
VRF_lite7.inet.0: 487 destinations, 515 routes (487 active, 0 holddown, 0 hidden)
Direct: 7 routes, 7 active
Local: 7 routes, 7 active
BGP: 501 routes, 473 active
VRF_lite8.inet.0: 487 destinations, 515 routes (487 active, 0 holddown, 0 hidden)
Direct: 7 routes, 7 active
Local: 7 routes, 7 active
BGP: 501 routes, 473 active
VRF_lite9.inet.0: 486 destinations, 514 routes (486 active, 0 holddown, 0 hidden)
Direct: 7 routes, 7 active
Local: 7 routes, 7 active
BGP: 500 routes, 472 active
VRF_lite1.inet6.0: 57 destinations, 91 routes (57 active, 0 holddown, 0 hidden)
Direct: 14 routes, 8 active
Local: 14 routes, 14 active
BGP: 63 routes, 35 active
VRF_lite10.inet6.0: 57 destinations, 91 routes (57 active, 0 holddown, 0 hidden)
Direct: 14 routes, 8 active
Local: 14 routes, 14 active
BGP: 63 routes, 35 active
VRF_lite11.inet6.0: 57 destinations, 91 routes (57 active, 0 holddown, 0 hidden)
Direct: 14 routes, 8 active
Local: 14 routes, 14 active
BGP: 63 routes, 35 active
VRF_lite12.inet6.0: 57 destinations, 91 routes (57 active, 0 holddown, 0 hidden)
Direct: 14 routes, 8 active
Local: 14 routes, 14 active
BGP: 63 routes, 35 active
VRF_lite13.inet6.0: 57 destinations, 91 routes (57 active, 0 holddown, 0 hidden)
Direct: 14 routes, 8 active
Local: 14 routes, 14 active
BGP: 63 routes, 35 active
VRF_lite14.inet6.0: 57 destinations, 91 routes (57 active, 0 holddown, 0 hidden)
Direct: 14 routes, 8 active
Local: 14 routes, 14 active
BGP: 63 routes, 35 active
VRF_lite15.inet6.0: 57 destinations, 91 routes (57 active, 0 holddown, 0 hidden)
Direct: 14 routes, 8 active
Local: 14 routes, 14 active
BGP: 63 routes, 35 active
VRF_lite16.inet6.0: 57 destinations, 91 routes (57 active, 0 holddown, 0 hidden)
Direct: 14 routes, 8 active
Local: 14 routes, 14 active
BGP: 63 routes, 35 active
VRF_lite2.inet6.0: 57 destinations, 91 routes (57 active, 0 holddown, 0 hidden)
Direct: 14 routes, 8 active
Local: 14 routes, 14 active
BGP: 63 routes, 35 active
VRF_lite3.inet6.0: 57 destinations, 91 routes (57 active, 0 holddown, 0 hidden)
Direct: 14 routes, 8 active
Local: 14 routes, 14 active
BGP: 63 routes, 35 active
VRF_lite4.inet6.0: 57 destinations, 91 routes (57 active, 0 holddown, 0 hidden)
Direct: 14 routes, 8 active
Local: 14 routes, 14 active
BGP: 63 routes, 35 active
VRF_lite5.inet6.0: 57 destinations, 91 routes (57 active, 0 holddown, 0 hidden)
Direct: 14 routes, 8 active
Local: 14 routes, 14 active
BGP: 63 routes, 35 active
VRF_lite6.inet6.0: 57 destinations, 91 routes (57 active, 0 holddown, 0 hidden)
Direct: 14 routes, 8 active
Local: 14 routes, 14 active
BGP: 63 routes, 35 active
VRF_lite7.inet6.0: 57 destinations, 91 routes (57 active, 0 holddown, 0 hidden)
Direct: 14 routes, 8 active
Local: 14 routes, 14 active
BGP: 63 routes, 35 active
VRF_lite8.inet6.0: 57 destinations, 91 routes (57 active, 0 holddown, 0 hidden)
Direct: 14 routes, 8 active
Local: 14 routes, 14 active
BGP: 63 routes, 35 active
VRF_lite9.inet6.0: 57 destinations, 91 routes (57 active, 0 holddown, 0 hidden)
Direct: 14 routes, 8 active
Local: 14 routes, 14 active
BGP: 63 routes, 35 active
Verify Fabric-1 BGP Sessions
Purpose
The Fabric-1 BGP sessions must be configured properly. This step verifies the process.
Action
Verify the cloud-Fabric-sw01 BGP sessions:
user@cloud-Fabric-sw01> show bgp summary | find 110.100 110.100.1.1 65200 37 48 0 0 16:40 Establ inet.0: 1/1/1/0 inet6.0: 1/1/1/0 110.100.1.3 65200 38 48 0 0 17:00 Establ inet.0: 1/1/1/0 inet6.0: 1/1/1/0 110.100.2.1 65200 39 46 0 0 16:56 Establ inet.0: 2/2/2/0 inet6.0: 1/1/1/0 110.100.2.3 65200 39 49 0 0 16:52 Establ inet.0: 2/2/2/0 inet6.0: 1/1/1/0 110.100.3.1 65201 3701 3828 0 0 1d 5:11:33 Establ inet.0: 1/1/1/0 inet6.0: 1/1/1/0 110.100.3.3 65201 3704 3837 0 0 1d 5:11:42 Establ inet.0: 1/1/1/0 inet6.0: 1/1/1/0 110.100.4.1 65201 3557 3831 0 0 1d 5:11:48 Establ inet.0: 1/1/1/0 inet6.0: 1/1/1/0 110.100.4.3 65201 3555 3834 0 0 1d 5:11:38 Establ inet.0: 1/1/1/0 inet6.0: 1/1/1/0
Verify BGP Scaling on SPINE-1
Purpose
The SPINE-1 BGP sessions must be configured properly. This step verifies the process.
Action
Verify the SPINE-1 BGP sessions:
user@SPINE-1> show bgp summary
Groups: 119 Peers: 1142 Down peers: 1
Table Tot Paths Act Paths Suppressed History Damp State Pending
inet.0
70 46 0 0 0 0
inet6.0
36 32 0 0 0 0
bgp.evpn.0
19770 19770 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
100.100.101.1 65100 12654 12484 0 0 4d 6:28:40 Establ
inet.0: 6/8/8/0
inet6.0: 0/0/0/0
100.100.101.3 65100 12654 12487 0 0 4d 6:28:41 Establ
inet.0: 6/8/8/0
inet6.0: 0/0/0/0
100.100.102.1 65100 12863 12480 0 0 4d 6:28:40 Establ
inet.0: 5/7/7/0
inet6.0: 0/0/0/0
100.100.102.3 65100 12863 12483 0 0 4d 6:28:40 Establ
inet.0: 5/7/7/0
inet6.0: 0/0/0/0
100.100.250.1 65500 17910 19397 0 0 4d 6:28:40 Establ
bgp.evpn.0: 19770/19770/19770/0
VRF_lite1.evpn.0: 926/926/926/0
VRF_lite10.evpn.0: 922/922/922/0
VRF_lite11.evpn.0: 922/922/922/0
VRF_lite12.evpn.0: 922/922/922/0
VRF_lite13.evpn.0: 922/922/922/0
VRF_lite14.evpn.0: 922/922/922/0
VRF_lite15.evpn.0: 922/922/922/0
VRF_lite16.evpn.0: 922/922/922/0
VRF_lite2.evpn.0: 924/924/924/0
VRF_lite3.evpn.0: 924/924/924/0
VRF_lite4.evpn.0: 924/924/924/0
VRF_lite5.evpn.0: 924/924/924/0
VRF_lite6.evpn.0: 924/924/924/0
VRF_lite7.evpn.0: 924/924/924/0
VRF_lite8.evpn.0: 924/924/924/0
VRF_lite9.evpn.0: 922/922/922/0
VRF_lite_TorGroup_1.evpn.0: 50/50/50/0
VRF_lite_TorGroup_10.evpn.0: 50/50/50/0
VRF_lite_TorGroup_100.evpn.0: 50/50/50/0
VRF_lite_TorGroup_11.evpn.0: 50/50/50/0
VRF_lite_TorGroup_12.evpn.0: 50/50/50/0
VRF_lite_TorGroup_13.evpn.0: 50/50/50/0
VRF_lite_TorGroup_14.evpn.0: 50/50/50/0
VRF_lite_TorGroup_15.evpn.0: 50/50/50/0
Till VRF115
