Deploy Juniper Mist Edge at the Organization Level

This chapter provides information about the various tasks that you perform to deploy the Juniper Mist™ Edge at the organization level.

Create a Mist Cluster

After you onboard a Juniper Mist Edge on the Juniper Mist portal, you must add the device to a Mist Cluster. A cluster can comprise a single edge device or multiple edge devices. You can use multiple clusters in an active/active or in an active/passive configuration.

To create a cluster:

  1. From the left menu of the Juniper Mist portal, select Mist Edges.
    Mist Edges Clusters page appears.
  2. In the Mist Edges Clusters page, click Create Cluster.
  3. On the Create Mist Cluster page, enter a name in the Cluster Name field. In the Select Mist Edges field, select the edge devices to add to the cluster. Click Create.

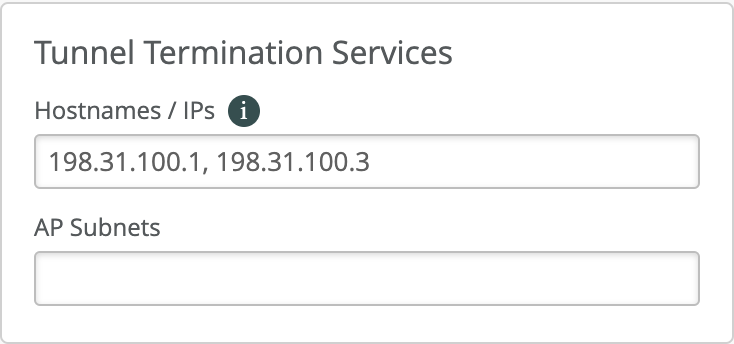

  4. Select the cluster from the Mist Edges Clusters page. In the Tunnel Termination Services page, specify the hostname or IP address to configure the Mist Edge cluster.
    If multiple Juniper Mist Edges are part of the cluster, list the IP address of each device, separated by a comma. The hostname or IP addresses you specify in this page must be the same as the Tunnel IP address that you have configured for each Juniper Mist Edge.

    The Hostnames/IPs field gets automatically populated as per the IP address you enter in the Tunnel IP Configuration field in the Mist Edge inventory page. Whenever you add or delete a Mist Edge from a Cluster, make sure to verify the entries in this section. For more information, see Autopopulating Tunnel Termination Services.

    If you add multiple Juniper Mist Edges to a single cluster, you can create an active/active setup for all the Juniper Mist Edges in the same cluster.
    For an active/standby setup, you must create a second cluster for the Juniper Mist Edge you want to be on standby. If the Juniper Mist Edges in the primary cluster are down, the AP fails over to the Juniper Mist Edges in the secondary cluster.

    For Remote Teleworker solution, ensure that the firewall is configured to allow the connection from remote AP. Consider the following guidelines:

    • Allow port 500/4500 for IPSec and port 2083 for RadSec from remote APs

    • Firewall must translate the destination IP of the packets from remote AP to the tunnel IP

    • Obtain the external IP for the Mist Edge tunnel IP where a remote AP connects (usually a firewall IP). Append that IP to the hostname/IPs under tunnel termination services

    No additional configuration is required on Mist Edge or AP, other than selecting the tunnel type as IPSec and Radius to proxy through Mist Edge.

Create Mist Tunnel (Organization Level)

After you create a cluster, you must configure a tunnel and bind the tunnel to the cluster. Typically, the tunnel is where you list all your user VLANs (client VLANs) that you want to extend from your corporate network to the APs.

To create a Mist Tunnel at the organization level:

  1. From the left menu of the Juniper Mist portal, select Mist Edges.
  2. In the Mist Tunnels pane, click Create Tunnel.
    Mist Tunnels page appears.

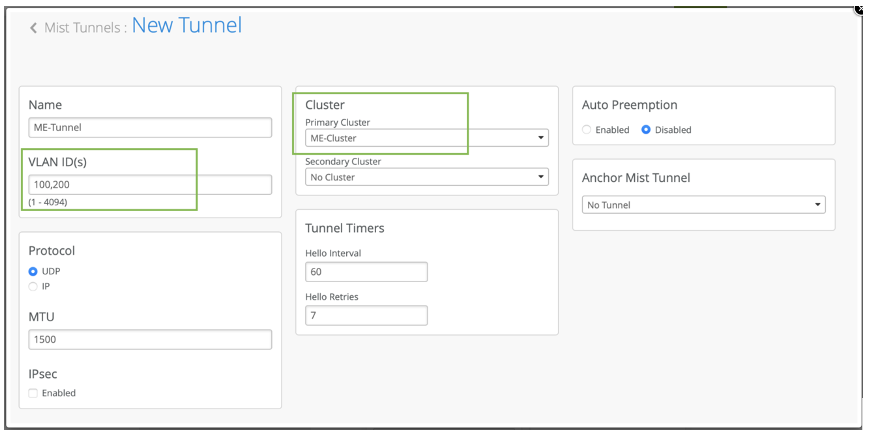

  3. On the Mist Tunnels page, in the VLAN ID(s) field, specify all the user VLANs that you must tunnel back. Separate the VLAN IDs in the list with commas.
  4. In the Cluster pane, assign the tunnel to a primary or a secondary Mist Edge Cluster created using the steps described in Create a Mist Cluster earlier. In either the Primary Cluster or the Secondary Cluster field, select the required cluster from the drop-down list. You can retain the default entry or selection in the other fields on the page.
    After you map the Mist Edge and tunnel to a cluster, the tunnel termination service is instantiated from the cloud on the Mist Edge.

Configure Tunnel MTU Settings

When creating or configuring Mist tunnels, you can specify MTU settings to optimize tunnel performance. The Juniper Mist Edge tunnel uses two types of MTU settings:

  • Inner MTU: Defines the maximum transmission unit size for the payload within the tunnel.

  • Outer MTU: Defines the maximum transmission unit size for the entire encapsulated packet.

Note:

The system automatically includes a 50-byte pad in the MTU calculation to accommodate tunnel encapsulation overhead. You do not need to manually reduce your MTU settings to account for this padding.

You can edit only the outer MTU value, the inner MTU value is automatically calculated based on the outer MTU value.

To configure tunnel MTU settings:

  1. Navigate to the Mist Tunnels page where you are creating or editing a tunnel.

  2. In the MTU field, enter the MTU value.

    The default MTU setting is 1500 bytes (which includes the 50-byte pad).

If you need to modify the MTU settings to accommodate specific network requirements:

  • Ensure that the MTU values are consistent across your network infrastructure.

  • Remember that the 50-byte pad is already included in the MTU value you configure.

  • Test connectivity after making MTU changes to ensure proper operation.

Configure WLAN Template

A WLAN template is a collection of WLAN policies, tunneling policies and WxLAN policies. Instead of repeating a given configuration across multiple service set identifiers (SSIDs), with WLAN templates you can set it once and then attach APs to the template to automatically inherit the setting. Both the APs and WLAN must belong to the same site.

You must use the WLAN Templates to enable the corporate SSID. You can create a WLAN template and use the template assignment for:

  • Specific sites or a collection of individual sites that are mapped to a Site-Group.

  • Entire organization with actual office sites added as exceptions.

To configure a WLAN template:

  1. From the left menu of the Juniper Mist portal, select Organization > Wireless > WLAN Templates.
  2. On the WLAN Templates page, click Create Template.
  3. Enter a name for the template in the Template Name field. Click Create. The name will appear in the WLAN Template list.
  4. On the new template page, select Entire Org or Sites and Site Groups to assign the template to an organization or to Sites and Site groups.

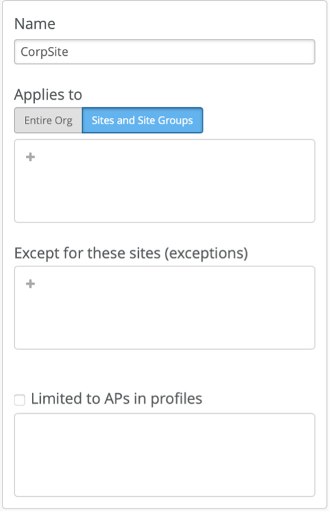

    Figure 1: WLAN Template Assigned to Sites and Site Groups WLAN Template Assigned to Sites and Site Groups

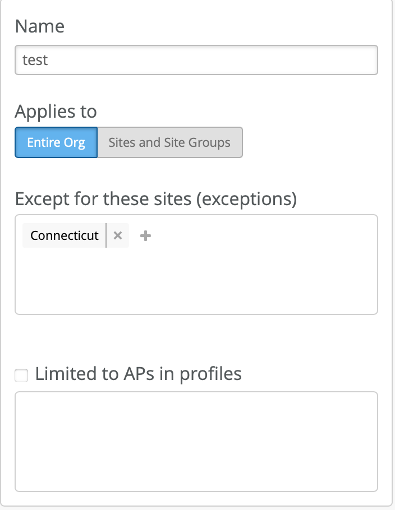

    Figure 2: WLAN Template Assigned to Entire Organization with Some Exceptions WLAN Template Assigned to Entire Organization with Some Exceptions
  5. On the WLAN templates page, in the WLANs pane, select Add WLAN .
    The Create WLAN page appears.

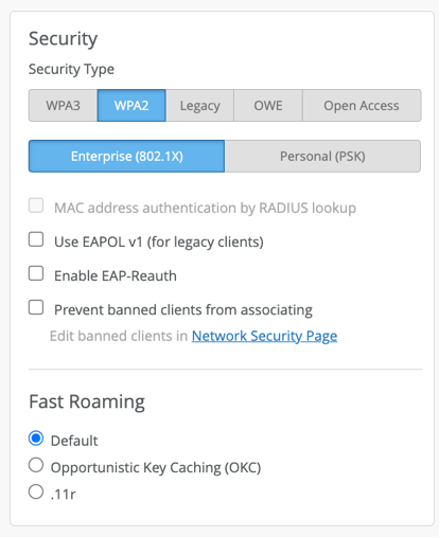

    1. In the Create WLAN page, you can specify the security settings.
    2. Enter other settings, as needed. For tips about the various WLAN settings, see WLAN Options.
    3. In the Create WLAN page, specify the number of VLANs to be tunneled through the Juniper Mist Edge in the VLAN ID field.
      Note that Juniper® Series of High-Performance Access Points do not tunnel any WLAN configured with an untagged VLAN. You can choose the APs that are tunneled as per the deployment type.

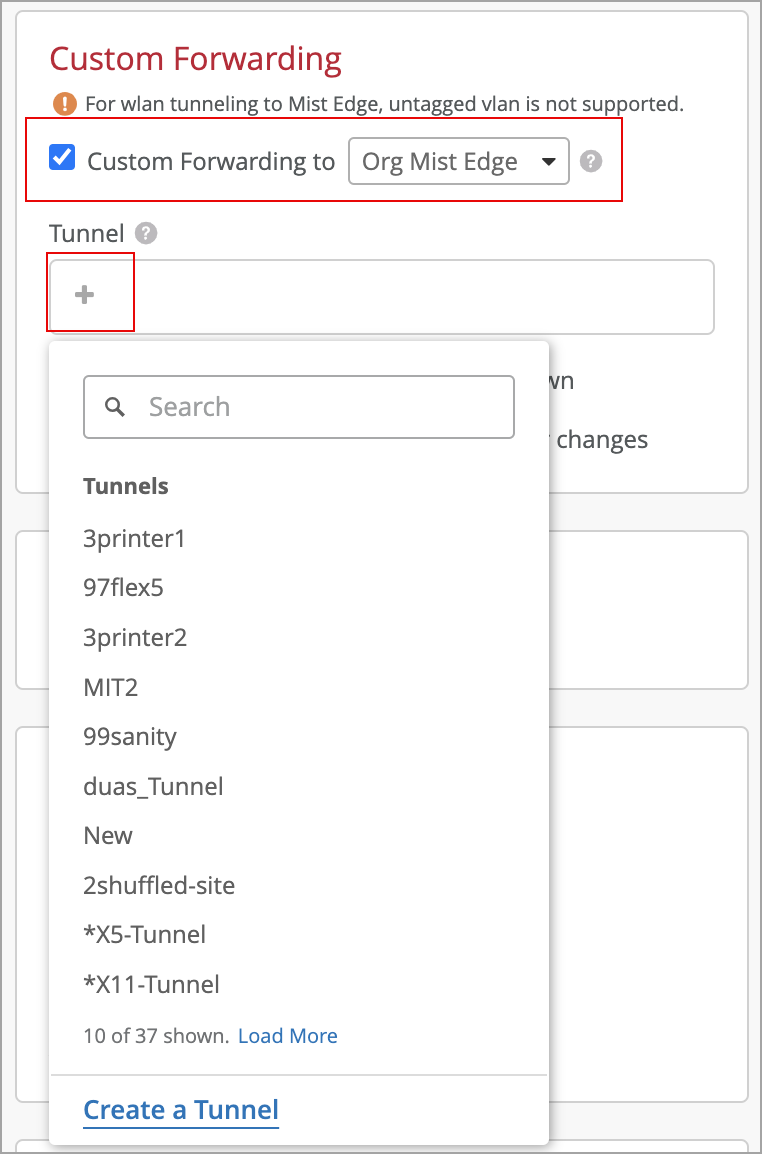

    4. In the Create WLAN page, for organization-level deployment, select Custom Forwarding to and then select Org Mist Edge from the drop-down list.
    5. Select tunnel profiles from the Tunnel drop-down list.

      Click + if you want to add multiple tunnels. Note that the specified Mist tunnel must have the same VLAN that you want to tunnel.

      Note: You must ensure that a VLAN is not duplicated on multiple tunnels.

      You can also set Mist to:

      • Disable the WLAN when the Mist tunnel goes down by selecting the Disable WLAN when Mist Tunnel goes down check box.

      • Force clients to reconnect when the AP’s Mist Edge tunnel fails over to a Mist Edge in a different Mist Edge cluster by selecting the Reconnect clients when Mist Edge Cluster changes check box. This will be useful to gracefully disconnect the clients if the same IP subnet is not used across Mist Edge clusters.

    6. Click Create.
