Validation Framework

Test Bed

The test bed environment consists of a 3-stage EVPN/VXLAN fabric managed by Juniper Apstra, with four ESI server leaf switches configured as two redundant pairs, one single (non-redundant) server leaf (non-ESI), and two redundant border leaf switches connected to two spines. An external router is also connected to the border leaf switches. A traffic generator is connected to the test ports on the external router and the ESXi servers.

To ensure all the platforms specified in the Supported Devices and Positioning Table 1 are validated, two data center topologies connected using DCI were used. Since there were multiple devices for each role, the devices were swapped, and the tests were repeated with each combination. For instance, border leaf switches were swapped with QFX5130-32CD, PTX10001-36MR, ACX7100-32CD, and so on.

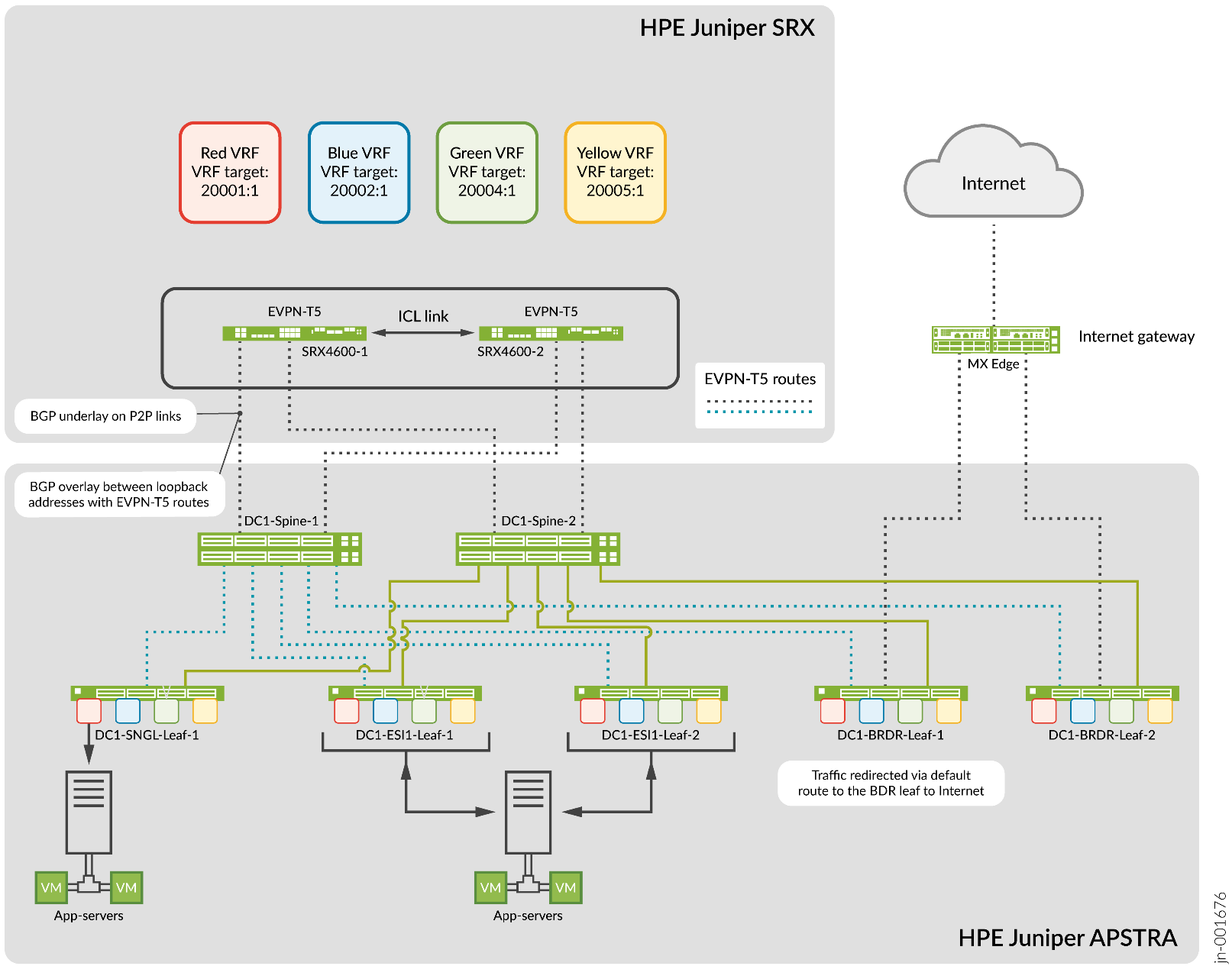

Figure 1: Lab Topology Lab Topology

VRF Characteristics:

Blue VRF

  • VNI 20002
  • Route Distinguisher: 192.168.250.1:3
  • Route Target 20002:1

Green VRF

  • VNI 20004
  • Route Distinguisher: 192.168.250.1:4
  • Route Target 20004:1

Yellow VRF

  • VNI 20005
  • Route Distinguisher: 192.168.250.1:5
  • Route Target 20005:1

Red VRF

  • VNI 20001
  • Route Distinguisher: 192.168.250.1:2
  • Route Target 20001:1

Platforms / Devices Under Test (DUT)

To review the software versions and platforms on which this JVDE was validated by Juniper Networks, see the Validated Platforms and Software section in this document.

Test Bed Configuration

Contact your Juniper Networks representative to obtain the full archive of the test bed configuration used for this JVDE.
