Validation Framework

Test Bed Overview

In a production network, all hubs would need public IP addresses to be reachable for traffic from broadband or LTE networks as their traffic moves through the Internet as transport.

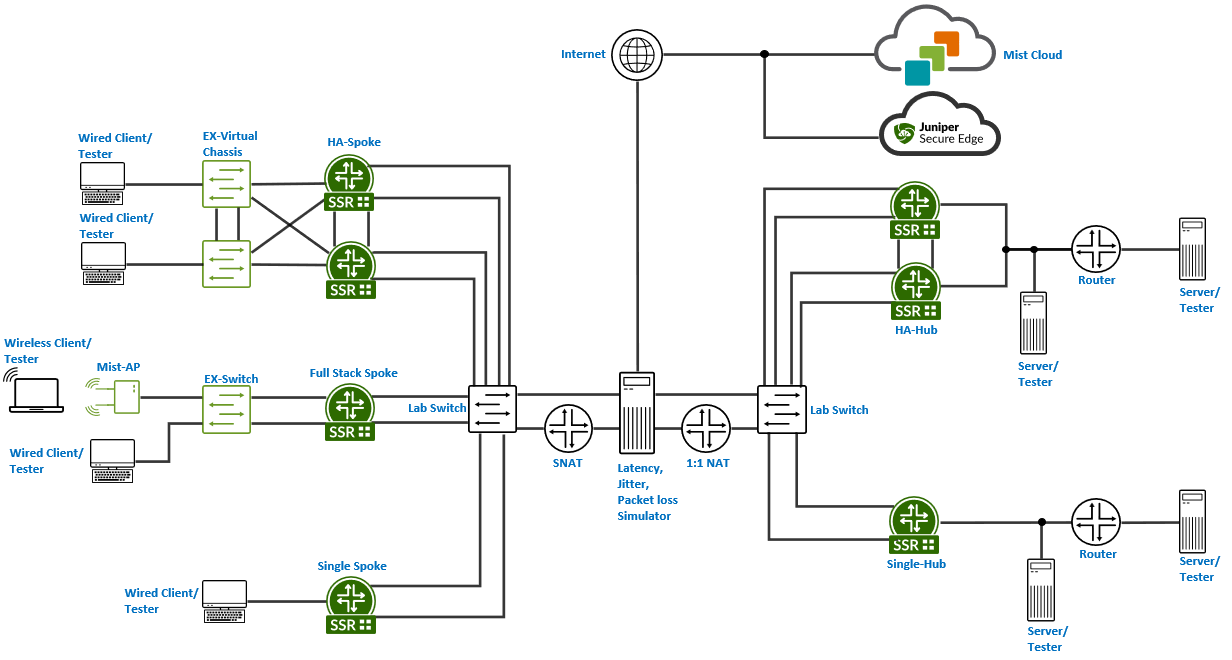

Figure 1 shows a lab topology that provides all needed functionality locally without using the Internet for Juniper Mist cloud management and services that are hard to simulate locally such as Outlook 365, Facebook, and so on. A similar lab was built to test the five major topologies and the additional functions that WAN edge provides for Session Smart Routers.

Figure 1: Lab Topology of this JVD A diagram of a cloud computing network Description automatically generated

Platforms / Devices Under Test (DUT)

To review the software versions and platforms on which this JVD was validated by Juniper Networks, see the Validated Platforms and Software section in this document.

Test Bed Configuration

We are sharing information about exactly how some of the tests were performed in the appendix section of this document. Contact your Juniper representative to obtain the full archive of the test bed configuration used for this JVD.
