Type 5 EVPN/VXLAN GPU Backend Fabric, SLAAC IPv6 Overlay over IPv6 Link-Local Underlay - Configuration

IPv6 GPU Server NICs to Leaf Nodes Connections Using SLAAC

This section describes the operation of SLAAC in the context of this solution, and then will the configuration and verification steps on both the servers and the Leaf nodes.

The GPU servers are connected to the leaf nodes following a rail-aligned architecture as described in the Backend GPU Rail Optimized Stripe Architecture section, where GPU 0 is connected to the first Leaf node, GPU 1 is connected to the second leaf node and so on. This is shown in Figure 47.

Figure 47. GPU Servers Rail-Aligned Connectivity

Each server to leaf node link is configured as an untagged L3 link and a statically configured /64 IPv6 address, while the server interface is autoconfigured using SLAAC to support scalable and automated IPv6 address assignment.

Each Tenant is assigned a /56 address, which will be used to derive /64 for each server to leaf node connection corresponding to the tenant. Tables 13 and 14 show the address assignment.

Table 13. Tenants /56 Prefixes Example

TENANT	/56 IPv6 Prefix
Tenant-1	FC00:200:1::/56
Tenant-2	FC00:200:2::/56
Tenant-3	FC00:200:3::/56
Tenant-4	FC00:200:4::/56
Tenant-5	FC00:200:5::/56
Tenant-6	FC00:200:6::/56
Tenant-7	FC00:200:7::/56
Tenant-8	FC00:200:8::/56
. . .

Table 14. Tenants /64 Prefixes Example

TENANT-1		TENANT-2			...
Server to leaf Link	/64 Prefix	Server to leaf Link		/64 Prefix
SERVER 1 gpu0_eth ó Stripe 1 Leaf 1	FC00:200:1:1::/64	SERVER 1 gpu0_eth ó Stripe 1 Leaf 1		FC00:200:2:1::/64
SERVER 2 gpu0_eth ó Stripe 1 Leaf 1	FC00:200:1:2::/64	SERVER 2 gpu0_eth ó Stripe 1 Leaf 1		FC00:200:2:2::/64
SERVER 3 gpu0_eth ó Stripe 1 Leaf 1	FC00:200:1:3::/64	SERVER 3 gpu0_eth ó Stripe 1 Leaf 1		FC00:200:2:3::/64
. . .		. . .
SERVER 9 gpu0_eth ó Stripe 2 Leaf 1	FC00:200:1:9::/64	SERVER 9 gpu0_eth ó Stripe 2 Leaf 1		FC00:200:2:9::/64
SERVER 10 gpu0_eth ó Stripe 2 Leaf 1	FC00:200:1:10::/64	SERVER 10 gpu0_eth ó Stripe 2 Leaf 1		FC00:200:2:10::/64
SERVER 11 gpu0_eth ó Stripe 2 Leaf 1	FC00:200:1:11::/64	SERVER 11 gpu0_eth ó Stripe 2 Leaf 1		FC00:200:2:11::/64
. . .		. . .

Each leaf node advertises a /64 IPv6 prefix, which is accepted by the server interface and used to automatically derive the interface’s IPv6 address through its EUI-64 identifier (based on the interface’s MAC address), as shown in Figure 48. This approach eliminates the need for DHCPv6 or manual configuration on the servers.

Figure 48: SLAAC – Stateless Address Autoconfiguration Operation Example – Tenant 1.

The leaf node must also advertise the tenant’s /56 prefix using the Route Information Option (RIO) in IPv6 router advertisement messages as shown in figure 48. This provides the routing information required for a given GPU interface to communicate with remote GPU interfaces assigned to the same tenant.

Figure 49: SLAAC – Stateless Address Autoconfiguration with RIO-Prefix Operation Example – Tenant 1

Without this option the server installs a default route pointing to the leaf node link local interface, for each RA received.

In the example shown in Figure 49, H100-01 and H100-02 provide GPU isolation for eight different tenants, with the following /56 prefix assignments:

Table 15. Tenants /56 Prefixes per Tenant Example

TENANT	/56 Prefix
TENANT-1	FC00:200:1::/56
TENANT-2	FC00:200:2::/56
TENANT-3	FC00:200:3::/56
TENANT-4	FC00:200:4::/56
TENANT-5	FC00:200:5::/56
TENANT-6	FC00:200:6::/56
TENANT-7	FC00:200:7::/56
TENANT-8	FC00:200:8::/56
. . .

All interfaces associated with Tenant-1 will have IPv6 addresses derived from FC00:200:1::/56, all interfaces associated with Tenant-2 will have IPv6 addresses from FC00:200:2::/56, and so on, as shown in Figure 50.

Figure 50. Multitenancy GPU-Isolation Example

Initially, the leaf nodes are configured to advertise only the /64 prefixes. For example, Stripe 1 Leaf 1 advertises FC00:200:1:1::/64 to gpu0_eth server H100-01, while Stripe 2 Leaf 1 advertises FC00:200:1:2::/64 to gpu0_eth server H100-02. The two prefixes are derived from the FC00:200:1::/56 assigned to Tenant-1.

The servers automatically configure their IPv6 addresses from these advertised prefixes, as shown below:

At this time, the routing tables on both servers include default routes pointing to the link local addresses learned from the router advertisements.

Traffic originating from gpu0_eth on H100-01 can successfully reach gpu0_eth on H100-02. However, traffic from gpu1_eth on H100-01 to gpu1_eth on H100-02 cannot. This is because, in both cases, the server selects the same default route, via gpu0_eth.

After enabling RIO-prefix advertisements, the leaf nodes not only advertise the /64 prefixes that the servers will use to autoconfigure their addresses, but also the /56 prefix assigned to the tenant. As a result, the servers install the /56 prefixes in their routing tables, pointing to the correct interfaces, and use these routes instead of the default route to reach any destination within the /56 prefix.

In the example, Stripe-1 Leaf-1 and Stripe-2 Leaf-1 advertise FC00:200:1:1::/64 and FC00:200:1:2::/64 to gpu0_eth on H100-01 and H100-02, respectively, and advertise the FC00:200:1::/56 prefix.

In the same way, Stripe-1 Leaf-1 and Stripe-2 Leaf-1 advertise FC00:200:2:1::/64 and FC00:200:2:2::/64 to gpu1_eth on H100-01 and H100-02, respectively, and advertise the FC00:200:2::/56 prefix.

As a result, the servers also install /56 routes in their routing tables, pointing to the correct interface. The servers then use these routes instead of the default route to reach any destination corresponding to Tenant-1 (FC00:200:1::/56) via gpu0_eth, and any destination corresponding to Tenant-2 (FC00:200:2::/56) via gpu1_eth.

When sending traffic from fc00:200:1:1:a288:c2ff:fe3b:5066 to fc00:200:1:2:5aa2:e1ff:fe46:c6ca, H100-01 selects the fc00:200:1::/56 route via fe80::9e5a:80ff:fec1:ae60 dev gpu0_eth instead of the default route. Similarly, when sending traffic from fc00:200:2:1:a288:c2ff:fe3b:5066 to fc00:200:2:2:5aa2:e1ff:fe46:c6ca, H100-01 selects the fc00:200:2::/56 route via fe80::9e5a:80ff:fec1:ae81 dev gpu1_eth. In both cases, the correct next-hop and interface is selected, and the traffic is forwarded successfully.

Server SLAAC Configuration:

The interfaces on the servers do not need to be configured with any IPv6 address. Disabling DHCPv6 is enough.

Example:

The servers must also be configured to accept and process RA messages, for IPv6 address autoconfiguration via Router Advertisements (RA) to work. In most cases, this will be enabled by default but the steps to enabled it are described here:

The configuration has two layers:

1. Interface-level RA policy in Netplan or systemd
2. Kernel-level sysctl parameters (accept_ra, autoconf)

Both must align to ensure proper RA behavior.

• If the system uses Netplan with systemd-networkd (common on Ubuntu Server):

  In the Netplan YAML file (e.g., /etc/netplan/01-netcfg.yaml), add the following under each interface:

  accept-ra: true

  IPv6-privacy: false

  Then apply the changes:

  sudo netplan generate

  sudo netplan apply

  This ensures that Netplan renders a .network file for systemd-networkd with IPv6AcceptRA=yes, which enables RA-based autoconfiguration.

However, this alone is not enough. If the kernel is still configured to ignore RAs. You must also verify that the kernel is set to accept RAs at runtime. You can check using:

sudo sysctl net.IPv6.conf.<interface>.accept_ra

If the value is 0, RAs will be ignored regardless of Netplan settings. This can be temporarily corrected with:

sudo sysctl -w net.IPv6.conf.<interface>.accept_ra=1

To make it persistent across reboots, add the following to a sysctl configuration file (e.g., /etc/sysctl.d/99-accept-ra.conf):

net.IPv6.conf.<interface>.accept_ra = 1

And apply it with:

sudo sysctl --system

Note:

Notice that parameters such as accept-ra can be enable or disable globally or on a per interface basis.

Table 17. Scope and Behavior of accept_ra Sysctl Parameters in IPv6 Configuration

Sysctl	Scope	Effect
net.IPv6.conf.all.accept_ra	Global (all current interfaces)	Applies immediately to all existing interfaces, but... read-only if forwarding=1
net.IPv6.conf.default.accept_ra	Global (for future interfaces)	Sets the default value used when a new interface comes up (e.g., plugged in or created later)
net.IPv6.conf.gpu0_eth.accept_ra	Per-interface	Controls RA processing for a specific active interface

If the interface is managed directly by the kernel (not using Netplan/systemd):

Enable RA acceptance and autoconfiguration by setting:

Follow the steps in AMD Configuration | Juniper Networks to configure the interfaces on AMD GPU servers or NVIDIA Configuration | Juniper Networks for NVIDIA GPU servers.

Leaf Node SLAAC Configuration

To enable SLAAC, the leaf nodes must be explicitly configured with IPv6 addresses on the interfaces facing the GPU servers.

Example:

After assigning the IPv6 addresses, prefix advertisement must be enabled under the protocols router-advertisement hierarchy, as shown in the example below:

The retransmit-timer 10000 configures the retransmission frequency of neighbor advertisements in milliseconds.

Configuring router advertisements for a given prefix requires that the interface itself has an IPv6 address within that same prefix. If the prefix specified under router-advertisement is not also configured on the interface, the commit will fail with an error.

Example:

Also, configure the rio-prefix under protocol router-advertisement, as shown in the example:

Notice that the lifetime is mandatory for the rio-prefix. In the example, this value is set 1800 seconds (30 minutes). The rio-prefix must be the /56 prefix assigned to the tenant, as described in the previous section.

SLAAC Verification:

To verify that RA-based configuration is working and that the GPU interface has autoconfigured its IPv6 address, use: ip -6 addr show dev <interface> or ifconfig <interface>

The command should display the interface’s link local address (FE80::<EUI-64>) and the global inet6 address generated by SLAAC (prefix::EUI-64). This global address will be marked as dynamic to indicate it was dynamically configured.

Example:

You can also observe incoming RA messages using tcpdump: sudo tcpdump -i <interface> -vv icmp6 and 'ip6[40] == 134'

Example:

Note:

If a new prefix needs to be advertised on an interface, reconfigure the router advertisements to age out the old address and to advertise the new one.

If you need to manually flush any IPv6 address from the server interface you can use the following commands:

sudo ip addr flush dev <interface>sudo ip link set <interface> down && sleep 1&& sudo ip link set <interface> up

After bringing the interface back up, wait a few seconds and re-check the IPv6 address with:

ip -6 addr show dev <interface>

This ensures that stale addresses are removed, and fresh RAs are processed.

Note:

All IPv6 settings can be found under: /proc/sys/net/IPv6/conf

To verify that router advertisements are being sent, you can use the following command:show ipv6 router-advertisement interface <interface>

Example:

You can also capture router advertisement packets on the interface using: monitor traffic interface et-0/0/0:0.0 extensive matching "icmp6 and ip6[40] == 134"

Notice that Router Advertisements are sent using the link local address of the leaf node interfaces as source, the IPv6 all-nodes multicast address (FF02::1), next-header ICMPv6 (58). The following are the most relevant attributes for these:

Table 18. Fields and Semantics in IPv6 Router Advertisement

PARAMETER	VALUE	DESCRIPTION
Flags	auto	Hosts can assume addresses in this prefix are on the local link. This prefix can be used for SLAAC (Stateless Address Auto Configuration).
Flags	On-link	tells hosts which destinations are directly reachable without going through a router.
source link-address option	9c:5a:80:c1:ae:60	Tells the receiver the link-layer (MAC) address of the router sending the RA. The receiver knows the router’s MAC address without having to send a separate Neighbor Solicitation.
prefix info option	fc00:200:1:1::/64	Advertises IPv6 prefixes that hosts can use to autoconfigured its IPv6 address.
route info option	fc00:200:1::/56	Carries routes to destinations other than the default. Routers can advertise more specific routes (beyond just “I’m the default gateway”).
Valid Lifetime	2592000	Prefix is valid for 30 days (used for reachability).
Preferred Lifetime	604800	Preferred lifetime of 7 days (after which it becomes deprecated for new connections).
router lifetime	1800s	The router is considered a default gateway for 1800 seconds

After receiving the router-advertisement, the server’s NIC interfaces will have autoconfigured their IPv6 addresses by concatenating the prefix advertise by the Leaf node, with the host portion of the address calculated using the EUI-64 address format (based on the interface’s MAC address), as shown in Table 19.

Table 19. GPU to Leaf nodes IPv6 addresses

LEAF NODE INTERFACE	LEAF NODE IPv6 ADDRESS	GPU NIC	GPU NIC MAC address	GPU NIC IPv6 ADDRESS
Stripe 1 Leaf 1 et-0/0/0:0	FC00:200:1:1::1/64	Server 1 - gpu0_eth	a0:88:c2:3b:50:66	FC00:200:1:1:a288:c2ff:fe3b:5066
Stripe 1 Leaf 1 et-0/0/1:0	FC00:200:1:2::1/64	Server 2 - gpu0_eth	58:a2:e1:46:c6:ca	FC00:200:1:2:a288:c2ff:fe3b:506a
Stripe 2 Leaf 1 et-0/0/2:0	FC00:200:1:3::1/64	Server 3 - gpu0_eth	a0:88:c2:3b:50:6e	FC00:200:1:3:a2:88:c2ff:fe3b:50:6e
. . .

IPv6 Leaf Nodes to Spine Nodes Connections Using Link Local Addresses

When deploying the underlay using IPv6 Link-Local underlay, the interfaces between the leaf and spine nodes do not require explicitly configured IP addresses and are configured as untagged interfaces with only family inet6 to enable processing of IPv6 traffic as shown in Figure 50.

Figure 50: Leaf Nodes to Spine Nodes Connectivity

Table 20. Spine to Leaf Interface Configuration Example

Enabling IPv6 on an interface automatically assigns a link-local IPv6 address. The switch autogenerates link local addresses for the interfaces using the EUI-64 address format (based on the interface’s MAC address), as shown in Table 21.

Table 21. Spine and Leaf IPv6-Enabled Interface Link Local Addresses

LEAF NODE INTERFACE	LEAF NODE IPv6 ADDRESS	SPINE NODE INTERFACE	SPINE IPv6 ADDRESS
Stripe 1 Leaf 1 - et-0/0/30:0	fe80::9e5a:80ff:fec1:ae00/64	Spine 1 – et-0/0/0:0	fe80::9e5a:80ff:feef:a28f/64
Stripe 1 Leaf 1 - et-0/0/31:0	fe80::9e5a:80ff:fec1:ae08/64	Spine 2 – et-0/0/0:0	fe80::5a86:70ff:fe7b:ced5/64
Stripe 1 Leaf 1 - et-0/0/32:0	fe80::9e5a:80ff:fec1:af00/64	Spine 3 – et-0/0/0:0	fe80::5a86:70ff:fe78:e0d5/64
Stripe 1 Leaf 1 - et-0/0/33:0	fe80::9e5a:80ff:fec1:af08/64	Spine 4 – et-0/0/0:0	fe80::5a86:70ff:fe79:3d5/64
Stripe 1 Leaf 2 - et-0/0/30:0	fe80::5a86:70ff:fe79:dad5/64	Spine 1 – et-0/0/1:0	fe80::9e5a:80ff:feef:a297/64
Stripe 1 Leaf 2 - et-0/0/31:0	fe80::5a86:70ff:fe79:dadd/64	Spine 2 – et-0/0/1:0	fe80::5a86:70ff:fe7b:cedd/64
Stripe 1 Leaf 2 - et-0/0/32:0	fe80::5a86:70ff:fe79:dbd5/64	Spine 3 – et-0/0/1:0	fe80::5a86:70ff:fe78:e0dd/64
Stripe 1 Leaf 2 - et-0/0/33:0	fe80::5a86:70ff:fe79:dbdd/64	Spine 4 – et-0/0/1:0	fe80::5a86:70ff:fe79:3dd/64
. . .

These addresses need to be advertised through standard router advertisements as part of the IPv6 Neighbor Discovery process to allow the leaf and spine nodes to then establish BGP sessions between them. Router advertisement must be enabled on all the interfaces between the leaf and spine nodes as shown:

Table 22. IPv6 Router Advertisement on Leaf and Spine Interfaces

To verify that router advertisements are being sent you can use:show IPv6 router-advertisement interface <interface> and show IPv6 neighbors

Example:

The loopback interface IPv6 addresses and the Autonomous System numbers for all devices in the fabric are included in table 23:

Table 23. Spine and Leaf Loopback Addresses and ASNs

LEAF NODE INTERFACE	lo0.0 IPv6 ADDRESS	Local AS #
Stripe 1 Leaf 1	FC00:10:0:1::1/128	201
Stripe 1 Leaf 2	FC00:10:0:1::2/128	202
Stripe 1 Leaf 3	FC00:10:0:1::3/128	203
Stripe 1 Leaf 4	FC00:10:0:1::4/128	204
Stripe 1 Leaf 5	FC00:10:0:1::5/128	205
Stripe 1 Leaf 6	FC00:10:0:1::6/128	206
Stripe 1 Leaf 7	FC00:10:0:1::7/128	207
Stripe 1 Leaf 8	FC00:10:0:1::8/128	208
Stripe 2 Leaf 1	FC00:10:0:1::9/128	209
Stripe 2 Leaf 2	FC00:10:0:1::10/128	210
. . .
SPINE1	FC00:10:0::1/128	101
SPINE2	FC00:10:0::2/128	102
SPINE3	FC00:10:0::3/128	103
SPINE4	FC00:10:0::4/128	104

Table 24. Spine and Leaf Loopback Address Configuration

Recommended MTU

Configure the MTU consistently across the fabric and make sure that the MTU of the server->leaf links does not exceed the MTU of the leaf->spine links considering the extra overhead of the VXLAN encapsulation.

VXLAN Overhead Calculation

For IPv6, the MTU can also be calculated as:

Table 26 VXLAN Overhead Calculation

HEADER	BYTES
Outer Ethernet	14
Outer IP (IPv6)	40
UDP	8
VXLAN	8
Total	70 bytes

Recommended MTU Strategy

Table 27. Recommended MTU

LINK TYPE	MTU
Server ↔ Leaf	9000
Leaf ↔ Spine IPv6	> 9070

It is important to keep in mind that RoCEv2 message sizes are still limited by the RDMA MTU reported by ibv_devinfo

Table 28. MTU Types: Ownership and Functional Role

MTU TYPE	OWNER	PURPOSE
Interface MTU (e.g. 9000) ifconfig, ip	Linux network stack	Defines the max L3/IP packet size
RDMA MTU (e.g. 4096) ibv_devinfo	RDMA stack	Defines the max RDMA message size per Work Queue Element (WQE)

The RDMA MTU can be configured at the verbs level, and it’s negotiated during QP (Queue Pair) setup. You cannot override it by just setting the NIC's MTU to a higher value, but you would need to use low-level tools or RDMA apps.

Some performance tools such as ib_send_bw, ib_write_bw (via -m flag). For example:

ib_write_bw -m 1024 # sets RDMA MTU to 1024 bytes

ib_write_bw -m 4096 # sets RDMA MTU to 4096 (max allowed according to the output of ibv_devinfo shown before)

RDMA MTU must be ≤ Interface MTU – encapsulation overhead

IPv6 GPU Backend Fabric Underlay, using BGP Neighbor Discovery

Refer to Configure BGP Unnumbered EVPN Fabric | Juniper Networks for more information.

The underlay EBGP sessions are configured between the leaf and spine nodes to use peer auto-discovery, and are configured to advertise these loopback interfaces, as shown in the example between Stripe1 Leaf 1 and Spine 1 below:

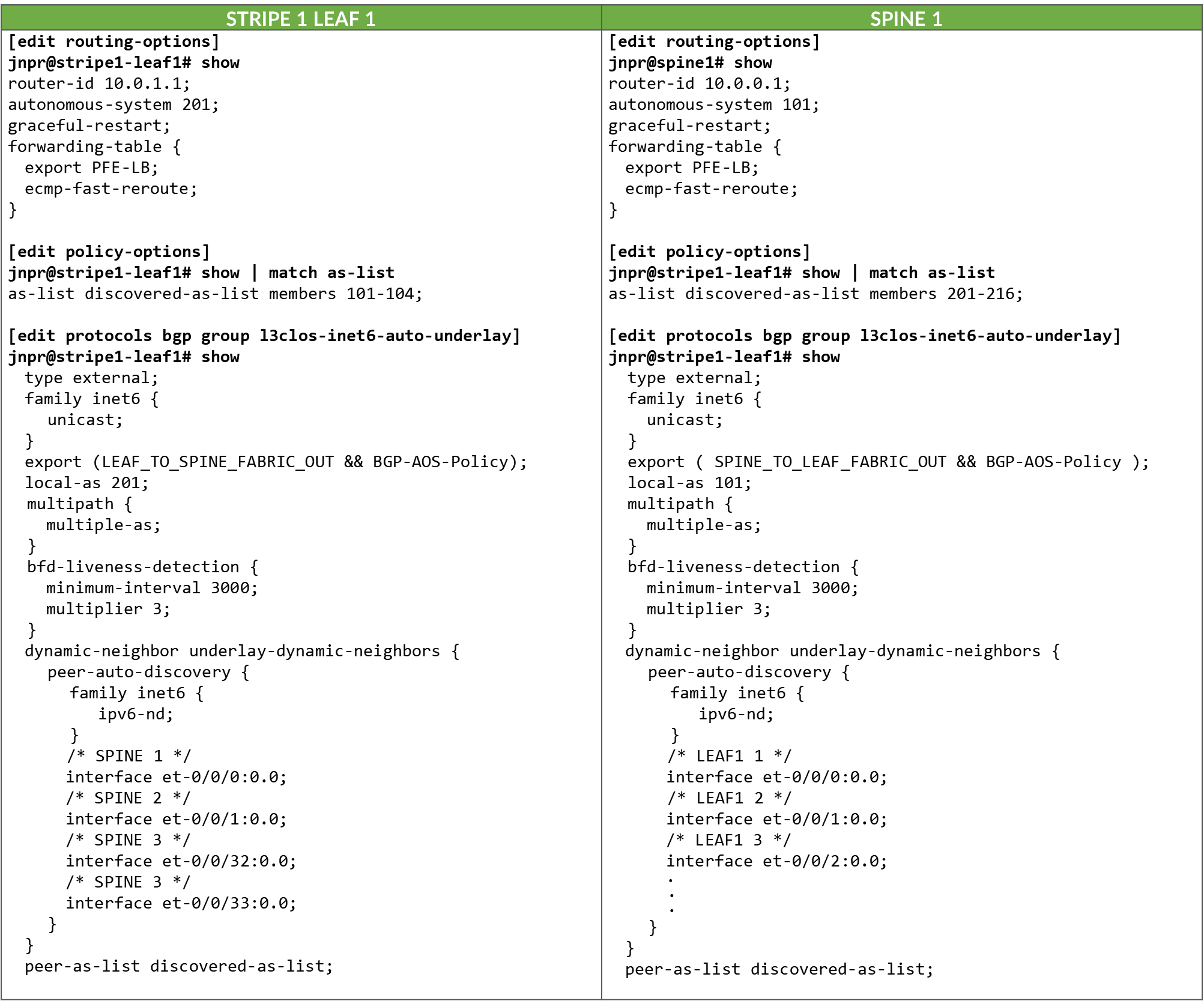

Table 29. GPU Backend Fabric: BGP Underlay with Peer Auto-Discovery Configuration

To configure peer auto discovery, the dynamic-neighbor named underlay-dynamic-neighbors, under BGP group l3clos-inet6-auto-underlay, specifies the interfaces where auto discovery is permitted. This replaces the neighbor a.b.c.d commands that would statically configure the neighbors.

The family inet6 IPv6-nd statement enables the use of IPv6 Neighbor Discovery to dynamically determine the addresses of neighbors with which to establish BGP sessions. To control and secure dynamic peer formation, a peer-as-list (discovered-as-list) is configured, restricting peering to neighbors whose autonomous system numbers fall within the defined range of AS 101–104.

The family inet6 unicast statements configure the sessions to advertise IPv6 prefixes to support the IPv6 overlays.

The BGP sessions are also configured with multipath multiple-as, allowing multiple paths (even with different AS paths) to be considered for ECMP (Equal-Cost Multi-Path) routing. BFD (Bidirectional Forwarding Detection) is additionally enabled to accelerate convergence in case of link or neighbor failures.

You can check that the sessions have been established using:

show bgp summary group <group-name>

Example:

Notice that when BGP sessions are established using link-local addresses Junos displays the neighbor address along with the interface scope (e.g. fe80::5a86:70ff:fe78:e0d5%et-0/0/1:0.0). The scope identifier (the part after the %) is necessary because the same link-local address (fe80::/10) could exist on multiple interfaces. The device must know which interface to use to send packets to that neighbor. Thus, after peer discovery is completed, the show bgp summary output lists the neighbor using the format: IPv6_link-local_address%interface-name.

You can check details about discovered neighbors using:

show bgp neighbor auto-discovered <peer-id>

Example:

To verify the operation of BFD for the BGP sessions use:

show bfd session

Example:

To control the propagation of routes, and make sure the loopback interface addresses are advertised, export policies are applied to these EBGP sessions as shown in the example in Table 30.

Table 30. Export policy example IPv6 Underlay with auto discovery

These policies ensure loopback reachability without advertising unnecessary routes.

On the spine nodes, routes are exported only if they are accepted by both the SPINE_TO_LEAF_FABRIC_OUT and BGP-AOS-Policy export policies.

• The SPINE_TO_LEAF_FABRIC_OUT policy has no match conditions and accepts all routes unconditionally, tagging them with the FROM_SPINE_FABRIC_TIER community (0:15).
• The BGP-AOS-Policy accepts BGP-learned routes as well as any routes accepted by the nested AllPodNetworks policy.
• The AllPodNetworks policy, in turn, matches directly connected IPv6 routes and tags them with the DEFAULT_DIRECT_V6 community (1:20008 and 21001:26000 on Spine1).

As a result, each spine advertises both its directly connected routes (including its loopback interface) and any routes it has received from other leaf nodes.

You can verify that the expected routes are being advertised by the spine node using: show route advertising-protocol bgp <peer-id> table inet6.0

Example:

The following example shows the routes advertised to Stripe 1 Leaf 1 by Spine 1 which correspond to the loopback interface addresses of itself, as well as Stripe1 Leaf 2, Stripe 2 Leaf 1, and Stripe 2 Leaf 2.

To verify routes are received by the Leaf nodes use: show route receive-protocol bgp <peer-id> table inet6.0

Example:

On the leaf nodes, routes are exported only if they are accepted by both the LEAF_TO_SPINE_FABRIC_OUT and BGP-AOS-Policy export policies.

• The LEAF_TO_SPINE_FABRIC_OUT policy accepts all routes except those learned via BGP that are tagged with the FROM_SPINE_FABRIC_TIER community (0:15). These routes are explicitly rejected to prevent re-advertisement of spine-learned routes back into the spine layer. As described earlier, spine nodes tag all routes they advertise to leaf nodes with this community to facilitate this filtering logic.
• The BGP-AOS-Policy accepts all routes allowed by the nested AllPodNetworks policy, which matches directly connected IPv6 routes and tags them with the DEFAULT_DIRECT_V4 community (5:20007 and 21001:26000 for Stripe1-Leaf1).

• As a result, leaf nodes will advertise only their directly connected interface routes, including their loopback interfaces, to the spines.

You can verify that the expected routes are being advertised by the spine node using: show route advertising-protocol bgp <peer-id> table inet6.0

Example:

The following example shows the routes advertised to Spine 1 by Stripe 1 Leaf 1.

To verify routes are received by the spine node, use: show route receive-protocol bgp <peer-id> table inet6.0

Example:

IPv6 GPU Backend Fabric Overlay

When EVPN Type 5 is used to implement L3 tenant isolation across a VXLAN fabric, multiple routing tables are instantiated on each participating leaf node. These tables are responsible for managing control-plane separation, enforcing tenant boundaries, and supporting the overlay forwarding model. Each routing instance (VRF) creates its own set of routing and forwarding tables, in addition to the global and EVPN-specific tables used for fabric-wide communication. These tables are listed in Table 31.

Table 31. Routing and Forwarding Tables for EVPN Type 5

TABLE	DESCRIPTON
bgp.evpn.0	Holds EVPN route information received via BGP, including Type 5 (IP Prefix) routes and other EVPN route types. This is the control plane source for EVPN-learned routes
<tenant-name>.evpn.0	The tenant-specific EVPN table.
<tenant-name>.inet.0	The tenant-specific IPv4 unicast routing table. Contains directly connected and EVPN-imported Type 5 prefixes for that tenant. Used for routing data plane traffic.

When routing instances are created for the tenants, separate routing domains (tenant-name.<tenant-name>.inet6.0) are created, providing full route and traffic isolation across the EVPN/VXLAN fabric.

The protocol next-hop (loopback interface or remote leaf) on each EVPN route is resolved in inet6.0. Then the route is added to the bgp.evpn.0 table. The routes are then imported into <tenant>.evpn.0 and <tenant>.inet6.0, based on route-targets.

The Overlay BGP Sessions between the leaf and spine nodes are statically configured (not auto discovered) using the loopback interfaces global IPv6 addresses, which were advertised by the Underlay BGP sessions.

As an example, consider the configuration between Stripe1 Leaf 1 and Spine 1.

Table 32. GPU Backend Fabric Overlay Using IPv6 Loopback Addresses

The sessions use family evpn signaling to enable EVPN route exchange. The multihop ttl 1 statement allows EBGP sessions to be established between the loopback interfaces.

As with the underlay BGP sessions, these sessions are configured with multipath multiple-as, allowing multiple EVPN paths with different AS paths to be considered for ECMP (Equal-Cost Multi-Path) routing. BFD (Bidirectional Forwarding Detection) is also enabled to improve convergence time in case of failures.

The no-nexthop-change knob on the spine nodes is used to preserve the original next-hop address, which is critical in EVPN for ensuring that the remote VTEP can be reached directly. The vpn-apply-export statement is included to ensure that the export policies are evaluated for VPN address families, such as EVPN, allowing fine-grained control over which routes are advertised to each peer.

You can check that the sessions have been established using: show bgp summary group <group-name>

Example:

To verify the operation of BFD for the BGP sessions use: show bfd session

Example:

You can check details about discovered neighbors using: show bgp neighbor <peer-id>

Example:

To control the propagation of routes, export policies are applied to these EBGP sessions as shown in the example in Table 33.

Table 33. Export Policy example to advertise EVPN routes over IPv6 overlay

These policies are simpler in structure and are intended to enable end-to-end EVPN reachability between tenant GPUs, while preventing route loops within the overlay.

Note:

Routes will only be advertised if EVPN routing-instances have been created, as described in the Per Tenant IP-VRF Routing Instances section.

On the spine nodes, routes are exported if they are accepted by the SPINE_TO_LEAF_EVPN_OUT policy.

• The SPINE_TO_LEAF_EVPN_OUT policy has no match conditions and accepts all routes. It tags each exported route with the FROM_SPINE_EVPN_TIER community (0:14).

As a result, the spine nodes export EVPN routes received from one leaf to all other leaf nodes, allowing tenant-to-tenant communication across the fabric.

You can verify that the expected routes are being advertised by the spine node using:show route advertising-protocol bgp <peer-id> table bgp.evpn.0show route advertising-protocol bgp <peer-id> match-prefix <prefix>

Example:

The leaf nodes receive the routes and first install them in the bgp.evpn.0 routing table which can be verified using:show route receive-protocol bgp <peer-id> table bgp.evpn.0

Example:

On the leaf nodes, routes are exported if they are accepted by both the LEAF_TO_SPINE_EVPN_OUT and EVPN_EXPORT policies.

• The LEAF_TO_SPINE_EVPN_OUT policy rejects any BGP-learned routes that carry the FROM_SPINE_EVPN_TIER community (0:14). These routes are explicitly rejected to prevent re-advertisement of spine-learned routes back into the spine layer. As described earlier, spine nodes tag all routes they advertise to leaf nodes with this community to facilitate this filtering logic.
• The EVPN_EXPORT policy accepts all routes without additional conditions.

As a result, the leaf nodes export only locally originated EVPN routes for the directly connected interfaces between GPU servers and the leaf nodes. These routes are part of the tenant routing instances and are used to establish reachability between GPUs belonging to the same tenant.

You can verify that the expected routes are being advertised by the Leaf nodes using: show route advertising-protocol bgp <peer-id> table bgp.evpn.0 show route advertising-protocol bgp <peer-id> match-prefix <prefix>

Example:

To verify routes are received by the spine nodes use: show route receive-protocol bgp <peer-id> table bgp.evpn.0

Example:

Tenants IP-VRF Routing Instances

Stripe 1 Leaf 1 and Stripe 1 Leaf 2 have been configured for Tenant-1 and Tenant-2 respectively as shown in Table 34. Stripe 2 Leaf 1 and Stripe 2 Leaf 2 are configured similarly.

Table 34. EVPN Routing-Instance for Tenant-1 and Tenant-2 Across Stripe 1 and Stripe 2

Table 35. Policies Examples for Tenant-1 and Tenant-2

Each routing instance is configured with the following key elements:

1. Interfaces:

   The interfaces listed under each tenant VRF (e.g. et-0/0/0:0.0 and et-0/0/1:0.0) are explicitly added to the corresponding routing table. By placing these interfaces under the VRF, all routing decisions and traffic forwarding associated with them are isolated from other tenants and from the global routing table. Assigning an interface that connects a particular GPU to the leaf node effectively maps that GPU to a specific tenant, isolating it from GPUs assigned to other tenants.

2. Route-distinguisher (RD):

   10.0.1.1:2001 and 10.0.1.1:2002 uniquely identify EVPN routes from Tenant-1 and Tenant-2, respectively. Even if both tenants use overlapping IP prefixes, the RD ensures their routes remain distinct in the BGP control plane. Although the GPU to leaf links use unique /32 prefixes, an RD is still required to advertise these routes over EVPN.

3. Route target (RT) community:

   VRF targets 20001:1 and 20002:1 control which routes are exported from and imported into each tenant routing table. These values determine which routes are shared between VRFs that belong to the same tenant across the fabric and are essential for enabling fabric-wide tenant connectivity, for example, when a tenant has GPUs assigned to multiple servers across different stripes.

4. Protocols evpn parameters:
   • The ip-prefix-routes controls how IP Prefix Routes (EVPN Type 5 routes) are advertised.
   • The advertise direct-nexthop enables the leaf node to send IP prefix information using EVPN pure Type 5 routes, which includes a router MAC extended community. These routes include a Router MAC extended community, which allows the remote VTEP to resolve the next-hop MAC address without relying on Type 2 routes.
   • The encapsulation vxlan indicates that the payload traffic for this tenant will be encapsulated using VXLAN. The same type of encapsulation must be used end to end.
   • The VXLAN Network Identifier (VNI) acts as the encapsulation tag for traffic sent across the EVPN/VXLAN fabric. When EVPN Type 5 (IP Prefix) routes are advertised, the associated VNI is included in the BGP update. This ensures that remote VTEPs can identify the correct VXLAN segment for returning traffic to the tenant’s VRF.
   • Unlike traditional use cases where a VNI maps to a single Layer 2 segment, in EVPN Type 5 the VNI represents the tenant-wide Layer 3 routing domain. All point-to-point subnets, such as the /32 links between GPU servers and the leaf, that belong to the same VRF are advertised with the same VNI.

   In this configuration, VNIs 20001 and 20002 are mapped to the Tenant-1 and Tenant-2 VRFs, respectively. All traffic destined for interfaces in Tenant-1 will be forwarded using VNI 20001, and all traffic for Tenant-2 will use VNI 20002.

   Notice that the same VNI for a specific tenant is configured on both Stripe1-Leaf1 and Stripe2-Leaf1.

5. Export Policy Logic

   EVPN Type 5 routes from Tenant-1 are exported if they are accepted by the BGP-AOS-Policy-Tenant-1 export policy, which references a nested policy named AllPodNetworks-Tenant-1 (and the equivalent policies for Tenant-2)

   • Policy BGP-AOS-Policy-Tenant-1 controls which prefixes from this VRF are allowed to be advertised into EVPN. It accepts any route that is permitted by the AllPodNetworks-Tenant-1 policy and explicitly rejects all other routes.
   • Policy AllPodNetworks-Tenant-1 accepts directly connected IPv4 routes (family inet, protocol direct) that are part of the Tenant-1 VRF. It tags these routes with the TENANT-1 _COMMUNITY_V4 (5:20007 21002:26000 ) community before accepting them. All other routes are rejected.

   As a result, only the directly connected IPv4 routes from the Tenant-1 (/32 links between GPU servers and the leaf) are exported as EVPN Type 5 routes.

To verify that the interfaces have been assigned to the correct routing instance and installed in the correct tenant’s routing table use: show interfaces routing-instance <tenant-name> terse

Example:

You can also check the direct routes installed to the correspondent routing table using: show route protocol direct table <tenant-name>.inet6.0

Example:

To verify evpn l3 contexts including encapsulation, VNI, router MAC address use: show evpn l3-contextshow evpn l3-context <tenant-name> extensive

Example:

You can verify that the expected routes for each tenant are being advertised by the leaf nodes using: show route advertising-protocol bgp <peer-id> table <tenant-name>.evpn.0

Example:

You can verify that the expected routes for each tenant, are being received by the leaf nodes, and installed in the correct routing table use: show route receive-protocol bgp <peer-id> table <tenant-name>.evpn.0show route table Tenant-1.inet6.0 protocol evpn

Example:
