Appendix A – Fabric Implementation with IPv4 Underlay and IPv4 Overlay
This section outlines the configuration components for an IPv4 underlay and IPv4 overlay deployment.
Spine nodes to leaf connections
The interfaces between the leaf and spine nodes do not require explicitly configured IP addresses and are configured as untagged interfaces with only family inet and family inet6 to enable processing of IPv4 and IPv6 traffic as shown in Figure 40.

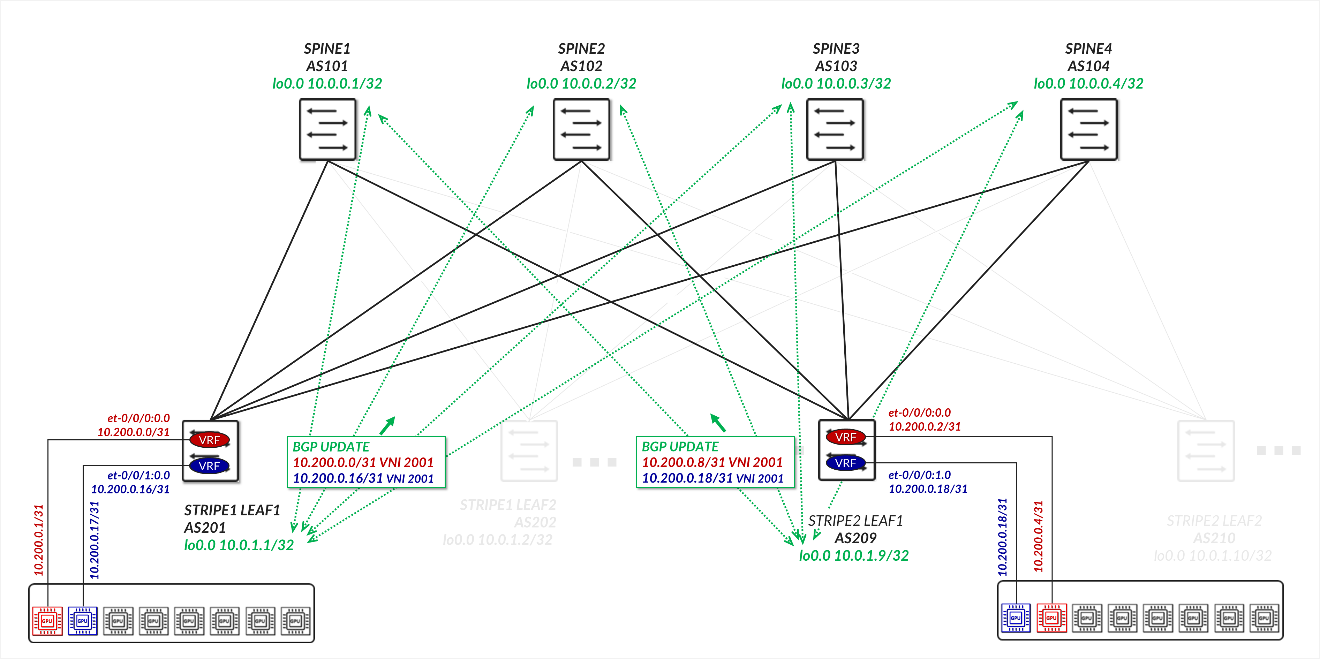

Figure 40. IPv4 underlay and IPv4 overlay configuration example
The interfaces between the leaf and spine nodes are configured with /31 addresses as shown in table 50.
Table 50. IPv4 Address Assignments for Leaf-to-Spine Interfaces (/31 Subnetting)
| LEAF NODE INTERFACE | LEAF NODE IPv4 ADDRESS | SPINE NODE INTERFACE | SPINE IPv4 ADDRESS |
|---|---|---|---|
| Stripe 1 Leaf 1 - et-0/0/30:0 | 10.0.2.65/31 | Spine 1 – et-0/0/0:0 | 10.0.2.64/31 |
| Stripe 1 Leaf 1 - et-0/0/31:0 | 10.0.2.83/31 | Spine 2 – et-0/0/1:0 | 10.0.2.82/31 |
| Stripe 1 Leaf 1 - et-0/0/32:0 | 10.0.2.99/31 | Spine 3 – et-0/0/2:0 | 10.0.2.98/31 |
| Stripe 1 Leaf 1 - et-0/0/33:0 | 10.0.2.115/31 | Spine 4 – et-0/0/3:0 | 10.0.2.114/31 |
| Stripe 1 Leaf 5 - et-0/0/30:0 | 10.0.2.69/31 | Spine 1 – et-0/0/0:0 | 10.0.2.68/31 |
| Stripe 1 Leaf 2 - et-0/0/31:0 | 10.0.2.85/31 | Spine 2 – et-0/0/1:0 | 10.0.2.84/31 |
| Stripe 1 Leaf 2 - et-0/0/32:0 | 10.0.2.101/31 | Spine 3 – et-0/0/2:0 | 10.0.2.100/31 |
| Stripe 1 Leaf 2 - et-0/0/33:0 | 10.0.2.119/31 | Spine 4 – et-0/0/3:0 | 10.0.2.118/31 |
|
. . . |
|||
These interfaces are configured as untagged interfaces, with family inet and static IPv4 addresses, as shown in the example for the link between Stripe 1 leaf 1 and Spine 1 below:
Table 51. Example Junos Configuration for Leaf-Spine IPv4 Interface
The loopback and Autonomous System numbers for all devices in the fabric are included in table 52:
Table 52. Loopback IPv4 Addresses and Autonomous System Numbers for Fabric Devices
| LEAF NODE INTERFACE | lo0.0 IPv4 ADDRESS | Local AS # |
|---|---|---|
| Stripe 1 Leaf 1 | 10.0.1.1/32 | 201 |
| Stripe 1 Leaf 2 | 10.0.1.2/32 | 202 |
| Stripe 1 Leaf 3 | 10.0.1.3/32 | 203 |
| Stripe 1 Leaf 4 | 10.0.1.4/32 | 204 |
| Stripe 1 Leaf 5 | 10.0.1.5/32 | 205 |
| Stripe 1 Leaf 6 | 10.0.1.6/32 | 206 |
| Stripe 1 Leaf 7 | 10.0.1.7/32 | 207 |
| Stripe 1 Leaf 8 | 10.0.1.8/32 | 208 |
|
. . . |
||
| SPINE1 | 10.0.0.1/32 | 101 |
| SPINE2 | 10.0.0.2/32 | 102 |
| SPINE3 | 10.0.0.3/32 | 103 |
| SPINE4 | 10.0.0.4/32 | 104 |
Table 53. Example Junos Configuration for Loopback Interfaces
and Routing Options
GPU Backend Fabric Underlay with IPv4
The underlay EBGP sessions are configured between the leaf and spine nodes using the IP addresses of the directly connected links, as shown in the example between Stripe1 Leaf 1 and the spine nodes below:
Table 54. EBGP Underlay Configuration Example: Stripe 1 Leaf 1 to Spine 1
Table 55. EBGP Underlay Configuration Example: Stripe 1 Leaf 1 to Spine 2
All the BGP sessions are configured with multipath multiple-as, which
allows multiple paths (to the same destination) with different AS paths to be considered for
ECMP (Equal-Cost Multi-Path) routing, and with BFD to improve convergence in case of
failures.
To control the propagation of routes, export policies are applied to these EBGP sessions as shown in the example in table 56.

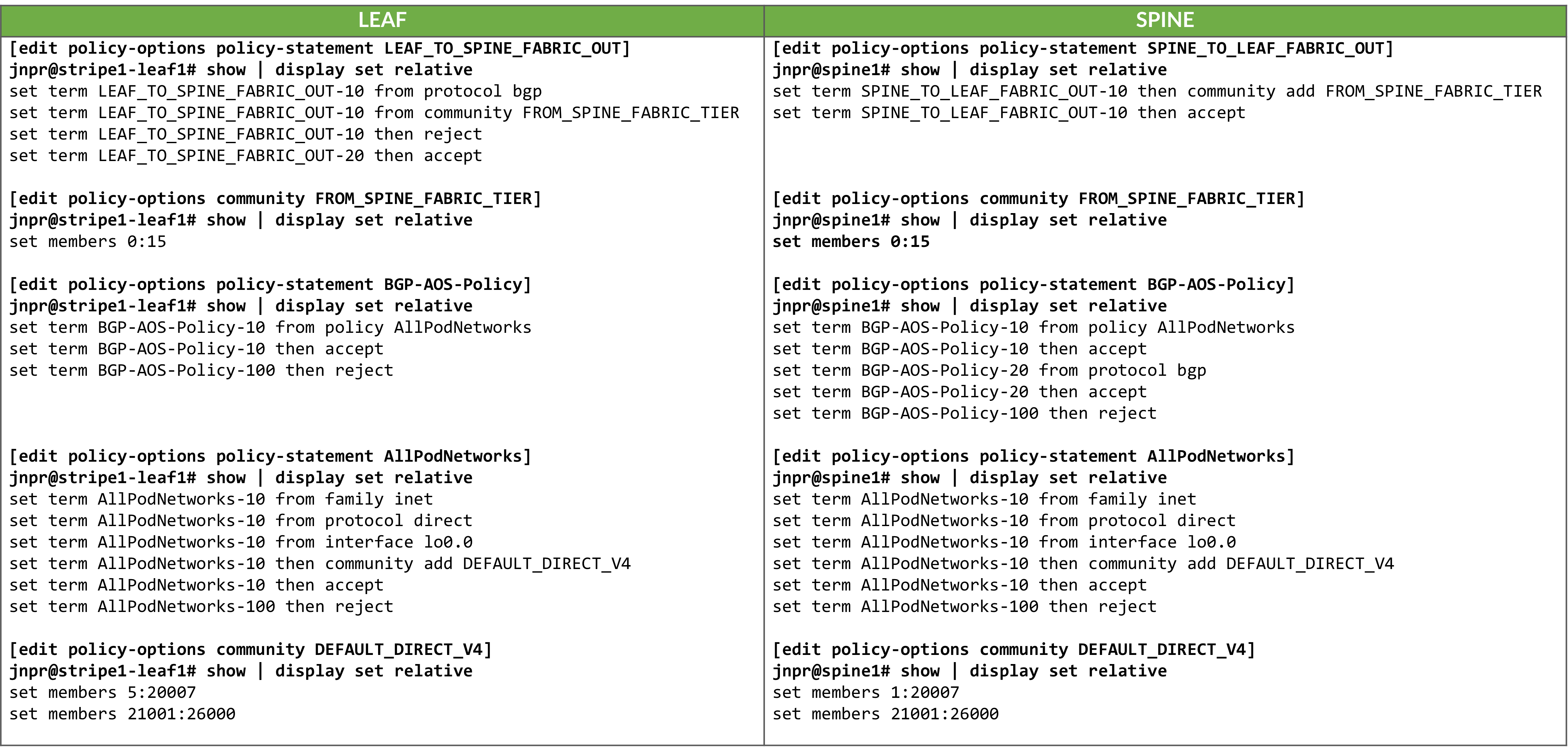

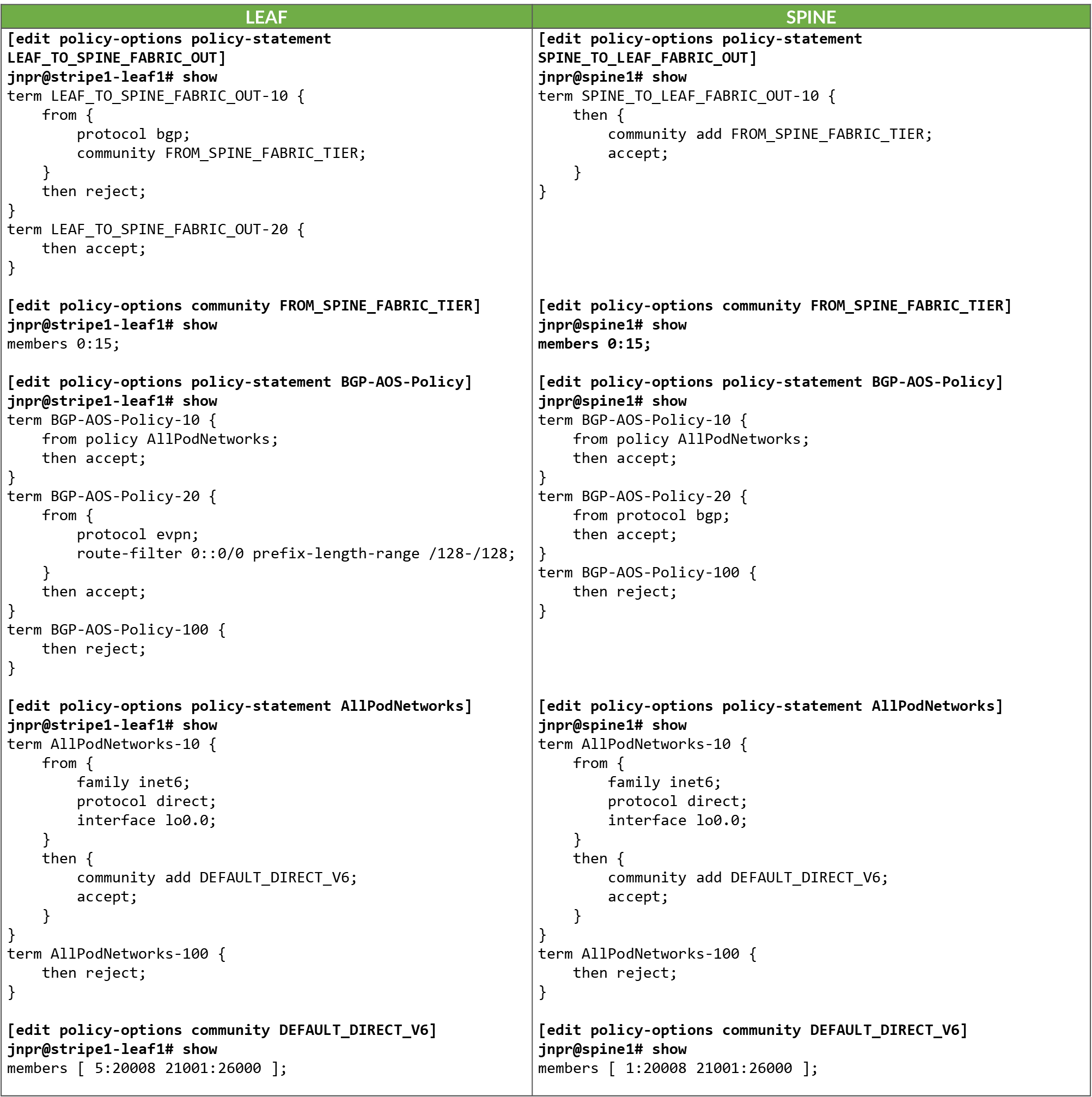

Table 56. Export policy example to advertise IPv4 routes over IPv4 Underlay
.png)
These policies ensure loopback reachability is advertised cleanly and without the risk of route loops.
On the spine nodes, routes are exported only if they are accepted by both the SPINE_TO_LEAF_FABRIC_OUT and BGP-AOS-Policy export policies.
- The SPINE_TO_LEAF_FABRIC_OUT policy has no match conditions and accepts all routes unconditionally, tagging them with the FROM_SPINE_FABRIC_TIER community (0:15).
- The BGP-AOS-Policy accepts BGP-learned routes as well as any routes accepted by the nested AllPodNetworks policy.
- The AllPodNetworks policy, in turn, matches directly connected IPv4 routes and tags them with the DEFAULT_DIRECT_V4 community (1:20007 and 21001:26000 on Spine1).
-
As a result, each spine advertises both its directly connected routes (including its loopback interface) and any routes it has received from other leaf nodes.
Example:
jnpr@spine1> show route advertising-protocol bgp 10.0.2.65 | match /32
* 10.0.0.1/32 Self I
* 10.0.1.2/32 Self 202 I
* 10.0.1.3/32 Self 203 I
---more---
jnpr@spine1> show route advertising-protocol bgp 10.0.2.65 10.0.0.1/32 extensive
inet.0: 85 destinations, 169 routes (85 active, 0 holddown, 0 hidden)
Restart Complete
* 10.0.0.1/32 (1 entry, 1 announced)
BGP group l3clos-underlay type External
Nexthop: Self
AS path: [101] I
Communities: 0:15 1:20007 21001:26000
jnpr@spine2> show route advertising-protocol bgp 10.0.2.65 10.0.1.2/32 extensive
inet.0: 85 destinations, 169 routes (85 active, 0 holddown, 0 hidden)
Restart Complete
* 10.0.1.2/32 (2 entries, 1 announced)
BGP group l3clos-underlay type External
AS path: [101] 202 I
Communities: 0:15 6:20007 21001:26000On the leaf nodes, routes are exported only if they are accepted by both the LEAF_TO_SPINE_FABRIC_OUT and BGP-AOS-Policy export policies.
- The LEAF_TO_SPINE_FABRIC_OUT policy accepts all routes except those learned via BGP that are tagged with the FROM_SPINE_FABRIC_TIER community (0:15). These routes are explicitly rejected to prevent re-advertisement of spine-learned routes back into the spine layer. As described earlier, spine nodes tag all routes they advertise to leaf nodes with this community to facilitate this filtering logic.
- The BGP-AOS-Policy accepts all routes allowed by the nested AllPodNetworks policy, which matches directly connected IPv4 routes and tags them with the DEFAULT_DIRECT_V4 community (5:20007 and 21001:26000 for Stripe1-Leaf1).
As a result, leaf nodes will advertise only their directly connected interface routes—including their loopback interfaces—to the spines.
jnpr@stripe1-leaf1> show route advertising-protocol bgp 10.0.2.64 | match /32
* 10.0.1.1/32 Self I
jnpr@stripe1-leaf1> show route advertising-protocol bgp 10.0.2.64 10.0.1.1/32 extensive
inet.0: 48 destinations, 257 routes (48 active, 0 holddown, 0 hidden)
Restart Complete
* 10.0.1.1/32 (1 entry, 1 announced)
BGP group l3clos-underlay type External
Nexthop: Self
AS path: [201] I
Communities: 5:20007 21001:26000GPU Backend Fabric Overlay with IPv4
The overlay EBGP sessions are configured between the leaf and spine nodes using the IPv4 addresses of the loopback interfaces, as shown in the example between Stripe1 Leaf 1 and Spines.

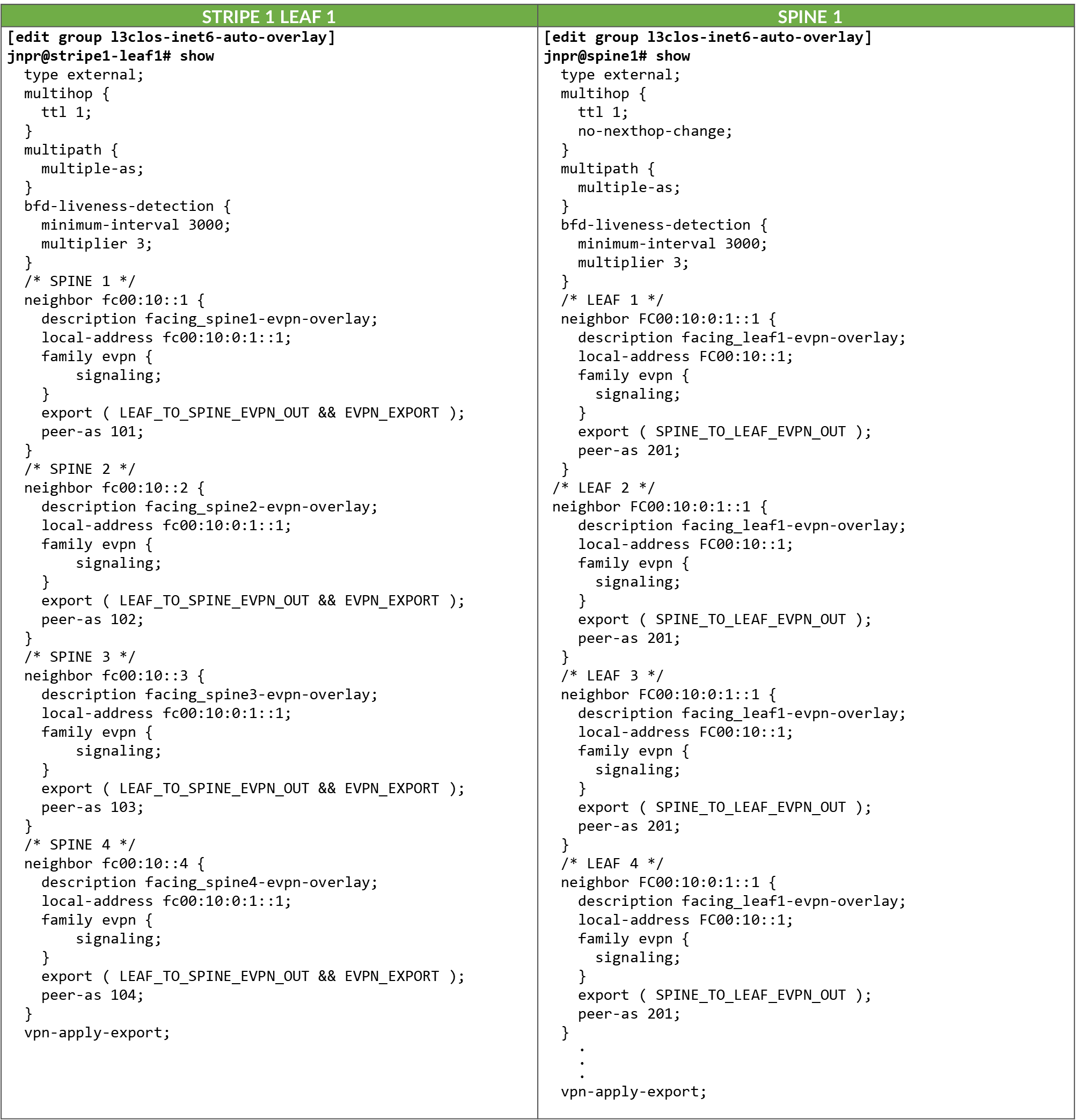

Table 57. EVPN Overlay EBGP Configuration Example: Stripe 1 Leaf 1 to Spine 1
Table 58. EVPN Overlay EBGP Configuration Example: Stripe 2 Leaf 1 to Spine 1
The overlay BGP sessions use family evpn signaling to enable EVPN route exchange. The
multihop ttl 1 statement allows EBGP sessions to be established between
the loopback interfaces.
As with the underlay BGP sessions, these sessions are configured with multipath
multiple-as, allowing multiple EVPN paths with different AS paths to be
considered for ECMP (Equal-Cost Multi-Path) routing. BFD (Bidirectional Forwarding
Detection) is also enabled to improve convergence time in case of failures.
The no-nexthop-change knob is used to preserve the original next-hop
address, which is critical in EVPN for ensuring that the remote VTEP can be reached
directly. The vpn-apply-export statement is included to ensure that the
export policies are evaluated for VPN address families, such as EVPN, allowing fine-grained
control over which routes are advertised to each peer.

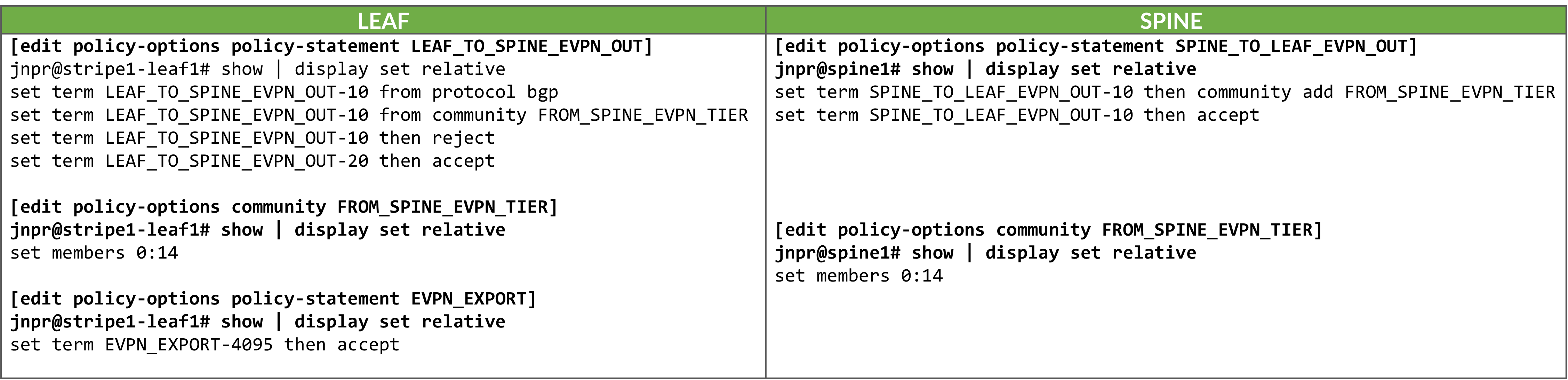

To control the propagation of routes, export policies are applied to these EBGP sessions as shown in the example in table 59.

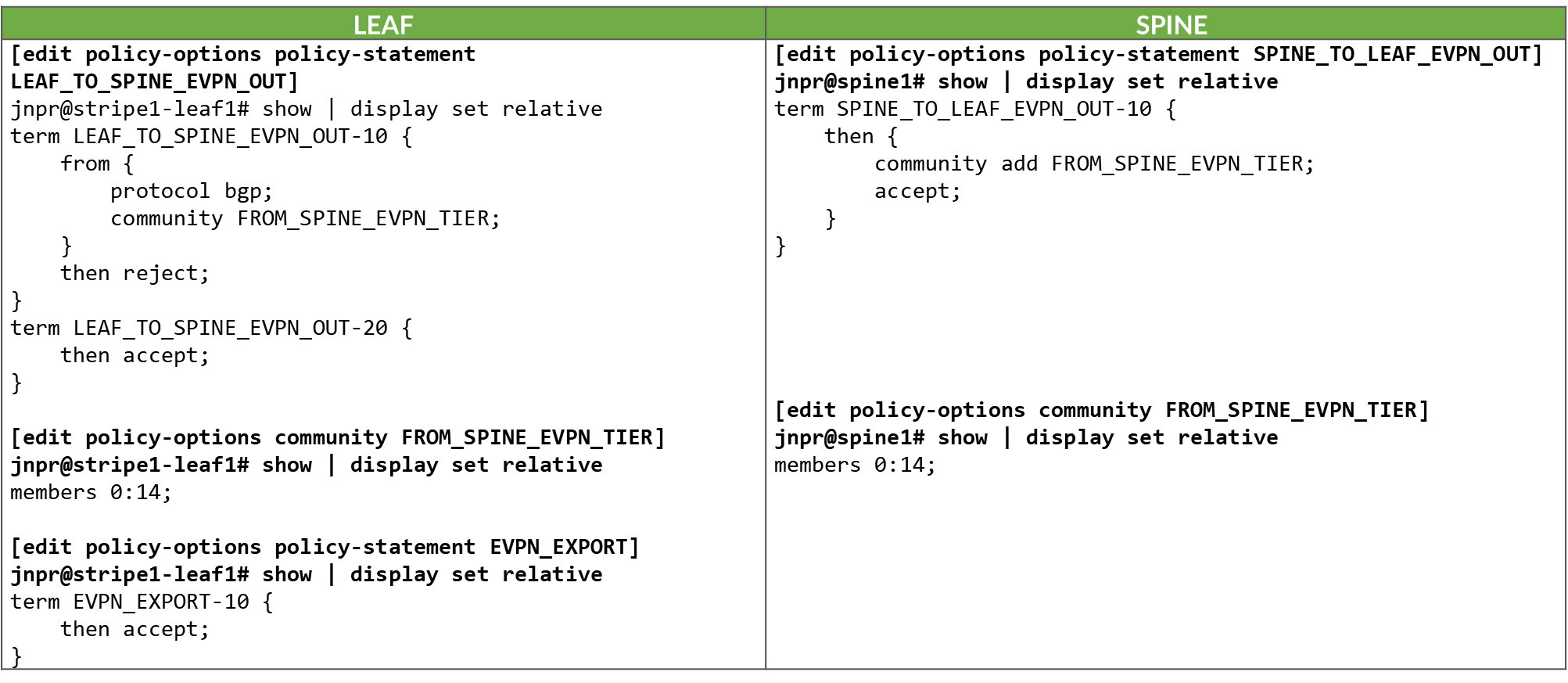

Table 59. Export Policy example to advertise EVPN routes over IPv4 overlay
.png)
These policies are simpler in structure and are intended to enable end-to-end EVPN reachability between tenant GPUs, while preventing route loops within the overlay.
Routes will only be advertised if EVPN routing-instances have been created. Example:

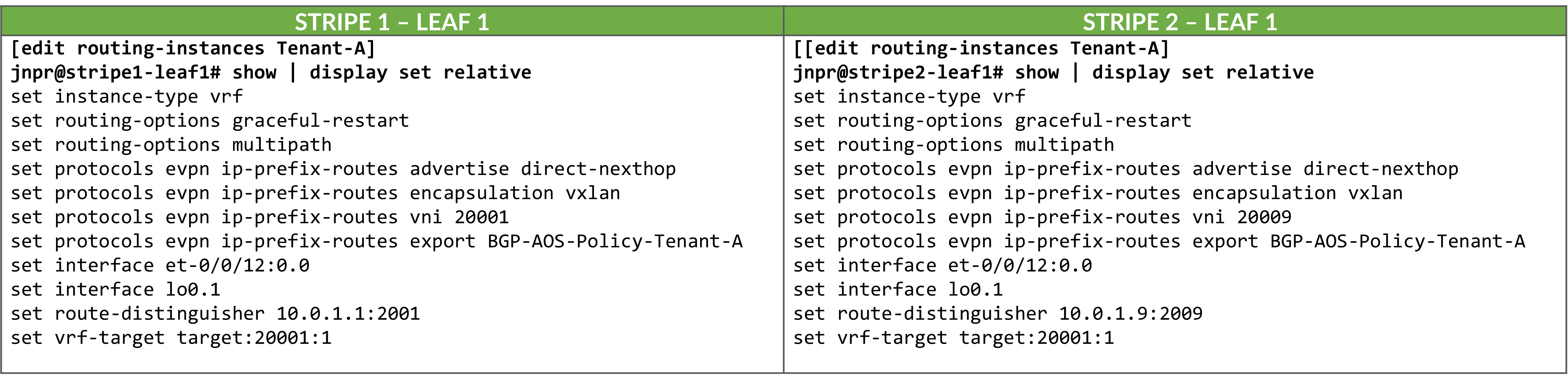

Table 60. EVPN Routing-Instances for a single tenant example across different leaf
nodes..png)
On the spine nodes, routes are exported if they are accepted by the SPINE_TO_LEAF_EVPN_OUT policy.
- The SPINE_TO_LEAF_EVPN_OUT policy has no match conditions and accepts all routes. It tags each exported route with the FROM_SPINE_EVPN_TIER community (0:14).
- As a result, the spine nodes export EVPN routes received from one leaf to all other leaf nodes, allowing tenant-to-tenant communication across the fabric.
Example:
jnpr@spine1> show route advertising-protocol bgp 10.0.1.1 | match 5:10.*2001.*31 5:10.0.1.2:2001::0::10.200.0.2::31/248 5:10.0.1.2:2001::0::10.200.0.66::31/248 5:10.0.1.9:2001::0::10.200.1.0::31/248 5:10.0.1.9:2001::0::10.200.1.64::31/248 5:10.0.1.10:2001::0::10.200.1.2::31/248 5:10.0.1.10:2001::0::10.200.1.66::31/248 jnpr@spine1> show route advertising-protocol bgp 10.0.1.1 match-prefix 5:10.0.1.2:2001::0::10.200.0.2::31/248 bgp.evpn.0: 378 destinations, 378 routes (378 active, 0 holddown, 0 hidden) Restart Complete Prefix Nexthop MED Lclpref AS path bgp.evpn.0: 20 destinations, 20 routes (20 active, 0 holddown, 0 hidden) 5:10.0.1.2:2001::0::10.200.0.2::31/248 * 10.0.1.2 202 I
On the leaf nodes, routes are exported if they are accepted by both the LEAF_TO_SPINE_EVPN_OUT and EVPN_EXPORT policies.
- The LEAF_TO_SPINE_EVPN_OUT policy rejects any BGP-learned routes that carry the FROM_SPINE_EVPN_TIER community (0:14). These routes are explicitly rejected to prevent re-advertisement of spine-learned routes back into the spine layer. As described earlier, spine nodes tag all routes they advertise to leaf nodes with this community to facilitate this filtering logic.
- The EVPN_EXPORT policy accepts all routes without additional conditions.
As a result, the leaf nodes export only locally originated EVPN routes for the directly connected interfaces between GPU servers and the leaf nodes. These routes are part of the tenant routing instances and are required to establish reachability between GPUs belonging to the same tenant.
jnpr@stripe1-leaf1> show route advertising-protocol bgp 10.0.0.1 table Tenant-A Tenant-A.evpn.0: 12 destinations, 39 routes (12 active, 0 holddown, 0 hidden) Restart Complete Prefix Nexthop MED Lclpref AS path 5:10.0.1.1:2001::0::10.200.0.0::31/248 * Self I 5:10.0.1.1:2001::0::10.200.0.64::31/248 * Self I 5:10.0.1.1:2001::0::192.168.11.1::32/248 * Self I jnpr@stripe1-leaf1> show route advertising-protocol bgp 10.0.0.1 table Tenant-B Tenant-B.evpn.0: 8 destinations, 20 routes (8 active, 0 holddown, 0 hidden) Restart Complete Prefix Nexthop MED Lclpref AS path 5:10.0.1.1:2002::0::10.200.0.32::31/248 * Self I 5:10.0.1.1:2002::0::10.200.0.96::31/248 * Self I 5:10.0.1.1:2002::0::192.168.11.2::32/248 * Self I
Configuration and verification example
Consider the following scenario where Tenant-A has been assigned GPU 0 on Server 1 and GPU1 on Server 2, and Tenant-B has been assigned GPU 0 on Server 2 and GPU1 on Server 1 as shown in figure 41.
Figure 41. GPU Assignment Across Servers for Tenant-A and Tenant-B
.png)
Both Stripe 1 Leaf 1 and Leaf 2 have been configured for Tenant-A and Tenant-B as shown below:

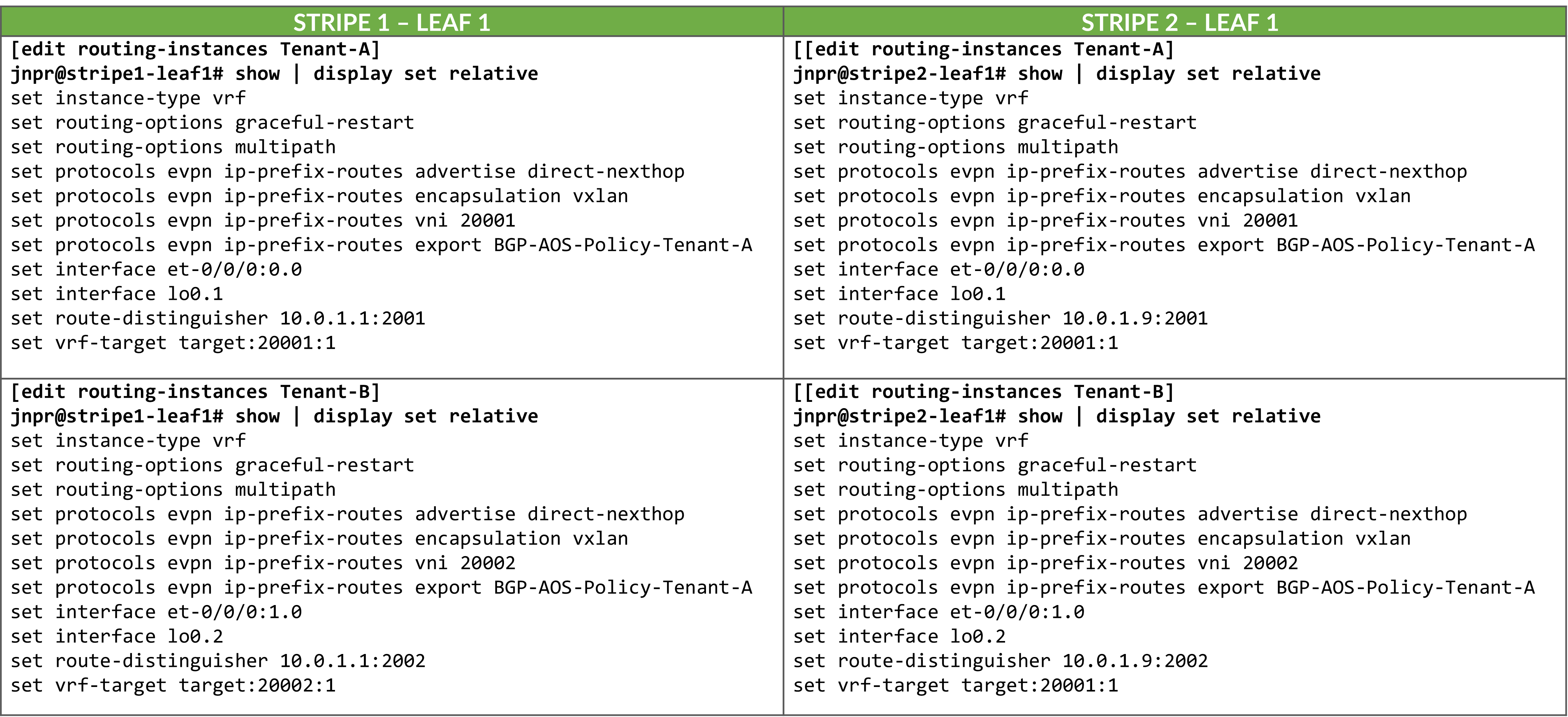

Table 61. EVPN Routing-Instance for Tenant-A and Tenant-B Across Stripe 1 and Stripe
2.png)

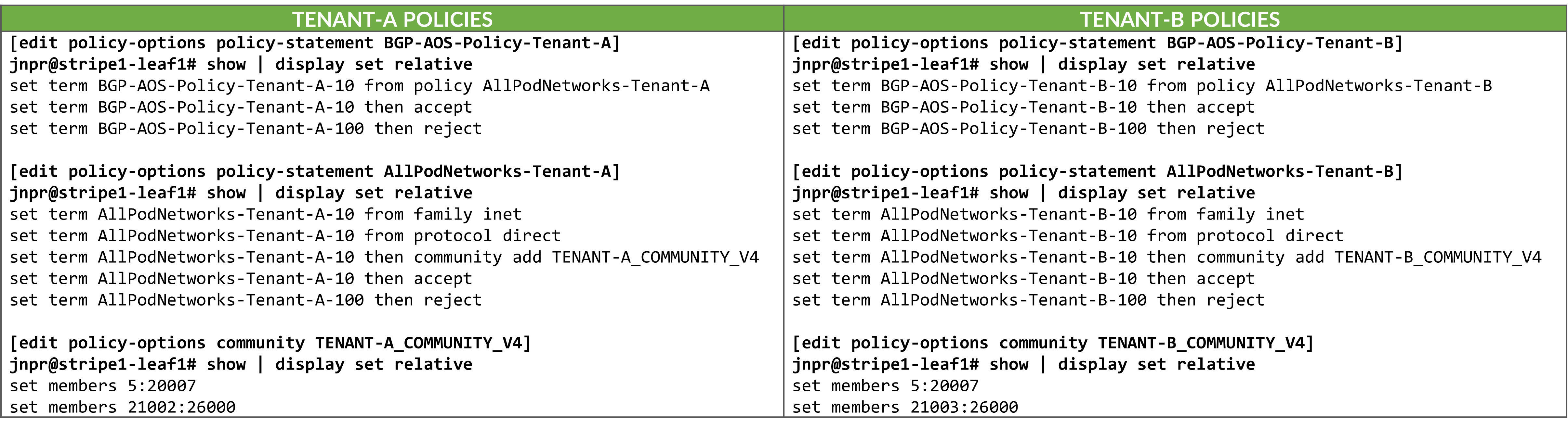

Table 62. Policies Examples for Tenant-A and Tenant-B Across Stripe 1 and Stripe 2
.png)

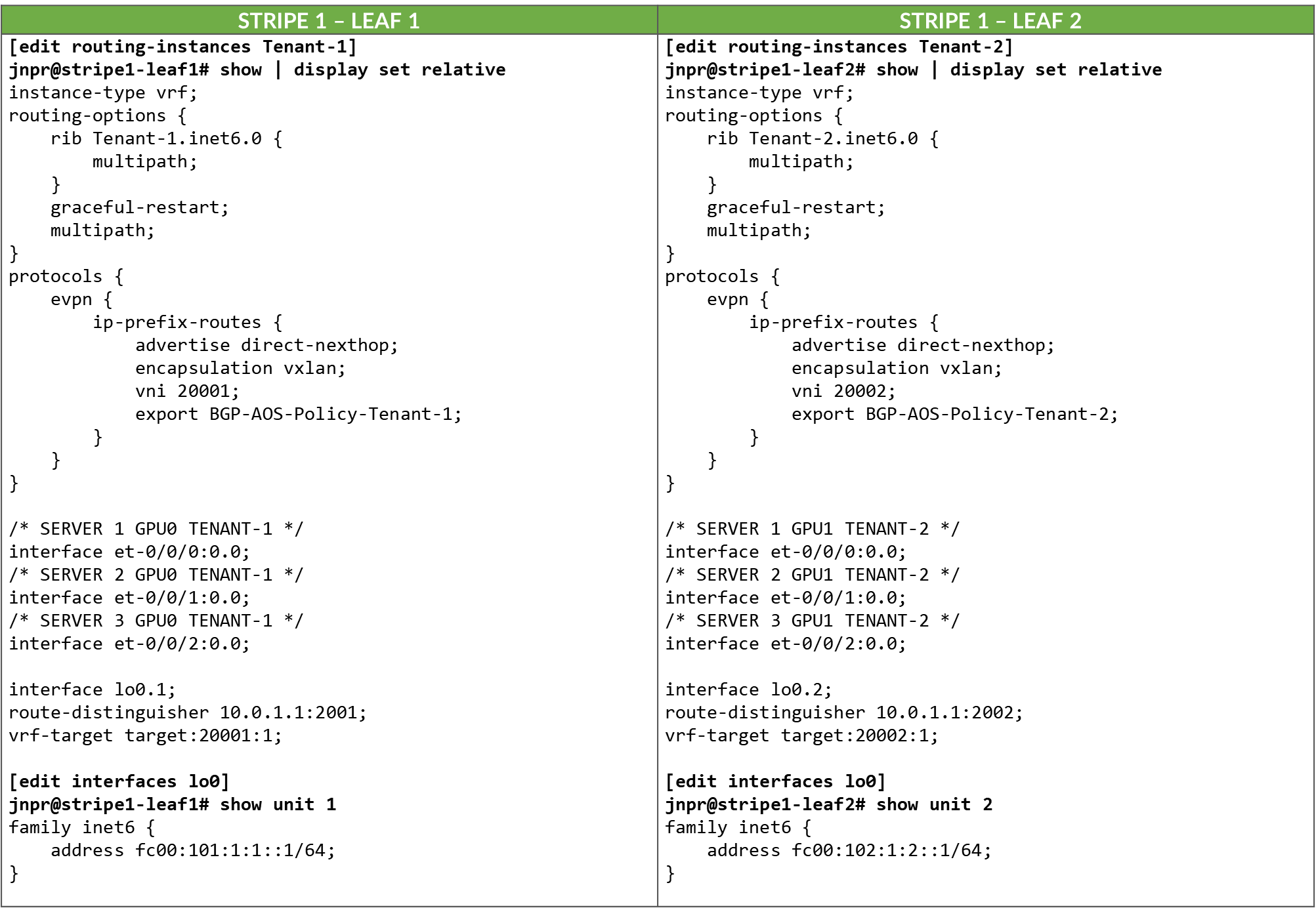

The routing instances create separate routing spaces for the two tenants, providing full route and traffic isolation across the EVPN-VXLAN fabric. Each routing instance has been configured with the following key elements:
- Interfaces: The interfaces listed under each tenant VRF (e.g. et-0/0/0:0.0 and et-0/0/1:0.0) are explicitly added to the corresponding routing table. By placing these interfaces under the VRF, all routing decisions and traffic forwarding associated with them are isolated from other tenants and from the global routing table. Assigning an interface that connects a particular GPU to the leaf node effectively maps that GPU to a specific tenant, isolating it from GPUs assigned to other tenants.
-
Route-distinguisher (RD):
10.0.1.1:2001 and 10.0.1.1:2002 uniquely identify EVPN routes from Tenant-A and Tenant-B, respectively. Even if both tenants use overlapping IP prefixes, the RD ensures their routes remain distinct in the BGP control plane. Although the GPU to leaf links use unique /127 prefixes, an RD is still required to advertise these routes over EVPN.
-
Route target (RT) community:
VRF targets 20001:1 and 20002:1 control which routes are exported from and imported into each tenant routing table. These values determine which routes are shared between VRFs that belong to the same tenant across the fabric and are essential for enabling fabric-wide tenant connectivity—for example, when a tenant has GPUs assigned to multiple servers across different stripes.
-
Protocols evpn parameters:
- The ip-prefix-routes controls how IP Prefix Routes (EVPN Type 5 routes) are advertised.
- The advertise direct-nexthop enables the leaf node to send IP prefix information using EVPN pure Type 5 routes, which includes a router MAC extended community. These routes include a Router MAC extended community, which allows the remote VTEP to resolve the next-hop MAC address without relying on Type 2 routes.
- The encapsulation vxlan indicates that the payload traffic for this tenant will be encapsulated using VXLAN. The same type of encapsulation must be used end to end.
-
The VXLAN Network Identifier (VNI) acts as the encapsulation tag for traffic sent across the EVPN-VXLAN fabric. When EVPN Type 5 (IP Prefix) routes are advertised, the associated VNI is included in the BGP update. This ensures that remote VTEPs can identify the correct VXLAN segment for returning traffic to the tenant’s VRF.
Unlike traditional use cases where a VNI maps to a single Layer 2 segment, in EVPN Type 5 the VNI represents the tenant-wide Layer 3 routing domain. All point-to-point subnets—such as the /127 links between GPU servers and the leaf—that belong to the same VRF are advertised with the same VNI.
- In this configuration, VNIs 20001 and 20002 are mapped to the Tenant-A and Tenant-B VRFs, respectively. All traffic destined for interfaces in Tenant-A will be forwarded using VNI 20001, and all traffic for Tenant-B will use VNI 20002.
- Notice that the same VNI is configured for the tenant on both Stripe1-Leaf1 and Stripe2-Leaf1.
- The export policy BGP-AOS-Policy-Tenant-A controls which prefixes from this VRF are allowed to be advertised into EVPN.
-
Export Policy Logic
- EVPN Type 5 routes from Tenant-A are exported if they are accepted by the BGP-AOS-Policy-Tenant-A export policy, which references a nested policy named AllPodNetworks-Tenant-A.
- Policy BGP-AOS-Policy-Tenant-A accepts any route that is permitted by the AllPodNetworks-Tenant-A policy and explicitly rejects all other routes.
- Policy AllPodNetworks-Tenant-A accepts directly connected IPV6 routes (family inet6, protocol direct) that are part of the Tenant-A VRF. It tags these routes with the TENANT-A_COMMUNITY_V4 (5:20007 21002:26000 ) community before accepting them. All other routes are rejected.
As a result, only the directly connected IPV6 routes from the Tenant-A (/127 links between GPU servers and the leaf) are exported as EVPN Type 5 routes.
To verify the interface assignments to the different tenants, use show
interfaces routing-instance <tenant-name> terse.
jnpr@stripe1-leaf1> show interfaces routing-instance Tenant-A terse
Interface Admin Link Proto Local Remote
et-0/0/0:0.0 up up inet 10.200.0.0/31
multiservice
lo0.1 up up inet 192.168.11.1 --> 0/0
jnpr@stripe1-leaf1> show interfaces routing-instance Tenant-B terse
et-0/0/1:0.0 up up inet 10.200.0.16/31
multiservice
lo0.1 up up inet 192.168.11.2 --> 0/0
jnpr@stripe1-leaf2> show interfaces routing-instance Tenant-A terse
Interface Admin Link Proto Local Remote
et-0/0/0:0.0 up up inet 10.200.0.2/31
multiservice
lo0.1 up up inet 192.168.12.1 --> 0/0
jnpr@stripe1-leaf2> show interfaces routing-instance Tenant-B terse
et-0/0/1:0.0 up up inet 10.200.0.18/31
multiservice
lo0.1 up up inet 192.168.12.2 --> 0/0
You can also check the direct routes installed to the correspondent routing table:
jnpr@stripe1-leaf1> show route protocol direct table Tenant-A.inet.0
Tenant-A.inet.0: 14 destinations, 14 routes (14 active, 0 holddown, 0 hidden)
Restart Complete
@ = Routing Use Only, # = Forwarding Use Only
+ = Active Route, - = Last Active, * = Both
10.200.0.0/31 *[Direct/0] 02:24:29
> via et-0/0/12:0.0
192.168.11.1/32 *[Direct/0] 02:16:52
> via lo0.1
jnpr@stripe1-leaf1> show route protocol direct table Tenant-B.inet.0
Tenant-B.inet.0: 14 destinations, 14 routes (14 active, 0 holddown, 0 hidden)
Restart Complete
@ = Routing Use Only, # = Forwarding Use Only
+ = Active Route, - = Last Active, * = Both
10.200.0.16/31 *[Direct/0] 02:24:29
> via et-0/0/12:0.0
192.168.11.1/32 *[Direct/0] 02:16:52
> via lo0.2
jnpr@stripe1-leaf2> show route protocol direct table Tenant-A.inet.0
tenant-1.inet.0: 14 destinations, 14 routes (14 active, 0 holddown, 0 hidden)
Restart Complete
@ = Routing Use Only, # = Forwarding Use Only
+ = Active Route, - = Last Active, * = Both
10.200.0.2/31 *[Direct/0] 1d 17:42:33
> via et-0/0/2:0.0
192.168.12.1/32 *[Direct/0] 02:16:52
> via lo0.1
jnpr@stripe1-leaf2> show route protocol direct table Tenant-B.inet.0
tenant-1.inet.0: 14 destinations, 14 routes (14 active, 0 holddown, 0 hidden)
Restart Complete
@ = Routing Use Only, # = Forwarding Use Only
+ = Active Route, - = Last Active, * = Both
10.200.0.18/31 *[Direct/0] 1d 17:42:33
> via et-0/0/3:0.0
192.168.12.1/32 *[Direct/0] 02:16:52
> via lo0.2To verify evpn l3 contexts including encapsulation, VNI, router MAC address use
show evpn l3-context .
Use <tenant-name> extensive for mode details.
jnpr@stripe1-leaf1> show evpn l3-context
L3 context Type Adv Encap VNI/Label Router MAC/GW intf dt4-sid dt6-sid dt46-sid
Tenant-A Cfg Direct VXLAN 20001 9c:5a:80:c1:b3:06
Tenant-B Cfg Direct VXLAN 20002 9c:5a:80:c1:b3:06
jnpr@stripe1-leaf2> show evpn l3-context
L3 context Type Adv Encap VNI/Label Router MAC/GW intf dt4-sid dt6-sid dt46-sid
Tenant-A Cfg Direct VXLAN 20001 58:86:70:79:df:db
Tenant-B Cfg Direct VXLAN 20002 58:86:70:79:df:db
jnpr@stripe1-leaf1> show evpn l3-context Tenant-A extensive
L3 context: Tenant-A
Type: Configured
Advertisement mode: Direct nexthop, Router MAC: 9c:5a:80:c1:b3:06
Encapsulation: VXLAN, VNI: 20001
IPv4 source VTEP address: 10.0.1.1
IP->EVPN export policy: BGP-AOS-Policy-Tenant-A
Flags: 0xc209 <Configured IRB-MAC ROUTING RT-INSTANCE-TARGET-IMPORT-POLICY RT-INSTANCE-TARGET-EXPORT-POLCIY>
Change flags: 0x20000 <VXLAN-VNI-Update-RTT-OPQ>
Composite nexthop support: Disabled
Route Distinguisher: 10.0.1.1:2001
Reference count: 5
EVPN Multicast Routing mode: CRB
jnpr@stripe1-leaf1> show evpn l3-context Tenant-B extensive
L3 context: Tenant-B
Type: Configured
Advertisement mode: Direct nexthop, Router MAC: 9c:5a:80:c1:b3:06
Encapsulation: VXLAN, VNI: 20002
IPv4 source VTEP address: 10.0.1.1
IP->EVPN export policy: BGP-AOS-Policy-Tenant-B
Flags: 0xc209 <Configured IRB-MAC ROUTING RT-INSTANCE-TARGET-IMPORT-POLICY RT-INSTANCE-TARGET-EXPORT-POLCIY>
Change flags: 0x20000 <VXLAN-VNI-Update-RTT-OPQ>
Composite nexthop support: Disabled
Route Distinguisher: 10.0.1.1:2002
Reference count: 5
EVPN Multicast Routing mode: CRB
jnpr@stripe1-leaf2> show evpn l3-context Tenant-A extensive
L3 context: Tenant-A
Type: Configured
Advertisement mode: Direct nexthop, Router MAC: 58:86:70:79:df:db
Encapsulation: VXLAN, VNI: 20001
IPv4 source VTEP address: 10.0.1.2
IP->EVPN export policy: BGP-AOS-Policy-Tenant-A
Flags: 0xc209 <Configured IRB-MAC ROUTING RT-INSTANCE-TARGET-IMPORT-POLICY RT-INSTANCE-TARGET-EXPORT-POLCIY>
Change flags: 0x20000 <VXLAN-VNI-Update-RTT-OPQ>
Composite nexthop support: Disabled
Route Distinguisher: 10.0.1.2:2001
Reference count: 5
EVPN Multicast Routing mode: CRB
jnpr@stripe1-leaf2> show evpn l3-context Tenant-A extensive
L3 context: Tenant-B
Type: Configured
Advertisement mode: Direct nexthop, Router MAC: 58:86:70:79:df:db
Encapsulation: VXLAN, VNI: 20002
IPv4 source VTEP address: 10.0.1.2
IP->EVPN export policy: BGP-AOS-Policy-Tenant-B
Flags: 0xc209 <Configured IRB-MAC ROUTING RT-INSTANCE-TARGET-IMPORT-POLICY RT-INSTANCE-TARGET-EXPORT-POLCIY>
Change flags: 0x20000 <VXLAN-VNI-Update-RTT-OPQ>
Composite nexthop support: Disabled
Route Distinguisher: 10.0.1.2:2002
Reference count: 5
EVPN Multicast Routing mode: CRB
jnpr@stripe1-leaf1> show evpn ip-prefix-database
L3 context: Tenant-A
IPv4->EVPN Exported Prefixes
Prefix EVPN route status
10.200.0.0/31 Created
192.168.11.1/32 Created
EVPN->IPv4 Imported Prefixes
Prefix Etag
10.200.0.2/31 0
Route distinguisher VNI/Label/SID Router MAC Nexthop/Overlay GW/ESI Route-Status Reject-Reason
10.0.1.2:2001 20001 58:86:70:79:df:db 10.0.1.2 Accepted n/a
192.168.12.1/32 0
Route distinguisher VNI/Label/SID Router MAC Nexthop/Overlay GW/ESI Route-Status Reject-Reason
10.0.1.2:2001 20001 58:86:70:79:df:db 10.0.1.2 Accepted n/a
L3 context: Tenant-B
IPv4->EVPN Exported Prefixes
Prefix EVPN route status
10.200.0.16/31 Created
192.168.11.2/32 Created
EVPN->IPv4 Imported Prefixes
Prefix Etag
10.200.0.18/31 0
Route distinguisher VNI/Label/SID Router MAC Nexthop/Overlay GW/ESI Route-Status Reject-Reason
10.0.1.2:2002 20002 58:86:70:79:df:db 10.0.1.2 Accepted n/a
192.168.12.2/32 0
Route distinguisher VNI/Label/SID Router MAC Nexthop/Overlay GW/ESI Route-Status Reject-Reason
10.0.1.2:2002 20002 58:86:70:79:df:db 10.0.1.2 Accepted n/a When EVPN Type 5 is used to implement L3 tenant isolation across a VXLAN fabric, multiple routing tables are instantiated on each participating leaf node. These tables are responsible for managing control-plane separation, enforcing tenant boundaries, and supporting the overlay forwarding model. Each routing instance (VRF) creates its own set of routing and forwarding tables, in addition to the global and EVPN-specific tables used for fabric-wide communication. These tables are listed in table 63
Table 63. Routing and Forwarding Tables for EVPN Type 5
| TABLE | DESCRIPTON |
|---|---|
| bgp.evpn.0 |
Holds EVPN route information received via BGP, including Type 5 (IP Prefix) routes and other EVPN route types. This is the control plane source for EVPN-learned routes |
| :vxlan.inet.0 |
Used internally for VXLAN tunnel resolution. Maps VTEP IP addresses to physical next hops. |
| <tenant>.inet.0 |
The tenant-specific IPV6 unicast routing table. Contains directly connected and EVPN-imported Type 5 prefixes for that tenant. Used for routing data plane traffic. |
| <tenant>.evpn.0 | The tenant-specific EVPN table. |
The protocol next hop is extracted from each EVPN route, is extracted and resolved in inet.0. The EVPN route is added to the bgp.evpn.0 table. The result is placed in :vxlan.inet.0.
The route-target community value is used to determine which tenant the route belongs to, and the route is placed in tenant.evpn.0. From there, IPv4 routes are imported into tenant.inet.0 to be used for route lookups when traffic arrives at the interfaces belonging to the VRF.
IPv4 EBGP sessions advertising evpn routes for Tenant-A and Tenant-B should be established. The routes should be installed in both the bgp.evpn.0 table and the <Tenant>.inet.0 table.
jnpr@stripe1-leaf1> show bgp summary | no-more ---more--- Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped... 2001:10::1 101 5 4 0 0 18 Establ bgp.evpn.0: 4/4/4/0 Tenant-A.evpn.0: 2/2/2/0 Tenant-B.evpn.0: 2/2/2/0 2001:10::2 102 5 4 0 0 14 Establ bgp.evpn.0: 0/4/4/0 Tenant-A.evpn.0: 0/2/2/0 Tenant-B.evpn.0: 0/2/2/0 2001:10::3 103 5 4 0 0 10 Establ bgp.evpn.0: 0/4/4/0 Tenant-A.evpn.0: 0/2/2/0 Tenant-B.evpn.0: 0/2/2/0 2001:10::4 104 5 4 0 0 6 Establ bgp.evpn.0: 0/4/4/0 Tenant-A.evpn.0: 0/2/2/0 Tenant-B.evpn.0: 0/2/2/0 jnpr@stripe2-leaf1> show bgp summary | no-more ---more--- Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped... 10.0.0.1 101 206 199 0 0 1:29:40 Establ bgp.evpn.0: 0/4/4/0 Tenant-A.evpn.0: 0/2/2/0 Tenant-B.evpn.0: 0/2/2/0 10.0.0.2 102 206 199 0 0 1:29:25 Establ bgp.evpn.0: 0/4/4/0 Tenant-A.evpn.0: 0/2/2/0 Tenant-B.evpn.0: 0/2/2/0 10.0.0.3 103 206 199 0 0 1:29:26 Establ bgp.evpn.0: 0/4/4/0 Tenant-A.evpn.0: 0/2/2/0 Tenant-B.evpn.0: 0/2/2/0 10.0.0.4 104 207 199 0 0 1:29:39 Establ bgp.evpn.0: 0/4/4/0 Tenant-A.evpn.0: 0/2/2/0 Tenant-B.evpn.0: 0/2/2/0
To check that evpn routes are being advertised use show route
advertising-protocol bgp <neighbor>. For a specific route use the
match-prefix option and include the entire evpn prefix as shown in the
example below:
jnpr@stripe1-leaf1> show route advertising-protocol bgp 10.0.0.1 table Tenant | match 5:10.0.1.1:2001 | match 31/248
5:10.0.1.1:2001::0::10.200.0.0::31/248
jnpr@stripe1-leaf1> show route advertising-protocol bgp 10.0.0.1 table Tenant | match 5:10.0.1.1:2002 | match 31/248
5:10.0.1.1:2002::0::10.200.0.16::31/248
jnpr@stripe1-leaf2> show route advertising-protocol bgp 10.0.0.1 table Tenant | match 5:10.0.1.2:2001 | match 31/248
5:10.0.1.2:2001::0::10.200.0.2::31/248
jnpr@stripe1-leaf2> show route advertising-protocol bgp 10.0.0.1 table Tenant | match 5:10.0.1.2:2002 | match 31/248
5:10.0.1.2:2002::0::10.200.0.18::31/248
jnpr@ stripe1-leaf1> show route advertising-protocol bgp 10.0.0.1 match-prefix 5:10.0.1.1:2001::0::10.200.0.0::31/248 table Tenant-A
Tenant-A.evpn.0: 12 destinations, 54 routes (12 active, 0 holddown, 0 hidden)
Restart Complete
Prefix Nexthop MED Lclpref AS path
5:10.0.1.1:2001::0::10.200.0.0::31/248 * Self I
jnpr@ stripe1-leaf1> show route advertising-protocol bgp 10.0.0.1 match-prefix 5:10.0.1.1:2002::0::10.200.0.16::31/248 table Tenant-B
Tenant-B.evpn.0: 12 destinations, 54 routes (12 active, 0 holddown, 0 hidden)
Restart Complete
Prefix Nexthop MED Lclpref AS path
5:10.0.1.1:2002::0::10.200.0.16::31/248 * Self I
jnpr@stripe1-leaf2> show route advertising-protocol bgp 10.0.0.1 match-prefix 5:10.0.1.2:2001::0::10.200.0.2::31/248 table Tenant-A
Tenant-A.evpn.0: 12 destinations, 54 routes (12 active, 0 holddown, 0 hidden)
Restart Complete
Prefix Nexthop MED Lclpref AS path
5:10.0.1.2:2001::0::10.200.0.2::31/248 * Self I
jnpr@stripe1-leaf2> show route advertising-protocol bgp 10.0.0.1 match-prefix 5:10.0.1.2:2002::0::10.200.0.18::31/248 table Tenant-B
Tenant-B.evpn.0: 12 destinations, 54 routes (12 active, 0 holddown, 0 hidden)
Restart Complete
Prefix Nexthop MED Lclpref AS path
5:10.0.1.2:2002::0::10.200.0.18::31/248 * Self IThe /248 prefixes represent EVPN route type 5 advertising each IPv4 prefix connecting the GPU servers and leaf nodes.
For example: 5:10.0.1.2:2001::0::10.200.0.0::31/248 is an EVPN route type 5 for prefix 10.200.0.0/31 where:
Table 64. EVPN Type 5 Route Advertisement Fields Description.
| Name | Value | Description |
|---|---|---|
| Route type | 5: | Indicates the route is a Type 5 (IP Prefix) route |
| Route Distinguisher | 10.0.1.2:2001 | Uniquely identifies the routes |
| Placeholder fields | ::0:: | For MAC address and other Type 2-related fields (not used here) |
| IP Prefix | 10.200.0.4::31 | The actual prefix being advertised |
| VNI | 20001 | VNI to push for traffic to the destination |
| Advertising router | 10.0.0.1 (Spine 1) | Spine the route was received from. |
To check that evpn routes are being received use show route receive-protocol bgp
<neighbor> . For a specific route use the match-prefix
option and include the entire evpn prefix as shown in the example below:
jnpr@stripe1-leaf1> show route receive-protocol bgp 10.0.0.1 | match 5:10.0.1.2:2001 | match 31 5:10.0.1.2:2001::0::10.200.0.2::31/248 jnpr@stripe1-leaf1> show route receive-protocol bgp 10.0.0.1 | match 5:10.0.1.2:2002 | match 31 5:10.0.1.2:2002::0::10.200.0.18::31/248 jnpr@stripe1-leaf2> show route receive-protocol bgp 10.0.0.1 | match 5:10.0.1.1:2001 | match 31 5:10.0.1.1:2001::0::10.200.0.0::31/248 jnpr@stripe1-leaf2> show route receive-protocol bgp 10.0.0.1 | match 5:10.0.1.1:2002 | match 31 5:10.0.1.1:20021::0::10.200.0.16::31/248
The examples show routes received from Spine 1, but each route is received from all 4 spines nodes, which you can also confirm by entering:
jnpr@stripe1-leaf1> show route table bgp.evpn.0 match-prefix 5:10.0.1.2:2001::0::10.200.0.2::31/248 | match BGP
bgp.evpn.0: 314 destinations, 1040 routes (314 active, 0 holddown, 0 hidden)
* [BGP/170] 11:31:33, localpref 100, from 10.0.0.1
[BGP/170] 11:31:21, localpref 100, from 10.0.0.2
[BGP/170] 11:31:14, localpref 100, from 10.0.0.3
[BGP/170] 11:31:10, localpref 100, from 10.0.0.4
jnpr@stripe1-leaf2> show route table bgp.evpn.0 match-prefix 5:10.0.1.1:2001::0::10.200.0.0::31/248 | match BGP
bgp.evpn.0: 314 destinations, 1040 routes (314 active, 0 holddown, 0 hidden)
* [BGP/170] 11:31:13, localpref 100, from 10.0.0.1
[BGP/170] 11:31:41, localpref 100, from 10.0.0.2
[BGP/170] 11:31:12, localpref 100, from 10.0.0.3
[BGP/170] 11:31:52, localpref 100, from 10.0.0.4Additional information for a given route can be found using the extensive keyword:
jnpr@stripe1-leaf1> show route table bgp.evpn.0 match-prefix 5:10.0.1.2:2001::0::10.200.0.2::31/248 active-path extensive
bgp.evpn.0: 314 destinations, 1040 routes (314 active, 0 holddown, 0 hidden)
Restart Complete
5:10.0.1.2:2001::0::10.200.0.2::31/248 (4 entries, 0 announced)
*BGP Preference: 170/-101
Route Distinguisher: 10.0.1.2:2001
Next hop type: Indirect, Next hop index: 0
Address: 0x55dfb9c305fc
Next-hop reference count: 48
Kernel Table Id: 0
Source: 10.0.0.1
Protocol next hop: 10.0.1.2
Label operation: Push 20001
Label TTL action: prop-ttl
Load balance label: Label 20001: None;
Indirect next hop: 0x2 no-forward INH Session ID: 0
Indirect next hop: INH non-key opaque: (nil) INH key opaque: (nil)
State: <Active Ext>
Local AS: 201 Peer AS: 101
Age: 7:54:49 Metric2: 0
Validation State: unverified
Task: BGP_109.10.0.0.1
AS path: 109 210 I
Communities: 0:14 7:20007 21002:26000 target:20001:1 encapsulation:vxlan(0x8) router-mac:58:86:70:7b:10:db
Import Accepted
Route Label: 20001
Overlay gateway address: 0.0.0.0
ESI 00:00:00:00:00:00:00:00:00:00
Localpref: 100
Router ID: 10.0.0.1
Secondary Tables: Tenant-A.evpn.0
Thread: junos-main
Indirect next hops: 1
Protocol next hop: 10.0.1.2
ResolvState: Resolved
Label operation: Push 20001
Label TTL action: prop-ttl
Load balance label: Label 20001: None;
Indirect next hop: 0x2 no-forward INH Session ID: 0
Indirect next hop: INH non-key opaque: (nil) INH key opaque: (nil)
Indirect path forwarding next hops: 4
Next hop type: Router
Next hop: 10.0.2.64 via et-0/0/2:0.0
Session Id: 0
Next hop: 10.0.2.82 via et-0/0/3:0.0
Session Id: 0
Next hop: 10.0.2.98 via et-0/0/0:0.0
Session Id: 0
Next hop: 10.0.2.114 via et-0/0/1:0.0
Session Id: 0
10.0.1.2/32
Originating RIB: inet.0
Node path count: 1
Forwarding nexthops: 4
---(more)---
Table 65. EVPN Type 5 Route Advertisement Fields Description - Extensive
| Name | Value | Description |
|---|---|---|
| Route type | 5: | Indicates the route is a Type 5 (IP Prefix) route |
| Route Distinguisher | 10.0.1.2:2001 | Uniquely identifies the routes |
| Placeholder fields | ::0:: | For MAC address and other Type 2-related fields (not used here) |
| IP Prefix | 10.200.105.0::24 | The actual prefix being advertised |
| VNI | 20001 | VNI to push for traffic to the destination |
| Advertising router | 10.0.0.1 | Spine the route was received from. |
| Protocol next hop | 10.0.1.2 (Stripe 1 Leaf 2) | Router that originated the EVPN route (remote VTEP) |
| Encapsulation | Type: 0x08 | standardized IANA-assigned value for VXLAN encapsulation in the EVPN Encapsulation extended community (RFC 9014) |
| Route target | target:20001:1 | Identifies the route as belonging to Tenant-A |
To check that the routes are being imported into the correspondent tenant’s routing tables use show route table <tenant-name>.inet.0 protocol evpn, as shown in the example below:
jnpr@stripe1-leaf1> show route table tenant-A.inet.0 protocol evpn | match /31 10.200.0.2/31 *[EVPN/170] 04:02:04 jnpr@stripe1-leaf1> show route table Tenant-B.inet.0 protocol evpn | match /31 10.200.0.18/31 *[EVPN/170] 04:02:04 jnpr@stripe1-leaf2> show route table tenant-A.inet.0 protocol evpn | match /31 10.200.0.0/31 *[EVPN/170] 04:02:04 jnpr@stripe1-leaf2> show route table Tenant-B.inet.0 protocol evpn | match /31 10.200.0.16/31 *[EVPN/170] 04:02:04
