Centralized Syslog Management and Forwarding in NextGen Port Extender Overview

Configure centralized syslog management and forwarding in your NextGen Port Extender (NGPE) topology to streamline network logging operations. Centralize control over syslog settings by deploying an aggregation device. This centralized logging strategy enforces uniform logging practices across all satellite devices and enables you to manage syslog settings from a single point. Satellite devices forward locally generated system logs to the aggregation device using UDP. The aggregation device collects these logs and relays them to external syslog servers for analysis. You can configure structured and priority-based logging on satellite devices for detailed log management. This deployment supports network diagnostics and monitoring, avoids security or compatibility issues, and provides both IPv4 and IPv6 support.

Benefits of Centralized Syslog Management and Forwarding

  • Simplifies network management by providing a centralized control point for syslog configurations, reducing the complexity involved in managing multiple devices individually.

  • Ensures uniform logging practices across all devices in the network, enhancing consistency and making diagnosing and monitoring network issues easier.

  • Facilitates comprehensive diagnostics by aggregating logs at a central point and forwarding them to external servers, offering a holistic view of network health and performance.

  • Enhances log management with structured and priority-based logging options, allowing detailed insights into network events and improving troubleshooting capabilities.

  • Supports seamless integration across platforms without introducing security concerns, ensuring compatibility and maintaining network integrity.

Overview

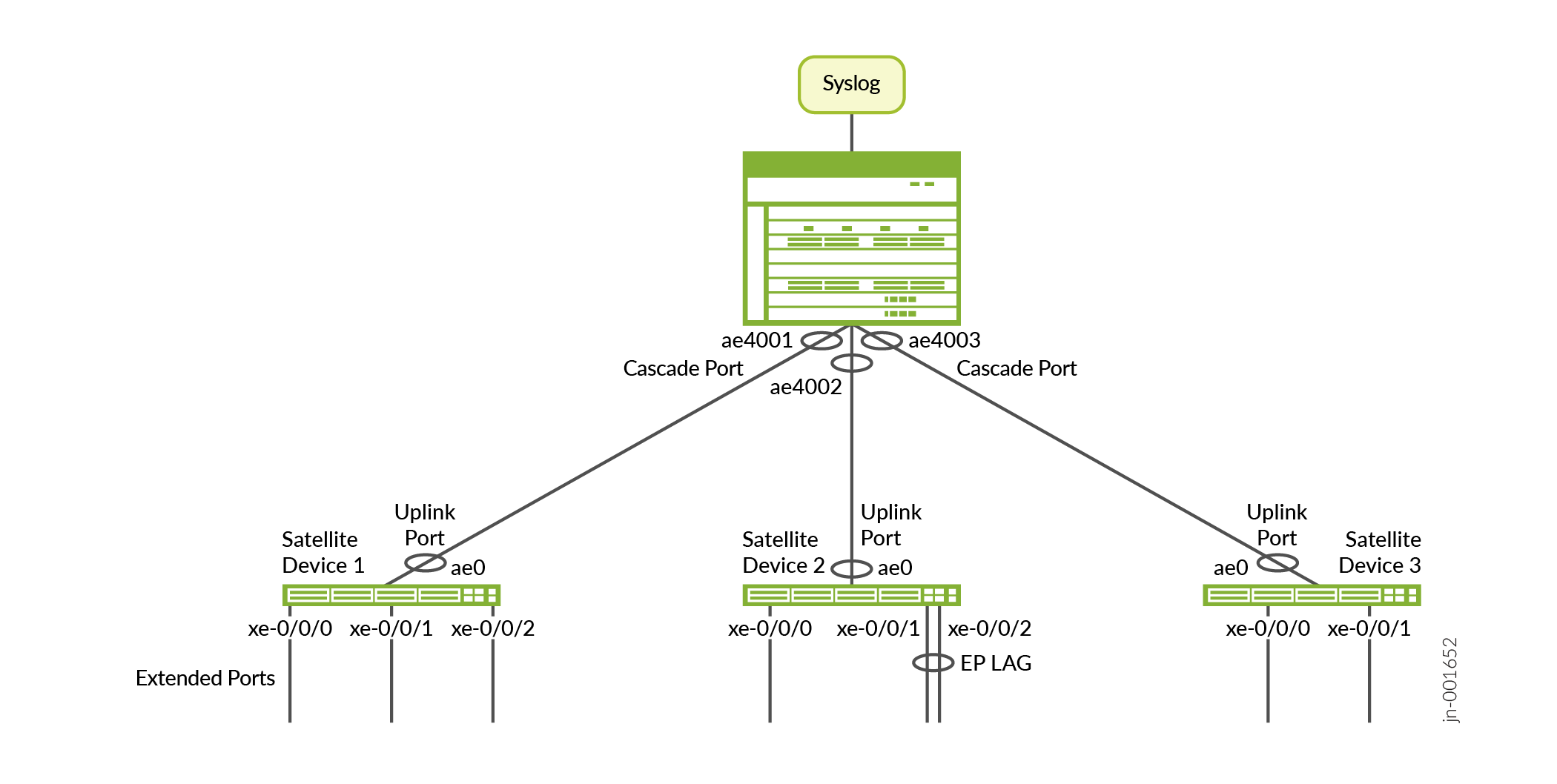

Figure 1: NGPE Topology with External Syslog Server NGPE Topology with External Syslog Server

In a centralized syslog system, an aggregation device manages logging configurations for multiple satellite devices. This centralization allows you to push syslog settings from the aggregation device to each satellite device. The aggregation device functions as a controller, simplifying the configuration process by using existing CLI commands. Syslog configuration on each satellite device allows log forwarding to the aggregation device.

Once system logs are aggregated at the aggregation device, you can then forward these logs to an external syslog server connected to the aggregation device, as shown in the above topology. This ability to centralize and then distribute logs externally enhances your network diagnostics, providing a thorough overview of network health and performance. The system supports structured and priority-based logging on satellite devices. You can categorize logs by significance, which is critical for troubleshooting and event management.

The feature uses UDP for log forwarding. Be mindful of potential security concerns because UDP does not provide secure communication. IPv4 and IPv6 support across platforms ensures network integrity. This compatibility aids centralized syslog management.
