Understanding VXLAN VNI Rate Limiting

Benefits of VXLAN VNI Rate Limiting

• Mitigates network congestion by applying rate limits to specific VNIs, ensuring no single application or user consumes excessive bandwidth.

• Prevents potential DoS attacks by controlling the rate of VXLAN traffic, enhancing network security and stability.

• Manages bandwidth-intensive applications effectively, allowing critical traffic to be prioritized and ensuring essential services remain unaffected.

• Enhances traffic control granularity with two-color and three-color policers, providing specific actions for out-of-spec traffic and maintaining optimal network performance.

• A new EVACL profile accommodates additional qualifiers without affecting existing EVACL scales, ensuring that current network setups remain intact while implementing new rate-limiting features.

VXLAN VNI Rate Limiting Overview

The VXLAN VNI rate limiting feature provides the ability to control the rate of VXLAN traffic per-VNI, thereby preventing network congestion and mitigating potential DoS attacks. This feature applies rate limits specifically to L2 unicast and BUM traffic within each VNI, ensuring that no single user or application consumes excessive bandwidth. By leveraging EVACL filters with specific qualifiers and policer actions, the feature effectively manages bandwidth-intensive applications and prioritizes critical traffic, maintaining a balanced distribution of resources across multiple tenants.

To implement VXLAN VNI rate limiting, you utilize a policing mechanism that includes both two-color and three-color policers. These policers allow you to define rate limits and burst sizes for known unicast and BUM traffic, providing you with flexibility in traffic management. Specifically, the two-color policer differentiates between traffic that is within or exceeding the defined rate limit, while the three-color policer introduces an additional state to further refine traffic management. By configuring these policers, you ensure that traffic exceeding the set limits is appropriately handled, preventing any single flow from overwhelming the network.

Configuring this feature involves several CLI commands. For instance, to set up a basic policer, you can use commands like set firewall policer name if-exceeding bandwidth-limit bandwidth. To handle more complex scenarios with three-color policers, you can use set firewall three-color-policer name single-rate committed-information-rate rate. For egress filtering, you can apply filters using commands such as set firewall family ethernet-switching filter name term term-name from vxlan tunnel-initiated. These commands allow you to precisely define and manage traffic rates, ensuring that your network remains stable and secure even under high load.

Rate Limiting Tunnel-Initiated Traffic

We added the following qualifiers to the EVACL group to support rate-limiting tunnel-initiated traffic:

• Packet forward type—to qualify on unicast and BUM.

• EFP control ID from egress DVP table—to qualify for tunnel-initiated traffic.

• Policer—to rate-limit the traffic.

• Three-color-policer—to rate-limit the traffic.

• Policer stats groups—to account policer color traffic.

We also added a new profile for EVACL to accommodate these new qualifiers. The per-VNI rate-limit feature is only available in this new profile. The default profile does not include these qualifiers, ensuring that the existing EVACL scale remains unaffected. Policer action will be part of the default EVACL profile.

Use set system packet-forwarding-options firewall profiles ethernet-switching egress profile1 to configure this profile.

Note: Changing the filter profile will trigger a Packet Forwarding Engine (PFE) restart.

In EVPN-VXLAN, you can configure various services to use different VNIs, enabling traffic segmentation based on the service type. The VXLAN VNI rate limiting per-VNI feature enables rate limiting VXLAN traffic for each VNI.

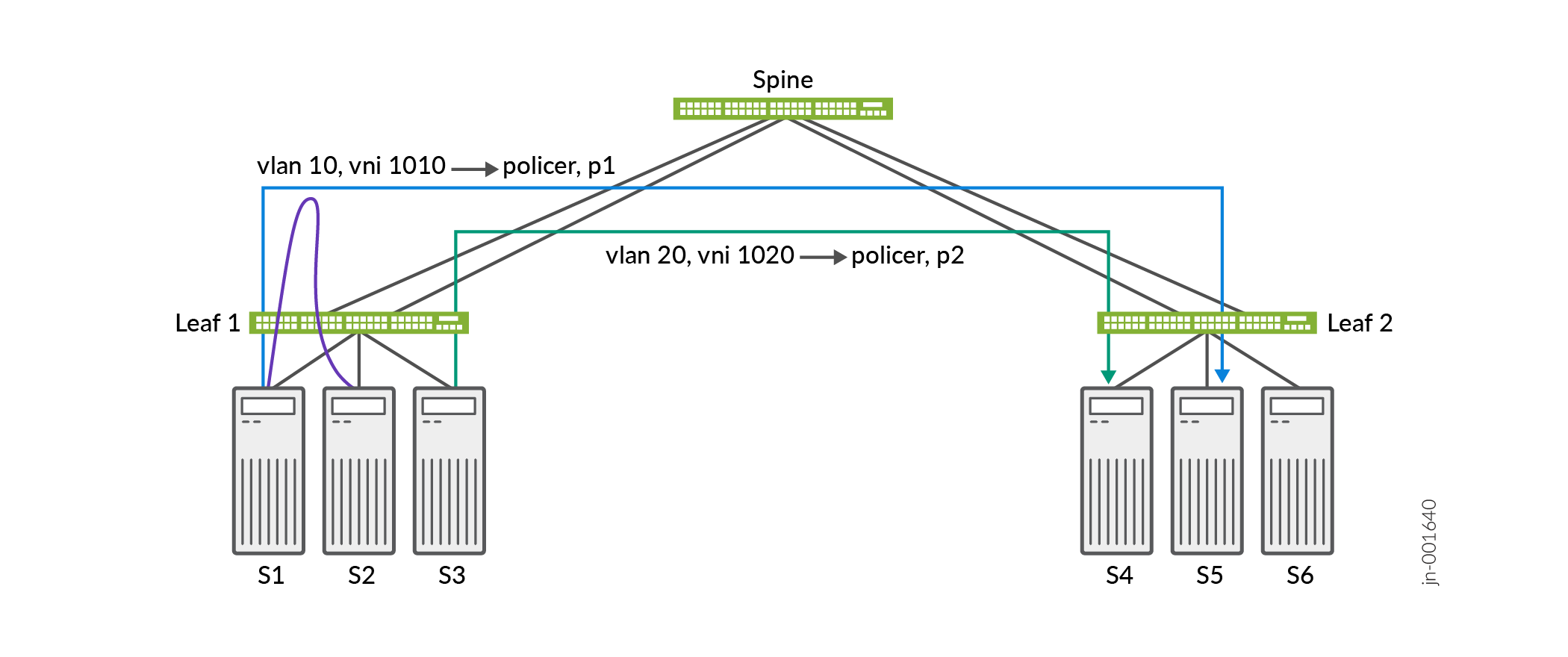

In Figure 1, the traffic from the servers connected to Leaf 1 is sent to the servers connected to Leaf 2 using VXLAN encapsulation over the Spine. The VXLAN tunnel is initiated on Leaf 1 and terminated on Leaf 2, and the traffic is segmented using two different VNIs. Additionally Leaf 1 has some locally switched traffic going between servers S1 and S2.

In typical EVPN-VXLAN configurations, a VLAN maps one-to-one with a VNI. So policing traffic per-VNI is treated as per VLAN and the rate-limiting filter is applied on the egress of the VLAN for traffic entering the VXLAN tunnel.

In this example, the requirement is to rate limit the VXLAN tunnel-initiated traffic per-VNI without affecting the locally switched traffic.

The traffic on each VLAN has different requirements so we create different filters and policers based on the specific requirements. We then apply each rate-limiting filter on the egress of the VLAN using the configuration statement set routing-instances instance-name vlans vlan-name forwarding-options filter output filter-name. These filters match on the tunnel-initiated L2 unicast and L2 BUM traffic to rate-limit the traffic as it enters the VXLAN tunnel.

Caveats and Limitations

When implementing VXLAN VNI rate limiting keep these caveats and limitations in mind:

• The egress rate-limit per-VNI feature requires the EVACL profile profile1.

• The only supported policer action is discard.

• The VXLAN VNI rate-limiting feature only supports rate limiting L2 unicast and L2 BUM traffic. It does not support rate limiting L3 unicast, L3 multicast, or Type 5 tunnel-initiated traffic.

• We configure a match on BUM traffic using the match condition traffic-type-except known-unicast. We cannot match for broadcast, unknown unicast, or multicast traffic separately.

VXLAN VNI Rate Limiting Configuration Examples

Here are some example configurations for implementing VXLAN VNI Rate Limiting.

• Configure the EVACL Filter Profile
• Filter Configuration for IPv4 VXLAN Tunnel-Initiated Traffic
• Filter Configuration for IPv6 VXLAN Tunnel-Initiated Traffic
• Filter Configuration for All VXLAN Tunnel-Initiated Traffic
• Single-Rate Policer Configuration Example
• Three-Color-Policer Configuration Example
• Apply the Filter to a Routing Instance
