Filter Management in Junos Space Platform User Interface

This section contains the following topics:

Understanding Filtering Options in Junos Space Platform User Interface

This topic contains the following sections:

Overview

On various Junos Space Platform pages, you can use the Filter menu to show or hide table entries based on the filtering criteria that you specify. Filters enable you to quickly find and evaluate the entries that are relevant to your specific needs.

Many of the columns in Junos Space page tables support filtering. To know whether or not a column supports filtering of data, click the down arrow next to the column name. If the Filter submenu appears, then that column supports filtering of data. The filtering criteria that are available for you depend on the selected column. You can create filters that combine criteria from more than one column.

From Release 17.2R1 onward, Junos Space Platform introduces the following enhancements to filtering options:

  • Ability to save, modify, and delete filters

  • Ability to share saved filters with other users

  • Ability to mark filters as favorites

  • Ability to manually enter filter conditions with autocomplete and suggestion support.

For a list of pages and columns that support filtering, see Pages and Columns that Support Filtering.

In releases earlier than 17.2R1, Junos Space Platform supports only basic filtering. In those releases, you can specify only one set of filter criteria at a time, and the filter setting is lost when you modify the criteria. From Junos Space Platform Release 17.2R1 onward, you can save multiple filters. You can also mark up to 10 filters as favorites in each of the pages that support enhanced filtering.

The Filter menu that appears when you click the filter icon lists up to 10 filters. The 10 filters that are listed in the Filter menu are arranged in the following order of filter categories: favorite filters, public filters, and private filters. If there are more than 10 filters, those filters are listed under the More Filters submenu.

Note:

The More Filters submenu is not displayed if you have not saved any filter. However, the More Filters submenu appears even if you have saved only one filter.

If you have Filter Management permissions to create or modify filters, you can also choose to share the saved filters with other users by marking the filters as public.

For more information about creating, saving, modifying, and deleting filters, see Managing Filtering Options.

From Junos Space Platform Release 17.2R1, you can also manually enter filter criteria in the filter text box that appears when you click the Show/ Clear and Hide Filters option from the Filter menu. For more information about manually specifying filter criteria, see Creating Filters by Manually Entering the Filter Criteria.

Benefits

Filters enable you to quickly find and evaluate the entries that are relevant to your specific needs. Ability to save and share filters enables you to configure multiple filters for a page that can be preserved across sessions and shared with multiple users.

Pages and Columns that Support Filtering

This section contains the following topics:

Pages and Columns that Support Enhanced Filtering

The following table lists the pages and columns that support enhanced filtering and also the data types for each of the columns:

Page

Column

Data Type

Device Management

Name

String

Device Alias

String

IP Address

Number

Serial Number

String

Connection Status

List

Managed Status

List

Platform

String

OS Version

String

Domain

String

Device Family

String

Configuration State

List

Last Rebooted Time

Date

Vendor

String

Authentication Status

String

Aggregation Device

String

Satellite Devices

String

Device Network

List

View Physical Interfaces

Physical Interface Name

String

IP Address

String

IPv6 Address

String

MAC Address

String

Operational Status

List

Admin Status

List

Link Level Type

String

Link Type

String

Speed

String

MTU

String

Description

String

Domain

String

View Logical Interfaces

Interface Name

String

IP Address

String

IPv6 Address

String

Description

String

Domain

String

Device Discovery Profiles

Profile Name

String

Target Type

List

Target Details

String

Profile Visibility

List

Job ID

Number

Model Devices

Name

String

Description

String

Devices Count

Number

Device Adapter

Name

String

Device Family

String

Version

String

Adapter State

List

Template Definitions

Name

String

Domain

String

Description

String

Last Modified By

String

Templates

Name

String

Domain

String

Template Type

List

Latest Version

String

Description

String

Last Modified By

String

Deployment Status

List

Configlets

Name

String

Domain

String

Category

String

Device Family Series

List

Latest Version

String

Git Version

String

Git Branch

String

Execution Type

List

Creation Time

Date

Last Updated Time

Date

Last Modified By

String

Reference Number

Number

Configuration View

Name

String

Domain

String

Title

String

Device Family Series

List

View Type

List

Creation Time

Date

Last Updated Time

Date

Last Modified By

String

Configuration Filter

Name

String

Domain

String

Device Family Series

List

Xpath and Regex

Name

String

Domain

String

Value

String

Property Type

List

Creation Time

Date

Last Updated Time

Date

Last Modified By

String

Images

File Name

String

Domain

String

Version

String

Type

List

Scripts

Script Name

String

Domain

String

Descriptive Name

String

Type

List

Category

String

Execution Type

String

Format

List

Latest Revision

String

Git Version

String

Git Branch

String

Operations

Operation Name

String

Domain

String

Description

String

Creation Time

Date

Last Updated Time

Date

Script Bundles

Script Bundle Name

String

Domain

String

Config Files Management

Config File Name

String

Device Name

String

Device Alias

String

Latest ConfigFile Version

String

Creation Date

Date

Last Updated Date

Date

Job Management

ID

Number

Domain

String

Name

String

Percent

Number

State

List

Job Type

String

Parameters

String

Summary

String

Scheduled Start Time

Date

Actual Start Time

Date

End Time

Date

Owner

String

Retry Group Id

Number

Previous Retry

Number

User Accounts

User Name

String

First Name

String

Last Name

String

Email

String

User Type

List

Status

List

GUI/API Access

List

Locked Out

List

Roles

Role Title

String

Type

List

Description

String

User Sessions

User Name

String

IP Address

String

Fabric Node Name

String

Session Start Time

Date

Audit Log

ID

Number

User Name

String

User IP

String

Domain

String

Application

String

Task

String

Timestamp

Date

Result

String

Description

String

Job ID

Number

Fabric

Last Monitored Time

Date

Last Boot Time

Date

Audit Log Forwarding

Name

String

Description

String

Server Address

String

Port

Number

Protocol

List

Last Updated User

String

Last Updated Time

Date

Enabled

List

Tags

Name

String

Owner

String

Description

String

Access Type

List

Report Definitions

Name

String

Domain

String

Created By

String

Created Time

Date

Description

String

Generated Reports

Name

String

Generated Time

Date

Domain

String

Description

String

Definition Name

String

Generated By

String

Format

String

Job ID

Number

Pages That Support Basic Filtering

Junos Space Platform supports basic filtering options on the following pages:

  • Role Based Access Control > Domains

  • Administration > CA/CRL Certificates

  • Administration > SMTP Servers

  • Administration > DMI Schemas

    Note:

    Filtering is supported only for the State and Schema Installed columns.

Managing Filtering Options

From Junos Space Platform 17.2R1 onward, you can save filters, modify the saved filters, and delete the filters. You can also mark the filters as public or favorites or both. The following sections explain the various filter management tasks that you can perform from the Junos Space Platform user interface (UI):

Creating Filters by Manually Entering the Filter Criteria

From Junos Space Platform Release 17.2R1 onward, you can manually enter the filtering criteria to create the filters that meet your specific requirements.

To manually enter filtering criteria:

  1. From any of the pages that support Filter Management options, click the Filter icon.

    The Filter menu appears.

  2. Click Show/ Clear and Hide Filters on the Filter menu.

    The Filter field appears.

  3. Click inside the Filter field.

    A list showing the names of columns that support filtering and the following two options appears:

    • An opening parenthesis [ ( ] symbol. The bracket enables you to group conditions. A closing parenthesis [ ) ] symbol appears in the list after you specify a condition if you used an opening parenthesis before specifying the condition.

    • Not. The Not option enables you to specify conditions based on which you want to filter out entries.

  4. From the list, select the columns for which you want to specify the filter conditions and specify the conditions by using any of the operators supported for the specified column. Table 1 lists various operators that you can use for each of the data types supported for filtering.

    You can specify multiple conditions by using an AND or an OR operator. The Filter field supports autocomplete and provides suggestions for column names, attributes, and operators even as you type inside the field.

    Note:

    If the values you enter for any of the parameters contain spaces, enclose such values in single quotation marks. For example, Domain Contains 'test domain'. However, if the single quotation mark is part of the search string, use the backslash escape character (\) before the quotation mark. For example: Domain Contains '\'test domain\''.

    Table 1: Data Types and Supported Operators

    Data Type

    Supported Operators

    String (Other than Domain Column)

    Starts-with

    Ends- with

    Contains

    =

    !=

    String (Domain Column only)

    Contains

    Not-contains

    Numbers or Date

    =

    !=

    >

    <

    <=

    >=

    List

    =

    !=

    The following examples show samples of manually entered filter criteria:

    • ID > 2000000 AND 'Job Type' ends-with 'elements' AND Parameters contains '10.1.1.1' OR Parameters = 192.168.27.72 AND Owner = SUPER

      This filter on the Job page displays jobs that meet the following criteria: The job ID is a number greater than 2000000, the job type ends with the text elements, the Parameter field contains 10.1.1.1 or 192.168.27.72, and the owner is the superuser.

    • ( 'Connection Status' = 'down' ) AND ('Managed Status' = 'In Sync' OR 'Managed Status' = Synchronizing ) AND 'Device Family' starts-with 'junos'

      This filter on the Device page displays devices that have the connection status set to down, the managed status set to in sync or synchronizing, and device family name starts with Junos.,

  5. After you enter the conditions, you can save or apply the filter. To save the filter, click the Save Filter icon and complete the steps as explained in Saving a Filter. To apply the filter without saving, click the Apply Filter icon. For more information about applying filters, see Applying a Filter.

    To clear the filter conditions you entered or the filter that you applied, click the Clear Filter icon. Alternatively, you can click the Clear and and Hide icon to clear the filters and hide the filter bar.

For a list of error messages, see Error Conditions and Error Messages for Filters.

Creating Filters by Using the Filter Submenu Options

Many of the columns in Junos Space user interface tables support filtering. To know whether or not a column supports filtering of data, click the down arrow next to the column name. If the Filter submenu appears, then that column supports filtering of data. The criteria that are available for you to filter on depend on the selected column. You can create filters that combine criteria from more than one column.

On Junos Space pages that support enhanced filtering options, the Filter field and the Save Filter, Apply Filter, and Clear Filter icons appear when you select any of the items from the Filter submenu. The selected criteria are displayed in the Filter field. You can choose to apply, save, or clear the filtering criteria by clicking the appropriate icon.

On Junos Space pages that do not support enhanced filtering options, when you select any of the items from the Filter submenu, Junos Space Platform displays the filter criteria, including the columns being filtered, above the table. Junos Space Platform displays a red X to the left of the filter criteria above the table. You can clear the filter and restore the table to its original view by clicking the X.

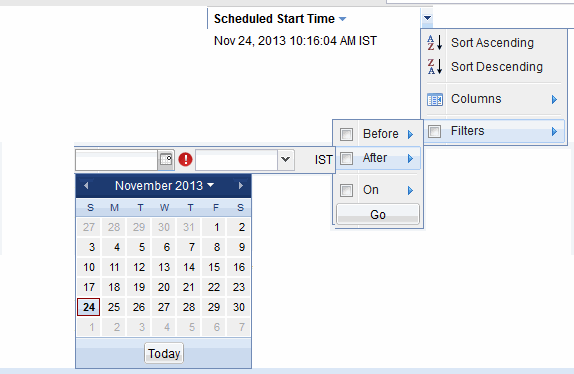

Figure 1 shows a typical Filter submenu for a date column.

Figure 1: Typical Submenu for a Date Column Typical Submenu for a Date Column

The following procedures describe how to use the different types of available filters.

To filter entries on the Junos Space pages:

  1. On the Junos Space Platform UI, click the down arrow on the column header and select Filters.

    The Filters submenu appears, displaying the list of operators or values that you can select, based on the type of values in the column.

  2. Based on the submenu that appears, perform one of the following procedures.

    To specify filters for a date field:

    1. From the Filter submenu, select Before, After, or On.

      You can select both Before and After dates and times to filter the entries by a specific time period. You can also select On to view events recorded on a specific date.

    2. Click the calendar icon and select the date from the calendar.

      You can click Today to view the events that occurred today at the specified time.

    3. Click the arrow beside the time list and select the time.

    To specify filters for a text field:

    1. In the text box that appears, type the alphanumeric string based on which you want to filter entries.

    To specify filters for a field with discrete values such as Success or Failure, or True or False:

    1. From the list of values that appears, select the check boxes for one or more values based on which you want to filter entries.

    To specify filters for a numeric field:

    1. Enter values for each operator that you want to specify.
  3. Click Go to view the entries filtered based on the criteria that you specified.
  4. On pages that support enhanced filtering options, you can choose to save the filter after you specify the required criteria. To save the filter, click the Save Filter icon and complete the steps as explained in Saving a Filter. To apply the filter without saving, click the Apply Filter icon. For more information about applying filters, see Applying a Filter.

    To clear the filter conditions you entered or the filter that you applied, click the Clear Filter icon.

You can also filter entries based on combined filters with different criteria specified for different columns. For example, you can filter for all events on a certain date whose status was success. When you use multiple filters, the filters are joined using the logical AND operator.

To clear only the part of a filter that applies to a any of the columns, click the down arrow on the column header and clear the check box next to Filter.

Saving a Filter

You can create a filter either by using the filtering options that are available in the Junos Space Platform UI or by manually entering the filter criteria in the Filter field that appears when you click the Filter icon. After you specify the filtering criteria, you can save the filter.

To save a filter:

  1. Create a filter as explained in either of the following topics:

    The criteria you specified, either by typing in the Filter field or by using the Filter submenu options in the Junos Space Platform UI, appear in the Filter field.

  2. Click the Save Filter icon next to the Filter field.

    The Save Filter page appears.

  3. In the Name field, enter a name for the filter.
  4. (Optional) In the Description field, enter a description for the filter.
  5. (Optional)To share the filter with other users, select the Make Public check box.
    Note:

    You cannot change a public filter to a private filter after you save the changes. However, you can change a private filter to a public filter from the Modify Filters page.

  6. (Optional) If you want to mark the filter as a favorite, select the Mark as Favorite check box.

    Alternatively, you can add a filter to the list of favorites or remove a filter from the list of favorites from the Manage Filters page.

  7. Click Save to save the filter. To close the page without saving the filter, click Cancel.

Modifying a Filter

From the Manage Filters page. you can modify saved filters.

  1. From the Junos Space Platform UI, go to the page that contains the filter that you want to modify. For example, the Device Management or View Physical Devices page.
  2. Click the Filter icon to view the Filter menu.
  3. From the Filter menu, click Manage Filters.

    The Manage Filters page appears.

  4. From the list of filters, click the filter entry that you want to modify.

    The selected filter entry appears highlighted.

  5. Modify the following parameters as required:
    • Name–The name of the filter.

    • Description–Description for the filter.

    • Filter Criteria–Filter criteria to apply for the filter. For information about manually entering the filter criteria, see Managing Filtering Options.

    • Make Public–Specify whether the filter is a public filter. Public filters are available for all users. However, note that only users with Filter Management permissions to create or modify filters can create public filters. This check box is disabled if the selected filter is a Public filter. That is, you cannot clear this check box after you select this check box and save the filter.

      Note:

      To create a public filter, you must have both Create Filter and Modify Filter roles assigned to your account.

    • Mark as Favorite–Specify whether the filter is a favorite or not. You can select this check box to mark the selected filter as favorite. To remove a filter from the list of favorites, clear this check box. Favorite filters are listed on top of the Filter menu options. If there are favorite filters and filters that are not marked as favorites, the filters that are not marked as favorites appear in the More Filters submenu.

  6. Click Modify to save the changes. Click Reset if you want to discard the changes.

For a list of error messages, see Error Conditions and Error Messages for Filters.

Creating a Public Filter

Public filters are filters that are available to all users. To create a public filter, you must have both Create Filter and Modify Filter roles assigned to your account. Junos Space Platform adds the suffix (Public) to the names of filters that are made public.

To make a filter public:

  1. When you save a filter, select the Make Public check box. For more information about saving filters, see Saving a Filter.
  2. When you modify a filter, select the Make Public check box. For more information about modifying filters, see Modifying a Filter
Note:

After you make a filter public, you cannot change that to a private filter.

Applying a Filter

Junos Space Platform provides you multiple options to apply a filter.

  • From pages that support enhanced filtering, you can apply a filter by clicking the name of the filter from the Filter menu. Alternatively, while creating a filter, you can click the Apply Filter icon (the green tick mark) next to the Filter field.

  • From pages that do not support enhanced filtering, you can apply a filter by selecting and specifying filter options from the Filter submenu available for columns that support filtering and then clicking Go.

Clearing a Filter

Junos Space Platform provides you the following options to clear a filter that is applied to a page.

  • On Junos Space pages that support enhanced filtering options, if a filter is applied to the page, the filter criteria is displayed in the Filter field. You can click the Clear Filter icon to clear the applied filter. Alternatively, you can click the Clear and Hide Filters icon from the Filter bar or the Show/Clear and Hide item in the Filter menu.

  • On Junos Space pages that do not support enhanced filtering options, when you select any of the items from the Filter submenu, Junos Space Platform displays the filter criteria, including the columns being filtered, above the table. Junos Space Platform displays a red X icon to the left of the filter criteria above the table. You can clear the filter and restore the table to its original view by clicking the X icon.

Deleting a Filter

From the Manage Filters page. you can delete saved filters.

To delete a saved filter:

  1. From the Junos Space Platform UI, go to the page that contains the filter that you want to delete. For example, the Device Management or View Physical Devices page.
  2. Click the Filter icon to view the Filter menu.
  3. From the Filter menu, click Manage Filters.

    The Manage Filters page appears.

  4. From the list of filters, click the filter entry that you want to delete.

    The selected filter entry appears highlighted.

  5. Click the Delete icon above the top-left corner of the list of filters.

    The Delete Filter page appears.

  6. On the Delete Filter page, click OK. Click Cancel if you do not want to delete the selected filter.

Error Conditions and Error Messages for Filters

The following table lists common error conditions you might encounter while saving or applying filters and the error messages for those conditions:

Table 2: Error Conditions and Error Messages for Filters

Error Condition

Sample Filter Data

Validation Error Message at Apply Filter

Validation Error Message on the Save Filter and Manage Filter Page

Invalid column name.

'namm'

Invalid column name: namm

Invalid filter query

Incorrect filter query. Comparison missing after column name.

'Name' juniper

'Name' has test OR 'Device Alias' contains test

Incorrect filter query, please provide a comparison after column name (Name)

Invalid filter query

Incorrect filter query. Value after comparison missing.

Name =

Name =  juniper OR Name =

Incorrect filter query, please provide a value after comparison (=)

Invalid filter query

Incorrect filter query; “)” missing.

( Name = test

Incorrect filter query, please insert ")" to complete the query (test)

Invalid filter query

Incomplete filter query. Column name or "(" missing.

( Name =  juniper ) OR

Incomplete filter query. Please provide a column name or "(" to complete the query after (OR)

Invalid filter query

Incomplete filter query. Column name or "(" missing after (NOT)

( Name =  juniper ) OR NOT

Incomplete filter query. Please provide a column name or "(" to complete the query after(NOT)

Invalid filter query

Incorrect filter query; Unexpected token ")"

Name = test )

Incorrect filter query, Unexpected token ")"

Invalid filter query

Incorrect filter query; Unexpected token ")"

Name = test  AND ( Name = test1))

Incorrect filter query, Unexpected token ")"

Invalid filter query

Incorrect filter query; Unexpected token "("

Name = test  AND ( Name = test1)(

Incorrect filter query, Unexpected token "("

Invalid filter query

Incorrect filter query; ")" missing.

( Name = test  AND ( Name = test1)

Incorrect filter query, please insert ")" to complete the query (test)

Invalid filter query

Invalid filter query. Query must start with "(" or NOT or column name.

)

Invalid filter query. Query should start with "(" or NOT or column name.

Invalid filter query

Invalid filter query

( Name starts-with ")

Invalid filter query. Query should start with "(" or NOT or column name.

Invalid filter query

The equal condition is not supported for the specified column.

Domain = SUCCESS

Filtering of “Domain” column is not possible with “Equal” condition

The not equal condition is not supported for the specified column.

Domain != SUCCESS

Filtering of “Domain” column is not possible with “Not Equal” condition

The greater than condition is not supported for the specified column.

Name > Test

Filtering of “Name” column is not possible with “Greater than” condition

Filtering of “Name” column is not possible with “Greater than” condition

The less than condition is not supported for the specified column.

Name < Test

Filtering of “Name” column is not possible with “Less than” condition

Filtering of “Name” column is not possible with “Less than” condition

The “greater than or equal to” condition is not supported for the specified column.

Name >= Test

Filtering of “Name” column is not possible with “Greater than or equal to” condition

Filtering of “Name” column is not possible with “Greater than or equal to” condition

The “Less than or equal to” condition is not supported for the specified column.

Name <= Test

Filtering of “Name” column is not possible with “Less than or equal to” condition

Filtering of “Name” column is not possible with “Less than or equal to” condition

The “contains” condition is not supported for the specified column.

ID contains 123

Filtering of “ID” column is not possible with “contains” condition

Filtering of “ID” column is not possible with “contains” condition

The “not-contains” condition is not supported for the specified column.

ID not-contains 123

Filtering of “ID” column is not possible with “not-contains” condition

Filtering of “ID” column is not possible with “not-contains” condition

The “starts-with” condition is not supported for the specified column.

ID starts-with 123

Filtering of “ID” column is not possible with “starts-with” condition

Filtering of “ID” column is not possible with “starts-with” condition

The “ends-with” condition is not supported for the specified column.

ID ends-with 123

Filtering of “ID” column is not possible with “ends-with” condition

Filtering of “ID” column is not possible with “ends-with' condition

The specified column supports only numbers for values.

ID = test

“ID” column accepts only Numbers

“ID” column accepts only Numbers

The input value is not supported for the specified column.

'Device Network' = 123

“Device Network” column can not be filtered with the provided filter value “123”

“Device Network” column can not be filtered with the provided filter value “123”

The input date and time value does not match the supported format.

'End Time' = 10pm

“End Time” column accepts only valid date, Example: 11/03/2017 01:14AM

“End Time” column accepts only valid date, Example: 11/03/2017 01:14AM

The input value is not supported for the specified column.

State = SUCCES

“State” column can not be filtered with the provided filter value “SUCCES”

“State” column can not be filtered with the provided filter value “SUCCES”

The input column name is invalid or is of a column for which filtering is not supported.

State = SUCCESS

Column name “State is invalid or Filtering of that column is not supported.
