Paragon Automation System Requirements

Before you install the Paragon Automation software, ensure that your system meets the requirements that we describe in these sections.

Software Requirements

You can deploy Paragon Automation on one or more servers of the following bare-metal hypervisors:

  • VMware ESXi 8.0

  • Red Hat Enterprise Linux (RHEL) 8.10 kernel-based virtual machines (KVMs).

    You must install the libvirt, libvirt-daemon-kvm, bridge-utils, and qemu-kvm packages. The hypervisor must have an Intel-based CPU.

  • Proxmox VE

Hardware Requirements

This section describes the minimum hardware resources that are required on each node virtual machine (VM) in the Paragon Automation cluster, for evaluation purposes or for small deployments.

The compute, memory, and disk requirements of the cluster nodes can vary based on the intended capacity of the system. The intended capacity depends on the number of devices to be onboarded and monitored, types of sensors, and frequency of telemetry messages. If you increase the number of devices, you'll need higher CPU and memory capacities.

Note:

To get a scale and size estimate of a production deployment and to discuss detailed dimensioning requirements, contact your Juniper Partner or Juniper Sales Representative. Juniper Paragon Automation Release 2.4.0 supports a scale of a maximum of 1500 devices.

The bare minimum resources required for each of the four nodes in the cluster are:

  • 16-core vCPU

  • 32-GB RAM

  • 300-GB SSD. SSDs are mandatory.

Warning: To configure the AI/ML (artificial intelligence [AI] and machine learning [ML]) feature to automatically monitor Key Performance Indicators (KPIs) related to a device's health, the minimum resources listed here are insufficient. To get an estimate of the resources required to configure the AI/ML feature, contact your Juniper Partner or Juniper Sales Representative.

The servers must have enough CPU, memory, and disk space to accommodate the hardware resources listed in this section. For node and server high-availability, deploy the four VMs on four servers.

Network Requirements

The four nodes must be able to communicate with each other through SSH. The nodes must be able to sync to an NTP server. SSH is enabled automatically during the VM creation, and you will be asked to enter the NTP server address during the cluster creation. Ensure that there is no firewall blocking NTP or blocking SSH traffic between the nodes in case they are on different servers.

Single-subnet Cluster

The cluster nodes and VIP addresses can all be on the same subnet with L2 connectivity between them. IP Addressing Requirements in a Single Subnet Cluster illustrates the IP and VIP addresses within the same subnet required to install a Paragon Automation cluster.

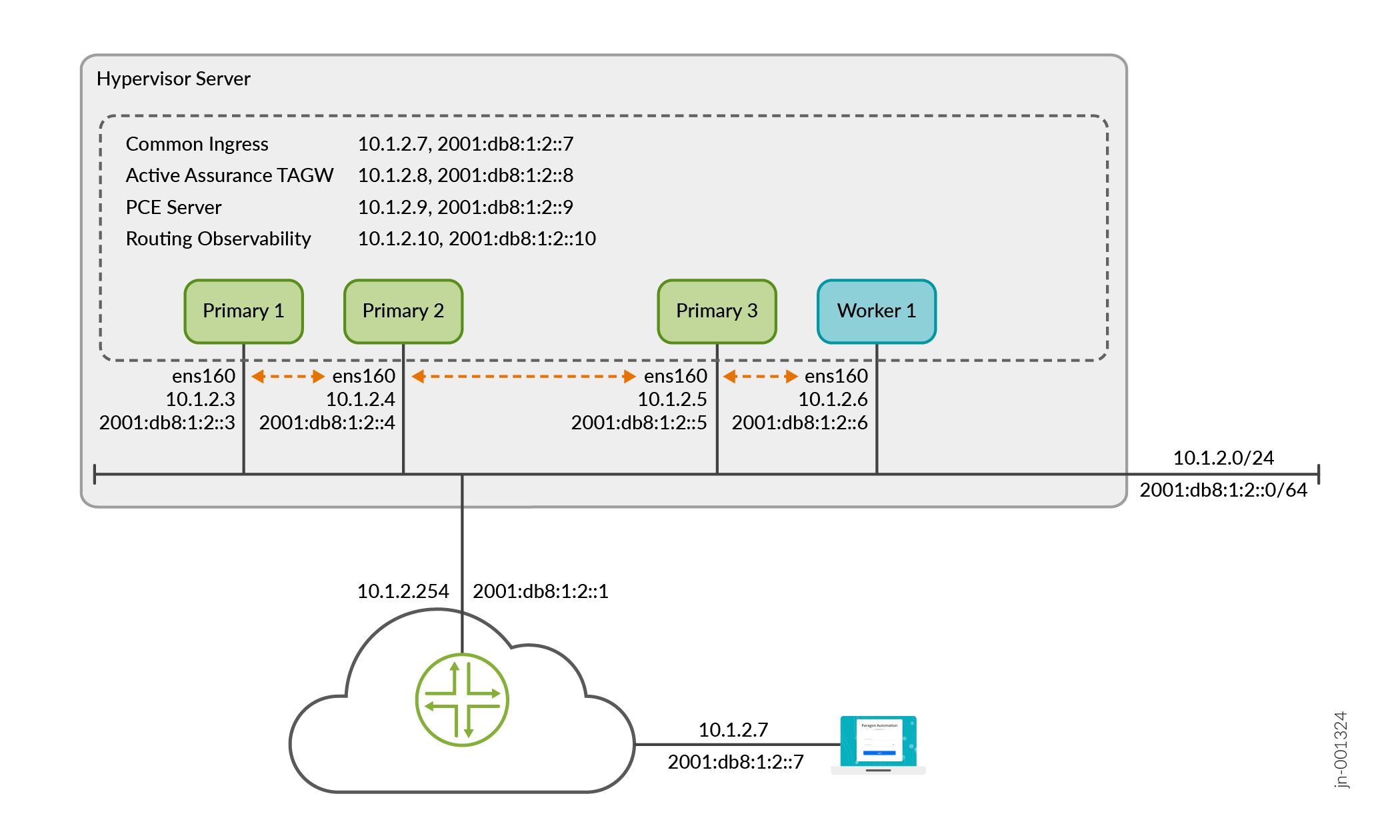

Figure 1: IP Addressing Requirements in a Single Subnet Cluster

Multi-subnet Cluster

Alternatively, in cases where the cluster nodes are geographically distributed or are located in multiple data centers, the nodes and the VIP addresses can be in different subnets. You must configure BGP peering between each cluster node and the respective upstream gateway top-of-rack (ToR) router as well as between the routers. Additionally, the cluster nodes must have the same configured AS number.

Note: BGP connectivity configuration between your routers and VMs is beyond the scope of this document. You will need to ensure BGP peering is established between the cluster node VMs and the ToR routers.

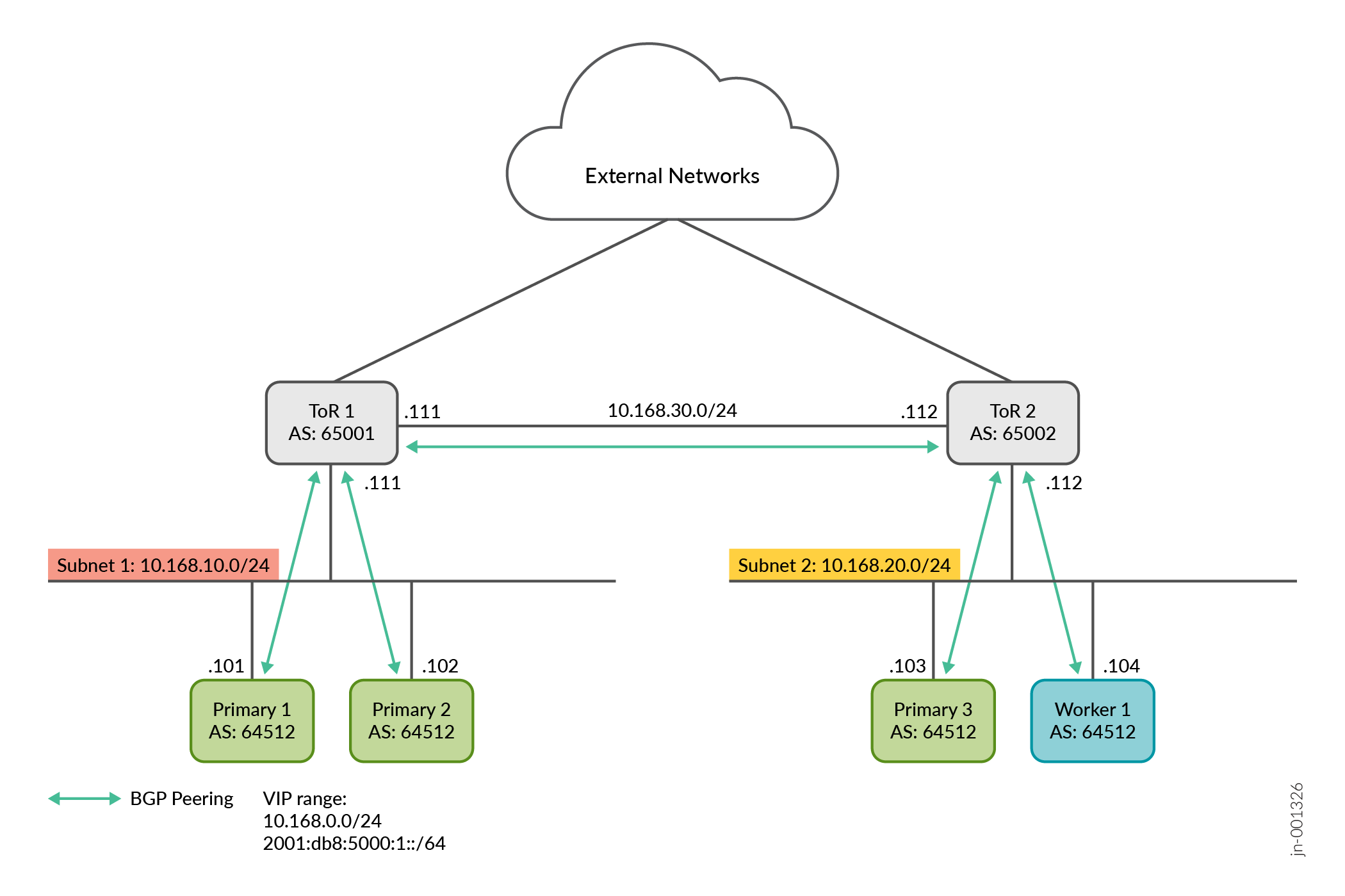

Figure 2 illustrates a cluster in two different networks. Two nodes are served by ToR1 router and two nodes are served by ToR2 router. In this example, you must configure EBGP using interface peering between ToR1 and Primary1 and Primary2, and between ToR2 and Primary3 and Primary4, as well as between ToR1 and ToR2. Your BGP configuration might differ based on your setup.

Figure 2: Multi-subnet Cluster Multi-subnet Cluster

Configure IPv4 Addresses

You need to have the following IP addresses available for the installation.

  • Four interface IP addresses, one for each of the four nodes

  • Internet gateway IP address

  • Virtual IP (VIP) addresses for:

    • Generic ingress IP address shared between gNMI, NETCONF (SSH connections from devices), and the Web GUI—This is a general-purpose VIP address that is shared between multiple services and used to access Paragon Automation from outside the cluster.

      Alternatively, in cases where the device management network is on a different subnet than the network used to access the GUI, you can also use one VIP address for the Web GUI and a separate VIP address for gNMI and NETCONF access.

      If an additional IP address is defined (using ingress ingress-vip option) and configured (using oc-term oc-term-host and gnmi gnmi-term-host options), the additional IP address is added to the outbound SSH configuration used to adopt devices from that network. The VIP address from the first network is ideally used to access the GUI. While both sets of IP addresses can be used to access the GUI, NETCONF, and gNMI, only the defined and configured address is added to the outbound SSH configuration for NETCONF and gNMI. If you want to adopt devices from the first subnet, you must manually edit the outbound SSH command to over-write the configured IP address for NETCONF and gNMI access.

    • Paragon Active Assurance Test Agent gateway (TAGW)—This VIP address serves HTTP-based traffic to the Paragon Active Assurance Test Agent endpoint.

    • PCE server—This VIP address is used to establish Path Computational Element Protocol (PCEP) sessions between Paragon Automation and the devices. The PCE server VIP configuration is necessary to view dynamic topology updates in your network in real-time. For information on establishing BGP-LS peering and PCEP sessions, see Dynamic Topology Workflow.

    • Routing observability cRPD—This VIP is used by external network devices as BGP Monitoring Protocol (BMP) station IP address to establish the BMP session.

    The VIP addresses are added to the outbound SSH configuration that is required for a device to establish a connection with Paragon Automation.

    Note: In a multi-subnet cluster installation, the VIP addresses must not be on the same subnet as the cluster nodes.

  • Hostnames mapped to the VIP addresses—Along with VIP addresses, you can also enable devices to connect to Paragon Automation using hostnames. However, you must ensure that the hostnames and the VIP addresses are correctly mapped in the DNS and your device is able to connect to the DNS. If you configure Paragon Automation to use hostnames, the hostnames take precedence over VIP addresses and are added to the outbound SSH configuration used during onboarding devices.

Configure IPv6 Addresses

You can configure the Paragon Automation cluster using IPv6 addresses in addition to the existing IPv4 addresses. With IPv6 addressing configured, you can use IPv6 addresses for NETCONF, gNMI, the Active Assurance TAGW,and access to the Web GUI. You must have the following additional addresses available at the time of installation:

  • Four interface IPv6 addresses, one for each of the four nodes

  • Internet gateway IPv6 address

  • One IPv6 VIP address for generic ingress or two IPv6 VIP addresses, one for the Web GUI and one for NETCONF and gNMI access

  • One IPv6 VIP address for Active Assurance TAGW

  • Hostnames mapped to the IPv6 VIP addresses—You can also use hostnames to connect to IPv6 addresses. You must ensure that the hostnames are mapped correctly in the DNS to resolve to the IPv6 addresses.

If hostnames are not configured and IPv6 addressing is enabled in the cluster, the IPv6 VIP addresses are added to the outbound SSH configuration, used for device onboarding, instead of IPv4 addresses.

You must configure the IPv6 addresses at the time of cluster deployment. You cannot configure IPv6 addresses after a cluster has been deployed using only IPv4 addresses.

Note:

We do not support configuring an IPv6 address for the PCE server and the routing observability feature.

In addition to the listed IP addresses and hostnames, you need to have the following information available with you at the time of installation:

  • Primary and secondary DNS server addresses for IPv4 and IPv6 (if needed)

  • NTP server information

Firewall Requirements

The following section lists the ports that firewalls must allow for communication within and from outside of the cluster.

You must allow intracluster communication between the nodes. In particular, you must keep the ports listed in Table 1 open for communication.

Table 1: Ports That Firewalls Must Allow for Intracluster Communication

Port

Usage

From

To

Comments
Infrastructure Ports

22

SSH for management

All cluster nodes

All cluster nodes

Require a password or SSH-key

2222

TCP

Paragon Shell configuration sync

All cluster nodes

All cluster nodes

Require password or SSH-key

443

TCP

HTTPS for registry

All cluster nodes

Primary nodes

Anonymous read access

Write access is authenticated

2379

TCP

etcd client port

Primary nodes

Primary nodes

Certificate-based authentication

2380

TCP

etcd peer port

Primary nodes

Primary nodes

Certificate-based authentication

5473

Calico CNI with Typha

All cluster nodes

All cluster nodes

—

6443

Kubernetes API

All cluster nodes

All cluster nodes

Certificate-based authentication

7472

TCP

MetalLB metric port

All cluster nodes

All cluster nodes

Anonymous read only, no write access

7946

UDP

MetalLB member election port

All cluster nodes

All cluster nodes

—
8443

HTTPS for registry data sync

Primary nodes

Primary nodes

Anonymous read access

Write access is authenticated

9345

rke2-server

All cluster nodes

All cluster nodes

Token based authentication

10250

kubelet metrics

All cluster nodes

All cluster nodes

Standard Kubernetes authentication

10260

RKE2 cloud controller

All cluster nodes

All cluster nodes

Standard Kubernetes authentication

32766

TCP

Kubernetes node check for PCE service local traffic policy

All cluster nodes

All cluster nodes

Read access only

Calico CNI Ports

4789

UDP

Calico CNI with VXLAN

All cluster nodes

All cluster nodes

—

5473

TCP

Calico CNI with Typha

All cluster nodes

All cluster nodes

—

51820

UDP

Calico CNI with Wireguard

All cluster nodes

All cluster nodes

—

The following ports must be open for communication from outside the cluster.

Table 2: Ports That Firewalls Must Allow for Communication from Outside the Cluster

Port

Usage

From

To

179

TCP

Topology visualization and traffic engineering using the topology information

Paragon cluster node IP address

Router IP address to which you want to set up BGP peering from Paragon Automation.

You can use the router management IP address or the router interface IP address.

443

Web GUI + API

External

user computer/desktop

Web GUI Ingress VIP address(es)

443

Paragon Active Assurance Test Agent

External

network devices

Paragon Active Assurance Test Agent VIP address

2200

NETCONF

External

network devices

Web GUI Ingress VIP address(es)

4189

PCE Server

External

network devices

PCE Server VIP address

6800

Paragon Active Assurance Test Agent

External

network devices

Paragon Active Assurance Test Agent VIP address

32767

gNMI

External

network devices

Web GUI Ingress VIP address(es)

17002

Routing Observability

External

network devices

Routing observability cRPD load balancer IP address

Web Browser Requirements

The latest versions of Google Chrome, Mozilla Firefox, and Safari.

Note:

We recommend that you use Google Chrome.
