JSA Deployment Overview

JSA architecture supports deployments of varying sizes and topologies, from a single host deployment, where all the software components run on a single system, to multiple hosts, where appliances such as event collectors, and flow processors, Data Nodes, an App Host, Event Processors, and Flow Processors, have specific roles.

The primary focus of the first deployment example is to describe a single All-in-One appliance deployment for a medium-size company. Later examples describe the deployment options as the company expands. The examples describe when to add JSA components, such as Flow Processors, event collectors, and Data Nodes, and when you might need to co-locate specific components.

The requirements for your JSA deployment depend on the capacity of your chosen deployment to both process and store all the data that you want to analyze in your network.

Before you plan your deployment, consider the following questions:

  • How does your company use the Internet? Do you upload as much as you download? Increased usage can increase your exposure to potential security issues.

  • How many events per second (EPS) and flows per minute (FPM) do you need to monitor?

    EPS and FPM license capacity requirements increase as a deployment grows.

  • How much information do you need to store, and for how long?

The following diagram shows the JSA components that you can use to collect, process, and store event and flow data in your JSA deployment. An All-in-One appliance includes the data collection, processing, storage, monitoring, searching, reporting, and offense management capabilities.

The Event Collector collects event data from log sources in your network, and then sends the event data to the Event Processor. The flow processor collects flow data from network devices such as a switch SPAN port, and then sends the data to the Flow Processor. Both processors process the data from the collectors and provide data to the JSA console. The processor appliances can store data but they can also use the Data Nodes to store data. The JSA console appliance is used for monitoring, data searches, reporting, offense management, and administration of your JSA deployment.

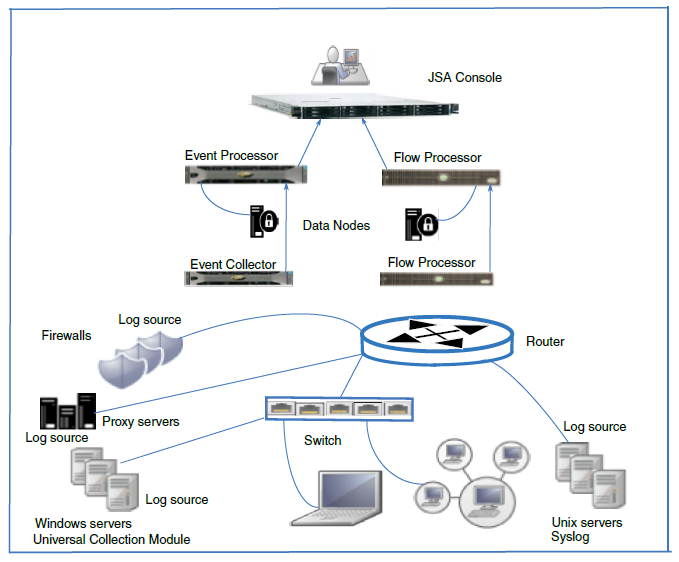

Figure 1: JSA Event and Flow Components JSA Event and Flow Components
