Domain-specific Rules and Offenses

A rule can work in the context of a single domain or in the context of all domains. Domain-aware rules provide the option of including the And Domain Is test.

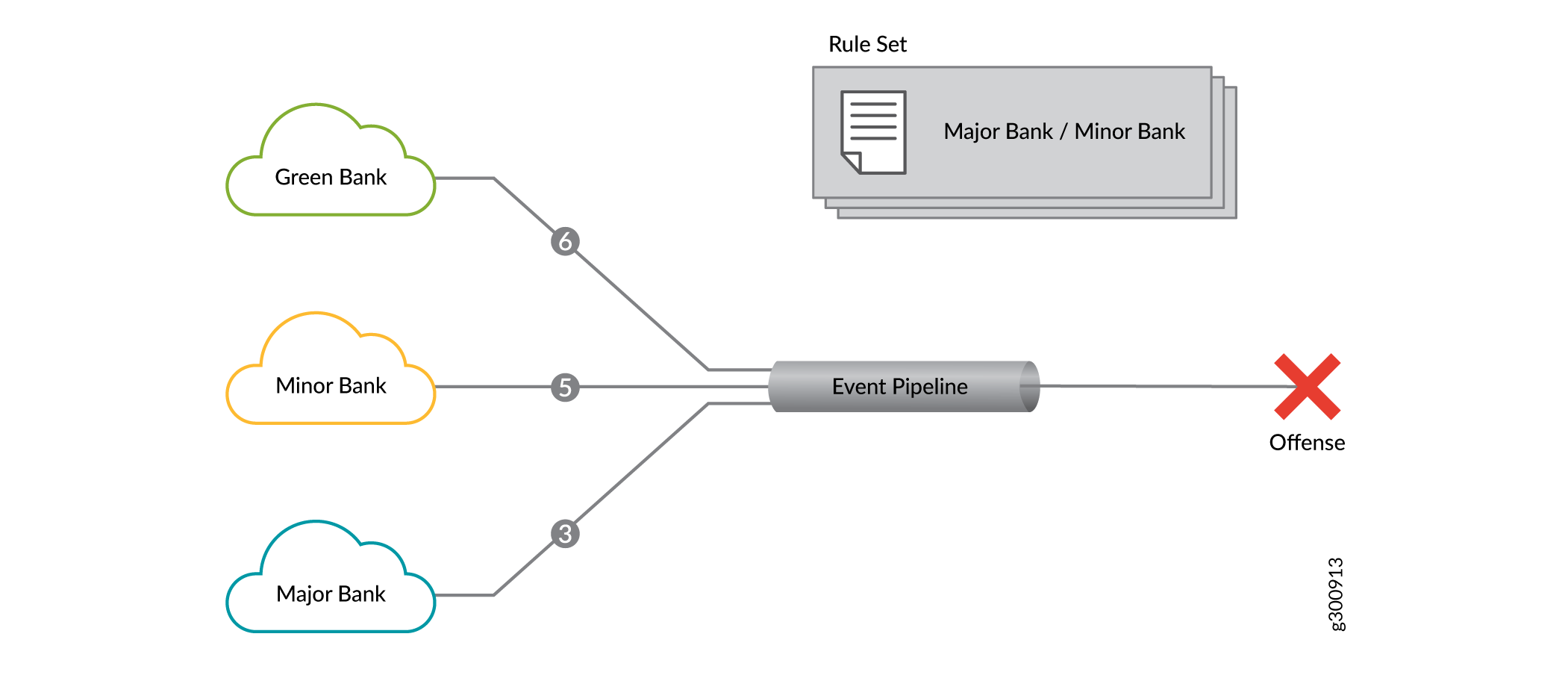

The following diagram shows an example using multiple domains.

Figure 1: Domain Aware Rules

You can restrict a rule so that it is applied only to events that are happening within a specified domain. An event that has a domain tag that is different from the domain that is set on the rule does not trigger an event response.

In an JSA system that does not have user-defined domains, a rule creates an offense and keeps contributing to it each time the rule fires. In a domain-aware environment, a rule creates a new offense each time the rule is triggered in the context of a different domain.

Rules that work in the context of all domains are referred to as system-wide rules. To create a system-wide rule that tests conditions across the entire system, select Any Domain in the domain list for the And Domain Is test. An Any Domain rule creates an Any Domain offense.

Single-domain rule--If the rule is a stateful rule, the states are maintained separately for each domain. The rule is triggered separately for each domain. When the rule is triggered, offenses are created separately for each domain that is involved and the offenses are tagged with those domains.
Single-domain offense--The offense is tagged with the corresponding domain name. It can contain only events that are tagged with that domain.
System-wide rule--If the rule is a stateful rule, a single state is maintained for the whole system and domain tags are ignored. When the rule runs, it creates or contributes to a single system-wide offense.
System-wide offense--The offense is tagged with Any Domain. It contains only events that are tagged with all domains.

The following table provides examples of domain-aware rules. The examples use a system that has three domains that are defined: Domain_A, Domain_B, and Domain_C.

The rule examples in the following table may not be applicable in your JSA environment. For example, rules that use flows and offenses are not applicable in Log Manager.

Table 1: Domain-aware Rules
Domain text	Explanation	Rule response
domain is one of: Domain_A	Looks only at events that are tagged with `Domain_A` and ignores rules that are tagged with other domains.	Creates or contributes to an offense that is tagged with `Domain_A`.
domain is one of: Domain_A and a stateful test that is defined as when HTTP flow is detected 10 times within 1 minute	Looks only at events that are tagged with `Domain_A` and ignores rules that are tagged with other domains.	Creates or contributes to an offense that is tagged with `Domain_A`. A single state, an HTTP flow counter, gets maintained for Domain_A.
domain is one of: Domain_A, Domain_B	Looks only at events that are tagged with `Domain_A` and `Domain_B` and ignores events that are tagged with `Domain_C`. This rule behaves as two independent instances of a single domain rule, and creates separate offenses for different domains.	For data that is tagged with `Domain_A`, it creates or contributes to a single domain offense that is tagged with `Domain_A`. For data that is tagged with `Domain_B`, it creates or contributes to a single domain offense that is tagged with `Domain_B`.
domain is one of: Domain_A, Domain_B and a stateful test that is defined as when HTTP flow is detected 10 times within 1 minute	Looks only at events that are tagged with `Domain_A` and `Domain_B` and ignores events that are tagged with `Domain_C`. This rule behaves as two independent instances of a single domain rule, and maintains two separate states (HTTP flow counters) for two different domains.	When the rule detects 10 HTTP flows that are tagged with `Domain_A` within a minute, it creates or contributes to an offense that is tagged with `Domain_A`. When the rule detects 10 HTTP flows that are tagged with `Domain_B` within a minute, it creates or contributes to an offense that is tagged with `Domain_B`.
No domain test defined	Looks at events that are tagged with all domains and creates or contributes to offenses on a per-domain basis.	Each independent domain has offenses that are generated for it, but offenses do not contain contributions from other domains.
A rule has a stateful test that is defined as when HTTP flow is detected 10 times within 1 minute and no domain test is defined	Looks at events that are tagged with `Domain_A`, `Domain_B`, or `Domain_C`.	Maintains separate states and creates separate offenses for each domain.
domain is one of: Any Domain	Looks at all events, regardless of which domain it is tagged with.	Creates or contributes to a single system-wide offense that is tagged with `Any Domain`.
domain is one of: Any Domain and a stateful test that is defined as when HTTP flow is detected 10 times within 1 minute	Looks at all events, regardless of which domain it is tagged with, and it maintains a single state for all domains.	Creates or contributes to a single system-wide offense that is tagged with `Any Domain`. For example, if it detects 3 events that are tagged with `Domain_A`, 3 events that are tagged with `Domain_B`, and 4 events that are tagged with `Domain_C` within 1 minute, it creates an offense because it detected 10 events in total.
domain is one of: Any Domain, Domain_A	Works the same as a rule that has domain is one of: Any Domain.	When the domain test includes `Any Domain`, any single domains that are listed are ignored.

When you view the offense table, you can sort the offenses by clicking the Domain column. The Default Domain is not included in the sort function so it does not appear in alphabetical order. However, it appears at the top or bottom of the Domain list, depending on whether the column is sorted in ascending or descending order. Any Domain does not appear in the list of offenses.
