View Data Center Issues in Marvis Actions

The Marvis Actions dashboard in the HPE Mist Networking Data Center Assurance application provides network administrators a high-level view of the data center issues received from the data center managed by Apstra Data Center Director.

  1. Log into HPE Mist Networking Data Center Assurance.
    The Marvis Actions dashboard appears displaying the total number of issues under each predefined issue category.
  2. Click an issue category to view all the issues recorded for that issue category.
    Note:

    Data Center Assurance displays anomaly data and sends alerts for the following types of probes only:

    • predefined probes on Data Center Director

    • probes installed through DC Hub packs published by HPE Networking

    Anomaly data and alerts are not supported for modified or custom probes.

  3. Click an issue to view details of that issue.

    Marvis Actions dashboard displays the issue details along with the recommended action to resolve the issue as shown in Figure 1.

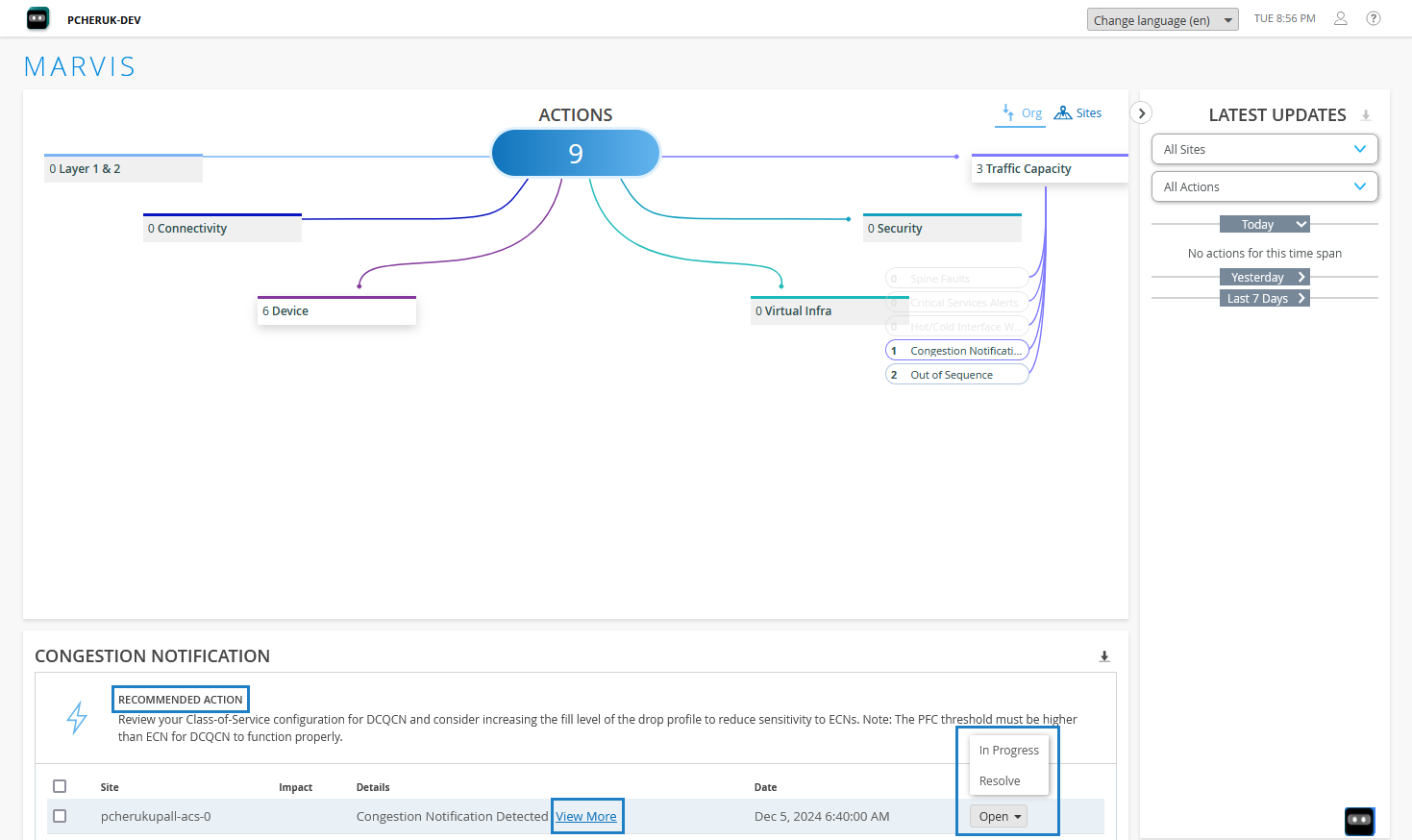

    Figure 1: Marvis Actions Dashboard Marvis Actions Dashboard on Juniper Data Center Assurance displaying various issue types and detailed information about the selected issue along with a recommended action to resolve the issue.
  4. Click View More.
    More details about the issue such as the site where the issue is reported, the device affected, and the date and the time of the issue are displayed.
    You can mark the status of the issue as In Progress to indicate that an administrator is working on resolving the issue. The issue information is removed automatically after the issue is resolved.
    Note:

    To view the most recent data center issues in Marvis Actions, you must refresh the page by using the Refresh button in the browser window. Marvis Actions dashboard does not refresh automatically.
