CTP151 Front Panel and Rear Panel

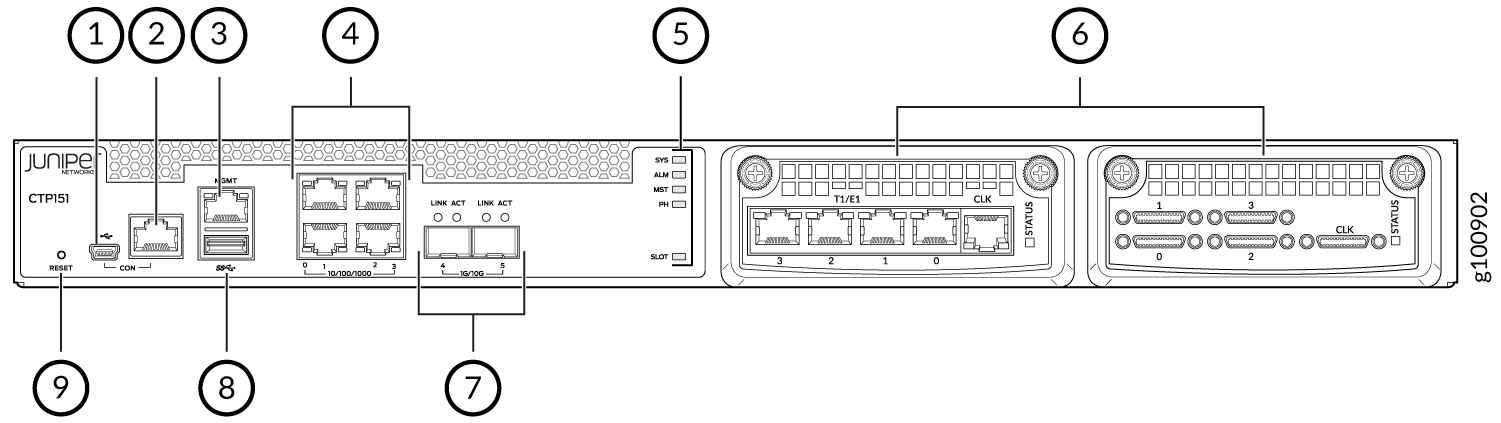

Figure 1: Front Panel Components of a CTP151Diagram of Juniper Networks CTP151 front panel showing ports and indicators for circuit emulation and packet transport.
  1
—

Mini-USB console port

  6
—

Interface module slots

  2
—

RJ-45 console port

  7
—

Two 1-Gigabit Ethernet/10-Gigabit Ethernet SFP+ WAN ports

  3
—

One 10/100/1000BASE-T RJ-45 management port

  8
—

USB 3.0 port

  4
—

Four 10/100/1000BASE-T RJ-45 LAN ports

  9
—

Reset button

  5
—

System status LEDs


Note:

The ports that support small form-factor pluggable plus (SFP+) transceivers are not functional in CTPOS 9.1, CTPView 9.1, and earlier releases.

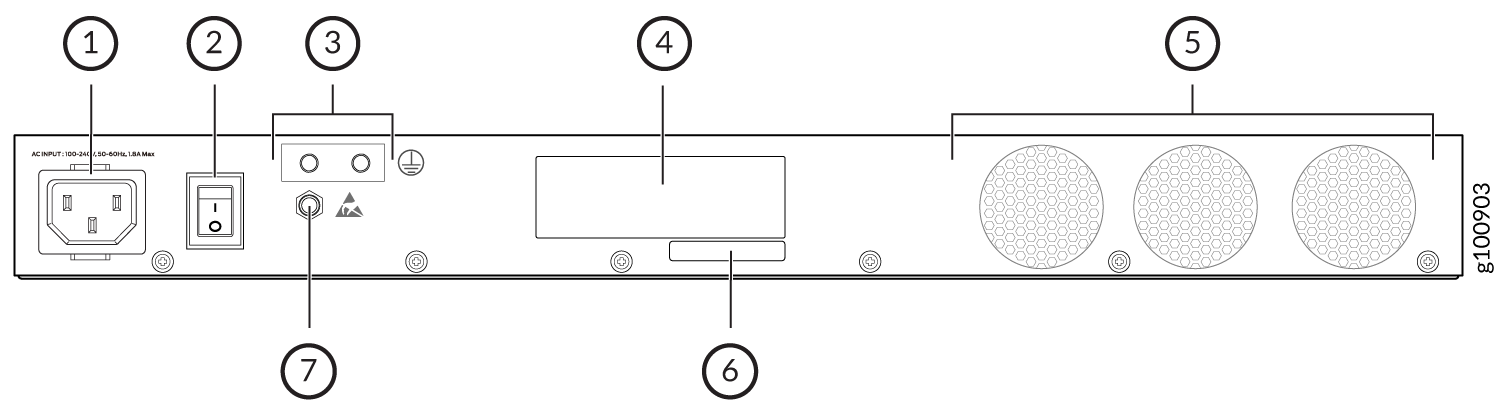

Figure 2: Rear Panel Components of a CTP151Diagram of a device's rear panel showing AC power input, power switch, grounding point, expansion slot, cooling fans, mounting points, and fuse.
  1
—

AC power cord inlet

  5
—

Fans

  2
—

Power switch

  6
—

CLEI code

  3
—

Grounding points

  7
—

Electrostatic discharge (ESD) point

  4
—

Serial number
