End-to-End BERT for CTP Bundles Overview

This topic provides an overview of how to set up end-to-end BERT for CTP bundles.

Figure 1 shows the normal data flow through the network. BERT is disabled.

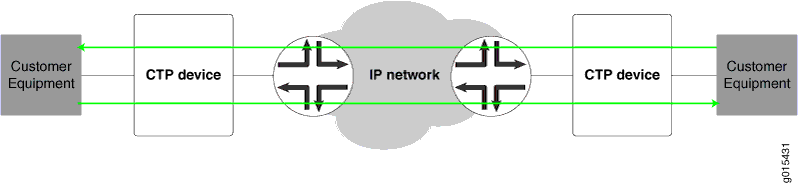

Figure 1: Normal Data FlowNetwork diagram showing data flow from customer equipment to CTP devices, through an IP network, for circuit-to-packet conversion.

To set up end-to-end BERTS for CTP bundles:

  1. To send BERT transmissions to the network, start BERT injection on each CTP bundle toward the IP network as shown in Figure 2.

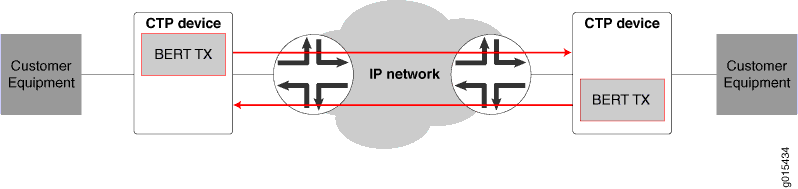

    Figure 2: BERT Transmission to the NetworkNetwork diagram showing data flow from customer equipment through CTP devices performing BERT over an IP network with red arrows indicating direction.

  2. To receive BERT reception from the network, start BERT reception on each bundle from the IP network as shown in Figure 3.

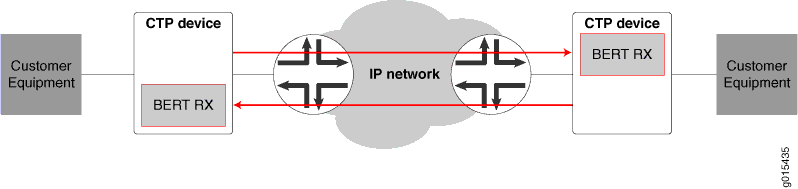

    Figure 3: End-to-End BERT ReceptionNetwork diagram showing data flow from customer equipment to CTP devices via IP network. Highlights BERT RX functionality for error detection.

The result is that end-to-end BERT transmission and reception are running as shown in Figure 4.

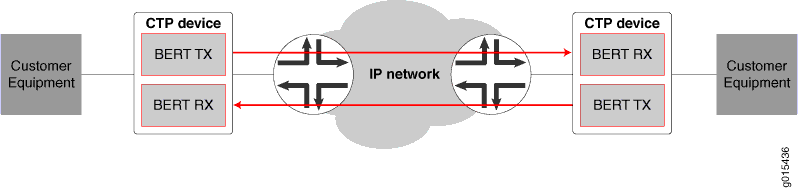

Figure 4: End-to-End BERT Transmission and ReceptionNetwork setup for Bit Error Rate Testing over IP with customer equipment, CTP devices for sending and receiving test signals, and IP network infrastructure.
