Viewing Configuration of Devices Deployed in Contrail Fabric
Starting with Contrail Networking Release 2003, you can use the Contrail Command user interface (UI) to view the configuration information of each devices deployed in a fabric. The device configuration is information related to interface, encryption, physical role or routing-bridging roles assigned to the device, and so on. To view the configuration information of a fabric device, you have to perform the following steps in the Contrail Command UI:

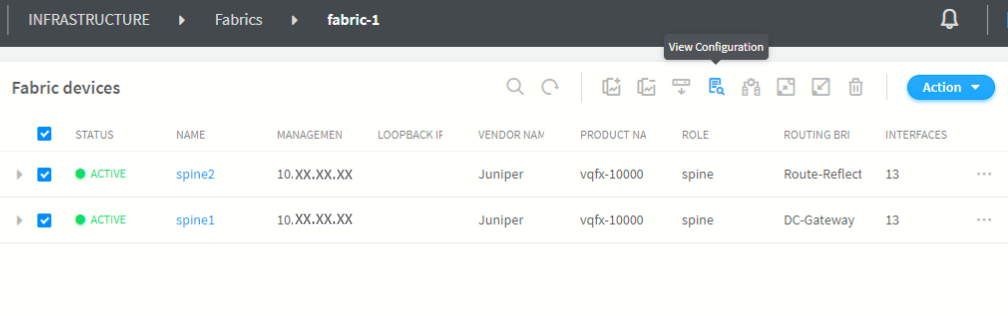

- Select one or more devices from the list and click the View Configuration button. See Figure 1.Figure 1: View Configuration Button in the Contrail Command UI
- The Device Configuration page is displayed
where you can see two panels. The Operation is being run on the
following devices panel on the left side displays the device
names and the Results panel on the right side displays
the configuration result of each device. The View Configuration operation takes some time to complete. You have to wait until the
operation is completed. On the left panel, a progress bar next to
each device displays the progress of the operation on each device.

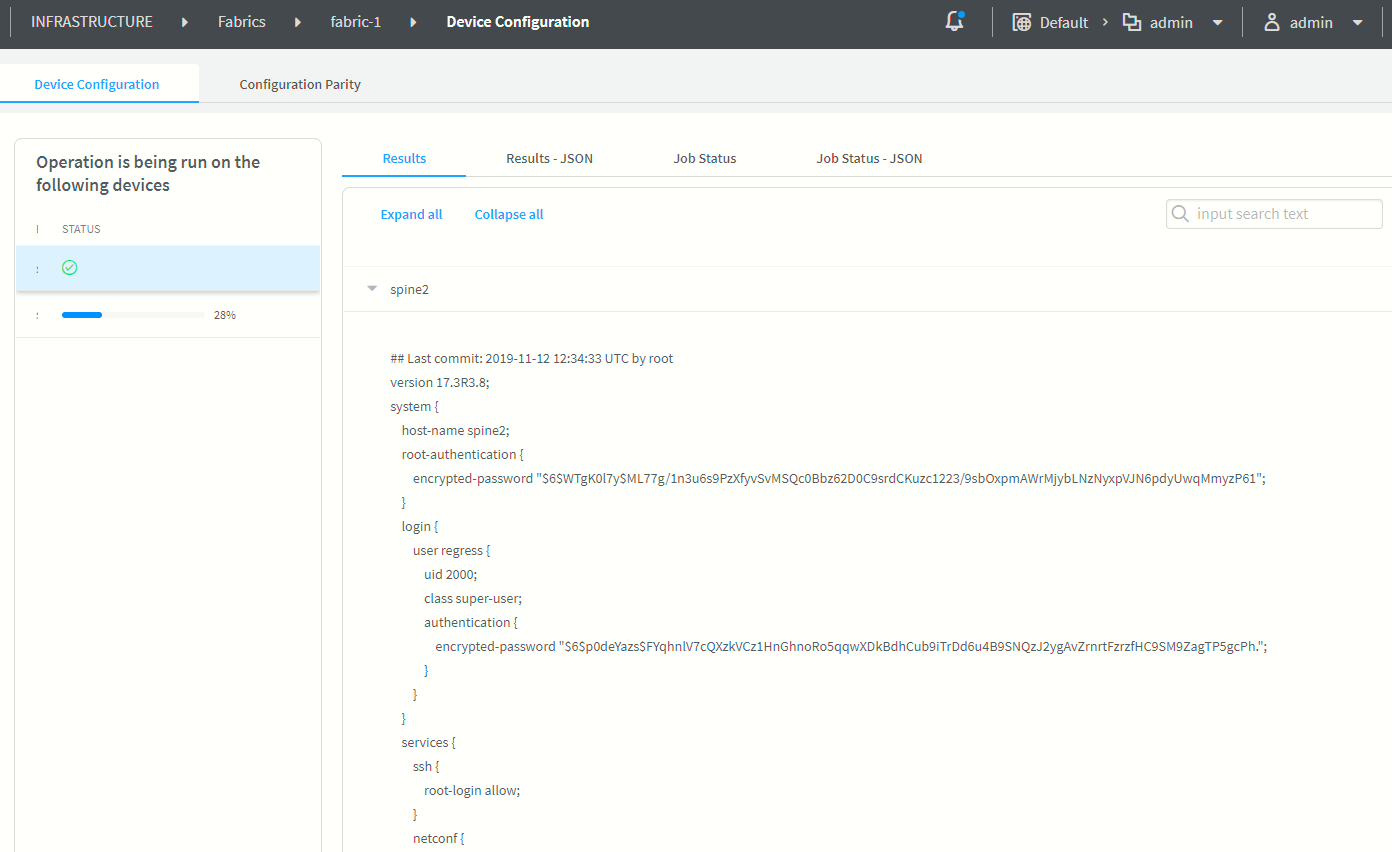

See Figure 2.Figure 2: View Configuration Operation In Progress
- You can view the configuration details of each device
in the Results panel once the View Configuration operation is successfully completed.
In the Results panel, click Expand all to view the entire configuration results generated for a device. Click Collapse all to hide the displayed results.
You can also perform a search operation on the expanded results by entering a specific text or keyword in the input search text field. Information about the results matching your text or keyword is displayed in the following places:
In the left panel, next to the device names.
In the Results panel, next to the device names.
In the Results panel, next to the input search text field.
In the expanded Results panel, highlighting the text or keyword.
See Figure 3.
Figure 3: Results of the View Configuration Operation Is Displayed
