Layer 2 Circuit
Juniper-Cloud Native Router supports Layer 2 circuits over an IP/MPLS-based service provider's network. This topic provides configuration and verification details.
Juniper Cloud-Native Router supports Layer 2 circuits for a point-to-point Layer 2 connection over an IP/MPLS-based service provider's network. To establish the Layer 2 circuit, it uses Label Distribution Protocol (LDP) as the signaling protocol to advertise the ingress label to the remote PE routers. A targeted LDP session is established between the loopback addresses of the two PEs to exchange VPN labels. For more information on L2 circuits, please review Layer 2 Circuit Overview.
The following Layer-2 circuit features are supported by the Cloud-Native Router:
-
Enable
l2circuitprotocol on Physical (PF/VF), VLAN sub-interface, bond interface (towards core), and pod interfaces - Ethernet CCC encapsulations—
ethernet-cccandvlan-ccc -
Local interface switching
-
Control word
-
Protect Interface for CE redundancy
- Backup Neighbor for Core redundancy
-
Pseudowire cold and hot-standby
-
Support L2 circuit with BGP-Labeled Unicast (BGP-LU)
-
Support for dual VLAN tagging
-
Interoperability with other Junos devices
Configuration

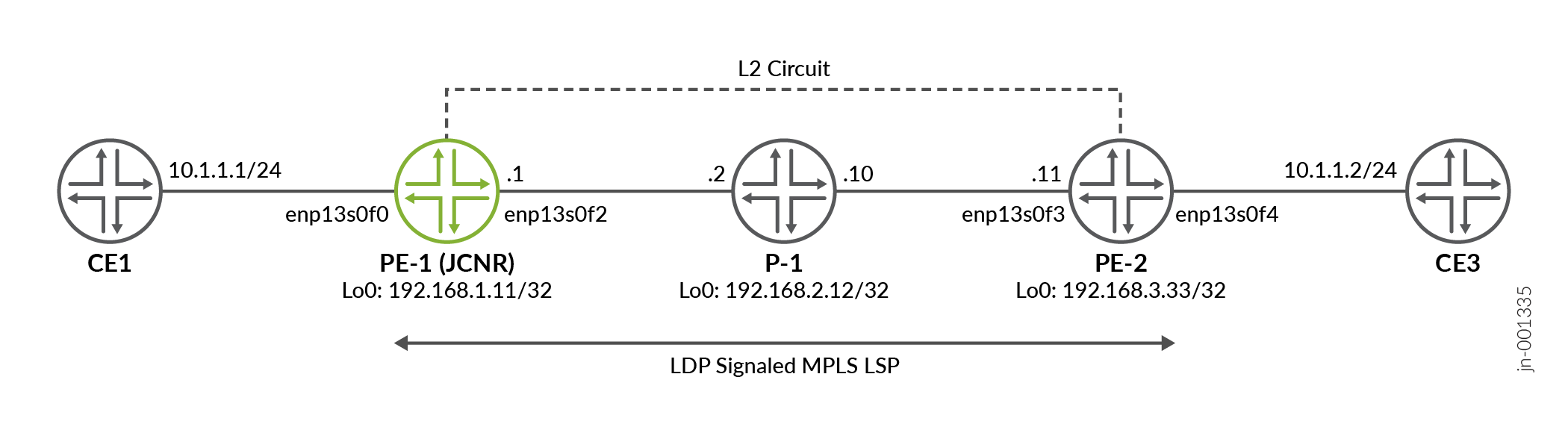

You can configure Layer 2 circuits in Juniper Cloud-Native Router using configlets. Multiple configlet samples are provided in this section based on the
following topology:
For Layer 2 circuit configuration, you configure the Ethernet-based CE-facing interface
with the CCC encapsulation type of your choice—ethernet-ccc or
vlan-ccc. The Layer 2 circuit configuration such as the remote PE
neighbour (usually the loopback address), the interface connected to the CE-router, and a
virtual circuit identifier for the virtual circuit (VC) is performed under the edit
protocols l2circuit statement. Eventually, you configure MPLS, LDP and an IGP to
enable signaling for your Layer 2 circuit. Please review Example: Enternet-based Layer 2 Circuit
Configuration for a end-to-end Junos configuration example.
- Layer 2 Circuit with ethernet-ccc
- Layer 2 Circuits with vlan-ccc
- Layer 2 Circuit with Local Switching
- Layer 2 Circuit with Ignore Mismatch
- Static Layer 2 Circuits
- Layer 2 Circuit with BGP-LU
- Configuring via JCNR-CNI (Pod Configuration)
Layer 2 Circuit with ethernet-ccc
Configure Ethernet CCC encapsulation on CE-facing Ethernet interfaces on PE-1 (JCNR) that must accept packets carrying standard Tag Protocol ID (TPID) values.
apiVersion: configplane.juniper.net/v1
kind: Configlet
metadata:
name: configlet-l2-ckt-pe1
namespace: jcnr
spec:
config: |-
set interfaces enp13s0f2 unit 0 family inet address 172.16.25.1/24
set interfaces enp13s0f0 description "to CE-1 7/4"
set interfaces enp13s0f0 unit 0 encapsulation ethernet-ccc
set interfaces lo0 unit 0 family inet address 192.168.1.11/32
set routing-options router-id 192.168.1.11
set protocols l2circuit neighbor 192.168.3.33 interface enp13s0f0 virtual-circuit-id 100
set protocols ldp interface enp13s0f2
set protocols ldp interface lo0.0
set protocols mpls interface enp13s0f2.0
set protocols ospf area 0.0.0.0 interface lo0.0
set protocols ospf area 0.0.0.0 interface enp13s0f2
crpdSelector:
matchLabels:
kubernetes.io/hostname: node-1Layer 2 Circuits with vlan-ccc
Configure VLAN CCC encapsulation on CE-facing Ethernet interfaces on PE-1 (JCNR) with VLAN tagging enabled.
apiVersion: configplane.juniper.net/v1
kind: Configlet
metadata:
name: configlet-l2-ckt-pe1
namespace: jcnr
spec:
config: |-
set interfaces enp13s0f2 unit 0 family inet address 172.16.25.1/24
set interfaces enp13s0f0 description "to CE-1 7/4"
set interfaces enp13s0f0 unit 102 vlan-id 102
set interfaces enp13s0f0 unit 102 encapsulation vlan-ccc
set interfaces enp13s0f0 unit 104 vlan-id 104
set interfaces enp13s0f0 unit 104 encapsulation vlan-ccc
set interfaces enp13s0f0 unit 106 vlan-id 106
set interfaces enp13s0f0 unit 106 encapsulation vlan-ccc
set interfaces lo0 unit 0 family inet address 192.168.1.11/32
set routing-options router-id 192.168.1.11
set protocols l2circuit neighbor 192.168.3.33 interface enp13s0f0.102 virtual-circuit-id 102
set protocols l2circuit neighbor 192.168.3.33 interface enp13s0f0.104 virtual-circuit-id 104
set protocols l2circuit neighbor 192.168.3.33 interface enp13s0f0.106 virtual-circuit-id 106
set protocols ldp interface enp13s0f2
set protocols ldp interface lo0.0
set protocols mpls interface enp13s0f2.0
set protocols ospf area 0.0.0.0 interface lo0.0
set protocols ospf area 0.0.0.0 interface enp13s0f2
crpdSelector:
matchLabels:
kubernetes.io/hostname: node-1Layer 2 Circuit with Local Switching
You can configure Layer 2 circuit with local switching. Optionally, configure
protect-interface for local or remote end to ensure traffic switch over
when the primary interface goes down. Protect interfaces act as backups for their
associated interfaces that link a virtual circuit to its destination. The primary
interface has priority over the protect interface and carries network traffic as long as
it is functional. If the primary interface fails, the protect interface is activated.
Optionally, configure no-revert to prevent switch back to primary when
primary interface is back up.
apiVersion: configplane.juniper.net/v1
kind: Configlet
metadata:
name: configlet-l2-ckt-pe1
namespace: jcnr
spec:
config: |-
set interfaces enp13s0f2 unit 0 family inet address 172.16.25.1/24
set interfaces enp13s0f0 description "to CE-1 7/4"
set interfaces enp13s0f0 unit 0 encapsulation ethernet-ccc
set interfaces lo0 unit 0 family inet address 192.168.1.11/32
set routing-options router-id 192.168.1.11
set protocols l2circuit neighbor 192.168.3.33 interface enp13s0f0 virtual-circuit-id 100
set protocols l2circuit local-switching interface enp13s0f0 no-revert protect-interface enp13s0f1 end-interface interface enp13s0f3 no-revert protect-interface enp13s0f8
set protocols ldp interface enp13s0f2
set protocols ldp interface lo0.0
set protocols mpls interface enp13s0f2.0
set protocols ospf area 0.0.0.0 interface lo0.0
set protocols ospf area 0.0.0.0 interface enp13s0f2
crpdSelector:
matchLabels:
kubernetes.io/hostname: node-1Layer 2 Circuit with Ignore Mismatch
You can configure the Layer 2 circuit to establish even though the MTU
(ignore-mtu-mismatch), encapsulation
(ignore-encapsulation-mismatch) or VLAN ID
(no-vlan-id-validate) configured on the CE device interface does not
match the setting configured on the Layer 2 circuit interface.
apiVersion: configplane.juniper.net/v1
kind: Configlet
metadata:
name: configlet-l2-ckt-pe1
namespace: jcnr
spec:
config: |-
set interfaces enp13s0f2 unit 0 family inet address 172.16.25.1/24
set interfaces enp13s0f0 description "to CE-1 7/4"
set interfaces enp13s0f0 unit 0 encapsulation ethernet-ccc
set interfaces lo0 unit 0 family inet address 192.168.1.11/32
set routing-options router-id 192.168.1.11
set protocols l2circuit neighbor 192.168.3.33 interface enp13s0f0 virtual-circuit-id 100 ignore-encapsulation-mismatch ignore-mtu-mismatch no-vlan-id-validate
set protocols ldp interface enp13s0f2
set protocols ldp interface lo0.0
set protocols mpls interface enp13s0f2.0
set protocols ospf area 0.0.0.0 interface lo0.0
set protocols ospf area 0.0.0.0 interface enp13s0f2
crpdSelector:
matchLabels:
kubernetes.io/hostname: node-1Static Layer 2 Circuits
Configure static Layer 2 circuit pseudowires for networks that do not support LDP or do not have LDP enabled. Static pseudowires require you to configure static values for the in and out labels that enable a pseudowire connection.
apiVersion: configplane.juniper.net/v1
kind: Configlet
metadata:
name: configlet-l2-ckt-pe1
namespace: jcnr
spec:
config: |-
set interfaces enp13s0f2 unit 0 family inet address 172.16.25.1/24
set interfaces enp13s0f0 description "to CE-1 7/4"
set interfaces enp13s0f0 unit 102 vlan-id 102
set interfaces enp13s0f0 unit 102 encapsulation vlan-ccc
set interfaces enp13s0f0 unit 104 vlan-id 104
set interfaces enp13s0f0 unit 104 encapsulation vlan-ccc
set interfaces enp13s0f0 unit 106 vlan-id 106
set interfaces enp13s0f0 unit 106 encapsulation vlan-ccc
set interfaces lo0 unit 0 family inet address 192.168.1.11/32
set routing-options router-id 192.168.1.11
set protocols l2circuit neighbor 192.168.3.33 interface enp13s0f0.102 static incoming-label 103
set protocols l2circuit neighbor 192.168.3.33 interface enp13s0f0.102 static outgoing-label 102
set protocols l2circuit neighbor 192.168.3.33 interface enp13s0f0.102 virtual-circuit-id 102
set protocols l2circuit neighbor 192.168.3.33 interface enp13s0f0.104 static incoming-label 105
set protocols l2circuit neighbor 192.168.3.33 interface enp13s0f0.104 static outgoing-label 104
set protocols l2circuit neighbor 192.168.3.33 interface enp13s0f0.104 virtual-circuit-id 104
set protocols l2circuit neighbor 192.168.3.33 interface enp13s0f0.106 static incoming-label 107
set protocols l2circuit neighbor 192.168.3.33 interface enp13s0f0.106 static outgoing-label 106
set protocols l2circuit neighbor 192.168.3.33 interface enp13s0f0.106 virtual-circuit-id 106
set protocols ldp interface enp13s0f2
set protocols mpls label-range static-label-range 16 200
set protocols mpls interface enp13s0f2.0
set protocols ospf area 0.0.0.0 interface lo0.0
set protocols ospf area 0.0.0.0 interface enp13s0f2
crpdSelector:
matchLabels:
kubernetes.io/hostname: node-1Layer 2 Circuit with BGP-LU
Enable Layer 2 circuit over BGP-Labeled Unicast (BGP-LU). BGP-LU advertises the ingress label to its peer PE routers.
apiVersion: configplane.juniper.net/v1
kind: Configlet
metadata:
name: configlet-l2-ckt-pe1
namespace: jcnr
spec:
config: |-
set interfaces enp13s0f2 unit 0 family inet address 172.16.25.1/24
set interfaces enp13s0f0 description "to CE-1 7/4"
set interfaces enp13s0f0 unit 102 vlan-id 102
set interfaces enp13s0f0 unit 102 encapsulation vlan-ccc
set interfaces enp13s0f0 unit 104 vlan-id 104
set interfaces enp13s0f0 unit 104 encapsulation vlan-ccc
set interfaces enp13s0f0 unit 106 vlan-id 106
set interfaces enp13s0f0 unit 106 encapsulation vlan-ccc
set interfaces lo0 unit 0 family inet address 192.168.1.11/32
set policy-options policy-statement local-prefixes from protocol direct
set policy-options policy-statement local-prefixes from prefix-list local-prefixes
set policy-options policy-statement local-prefixes then accept
set policy-options policy-statement send-pe from route-filter 192.168.1.11/32 exact
set policy-options policy-statement send-pe then accept
set policy-options prefix-list local-prefixes 192.168.1.11/32
set routing-options router-id 192.168.1.11
set routing-options autonomous-system 65001
set routing-options rib-groups INET0_to_INET3 import-rib inet.0
set routing-options rib-groups INET0_to_INET3 import-rib inet.3
set protocols bgp group external type external
set protocols bgp group external local-address 172.16.25.1
set protocols bgp group external family inet labeled-unicast rib inet.3
set protocols bgp group external family inet unicast rib-group INET0_to_INET3
set protocols bgp group external export local-prefixes
set protocols bgp group external neighbor 172.16.30.11 peer-as 65002
set protocols l2circuit neighbor 192.168.3.33 interface enp13s0f0.102 virtual-circuit-id 102
set protocols l2circuit neighbor 192.168.3.33 interface enp13s0f0.104 virtual-circuit-id 104
set protocols l2circuit neighbor 192.168.3.33 interface enp13s0f0.106 virtual-circuit-id 106
set protocols ldp interface lo0.0
set protocols mpls interface enp13s0f2
crpdSelector:
matchLabels:
kubernetes.io/hostname: node-1Configuring via JCNR-CNI (Pod Configuration)
When using the Cloud-Native Router in CNI mode, you can configure cRPD with layer 2 circuit configuration using the JCNR-CNI. Here is an example pod configuration:
---
apiVersion: v1
kind: Namespace
metadata:
name: jcnr-l2vpn-tests
---
apiVersion: "k8s.cni.cncf.io/v1"
kind: NetworkAttachmentDefinition
metadata:
name: l2ckt-pod1-nad
namespace: jcnr-l2vpn-tests
spec:
config: '{
"cniVersion":"0.4.0",
"name": "l2ckt-pod1-nad",
"plugins": [
{
"type": "jcnr",
"kubeConfig":"/etc/kubernetes/kubelet.conf"
}
]
}'
---
apiVersion: v1
kind: Pod
metadata:
name: l2ckt-pod1-nad
namespace: jcnr-l2vpn-tests
annotations:
k8s.v1.cni.cncf.io/networks: |
[
{
"name": "l2ckt-pod1-nad",
"interface": "net1",
"cni-args": {
"l2CktNbr": "192.168.3.33",
"l2CktVcid": "10"
}
}
]
spec:
containers:
... <trimmed>Verification
You can verify the Layer 2 circuit configuration and statistics on the cRPD shell and vRouter shell.
- Verify L2 circuit Connections
- Verify the LDP sessions
- Verify LDP Database
- Verify vRouter Interfaces
- Verify Interface Rate Statistics
- Verify Routes and Nexthops
Verify L2 circuit Connections
Display status information about Layer 2 virtual circuits from the Cloud-Native Router
to its neighbors using show l2circuit connections command on the
cRPD.
user@host> show l2circuit connections
Layer-2 Circuit Connections:
Legend for connection status (St)
EI -- encapsulation invalid NP -- interface h/w not present
MM -- mtu mismatch Dn -- down
EM -- encapsulation mismatch VC-Dn -- Virtual circuit Down
CM -- control-word mismatch Up -- operational
VM -- vlan id mismatch CF -- Call admission control failure
OL -- no outgoing label IB -- TDM incompatible bitrate
NC -- intf encaps not CCC/TCC TM -- TDM misconfiguration
BK -- Backup Connection ST -- Standby Connection
CB -- rcvd cell-bundle size bad SP -- Static Pseudowire
LD -- local site signaled down RS -- remote site standby
RD -- remote site signaled down HS -- Hot-standby Connection
XX -- unknown
Legend for interface status
Up -- operational
Dn -- down
Neighbor: 192.168.3.33
Interface Type St Time last up # Up trans
enp13s0f0.102(vc 102) rmt Up Mar 12 15:45:20 2025 2
Remote PE: 192.168.3.33, Negotiated control-word: Yes (Null)
Incoming label: 17, Outgoing label: 16
Negotiated PW status TLV: No
Local interface: enp13s0f0.102, Status: Up, Encapsulation: VLAN
Flow Label Transmit: No, Flow Label Receive: No
enp13s0f0.104(vc 104) rmt Up Mar 12 15:45:24 2025 1
Remote PE: 192.168.3.33, Negotiated control-word: Yes (Null)
Incoming label: 18, Outgoing label: 17
Negotiated PW status TLV: No
Local interface: enp13s0f0.104, Status: Up, Encapsulation: VLAN
Flow Label Transmit: No, Flow Label Receive: No
enp13s0f0.106(vc 106) rmt Up Mar 12 15:45:24 2025 1
Remote PE: 192.168.3.33, Negotiated control-word: Yes (Null)
Incoming label: 19, Outgoing label: 18
Negotiated PW status TLV: No
Local interface: enp13s0f0.106, Status: Up, Encapsulation: VLAN
Flow Label Transmit: No, Flow Label Receive: NoVerify the LDP sessions
Display information about LDP sessions using the show ldp session command on the
cRPD.
user@root> show ldp session extensive
Address: 192.168.3.33, State: Operational, Connection: Open, Hold time: 23
Session ID: 192.168.1.11:0--192.168.3.33:0
Next keepalive in 3 seconds
Passive, Maximum PDU: 4096, Hold time: 30, Neighbor count: 1
Neighbor types: configured-layer2
Keepalive interval: 10, Connect retry interval: 1
Local address: 192.168.1.11, Remote address: 192.168.3.33
Up for 01:13:18
Capabilities advertised: none
Capabilities received: none
Protection: disabled
Session flags: none
Local - Restart: disabled, Helper mode: enabled
Remote - Restart: disabled, Helper mode: enabled
Local maximum neighbor reconnect time: 120000 msec
Local maximum neighbor recovery time: 240000 msec
Local Label Advertisement mode: Downstream unsolicited
Remote Label Advertisement mode: Downstream unsolicited
Negotiated Label Advertisement mode: Downstream unsolicited
MTU discovery: disabled
Nonstop routing state: Not in sync
Next-hop addresses received:
192.168.3.33
Queue depth: 0
Message type Total Last 5 seconds
Sent Received Sent Received
Initialization 1 1 0 0
Keepalive 439 439 1 1
Notification 0 0 0 0
Address 1 1 0 0
Address withdraw 0 0 0 0
Label mapping 7 7 0 0
Label request 0 0 0 0
Label withdraw 3 3 0 0
Label release 3 3 0 0
Label abort 0 0 0 0Verify LDP Database
user@root> show ldp database Input label database, 192.168.1.11:0--192.168.3.33:0 Labels received: 14 Label Prefix 27 L2CKT CtrlWord ETHERNET VC 9 28 L2CKT CtrlWord ETHERNET VC 10 Output label database, 111.1.1.1:0--133.3.3.3:0 Labels advertised: 14 Label Prefix 36 L2CKT CtrlWord ETHERNET VC 9 37 L2CKT CtrlWord ETHERNET VC 10
Verify vRouter Interfaces
Verify the vRouter interfaces for CE-facing interfaces.
bash-5.1# vif --list
Vrouter Interface Table
Flags: P=Policy, X=Cross Connect, S=Service Chain, Mr=Receive Mirror
Mt=Transmit Mirror, Tc=Transmit Checksum Offload, L3=Layer 3, L2=Layer 2
D=DHCP, Vp=Vhost Physical, Pr=Promiscuous, Vnt=Native Vlan Tagged
Mnp=No MAC Proxy, Dpdk=DPDK PMD Interface, Rfl=Receive Filtering Offload, Mon=Interface is Monitored
Uuf=Unknown Unicast Flood, Vof=VLAN insert/strip offload, Df=Drop New Flows, L=MAC Learning Enabled
Proxy=MAC Requests Proxied Always, Er=Etree Root, Mn=Mirror without Vlan Tag, HbsL=HBS Left Intf
HbsR=HBS Right Intf, Ig=Igmp Trap Enabled, Ml=MAC-IP Learning Enabled, Me=Multicast Enabled
LsDp=Link down in DP only, Ccc=CCC Enabled, HwTs=Hardware support for Timestamp
...<trimmed>
vif0/2 PCI: 0000:0d:00.0 (Speed 10000, Duplex 1) NH: 7 MTU: 9000
Type:Physical HWaddr:40:a6:b7:c4:23:f4 IPaddr:0.0.0.0
DDP: OFF SwLB: ON
Vrf:0 Mcast Vrf:0 Flags:TcL3Vof QOS:0 Ref:18
RX port packets:899840301 errors:0
RX queue errors to lcore 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Fabric Interface: 0000:0d:00.0 Status: UP Driver: net_ice
RX packets:899840302 bytes:4080744017446 errors:0
TX packets:896126245 bytes:4059828585689 errors:0
Drops:1315423
TX port packets:896126245 errors:0
vif0/9 PMD: enp13s0f0 NH: 21 MTU: 9000
Type:Host HWaddr:40:a6:b7:c4:23:f4 IPaddr:0.0.0.0
DDP: OFF SwLB: ON
Vrf:0 Mcast Vrf:65535 Flags:L3ProxyEr QOS:-1 Ref:17 TxXVif:2
RX device packets:70 bytes:6064 errors:0
RX queue packets:70 errors:0
RX queue errors to lcore 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RX packets:70 bytes:6064 errors:0
TX packets:0 bytes:0 errors:0
Drops:0
vif0/16 Virtual: enp13s0f0.102 Vlan(o/i)(,S): 102/102
Parent:vif0/9 Sub-type: Host-tap
Type:Virtual(Vlan) HWaddr:40:a6:b7:c4:23:f4 IPaddr:0.0.0.0
DDP: OFF SwLB: ON
Vrf:0 Mcast Vrf:65535 Flags:L3ProxyEr QOS:-1 Ref:1 TxXVif:17
RX queue errors to lcore 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RX packets:8 bytes:592 errors:0
TX packets:0 bytes:0 errors:0
Drops:0
vif0/17 Virtual: enp13s0f0.102 Vlan(o/i)(,S): 102/102 NH: 44
Parent:vif0/2 Sub-type: physical-tap
Type:Virtual(Vlan) HWaddr:40:a6:b7:c4:23:f4 IPaddr:0.0.0.0
DDP: OFF SwLB: ON
Vrf:0 Mcast Vrf:0 Flags:Ccc QOS:-1 Ref:5
RX queue errors to lcore 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RX packets:299403723 bytes:1357784724696 errors:0
TX packets:298673909 bytes:1351924185670 errors:0
Drops:612067
vif0/18 Virtual: enp13s0f0.104 Vlan(o/i)(,S): 104/104
Parent:vif0/9 Sub-type: Host-tap
Type:Virtual(Vlan) HWaddr:40:a6:b7:c4:23:f4 IPaddr:0.0.0.0
DDP: OFF SwLB: ON
Vrf:0 Mcast Vrf:65535 Flags:L3ProxyEr QOS:-1 Ref:1 TxXVif:19
RX queue errors to lcore 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RX packets:9 bytes:666 errors:0
TX packets:0 bytes:0 errors:0
Drops:0
vif0/19 Virtual: enp13s0f0.104 Vlan(o/i)(,S): 104/104 NH: 48
Parent:vif0/2 Sub-type: physical-tap
Type:Virtual(Vlan) HWaddr:40:a6:b7:c4:23:f4 IPaddr:0.0.0.0
DDP: OFF SwLB: ON
Vrf:0 Mcast Vrf:0 Flags:Ccc QOS:-1 Ref:5
RX queue errors to lcore 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RX packets:299381730 bytes:1357688891917 errors:0
TX packets:298673939 bytes:1351924259113 errors:0
Drops:593380
vif0/20 Virtual: enp13s0f0.106 Vlan(o/i)(,S): 106/106
Parent:vif0/9 Sub-type: Host-tap
Type:Virtual(Vlan) HWaddr:40:a6:b7:c4:23:f4 IPaddr:0.0.0.0
DDP: OFF SwLB: ON
Vrf:0 Mcast Vrf:65535 Flags:L3ProxyEr QOS:-1 Ref:1 TxXVif:21
RX queue errors to lcore 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RX packets:8 bytes:592 errors:0
TX packets:0 bytes:0 errors:0
Drops:0
vif0/21 Virtual: enp13s0f0.106 Vlan(o/i)(,S): 106/106 NH: 56
Parent:vif0/2 Sub-type: physical-tap
Type:Virtual(Vlan) HWaddr:40:a6:b7:c4:23:f4 IPaddr:0.0.0.0
DDP: OFF SwLB: ON
Vrf:0 Mcast Vrf:0 Flags:Ccc QOS:-1 Ref:5
RX queue errors to lcore 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RX packets:299359992 bytes:1357592722594 errors:0
TX packets:298673884 bytes:1351924089886 errors:0
Drops:571666
Verify Interface Rate Statistics
Verify the interface statistics inclusing received and transmitted packets and errors.
bash-5.1# vif —list —rate
Interface rate statistics
-------------------------
Interface name VIF ID RX TX
Errors Packets Errors Packets
Agent: unix vif0/0 0 0 0 0
Physical: eth_bond_bond0 vif0/1 0 397296 0 402976
Physical: 0000:0d:00.0 vif0/2 0 201471 0 197687
Physical: 0000:0d:00.1 vif0/3 0 0 0 0
Physical: 0000:0d:00.2 vif0/4 0 200853 0 199410
Physical: 0000:0d:00.3 vif0/5 0 0 0 0
Physical: 0000:b5:00.2 vif0/6 0 0 0 0
Physical: 0000:b5:00.3 vif0/7 0 0 0 0
Host: bond0 vif0/8 0 0 0 0
Host: enp13s0f0 vif0/9 0 0 0 0
Host: enp13s0f1 vif0/10 0 0 0 0
Host: enp13s0f2 vif0/11 0 0 0 0
Host: enp13s0f3 vif0/12 0 0 0 0
Host: enp181s0f2 vif0/13 0 0 0 0
Host: enp181s0f3 vif0/14 0 0 0 0
Virtual(Vlan): enp13s0f0.102 vif0/16 0 0 0 0
Key 'q' for quit, key 'k' for previous page, key 'j' for next page.
2025-03-12 16:58:44 +0000 Verify Routes and Nexthops
Verify the routes and nexthops for interfaces with Ethernet CCC encapsulation enabled.
bash-5.1# rt --dump 0 --family ccc
Flags: L=Label Valid, L2c=L2 Control Word
vRouter ccc table 0/0
Interface Id Flags Label/VNID Nexthop Stats
21 LL2c 18 61 0
19 LL2c 17 61 0
4 LL2c 110 40 0
17 LL2c 16 61 0bash-5.1# nh --get 61
Id:61 Type:Tunnel Fmly: AF_MPLS Rid:0 Ref_cnt:4 Vrf:0
Flags:Valid, Etree Root, MPLS,
Oif:1 Len:14 Data:36 d0 5b f4 f3 ef a2 2a 5f 77 e7 8b 88 47 Number of Transport Labels:1 Transport Labels:31, bash-5.1# nh --get 40
Id:40 Type:Tunnel Fmly: AF_MPLS Rid:0 Ref_cnt:2 Vrf:0
Flags:Valid, Etree Root, MPLS,
Oif:1 Len:14 Data:36 d0 5b f4 f3 ef a2 2a 5f 77 e7 8b 88 47 Number of Transport Labels:1 Transport Labels:18,
