TOE Environment

The following environmental components are required to operate the TOE in the evaluated configuration:

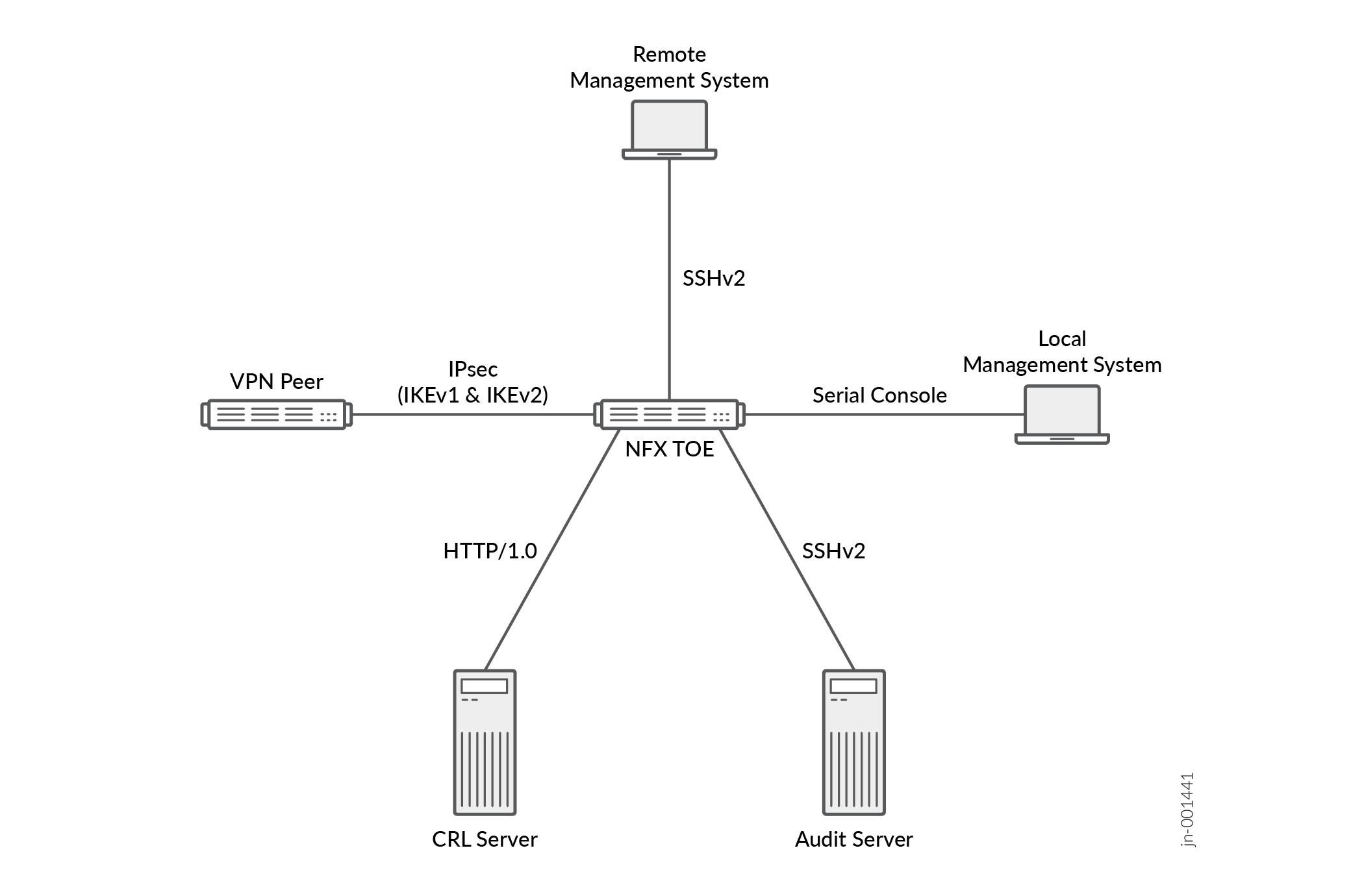

Figure 1: TOE Deployment Diagram TOE Deployment Diagram
Table 1: TOE Environment
Components Mandatory/Optional Description
Remote Management System Mandatory

The remote management system is used by an administrator to establish a connection using an SSHv2 client to configure the TOE.
Local Management System Mandatory

The local management system is used by an administrator to configure the TOE over a serial console connection.
Audit Server Mandatory

The audit server supports an SSHv2 client which inititates the trusted channel between itself and the TOE for transmission of logs using the netconf utility.

VPN Peer

 Optional

The VPN peer is a dedicated IPsec interface that establishes an IPsec tunnel with the VPN gateway of the TOE, which supports both IKEv1 and IKEv2.

CRL Server

 Mandatory

The CRL server, over HTTP/1.0, supports revocation checking of certificates used by the TOE for IPsec tunnels.
