Add/Remove System Tags (Freeform)

You can update Freeform system tag assignments from the Topology or Systems view.

Update Tags on One or More Systems (from Topology)

  1. From the blueprint, navigate to Staged > Physical > Topology and click Edit to open the topology editor.
    Network management interface showing physical network topology with nodes switch_3, switch_1, switch_2, sys_2, and sys_1 connected by links.
    CAUTION:

    Be careful. If you click away from the topology editor after making changes without clicking Save, your changes are discarded.

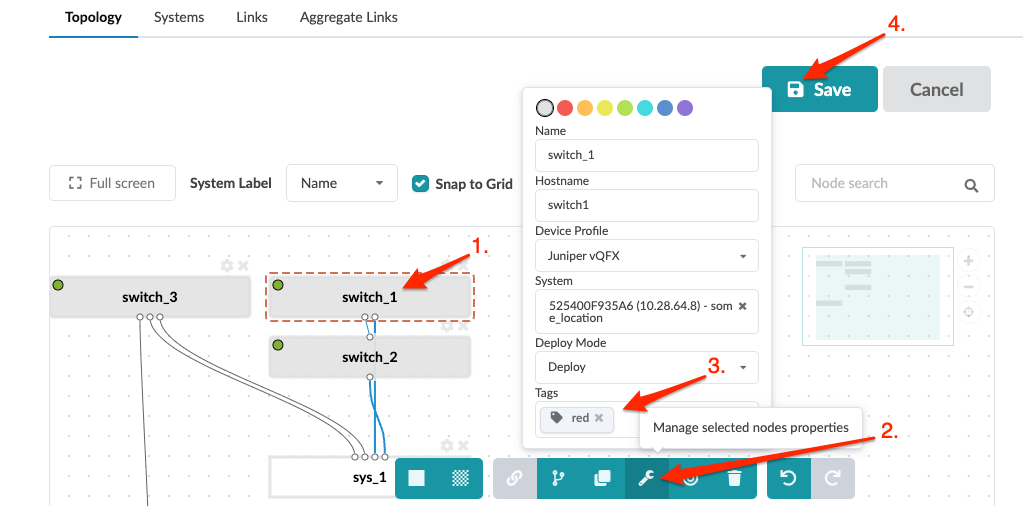

  2. In the topology editor, click one or more systems to change, then click the Manage selected nodes properties button that becomes available. (You can also open the same dialog by clicking the settings button for one selected system. It's the gear at the top-right of the system.)Network topology editor with switch_1 node selected. Node properties panel shows editable fields: Name, Hostname, Device Profile, System, Deploy Mode, and Tags. Save button highlighted.
  3. Add and remove tags in the Tag field, as needed. The changes apply to all selected systems.
  4. To close the dialog, click anywhere on the canvas outside of the dialog.
  5. Click Save to stage your changes, exit the topology editor and return to the Topology view. (If you leave the page without saving, your changes are discarded.)
When you're ready to activate your changes, commit them from the Uncommitted tab.

Update Tags on One System (from Systems)

  1. From the blueprint, navigate to Staged > Physical > Systems and click the system name to go to details for that system.
    Network management interface in Staged section, Physical tab, Systems sub-tab. System switch_1: Type INTERNAL, Tags red, Deploy Mode Deploy, Device Profile Juniper vQFX, Serial Number 525400F935A6, Hostname switch1, Operation Mode FULL CONTROL, Config Template junos_configuration.jinja, unassigned Property Set.
    Note:

    You can also get to the Systems details page from the Topology view. From the blueprint, navigate to Staged > Physical > Topology and select the system to update.

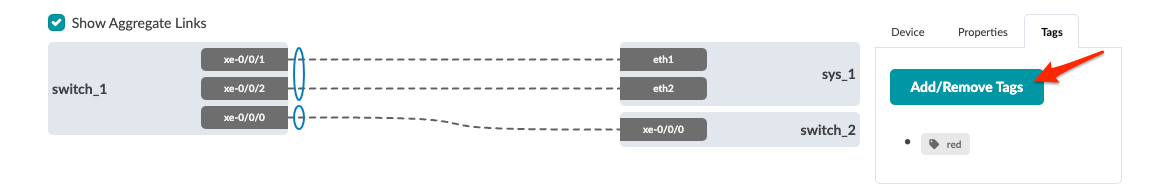

  2. Click the Tags tab in the right panel, then in the dialog that opens add and/or remove tags, as needed.
    Network topology diagram showing connections between devices: switch_1 with interfaces xe-0/0/1, xe-0/0/2, xe-0/0/0; sys_1 with eth1 and eth2; and switch_2 with xe-0/0/0. Aggregated links and a tag labeled red are displayed.
  3. Click Update Tags to update tags for that system and return to the selection view.
When you're ready to activate your changes, commit them from the Uncommitted tab.

Update Tags on One or More Systems (from Systems)

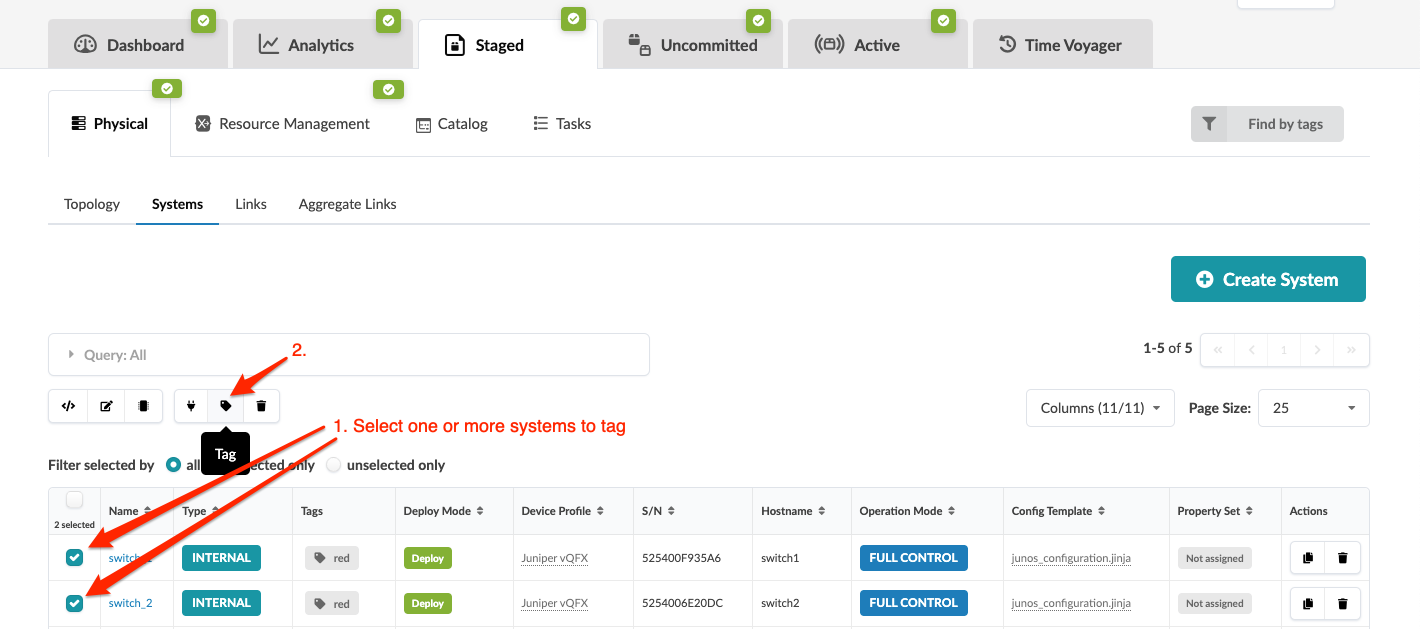

  1. From the blueprint, navigate to Staged > Physical > Systems and select the check boxes for one or more systems, then click the Tag button that becomes available above the table.
    Dashboard interface for managing physical systems with tabs for Dashboard, Analytics, Staged, Uncommitted, Active, and Time Voyager.
  2. In the dialog that opens add and/or remove tags, as needed.
  3. Click Add/Remove Tags to update tags for the selected systems and return to the table view.
When you're ready to activate your changes, commit them from the Uncommitted tab.
