Add/Remove Node Tags (Datacenter)

You can add tags to nodes in a few different ways and use them for configuration. Nodes include spine devices, leaf devices, internal generic systems, external generic systems.

Update Tags on One Node (Topology Neighbors View)

To update tags on a single node from the topology neighbors view using the GUI:
  1. From the blueprint, navigate to Staged > Physical > Topology and select the node that needs updated tags. In our example, we've selected leaf3.
    Network management interface screenshot displaying a topology view of nodes, links, racks, and pods with options for physical and virtual management. Tabs include Dashboard, Analytics, Staged, Uncommitted, and Active. The diagram shows spine and leaf switches with connected devices.
    The topology selection view appear.
  2. From the Neighbors view (default view), select the node check box to see the operations available for that node (and that you have permissions for).
    Network topology interface showing options for managing nodes and links, with "leaf3" selected. Connections to "spine1," "spine2," and "switch3-server1" visible. Uncommitted changes indicated.
  3. Click Update node tags
    The Update leaf3 Tags dialog opens (for our example).
  4. Add and/or remove tags, as needed. You can create tags from here; they'll be tagged to the link and added to the blueprint catalog.

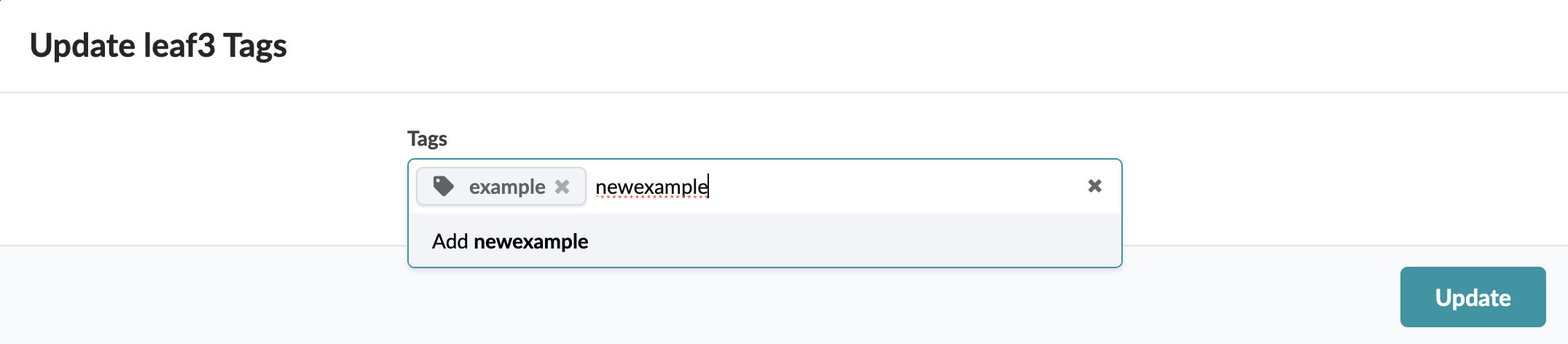

    User interface for updating tags for leaf3 with text field showing tag example and typed newexample. Update button present.
  5. Click Update.
The updates are staged and you're returned to the topology selection view.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.

Update Tags on One Node (Nodes Table)

To update tags on a single node from the nodes table using the GUI:
  1. From the blueprint, navigate to Staged > Physical > Nodes and select the node name (not the check box) for the node that needs updated tags.
    Network management interface with tabs for Dashboard, Analytics, and more. Nodes section shows details for spine1 with role Spine and device Juniper vQFX. Loopback IP is 10.0.0.3/32.
    The node selection view appears, including tag information in the right Selection panel.
  2. Click the Tags tab in the panel, then click Add / Remove Tags.

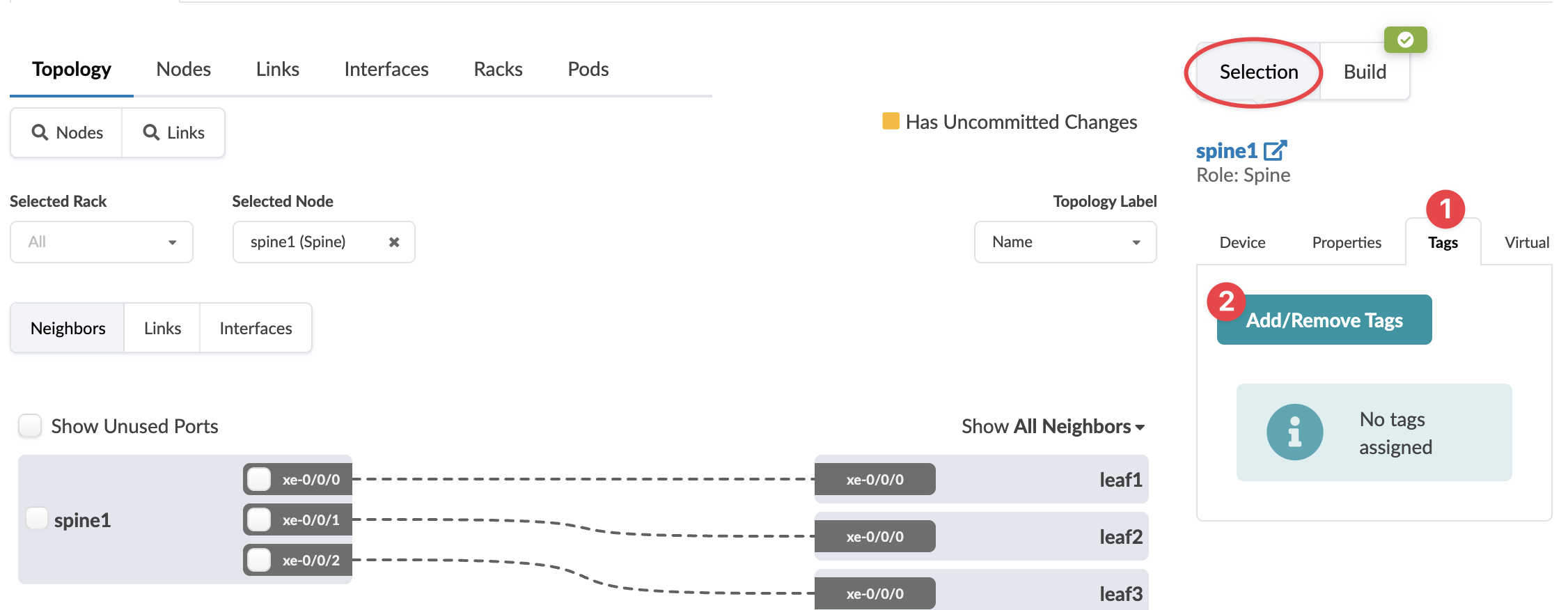

    Network topology management interface showing uncommitted changes. Selected node spine1 as Spine role, connected to leaf1, leaf2, and leaf3.
    The Update Tags dialog opens.
  3. Add and/or remove tags, as needed. You can create tags from here; they'll be tagged to the link and added to the blueprint catalog.

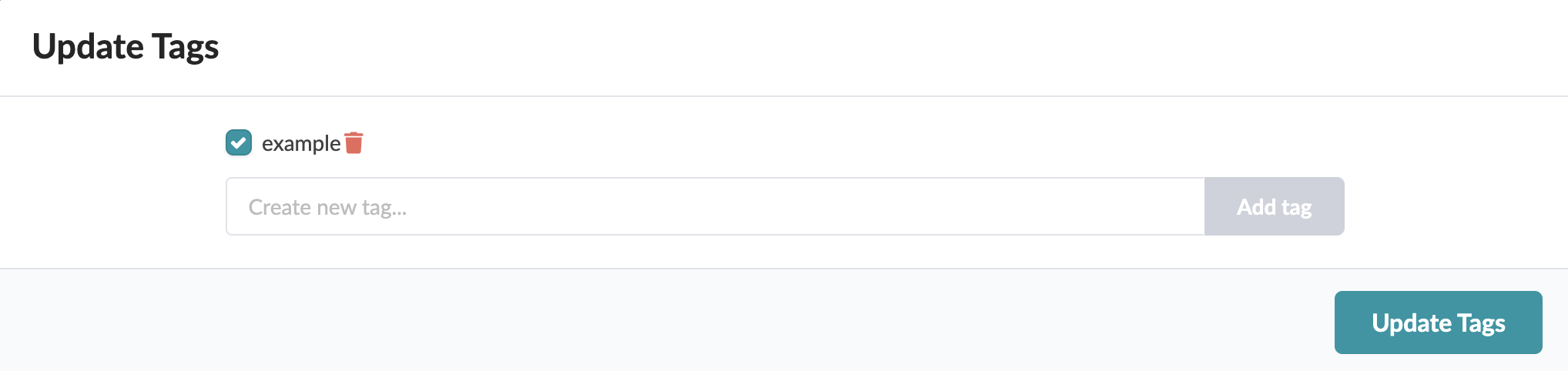

    User interface for managing tags: includes Update Tags section, checkbox labeled example with delete icon, text field labeled Create new tag with Add tag button, and teal Update Tags button.
  4. Click Update Tags.
The updates are staged and you're returned to the link selection view.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.

Update Tags on One or More Nodes (Nodes Table)

To update tags on one or more nodes from the nodes table using the GUI:
  1. From the blueprint, navigate to Staged > Physical > Nodes and select one or more check boxes for the node(s) that need updated tags. The Add/Remove Tags button appears above the table.

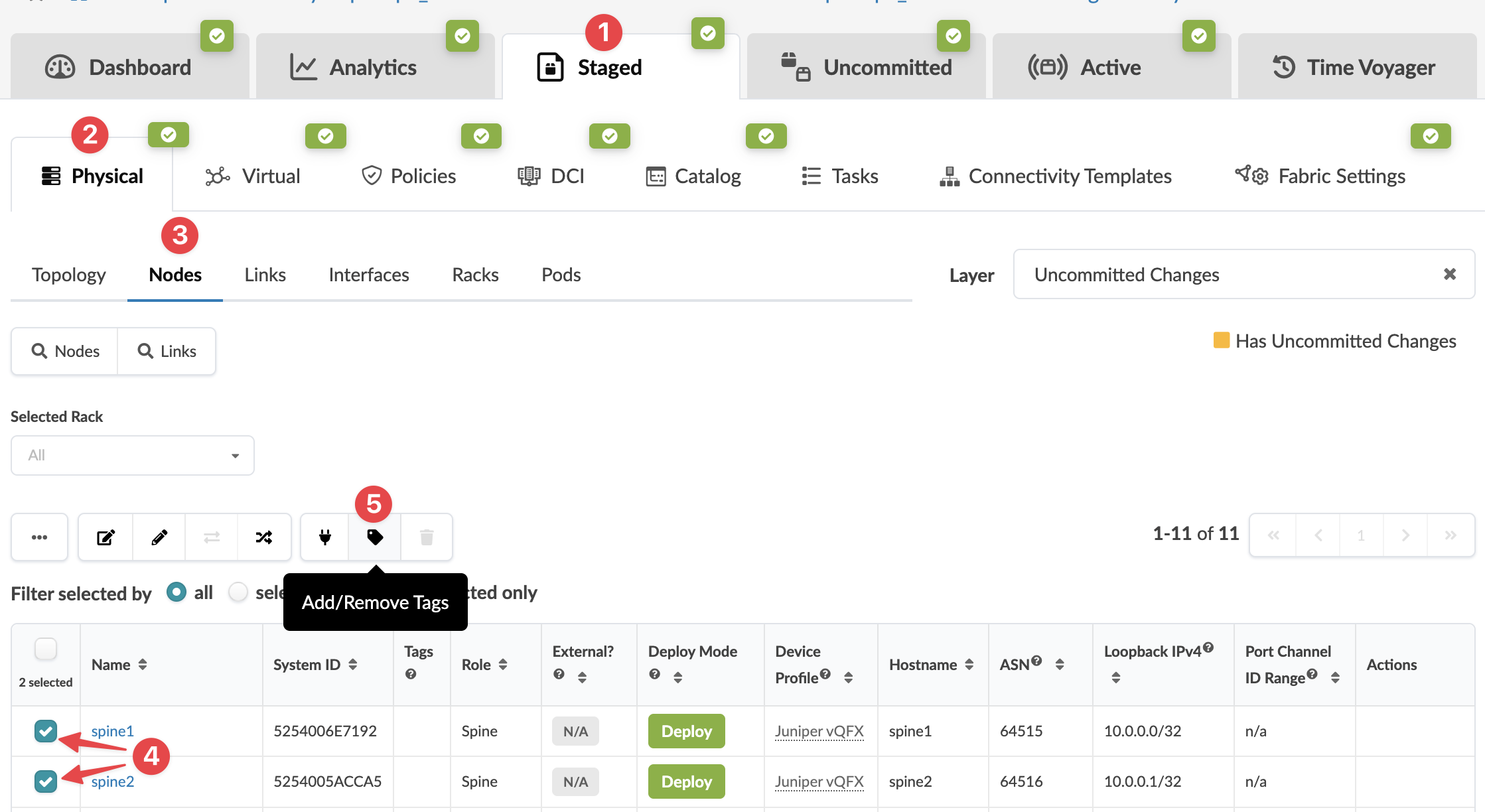

    Network management interface showing uncommitted staged configurations for physical nodes. Spine1 and spine2 switches selected. Tooltip over Add/Remove Tags button.
  2. Click the Add/Remove Tags button.
    The Add/Remove Tags dialog opens.
  3. Add and/or remove tags, as needed. You can create tags from here; they'll be tagged to the node and added to the blueprint catalog.

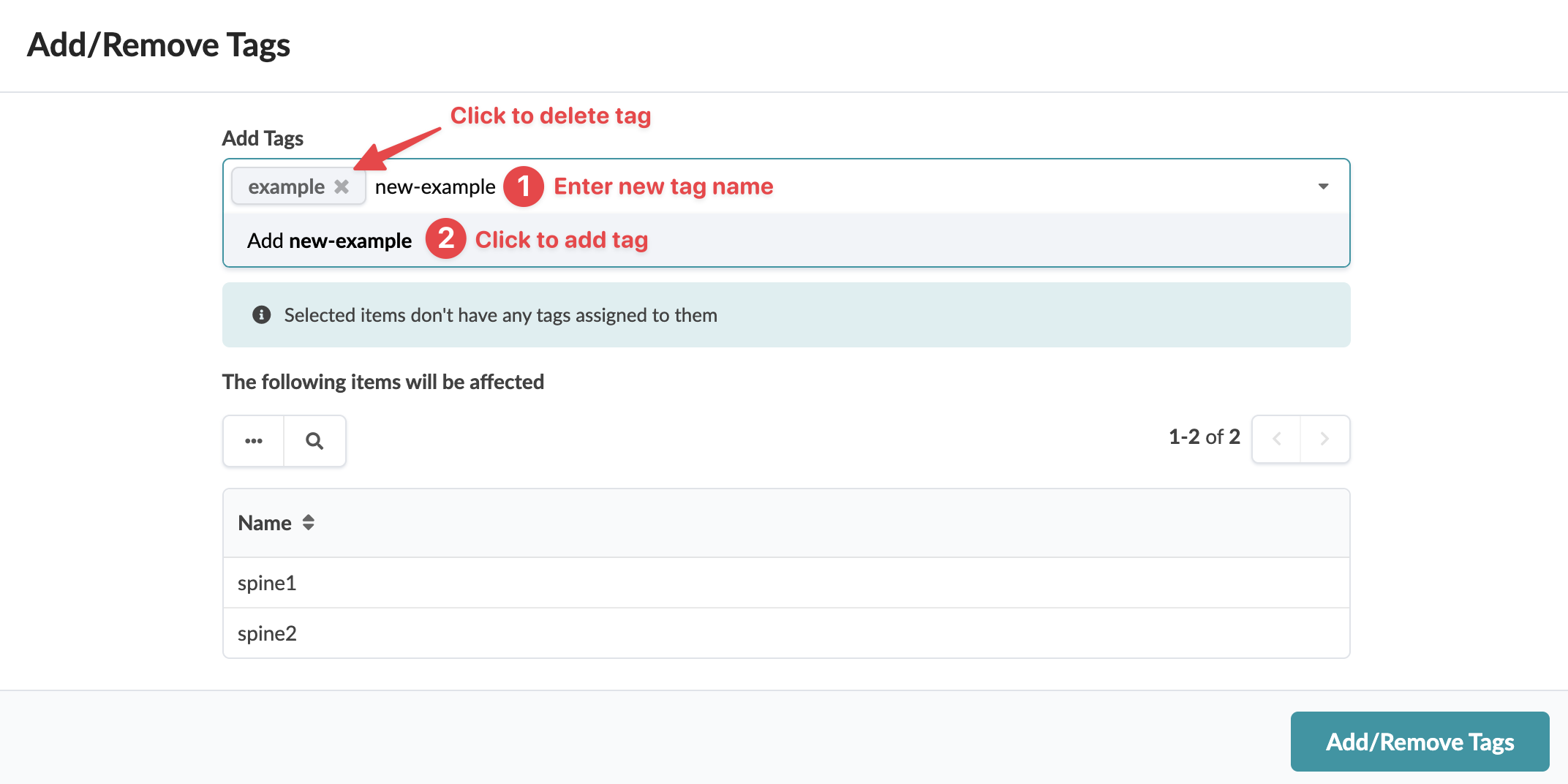

    User interface for managing tags: Add Tags section with input field, example tag with delete option, instructions to add tags, no tags assigned message, items spine1 and spine2 listed, Add/Remove Tags button at bottom.
  4. Click Add/Remove Tags.
The updates are staged and you're returned to the Nodes table.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.
