Add/Remove Link Tags (Datacenter)

You can add tags to links in a few different ways and use them for configuration.

Update Tags on One Link (Topology Neighbors View)

To update tags on a single link from the topology neighbors view using the GUI:
  1. From the blueprint, navigate to Staged > Physical > Topology and select the node connected to the link that needs updated tags. In our example, we've selected leaf3.
    Network management interface with topology view showing nodes and devices. Tabs for Dashboard, Analytics, and network states. Spine and leaf switches with connected servers. Options for physical and virtual management.
    The topology selection view appears.
  2. From the Neighbors view (default view), select the interface check box to see the operations available for that link (and that you have permissions for).
    Network topology interface screenshot showing tabs for Topology, Nodes, Links, Interfaces, Racks, Pods. Selected Rack: evpn_single_001, Node: leaf3. Neighbors: spine1 via xe-0/0/2, spine2 via xe-0/0/2, switch3-server1 via n/a. Interface xe-0/0/2 checkbox selected, dropdown for operations: Form LAG, Update LAG mode, Update link tags, Update link speed, Edit interface tags, Delete link, Disable interface. Red text highlights checkbox function. Yellow indicator for uncommitted changes.
  3. Click Update link tags.
    The Add/Remove Tags dialog opens.
  4. Add and/or remove tags, as needed. You can create tags from here; they'll be tagged to the link and added to the blueprint catalog.

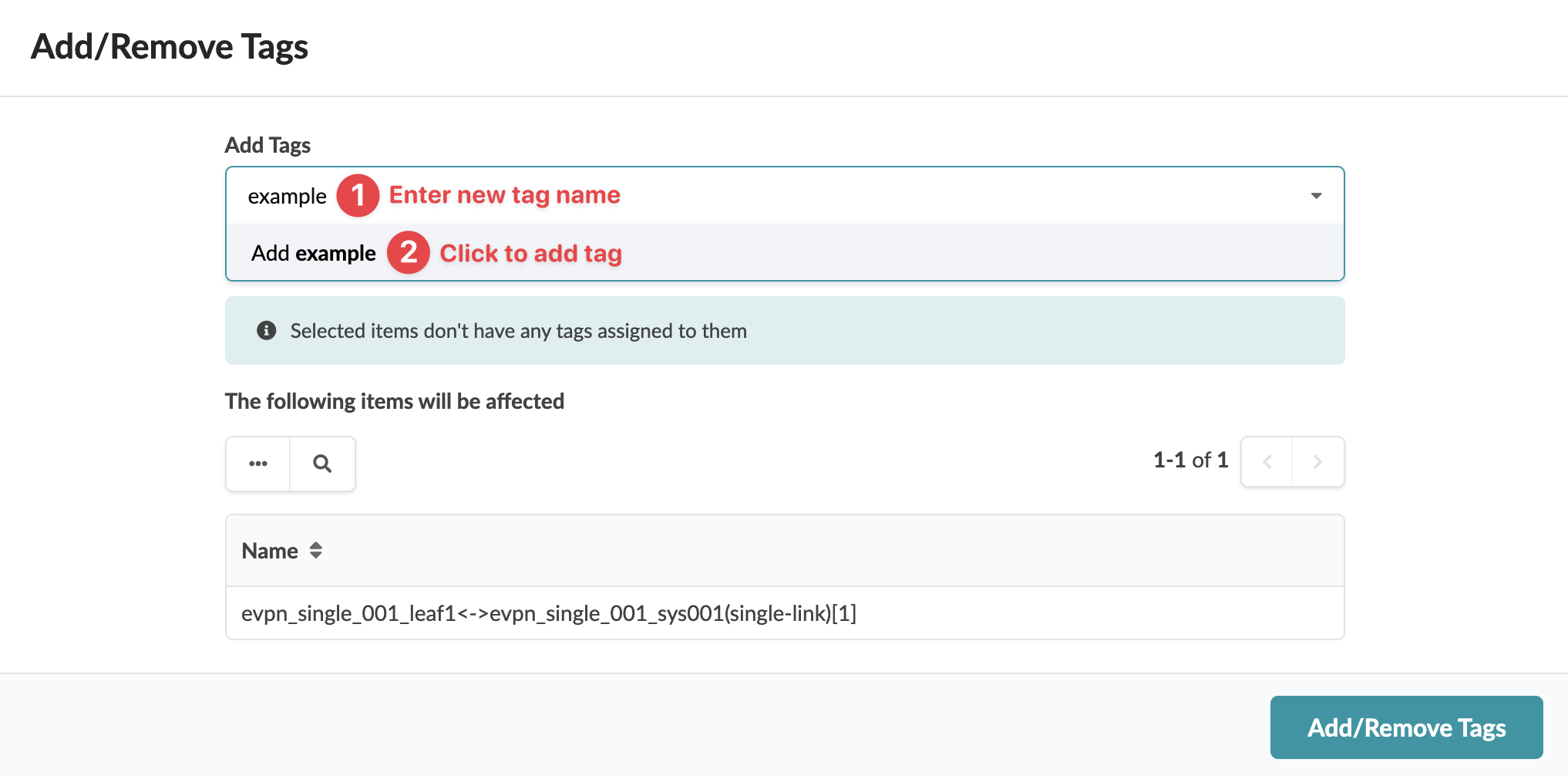

    User interface for managing tags with input field to add new tags, steps for adding tags, message that selected items have no tags, table listing item evpn_single_001_leaf1<->evpn_single_001_sys001 single-link 1, and Add/Remove Tags button.
  5. Click Add/Remove Tags.
The updates are staged and you're returned to the topology selection view.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.

Update Tags on One Link (Links Table)

To update tags on a single link from the Links table using the GUI:
  1. From the blueprint, navigate to Staged > Physical > Links and select the link name (not the check box) for the link that needs updated tags.

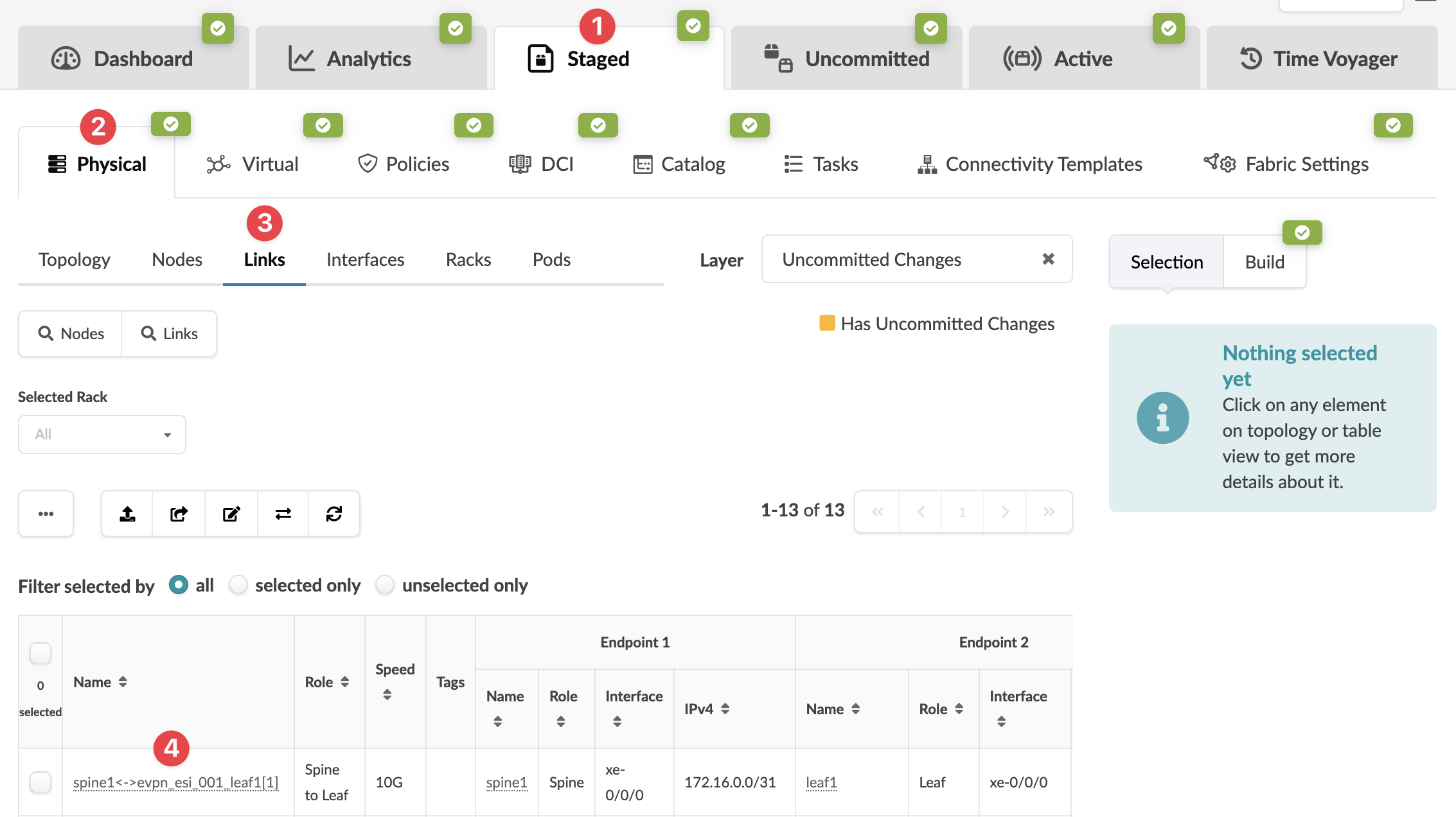

    User interface of a network management tool showing tabs, navigation menu, subsections, and a table of network links with details like name, role, speed, tags, and endpoints.
    The link selection view appears, including tag information in the right Selection panel.
  2. Click the Tags tab in the panel, then click Add / Remove Tags.

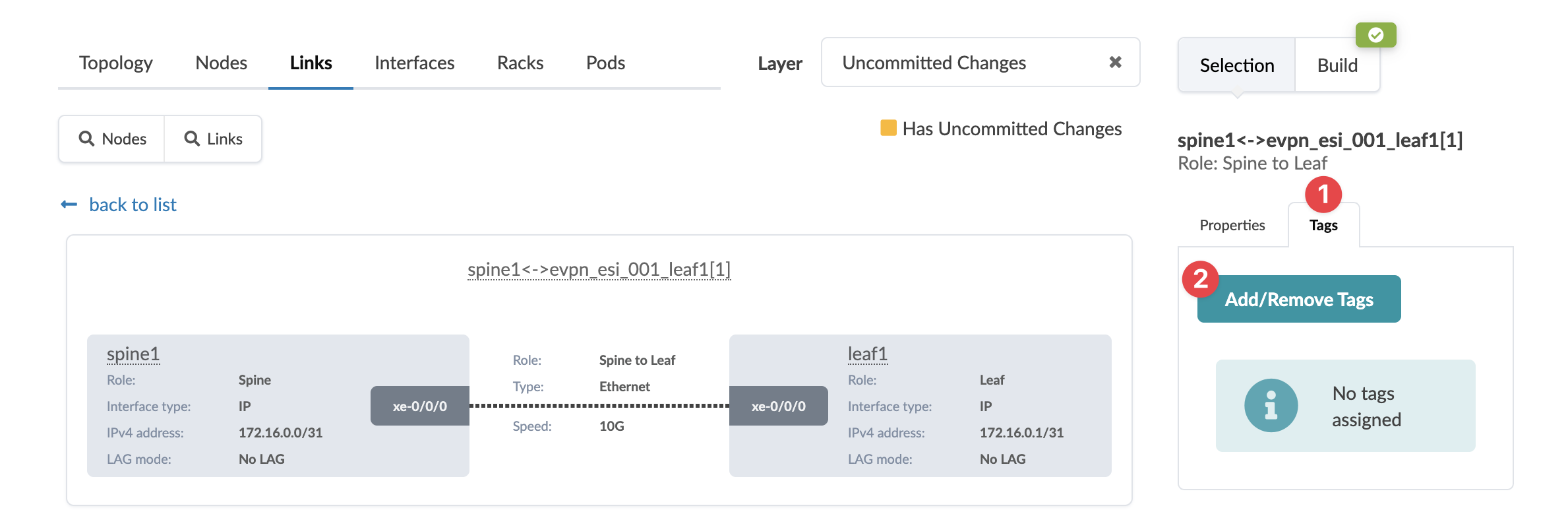

    Network management interface showing a 10G Ethernet connection between spine1 and leaf1 with roles Spine and Leaf, IPv4 addresses 172.16.0.0/31 and 172.16.0.1/31, no LAG mode, labeled spine1 to evpn_esi_001_leaf1 with uncommitted changes.
    The Update Tags dialog opens.
  3. Add and/or remove tags, as needed. You can create tags from here; they'll be tagged to the link and added to the blueprint catalog.
    User interface for updating tags with title Update Tags, existing tag example with delete option, input field for new tag, Add tag button, and Update Tags button.
  4. Click Update Tags.
The updates are staged and you're returned to the link selection view.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.

Update Tags on One or More Links (Links Table)

To update tags on one or more links from the Links table using the GUI:
  1. From the blueprint, navigate to Staged > Physical > Links, select one or more check boxes for the link(s) that need updated tags. The Add/Remove Tags button appears above the table.

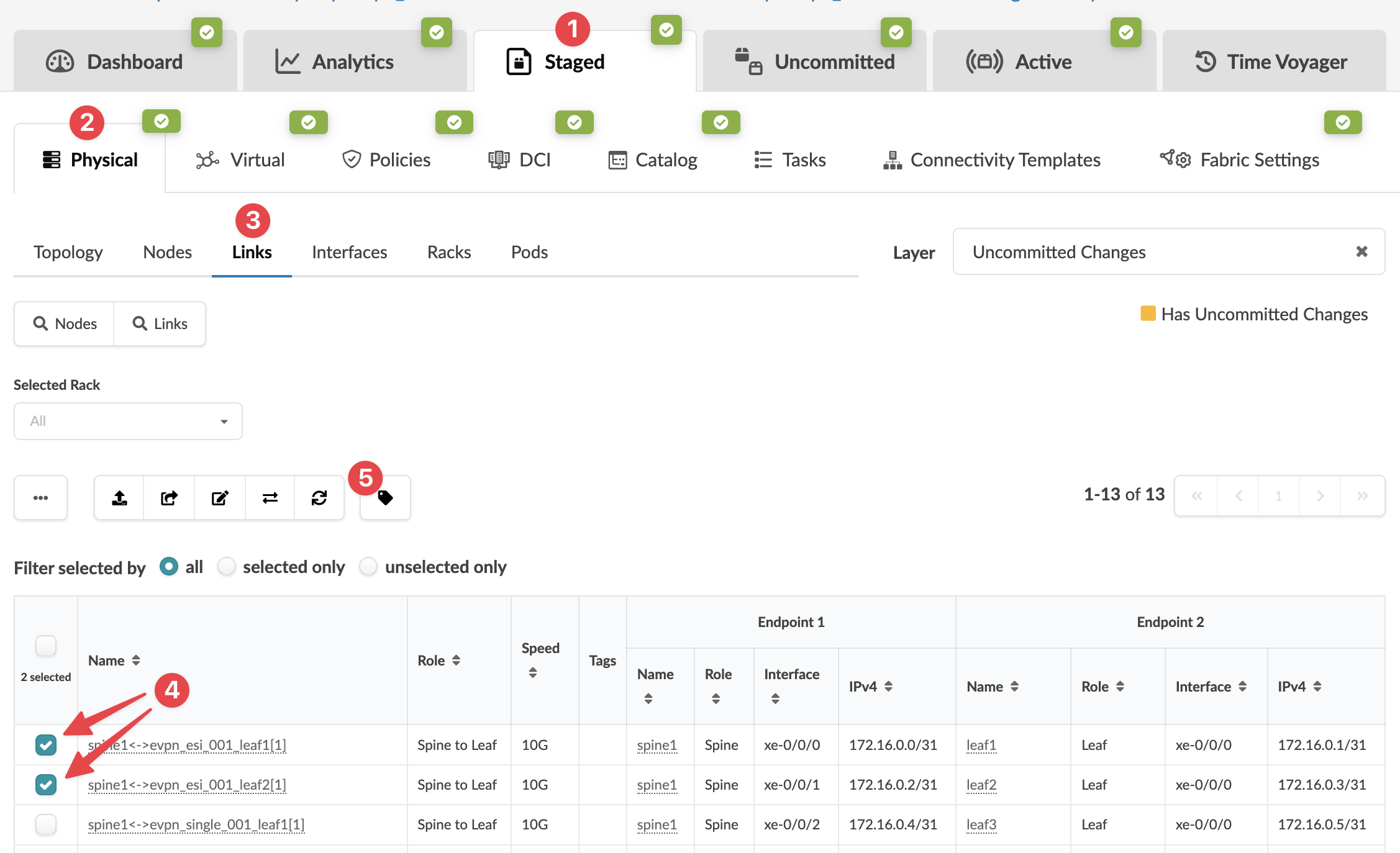

    Network management interface showing physical network links with details such as name, role, speed, endpoints, and uncommitted configuration changes.
  2. Click the Add/Remove Tags button.
    The Add/Remove Tags dialog opens.
  3. Add and/or remove tags, as needed. You can create tags from here; they'll be tagged to the links and added to the blueprint catalog.

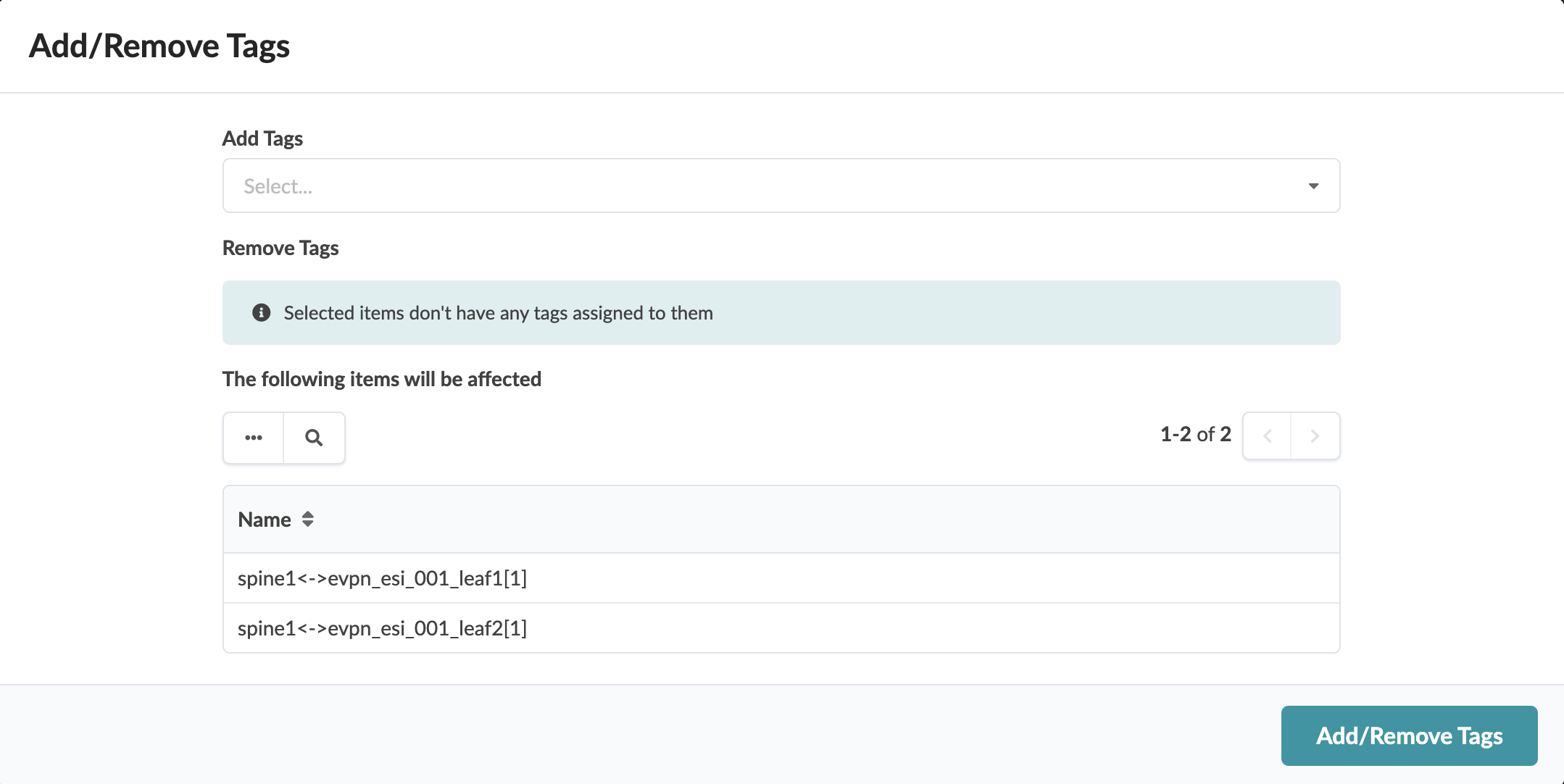

    User interface for managing tags with a dropdown to add tags, message showing no tags assigned, list of affected items: spine1<->evpn_esi_001_leaf1[1], spine1<->evpn_esi_001_leaf2[1], and Add/Remove Tags button.
  4. Click Add/Remove Tags.
The updates are staged and you're returned to the Links table.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.
