FEC Statistics Dashboard

The FEC statistics probe has an auto-enabled dashboard that monitors histogram bins (Bin0 through Bin15) in a graph for interfaces that support FEC.

To create the dashboard:

  1. From the Asptra UI, navigate to Analytics > Dashboards, select Create Dashboard > Instantiate Predefined Dashboard.
  2. Select FEC Statistics from the drop-down list and click Create.

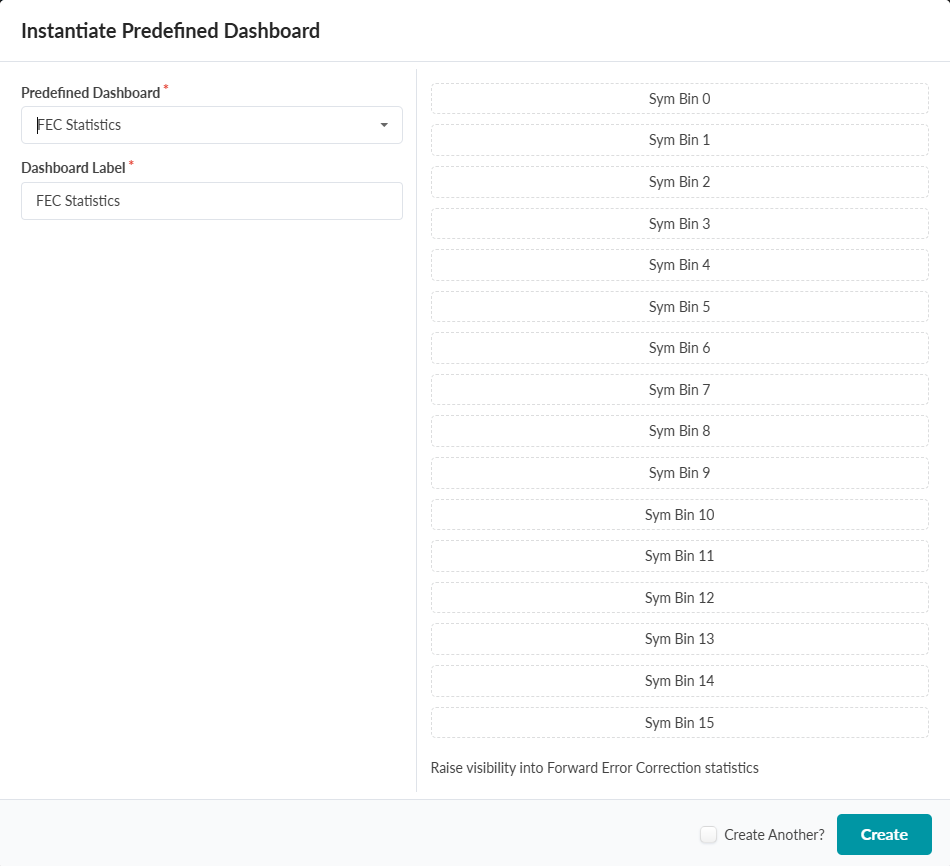

    User interface for creating a predefined dashboard with FEC statistics. Includes dropdown to select dashboard, text field for label, sym bin list, description note, checkbox to create another, and create button.
  3. Click the Dashboard tab display the dashboard output for the FEC Statistics probe.
    The graphs below show examples of two separate graphs for each Bin, ranging from Bin0 to Bin15. Hovering over a specific point on the graph displays the corresponding bin value for an interface. For additional details, click the View stage link under each graph to display the Processor: FEC Statistics page.

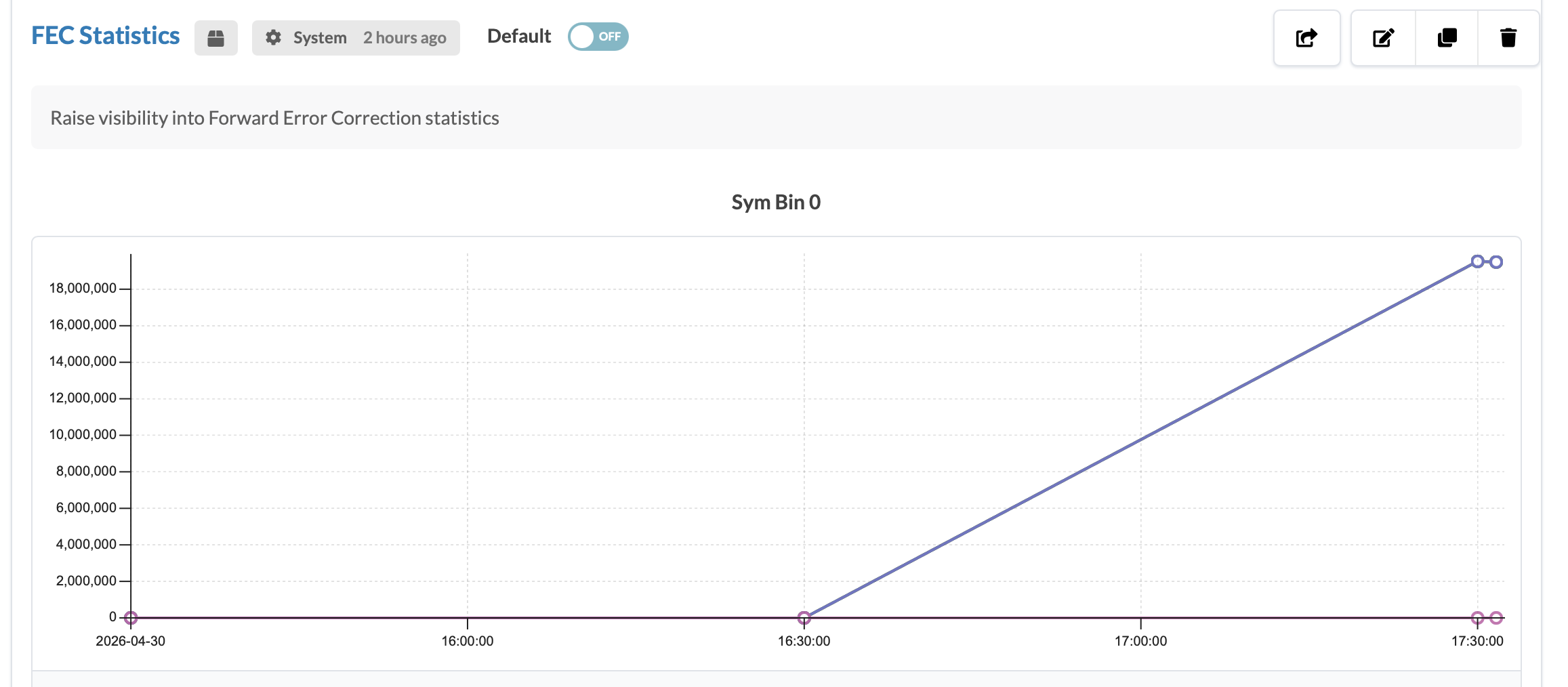

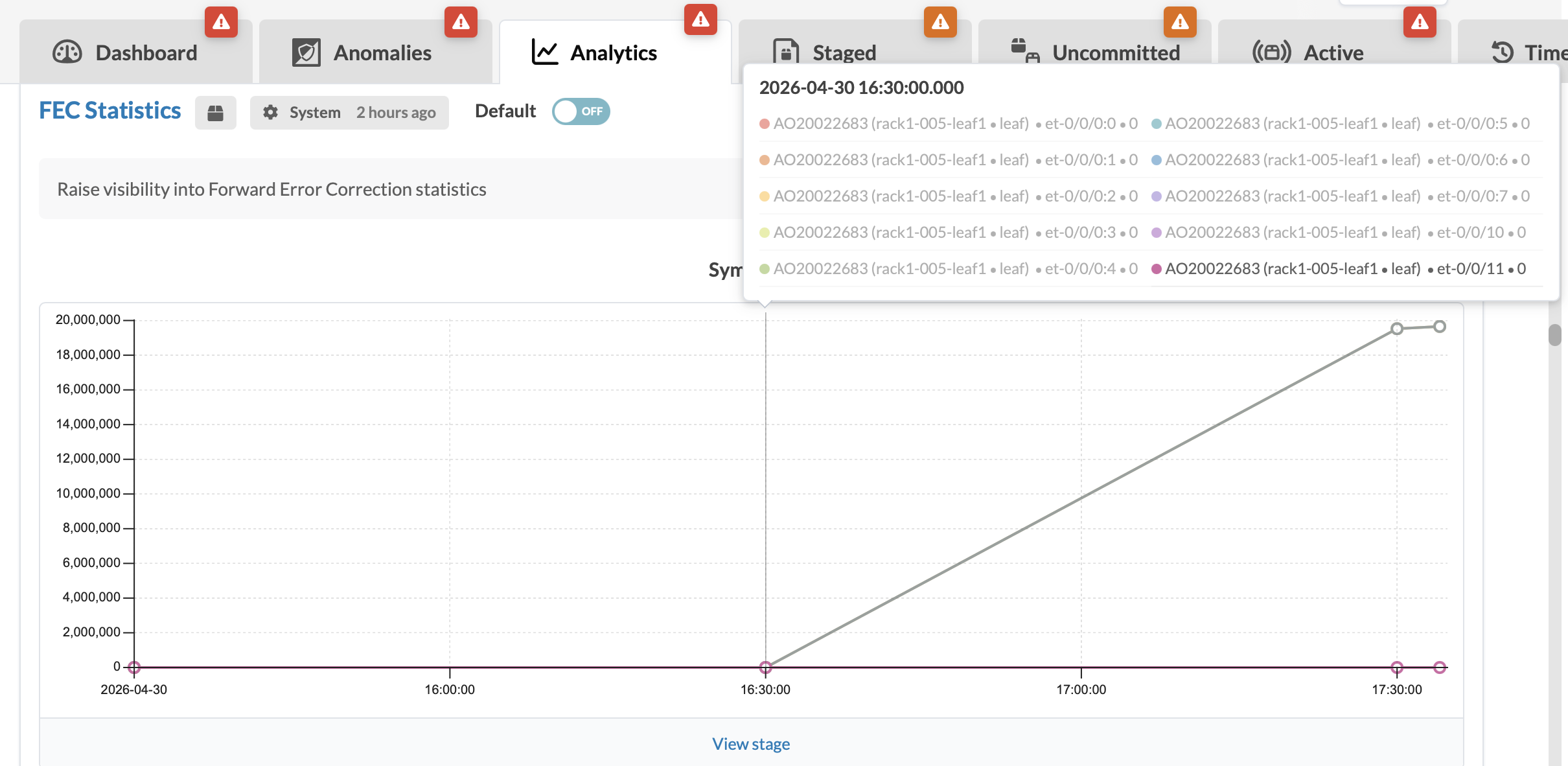

    Sym Bin 0 graph showing FEC statistics over time with a sharp rise from 0 to 18 million.Dashboard interface showing Forward Error Correction statistics with tabs, alert icons, a line graph of data trends over time, and a dropdown menu for selecting data sources or metrics.
