Mac Monitor Analytics Report

This topic provides an overview of the MAC Monitor Analytics report you can generate in the Apstra GUI. To learn how to generate this report, see Generate Analytics Report.

Overview of EVPN Type-2 Route Distribution

This topic analyzes EVPN Type-2 MAC address activity across the network. It highlights patterns in active and missing MAC address routes and their changes over time.

Active MAC Address Distribution

The Active MAC Address Distribution section shows how MAC addresses are distributed by Routing Zones (RZs) and Virtual Networks (VNs), offering an intuitive view of how MAC addresses are organized within the network fabric.

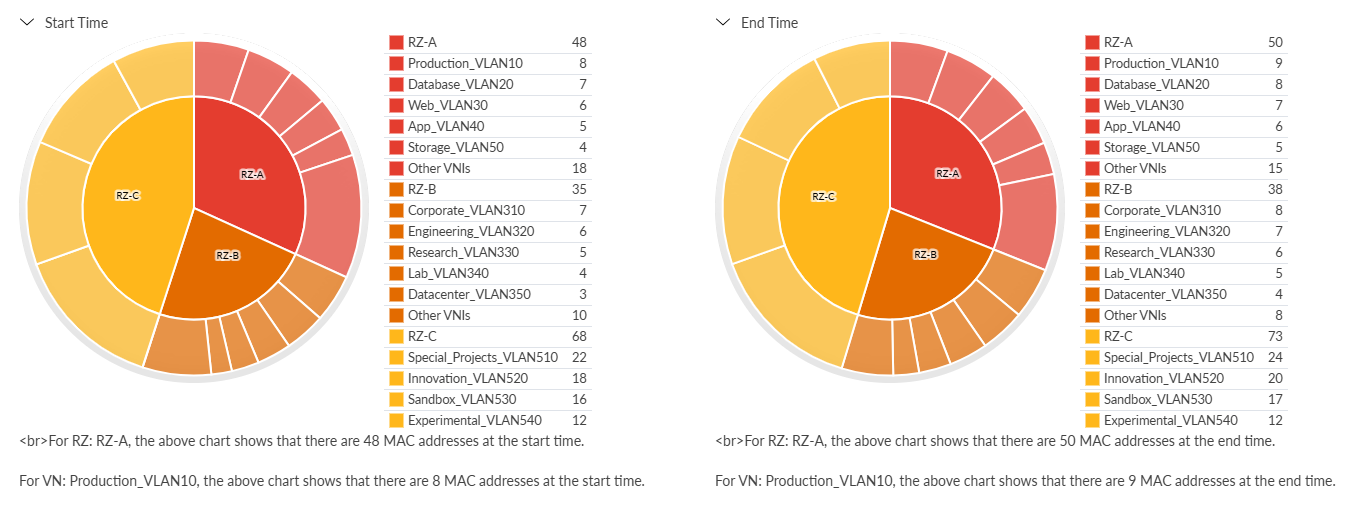

Figure 1 displays two sunburst charts: one for start time and another for end time. The charts show three routing zones: red (RZ-A), orange (RZ-B), and yellow (RZ-C). The inner ring shows the number of MAC addresses per routing zone, while the outer ring shows the number of MAC addresses per virtual network (VN). For example, Routing Zone: RZ-A has 48 MAC addresses at start time and 50 MAC addresses at end time. PRODUCTION_VLAN10 has 8 MAC addresses at start time and 9 MAC addresses at end time.

Figure 1: Active Mac Address Sunburst Chart Active Mac Address Sunburst Chart

Virtual Growth Over Time for Top 25 Virtual Networks

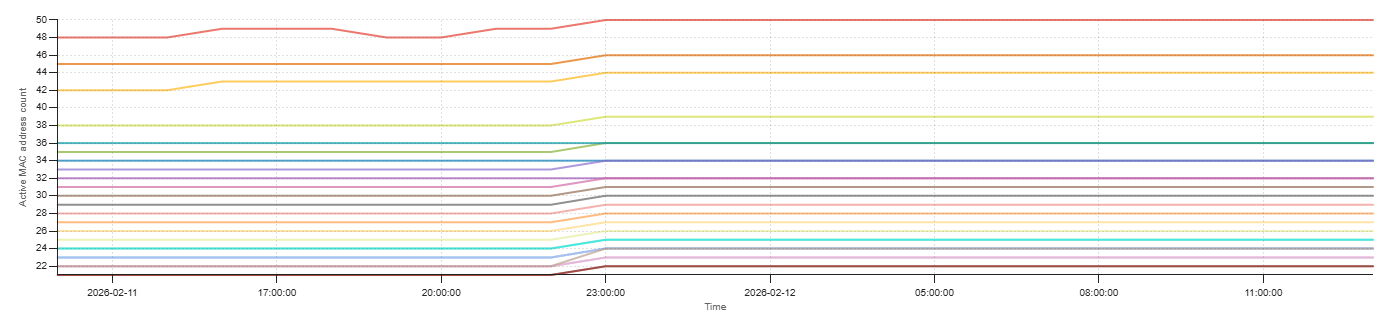

This section tracks MAC address changes across Routing Zones (RZs) and helps you identify expanding or contracting virtual networks based on MAC activity. The line chart in Figure 2 illustrates the virtual network's growth over time. This example highlights the top 25 networks based on MAC address count.

Figure 2: Virtual Growth Over Time Report Virtual Growth Over Time Report

Virtual Networks Size Comparison by Routing Zone

This section compares MAC address counts between each virtual network for each routing zone.

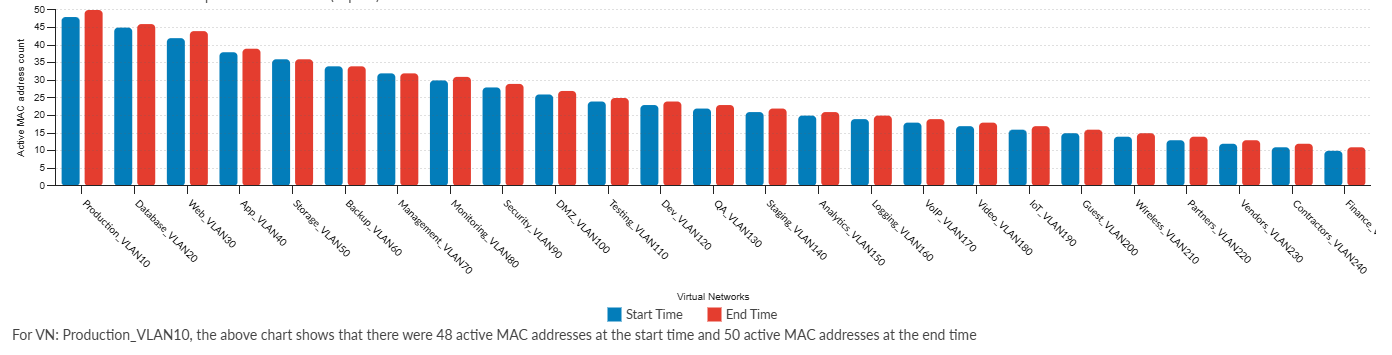

  • The bar chart in Figure 3 shows MAC address counts for VN: PRODUCTION_VLAN10, beginning with 48 active MAC addresses and ending with 50.

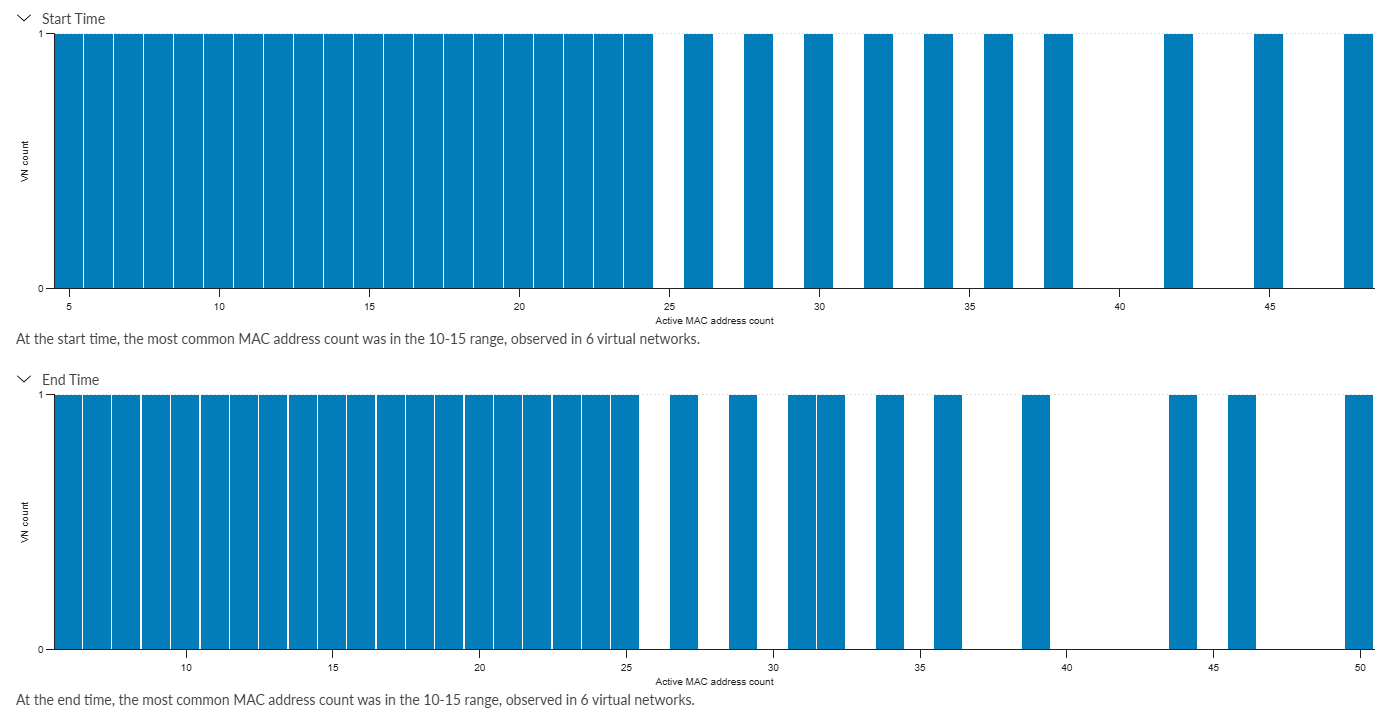

  • The histogram in Figure 4 shows MAC address count distribution across all virtual networks in RZ-A and the number of networks in various count ranges. At both start and end times, 6 virtual networks had MAC address counts in the 10-15 range.

This example uses Routing Zone: A, however the process applies to all routing zones

Figure 3: Active MAC Address Counts (RZ-A) Active MAC Address Counts (RZ-A)
Figure 4: Example: Histogram for RZ-A Example: Histogram for RZ-A

Active MAC Address Distribution Across Devices (Top 3 VN)

This section explains the distribution of active MAC addresses across the top 3 VNs and devices. A histogram illustrates this distribution for the selected routing zone and virtual network.

  • The x-axis shows the number of active MAC addresses learned on a device.

  • The y-axis indicates how many devices fall into each MAC address count range.

The Top 3 VNs are chosen based on the highest nonzero active MAC address count at the user-selected time.

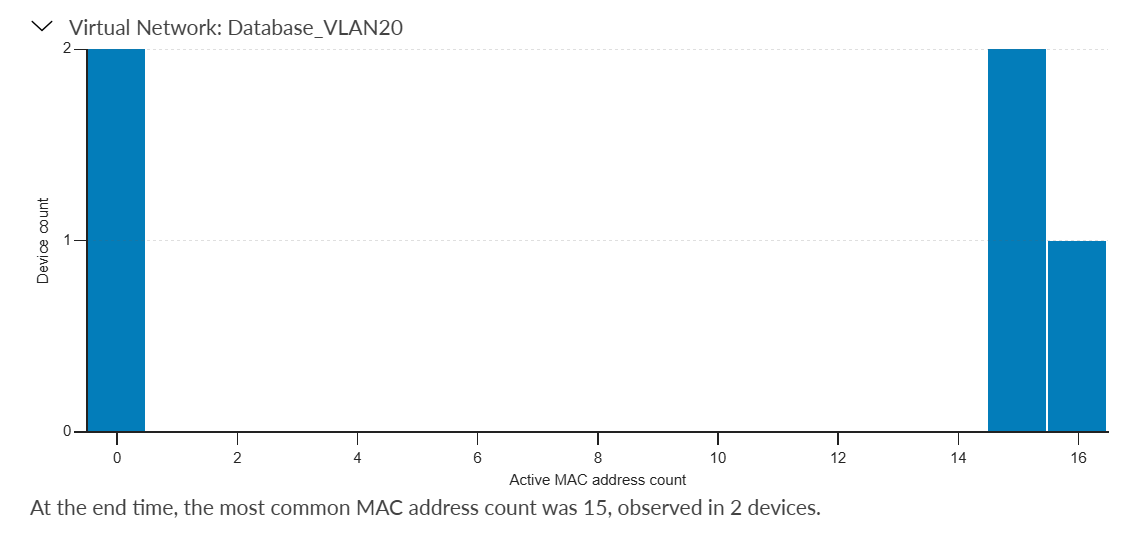

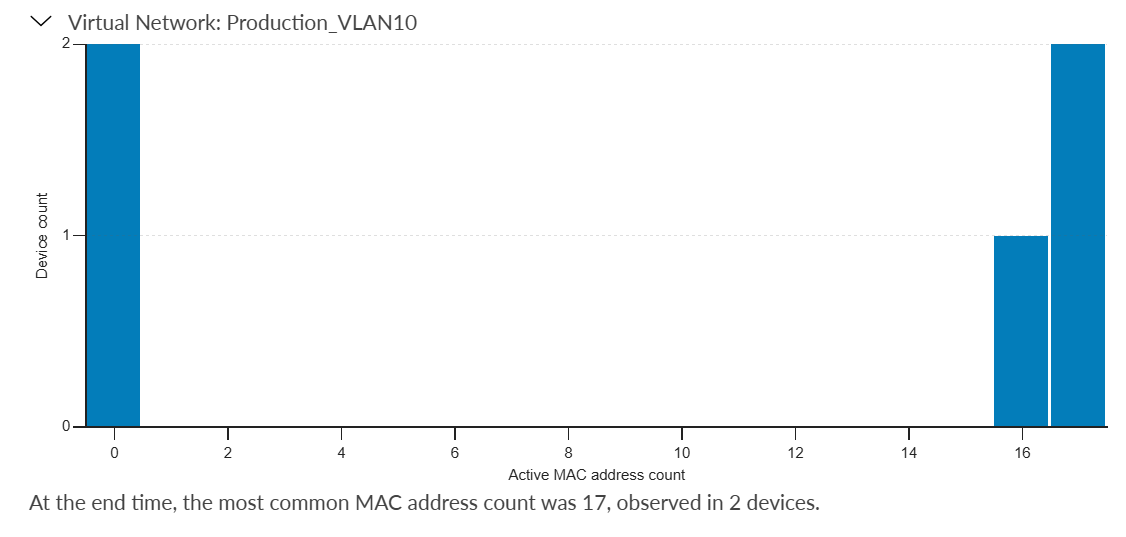

For example: Figure 5 shows a histogram for Routing Zone: A. Production_VLAN10 has 17 MAC addresses in two devices at end time. Database_VLAN20 has 15 MAC addresses in two devices at end time.

Figure 5: Example: Active MAC Address Distribution (RZ-A) Example: Active MAC Address Distribution (RZ-A) Example: Active MAC Address Distribution (RZ-A)

Missing MAC Count Observation

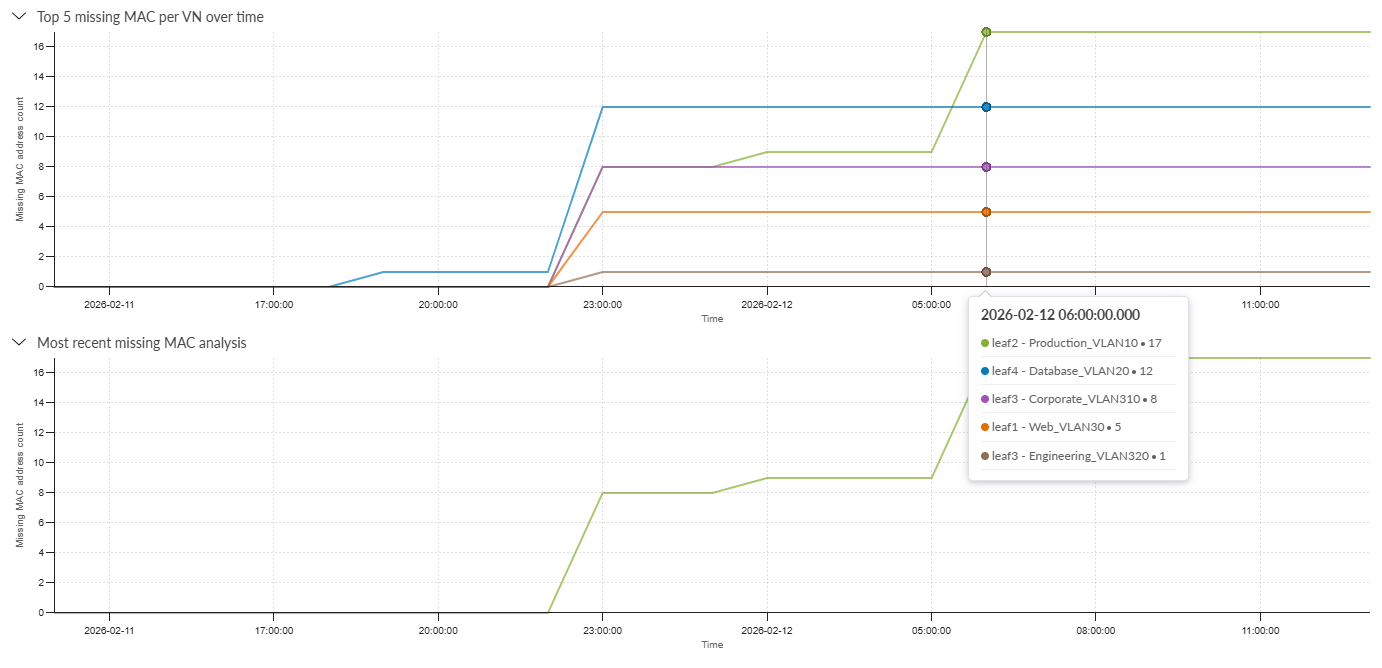

This section tracks virtual networks with missing MAC addresses and their progression over time. It highlights the top five virtual networks with the most missing MAC entries. Figure 6 shows an example. You can hover over the chart to see the details for each VLAN. The second line chart shows the virtual network where the most recent missing MAC was found.

Figure 6: Missing MAC Addresses Missing MAC Addresses

Active and Missing MAC Address Counts

This section identifies devices with possible MAC address propagation issues. A heatmap shows missing MAC proportions between device pairs for the top 5 virtual networks. Each cell shows the fraction of missing MACs relative to the total expected MAC count for the source device. Higher values indicate more missing MACs. The heatmap uses the first snapshot data available after the user-defined start time.

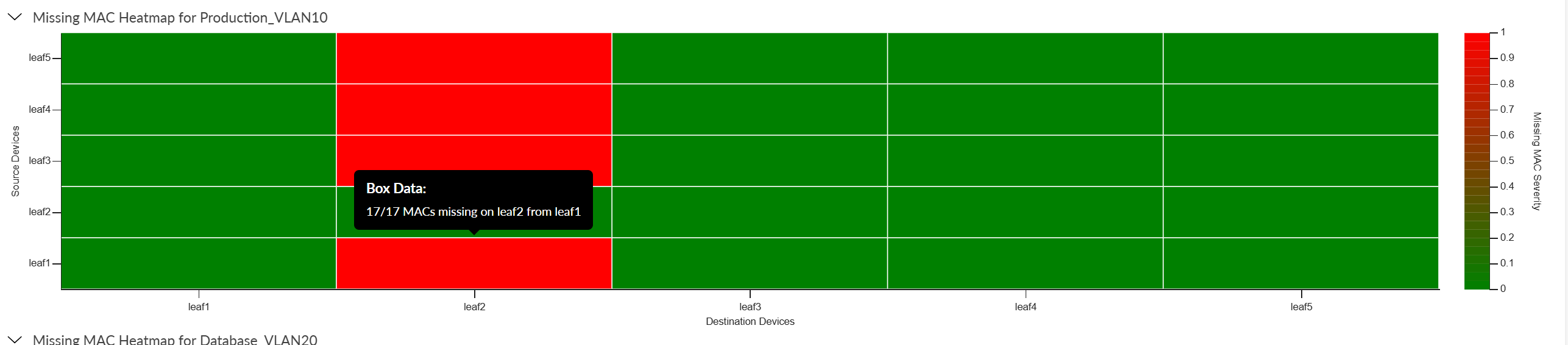

Figure 7 shows a heatmap for Production_VLAN10. In this example, 17 MAC addresses are missing on leaf2 (destination) from leaf1, leaf3, leaf4 and leaf5 (source leaf devices). This pattern indicates a potential MAC propagation issue on leaf2 in Production_VLAN10. Communication between other device pairs remains largely green, indicating healthy MAC distribution.

Figure 7: Example: Missing MAC Heatmap (Production_VLAN10) Example: Missing MAC Heatmap (Production_VLAN10)
