ON THIS PAGE


Nodes (Active)

Active Nodes Overview

From the blueprint, navigate to Active > Physical > Nodes to go to nodes in the active topology. You can select which details to display in the table (from table settings). To see additional details (such as telemetry, properties, tags and virtual) for a specific node, select it, then the right panel displays tabs with more information.

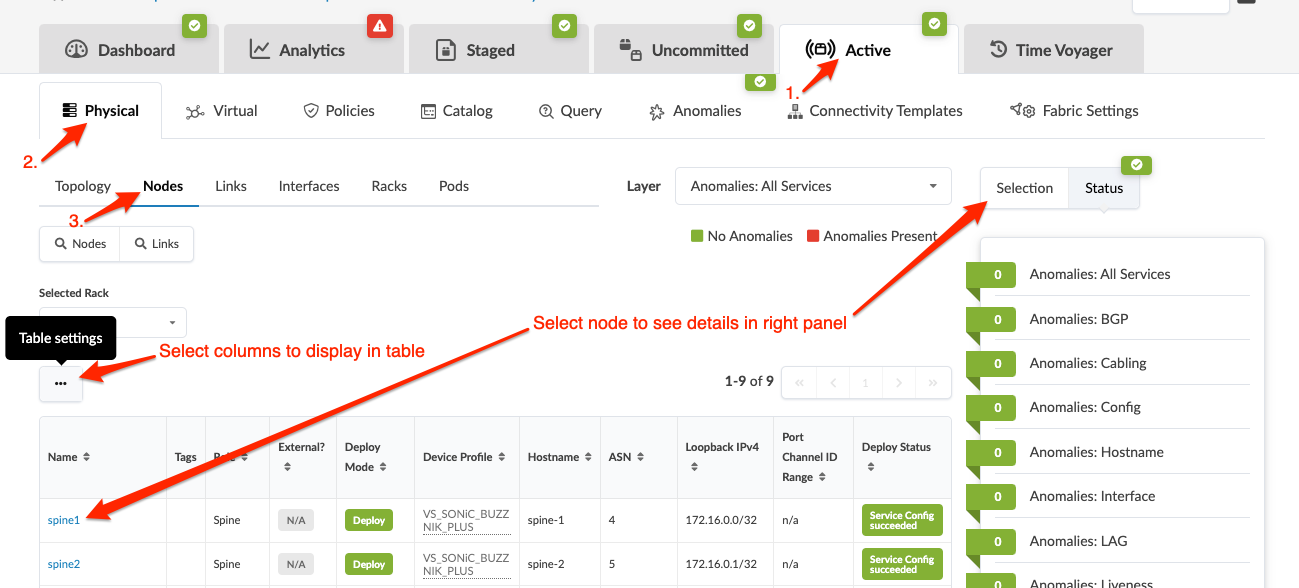

Network management interface screenshot showing Active status in Physical mode. Nodes tab selected; displays node table with deployment status. Right panel shows anomaly statistics, all at zero.

Apply Full Config

CAUTION:

Applying a full config is a disruptive operation and results in a temporary loss of service to the device. For information about when to apply a full config, see Anomalies - Configuration Deviation.
  1. From the blueprint, navigate to Active > Physical > Nodes and select the device.
  2. From the selection panel (right-side) click Device, then click Rendered, Incremental, or Pristine to review the different configurations.
  3. Click Apply Full Config.
