Add/Remove Interface Tags (Datacenter)

You can add tags to interfaces in a few different ways and use them for configuration.

Update Tags on One Interface (Topology Neighbors View)

To update tags on a single interface from the Topology Neighbors view using the GUI:
  1. From the blueprint, navigate to Staged > Physical > Topology and select the leaf with the interface to tag. In our example, we've selected leaf3.
    The topology selection view appears.
  2. From the Neighbors view (default view), select the interface check box to see the operations available for that interface (and that you have permissions for).
  3. Click Edit interface tags.
    The Add/Remove Tags dialog opens.

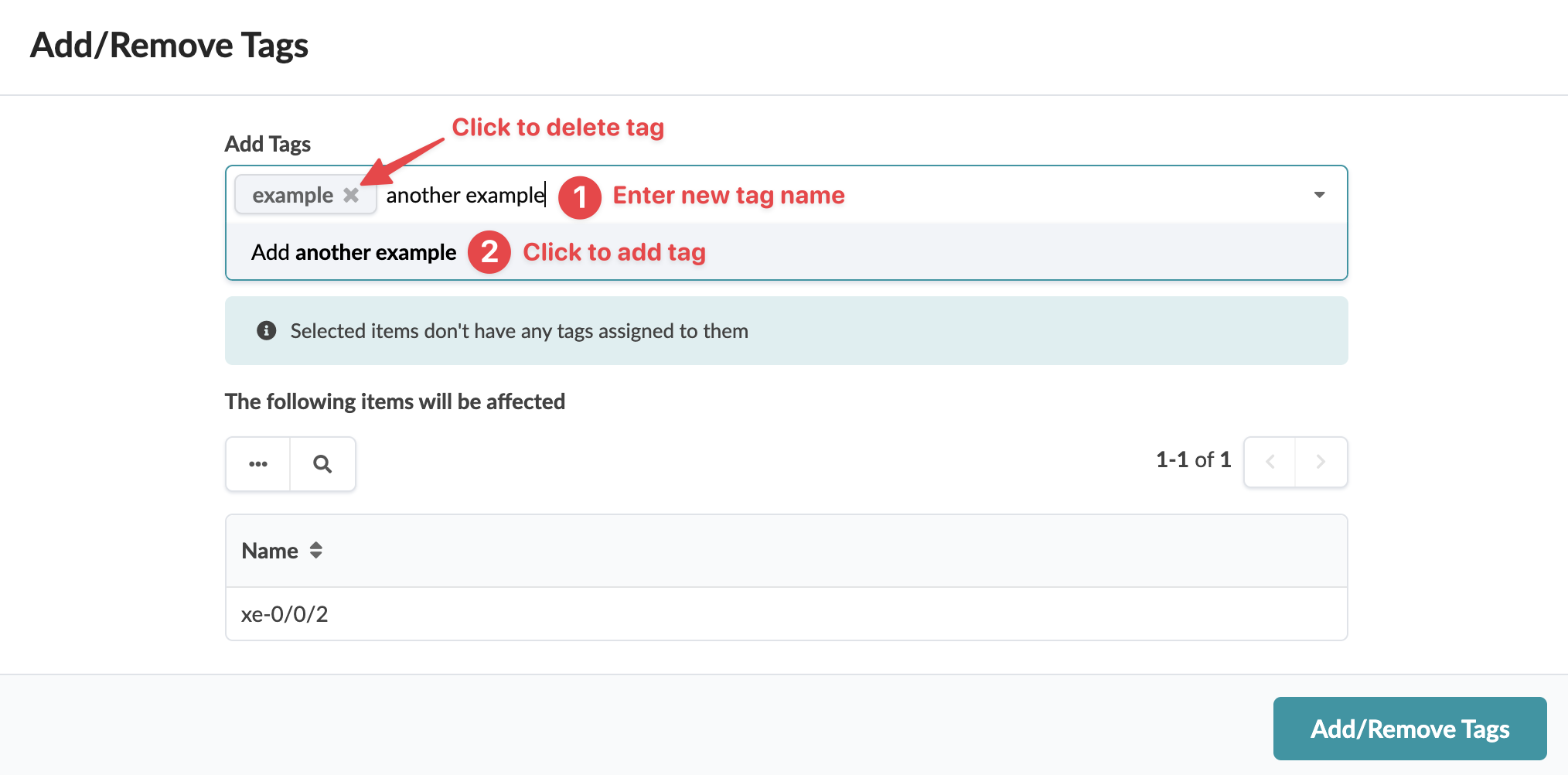

  4. Add and/or remove tags, as needed. You can create tags from here; they'll be tagged to the link and added to the blueprint catalog.
  5. Click Add/Remove Tags.
The updates are staged and you're returned to the Topology Selection view.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.

Update Tags on One Interface (Interfaces Table)

To update tags on a single interface from the Interfaces table using the GUI:

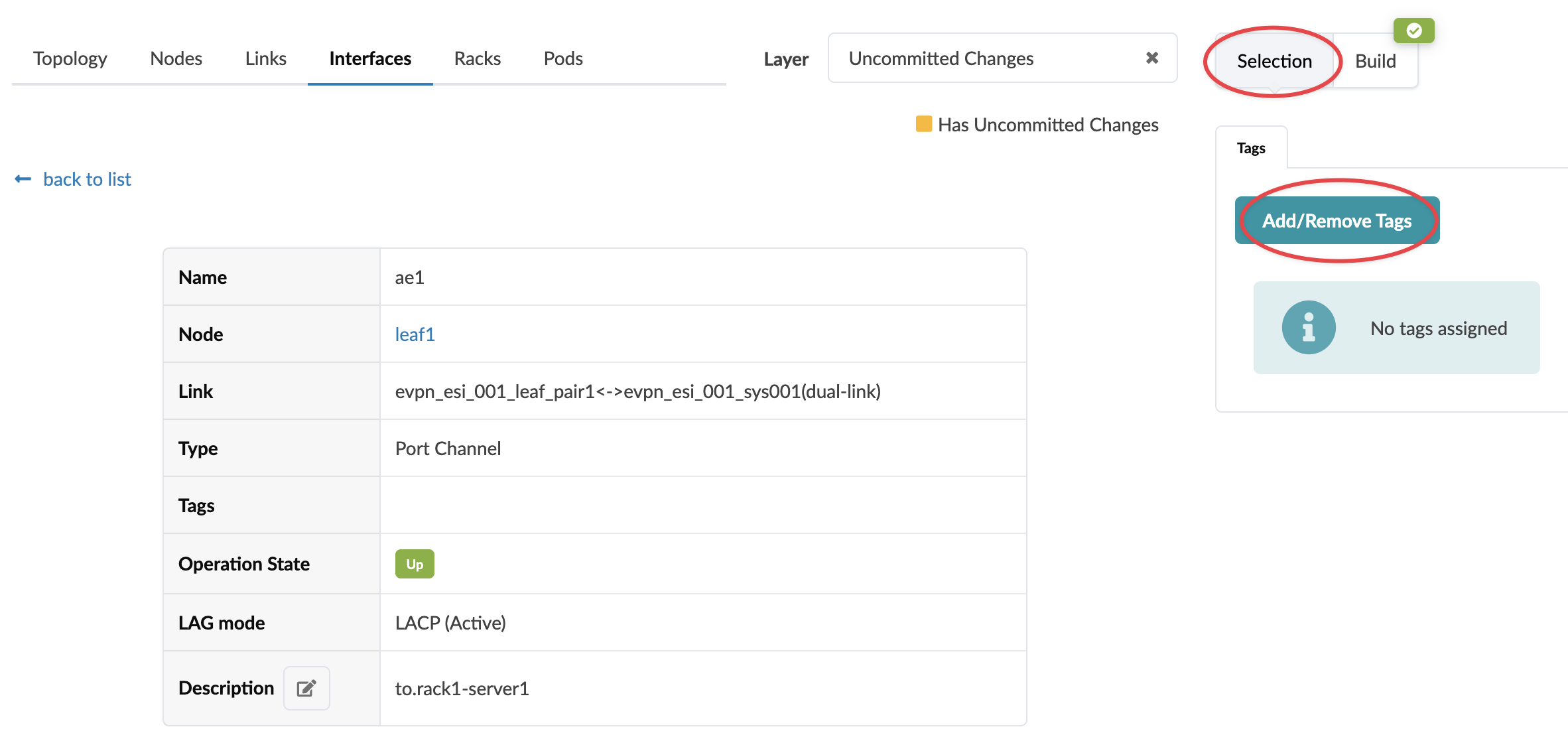

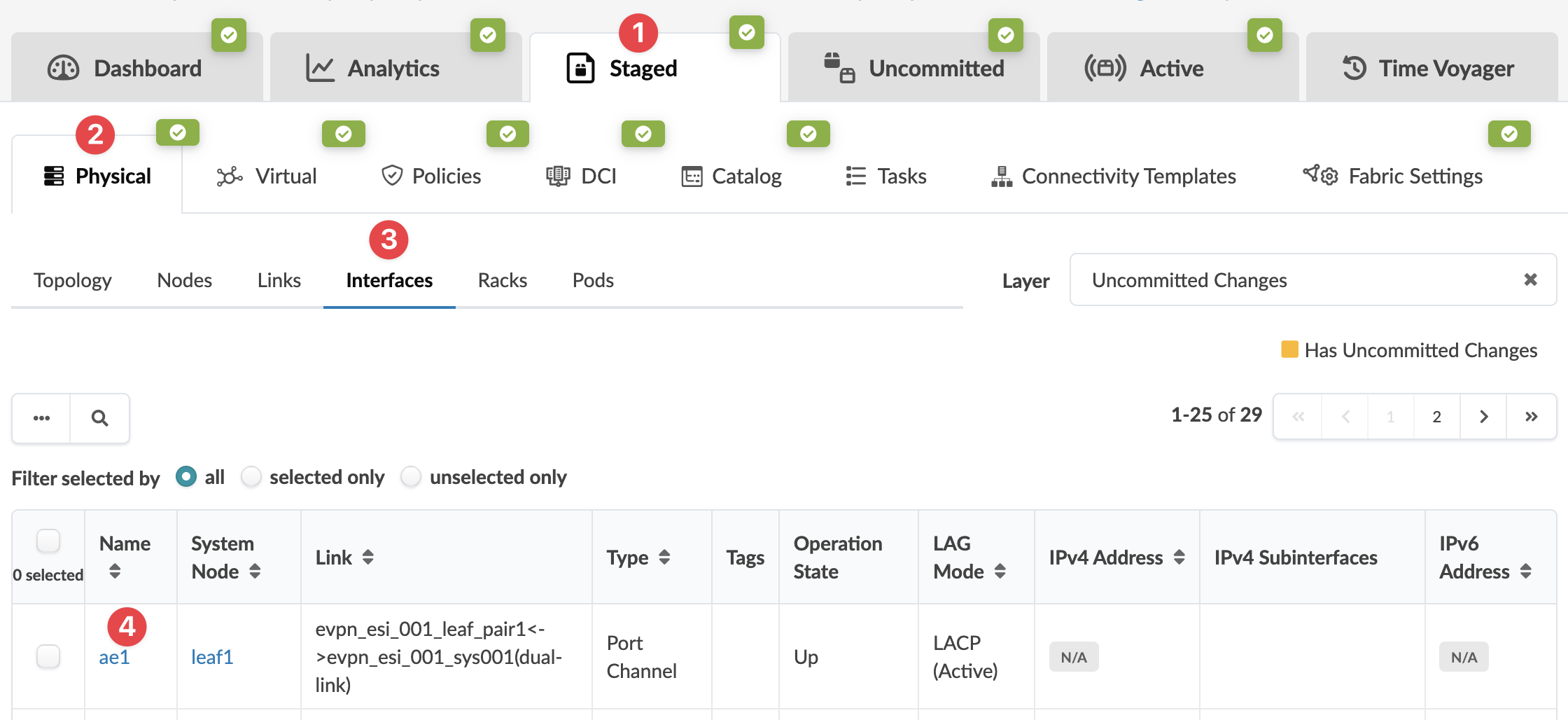

  1. From the blueprint, navigate to Staged > Physical > Interfaces and select the interface name (not the check box) for the interface that needs updated tags.
    The interface selection view appears, including tag information in the right Selection panel.
  2. Click Add / Remove Tags in the panel.
    The Update Tags dialog opens.
  3. Add and/or remove tags, as needed. You can create tags from here; they'll be tagged to the link and added to the blueprint catalog.
  4. Click Update Tags.
The updates are staged and you're returned to the interface selection view.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.

Update Tags on One or More Interfaces (Topology Interfaces View)

To update tags on one or more interfaces from the Topology Interfaces view using the GUI:

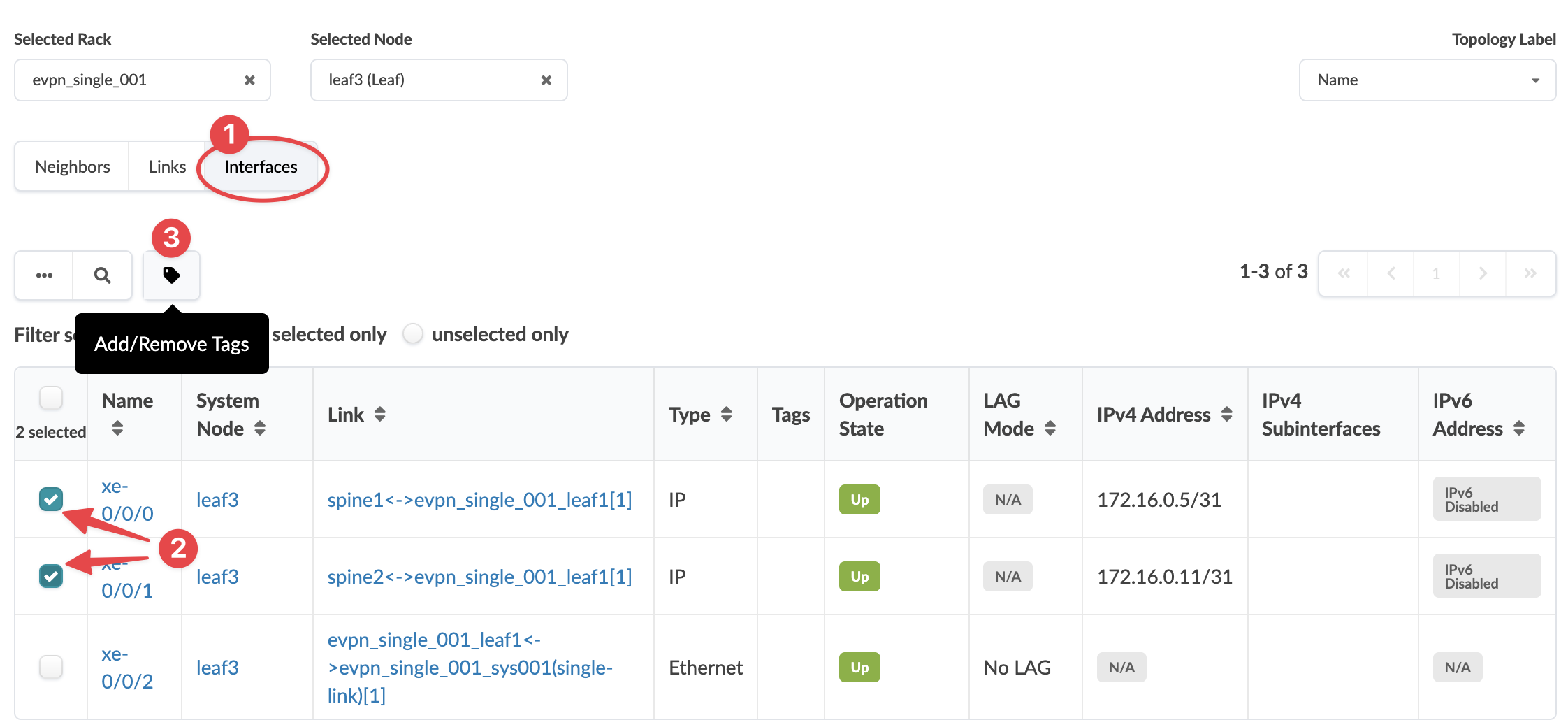

  1. From the blueprint, navigate to Staged > Physical > Topology and select the leaf with the interface to tag. In our example, we've selected leaf3.
  2. Click Interfaces view, then select one or more check boxes for the interface(s) that need updated tags.The Add/Remove Tags button appears above the table.
  3. Click Add/Remove Tags button.
    The Add/Remove Tags dialog opens.

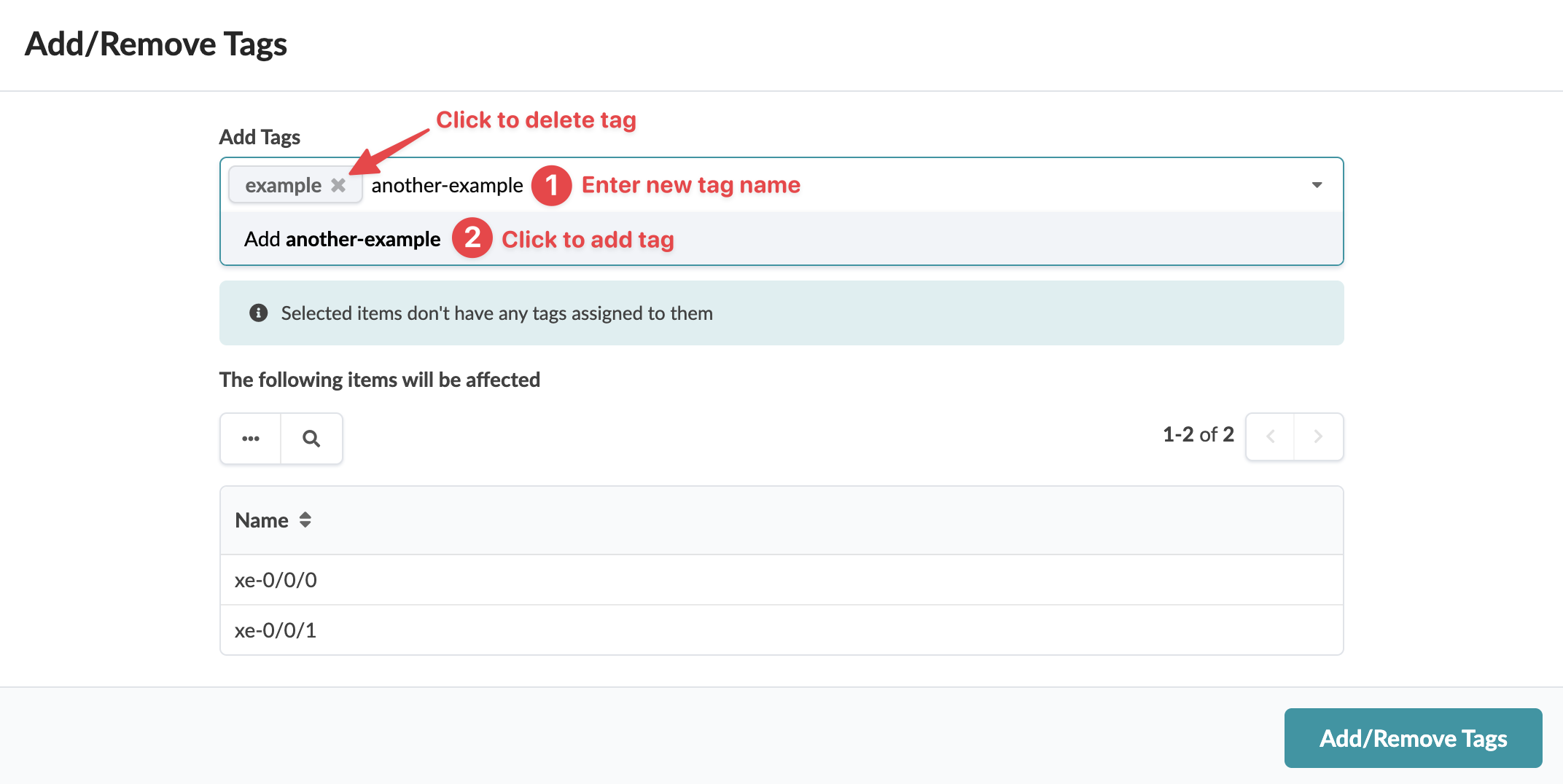

  4. Add and/or remove tags, as needed. You can create tags from here; they'll be tagged to the link and added to the blueprint catalog.
  5. Click Add/Remove Tags.
The updates are staged and you're returned to the Interface Selection view.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.

Update Tags on One or More Interfaces (Interfaces Table)

To update tags on one or more interfaces from the Interfaces table using the GUI:

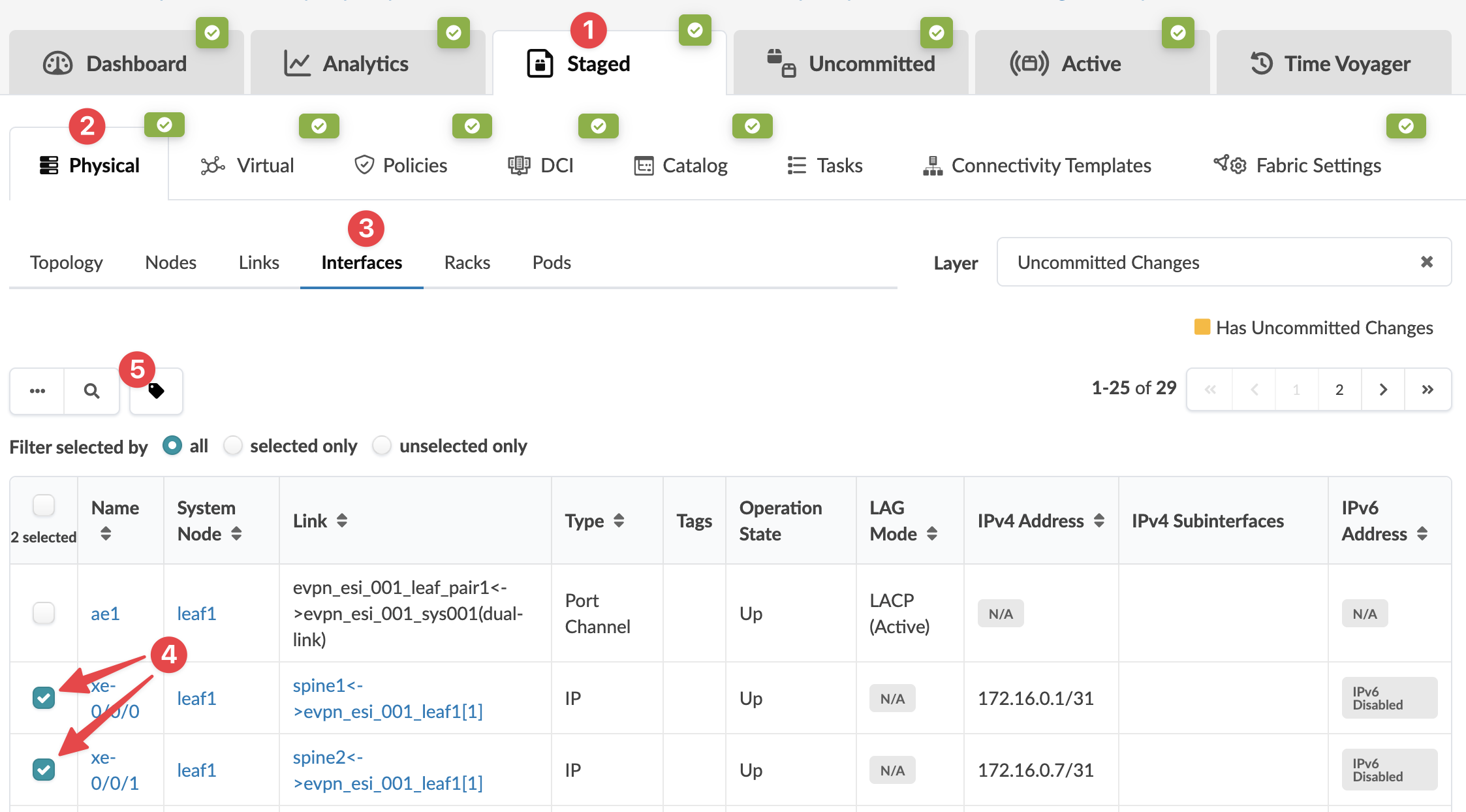

  1. From the blueprint, navigate to Staged > Physical > Interfaces, select one or more check boxes for the interface(s) that need updated tags. The Add/Remove Tags button appears above the table.
  2. Click the Add/Remove Tags button.
    The Add/Remove Tags dialog opens.
  3. Add and/or remove tags, as needed. You can create tags from here; they'll be tagged to the link and added to the blueprint catalog.
  4. Click Add/Remove Tags.
The updates are staged and you're returned to the Interfaces table.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.
