Create Blueprint Analytics Dashboard

You can create your own dashboards to display custom information from IBA probes and stages.

Some probes and dashboards are automatically created to give you immediate value. The probes auto-adjust based on the state of the blueprint (examples: undeployed or unassigned device, addition or removal of virtual infra managers). You can also create your own dashboards to display custom information from IBA probes and stages.

You can create a dashboard by manually adding widgets or by cloning an existing dashboard and customizing it.

Create New Dashboard

To create a blueprint analytics dashboard using the GUI:

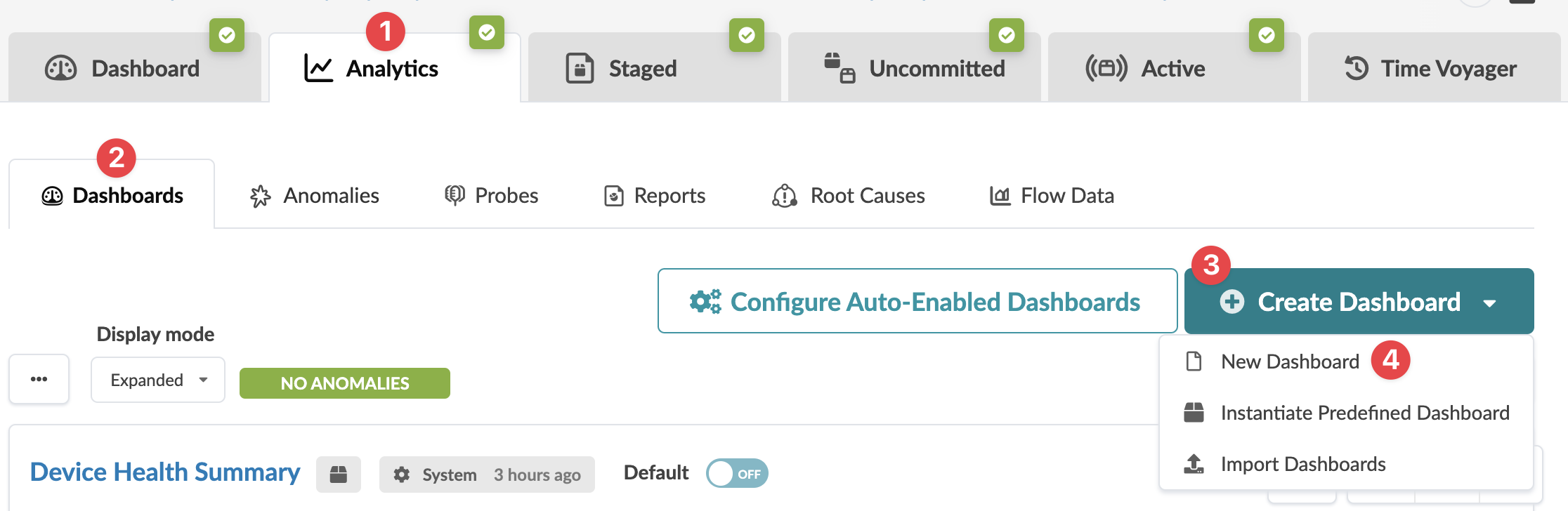

  1. From the blueprint, navigate to Analytics > Dashboards, click Create Dashboard, then select New Dashboard from the drop-down list.

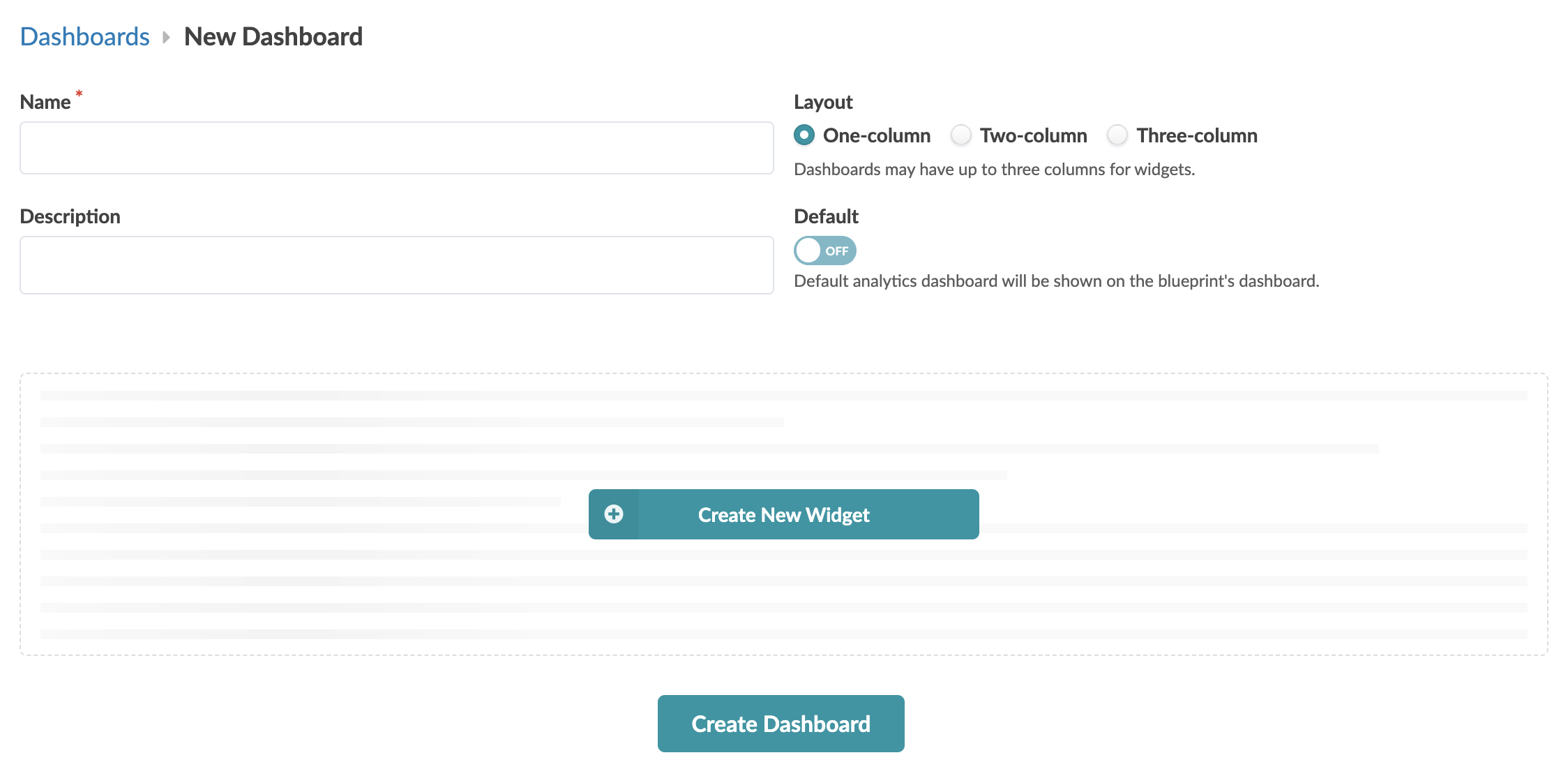

    The New Dashboard page opens.
  2. Enter a unique name and (optional) description.
  3. Select a layout (one-column, two-column, three-column) and if you want the dashboard to appear on the blueprint Dashboard tab, toggle on Default.
  4. Click Create New Widget.

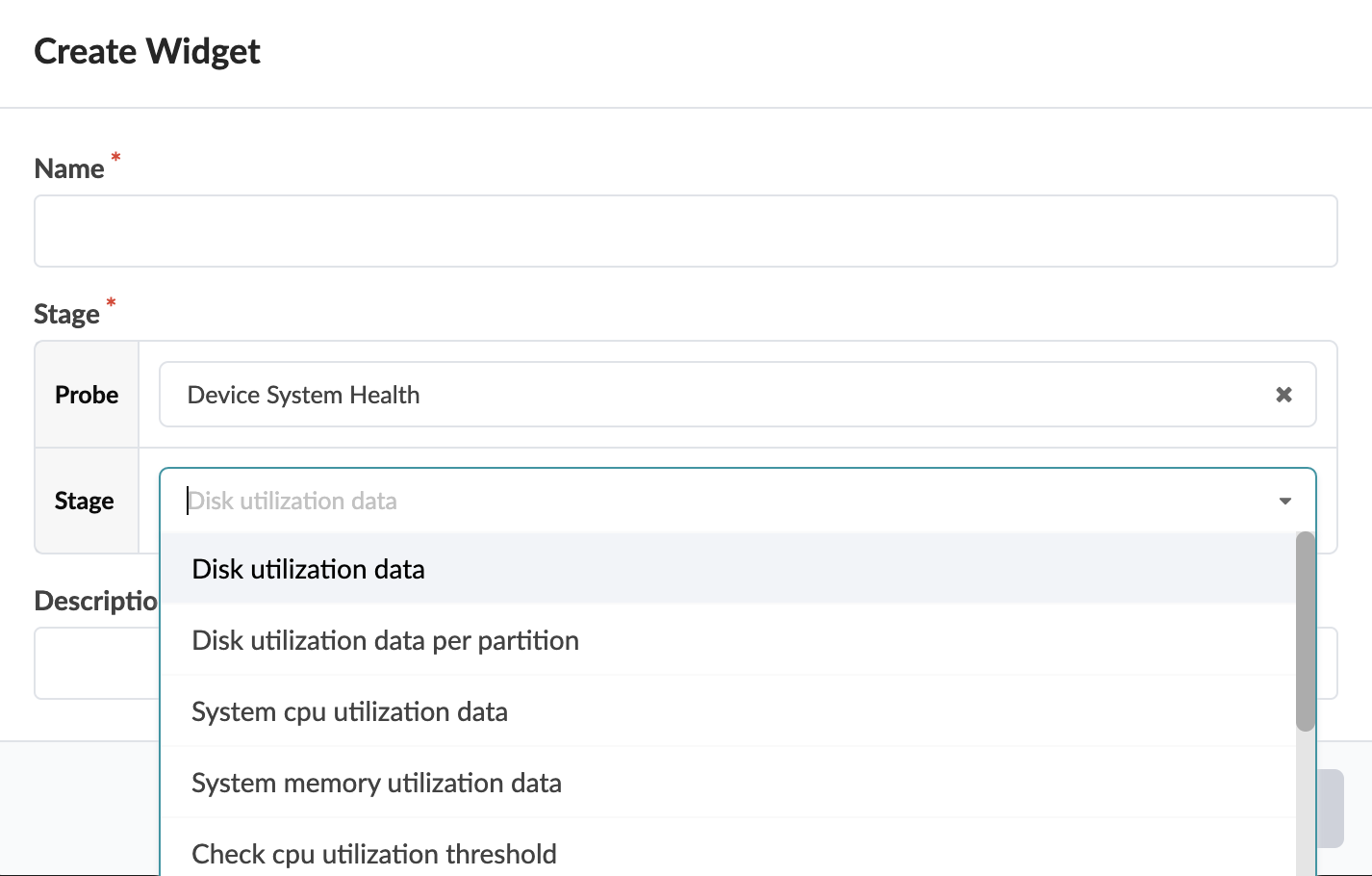

    The Create Widget dialog opens.
  5. Enter a widget name, select a probe and one of its stages from the drop-down lists, then customize details as needed.
  6. Add additional widgets in the same manner as above, as needed.
  7. Click Create Dashboard.

    A large dashboard may take some time to create. You can monitor the status at the bottom of the screen under Active Tasks.

The dashboard is created and you're taken to the details view of the new dashboard.

Clone Existing Dashboard

To copy an existing dashboard using the GUI:

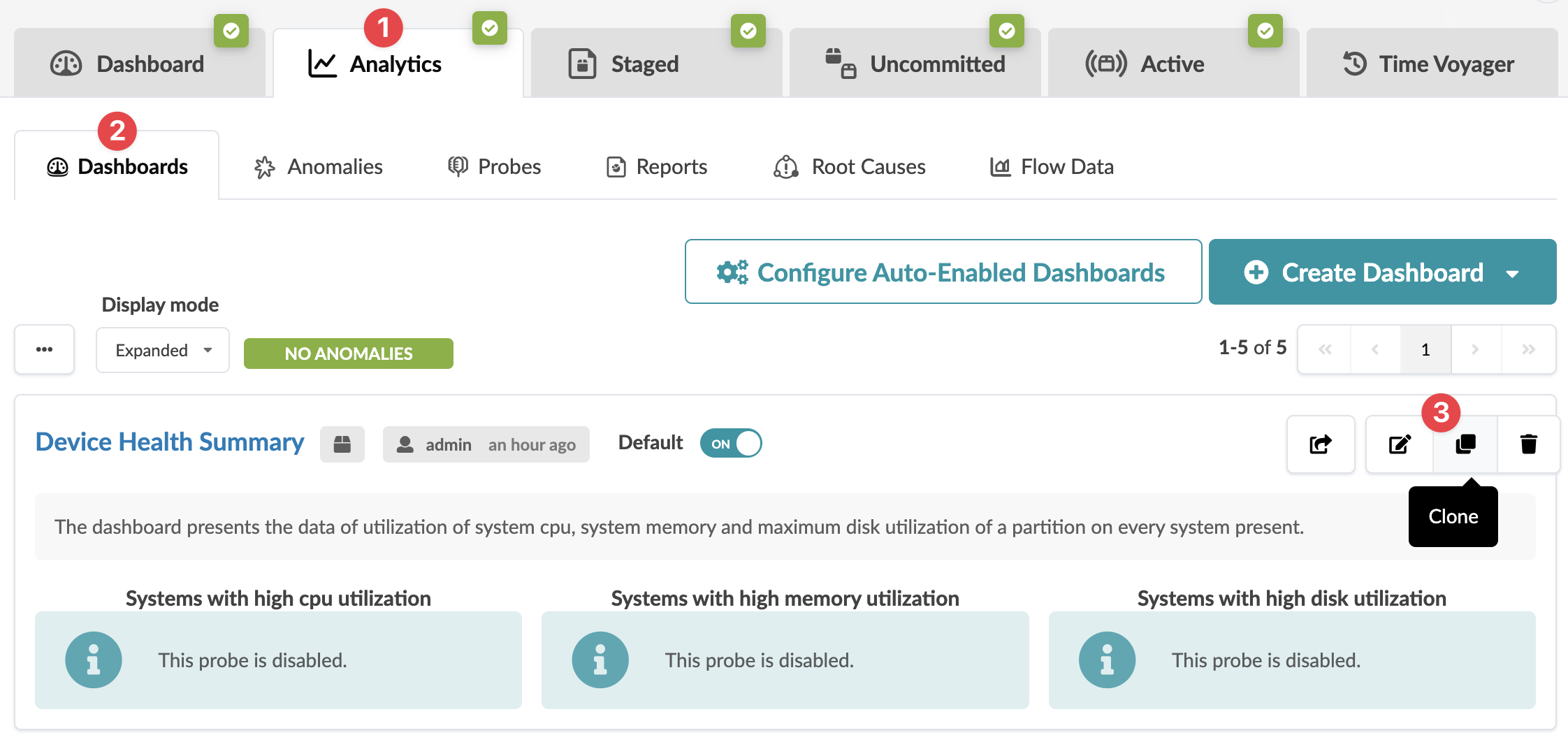

  1. From the blueprint, navigate to Analytics > Dashboard and click the Clone button (top-right of dashboard) for the dashboard to copy.
    The Clone page for the selected dashboard opens.
  2. The dashboard name must be unique. Make your changes to customize the copied dashboard by creating, editing and/or removing widgets. Various other fields can be changed as well.
  3. Click Create Dashboard.

    A large dashboard may take some time to create. You can monitor the status at the bottom of the screen under Active Tasks.

The dashboard is created and you're taken to the details view of the new dashboard.
