Edit Device Properties (Datacenter)

You can change device properties such as name, interface map, ASN, and loopback IP, depending on the node chosen.

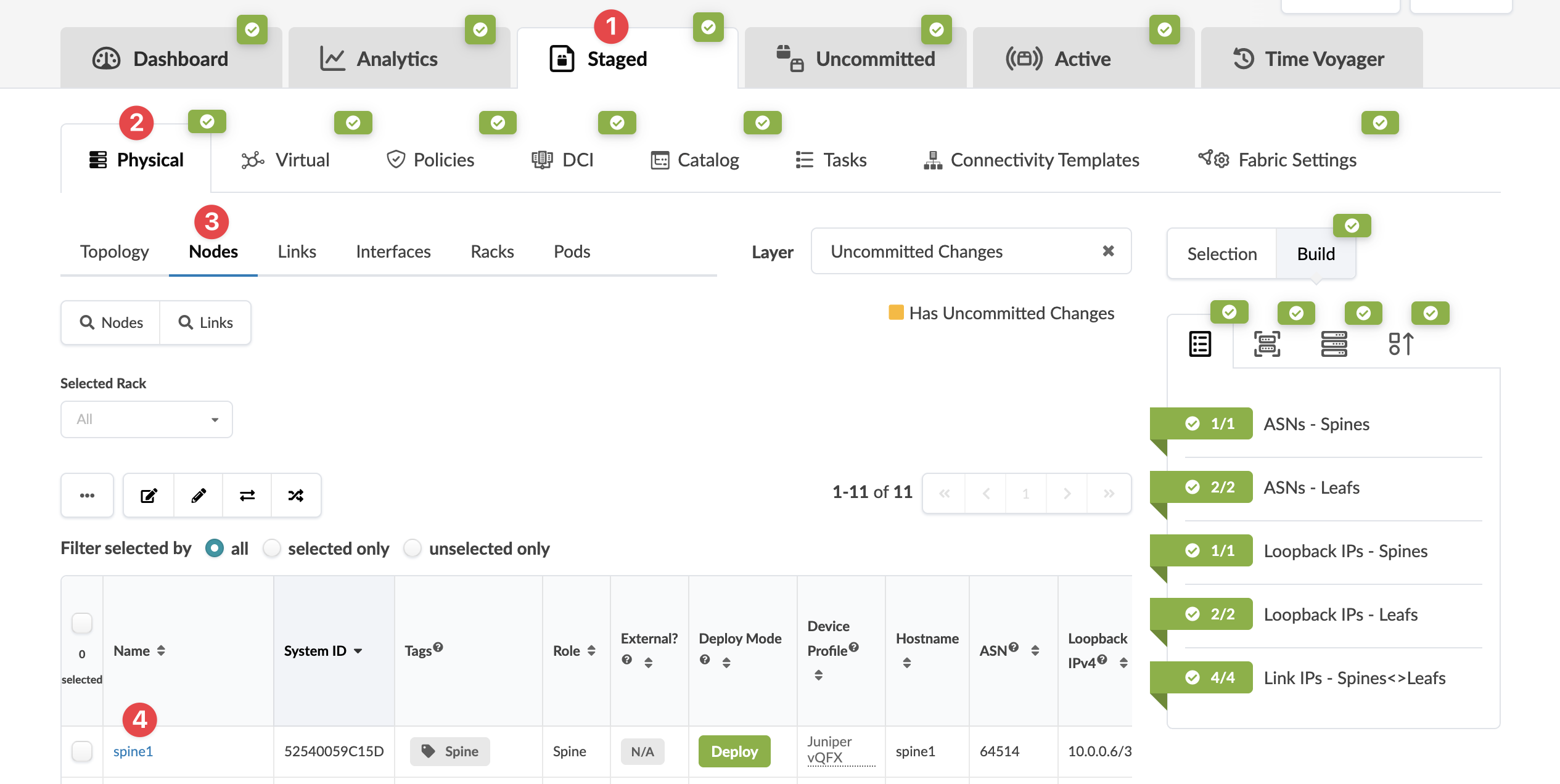

1. From the blueprint, navigate to Staged > Physical > Nodes and select a node name (not the check box).

   The Topology selection view appears.

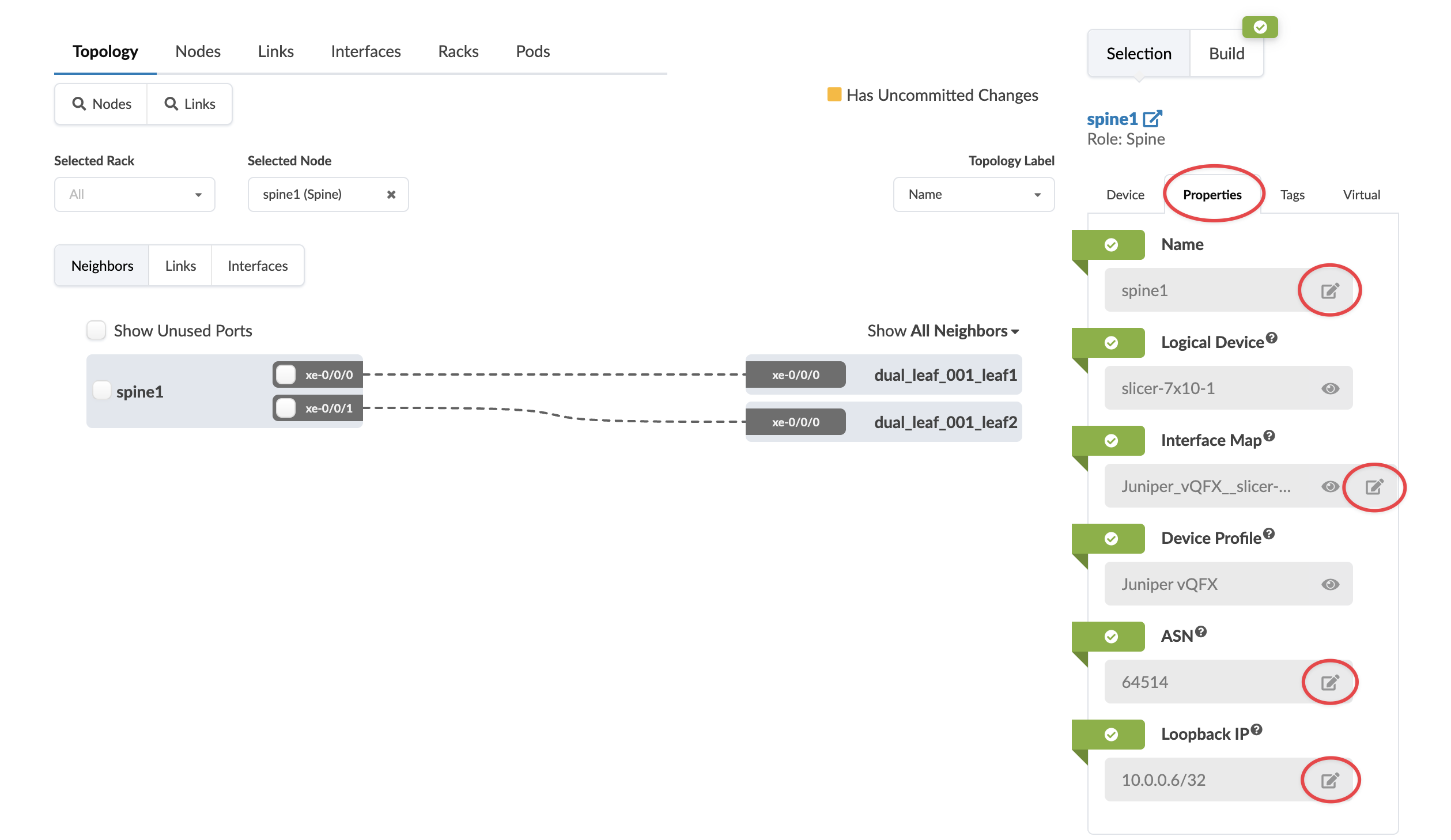

2. Click the Properties tab in the right Selection panel.

   The Properties tab and its contents appear.
3. You can change device properties such as name (must be changed to a unique name), interface map, ASN, and loopback IP, depending on the node chosen. The attributes that can be edited have an Edit button associated with them. Change properties as applicable.
   Note:

   If you changed leaf names in a leaf pair, the leaf pair name does not change. You can manually change the leaf pair name to correspond with the new leaf names. This is especially useful when assigning leaf pairs when you create virtual networks.

4. Click the Save button.
