Create Link in LAG

You can add a link between a LAG and a generic system.

To create a link in a LAG using the GUI:

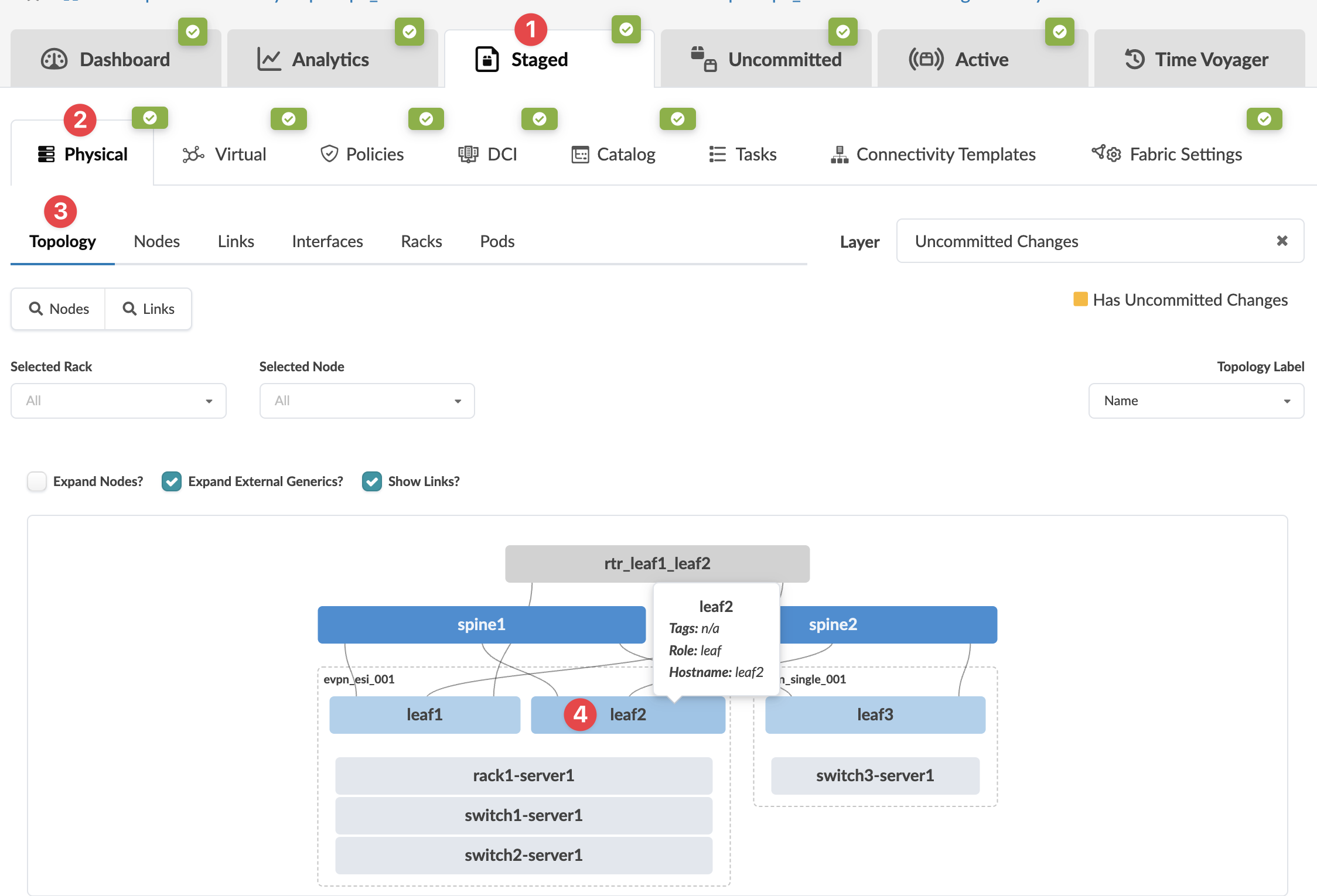

  1. From the blueprint, navigate to Staged > Physical > Topology and select a leaf that is part of a LAG. (Alternatively, you can click the leaf name from the Nodes table at Staged > Physical > Nodes.)
    The Topology selection view appears.

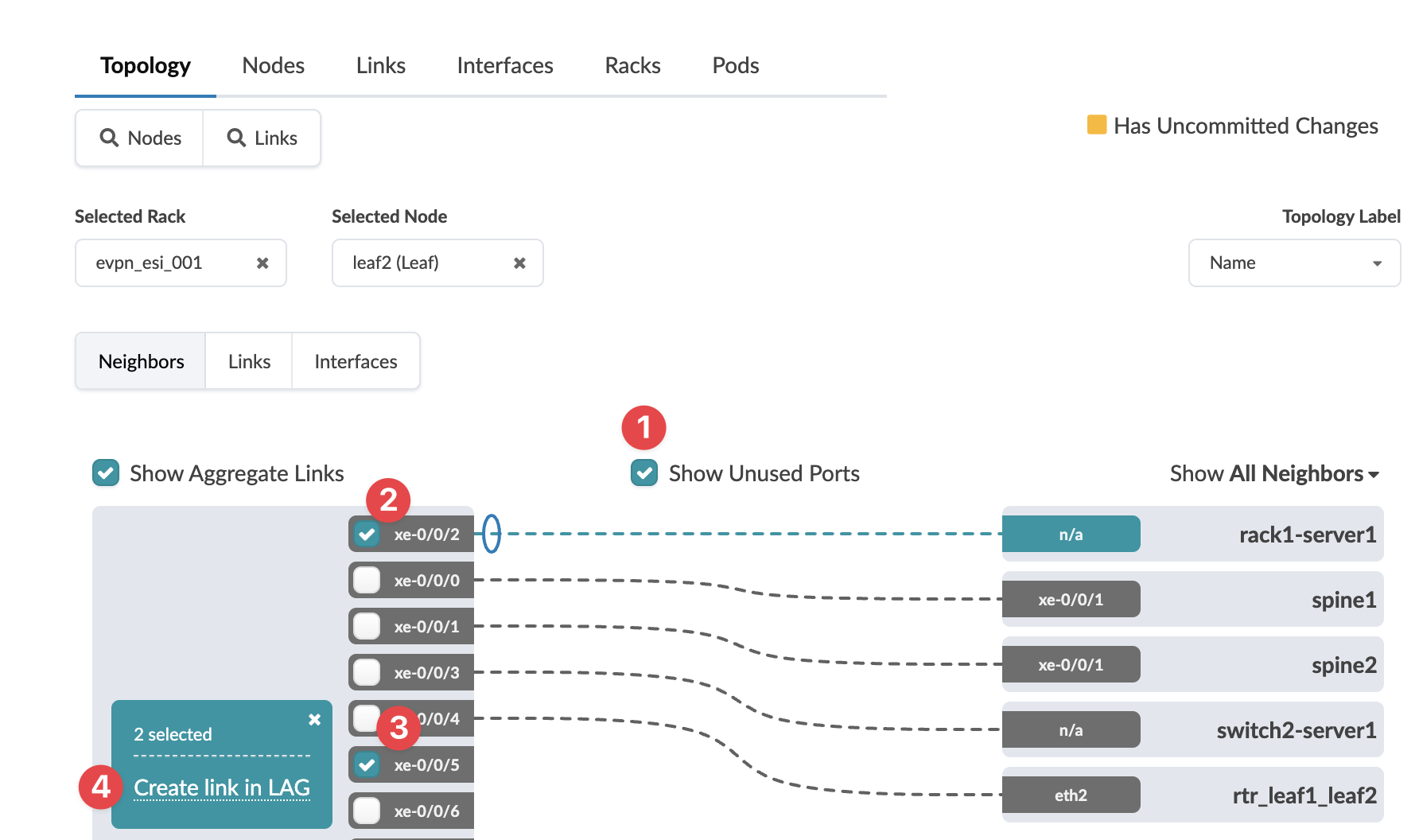

  2. Check the Show Unused Ports check box, select a LAG interface and one of the unused port interfaces, then click Create link in LAG.

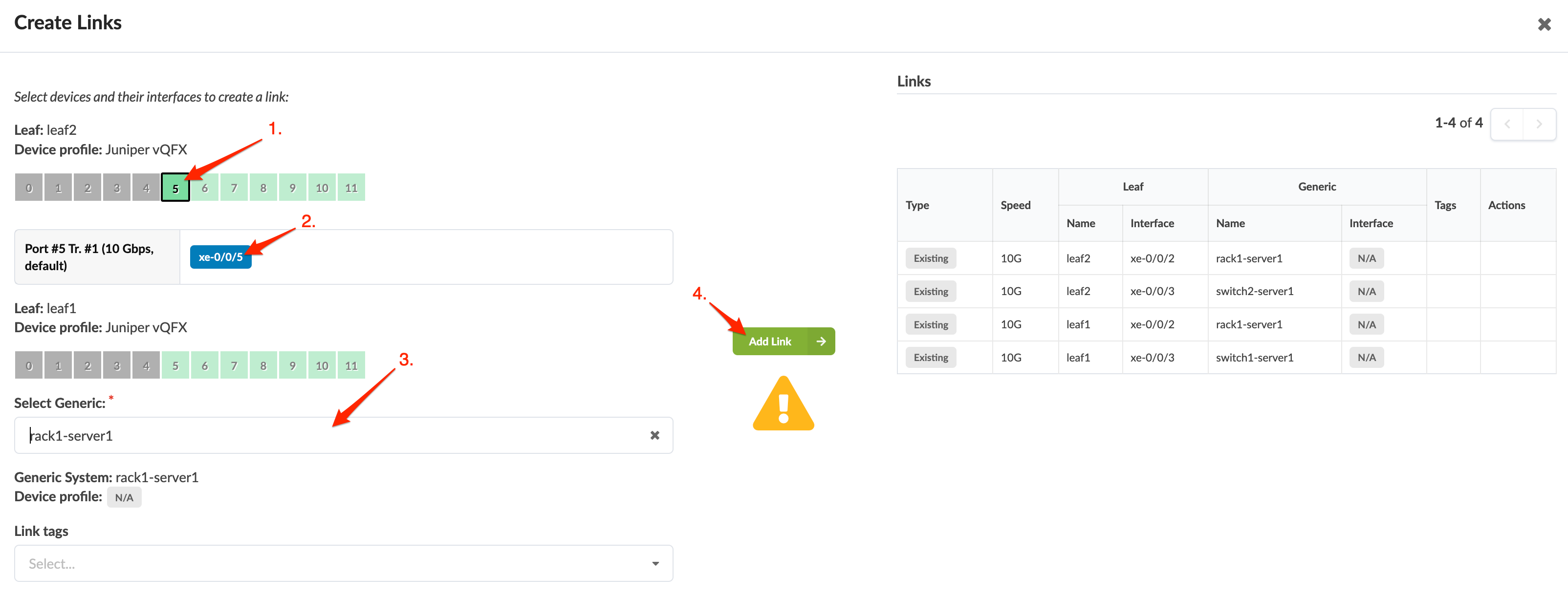

    The Create Links dialog opens.
  3. Select available ports and transformations, as applicable. From the drop-down list, select the generic system to link to.
    The gray Add Link button turns green.
  4. Click Add Link.
    The new link is added in the table on the right.
  5. Dual-attached links to leaf groups (evpn-esi) must be symmetric. Add the second link, as applicable.
  6. Click Create.
The new link is staged and you're returned to the Topology view.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.
