Break LAG

It’s common to break a LAG towards a server into individual links, then reform the LAG from individual links, all while keeping the same VLAN allocation (when re-bootstrapping the server for example). You can break a LAG while preserving any assigned connectivity templates.

To break a LAG using the GUI:

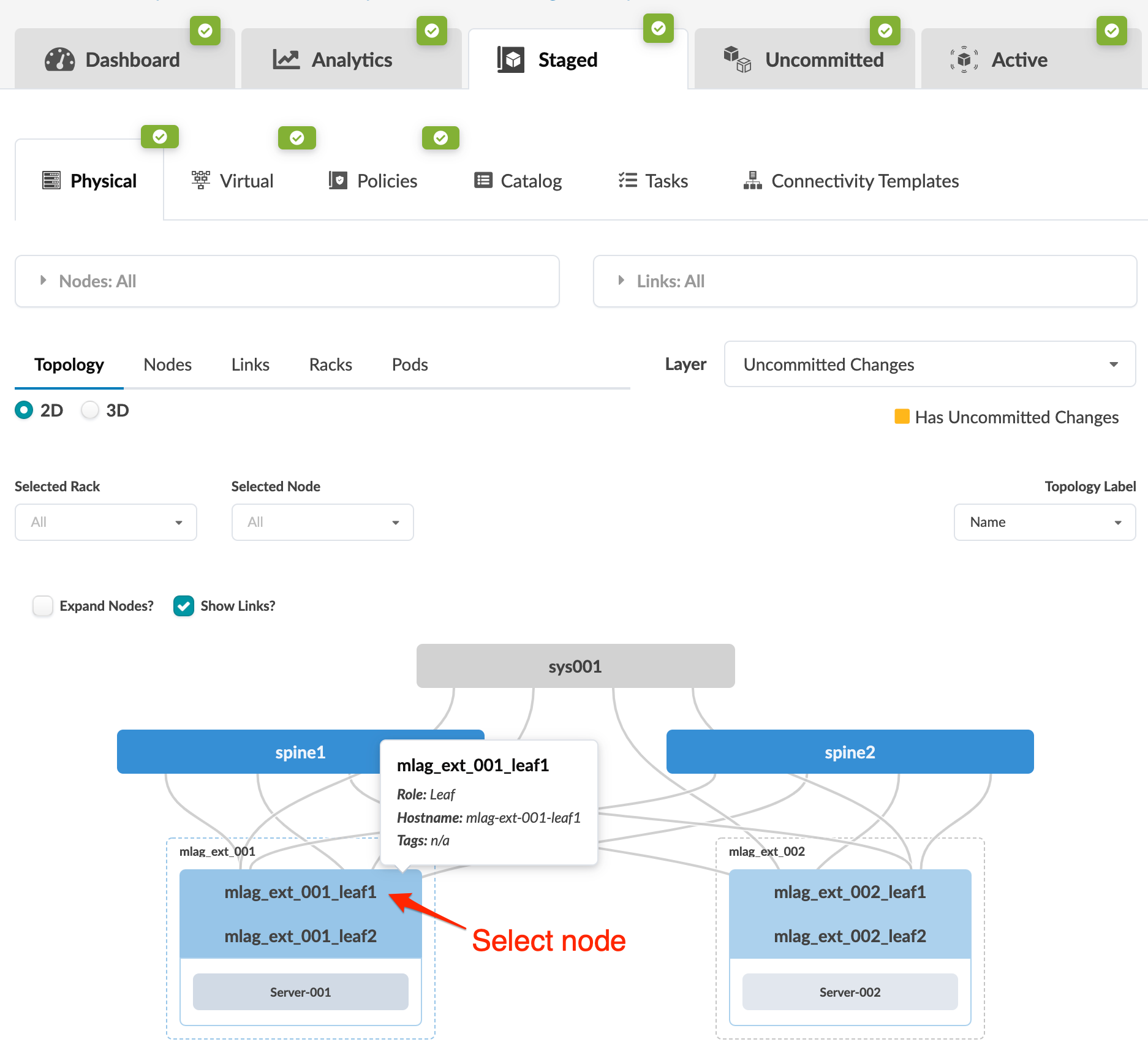

  1. From the blueprint, navigate to Staged > Physical > Topology and select the node with the LAG to break.
    The Topology selection view appears.

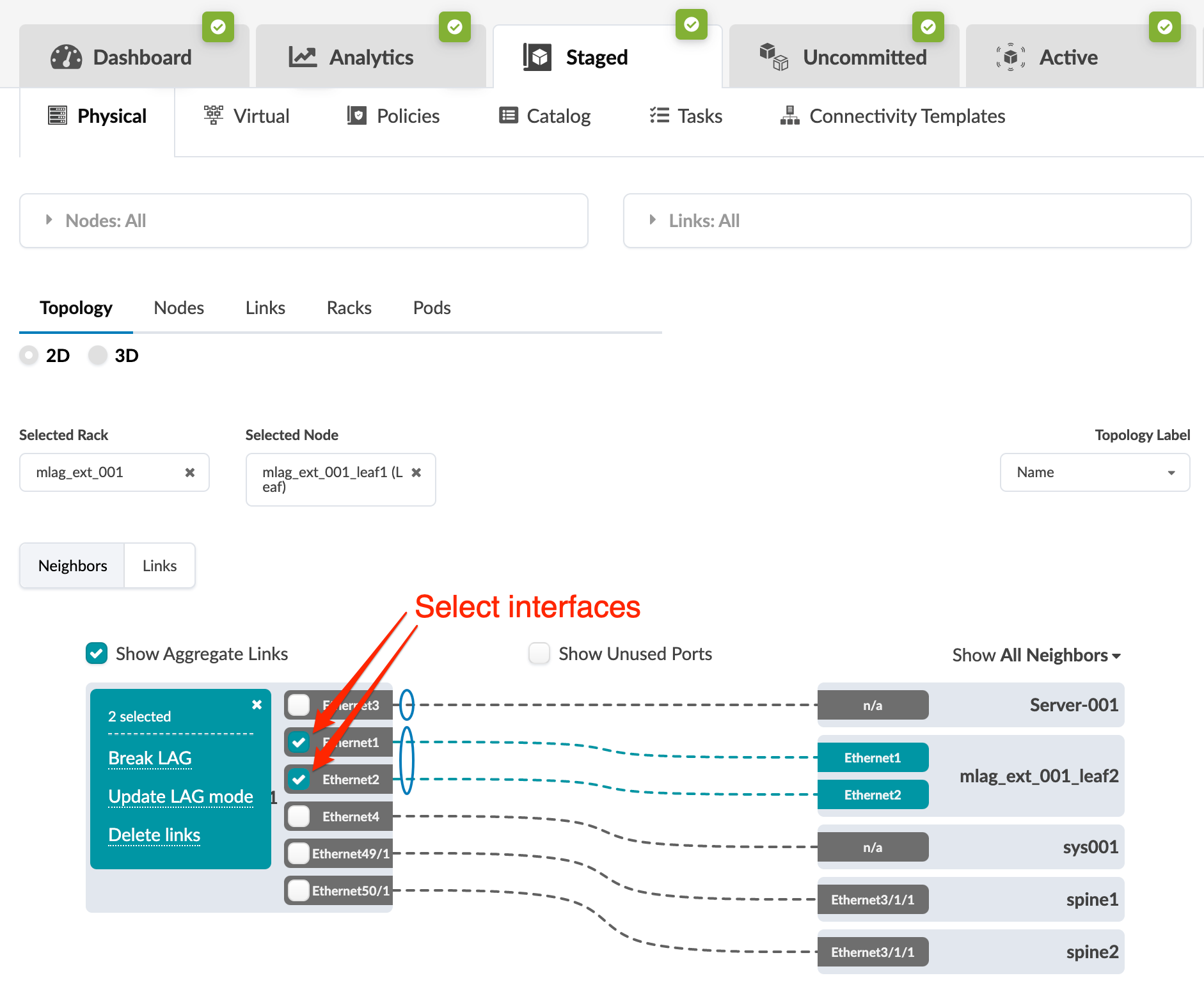

  2. Select the interface check boxes for the LAG (or click the port-channel representation) to see the operations available for those interfaces (and that you have permissions for).
  3. Click Break LAG.

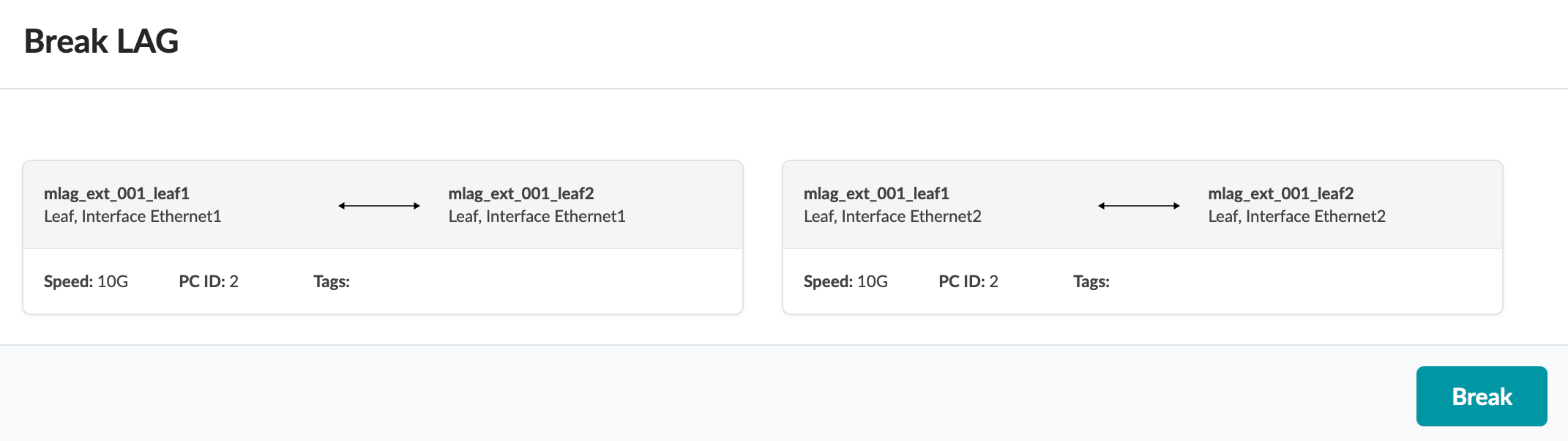

    The Break LAG dialog opens.
  4. Click Break.
The change is staged and you're returned to the Topology view.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.
