Create Access Switch

To create an access switch using the GUI:

  1. From the blueprint, navigate to Staged > Physical > Topology and select the leaf that you want to connect to the new access switch.
    The selection details appear.
  2. Select the node check box to see the operations available for that node (and that you have permissions for).
    Note:

    You can also get to the selection page from the Nodes view. From the blueprint, navigate to Staged > Physical > Nodes, click the leaf name in the table, then click the leaf name that appears at the top of the Selection panel (on the right side of the page).

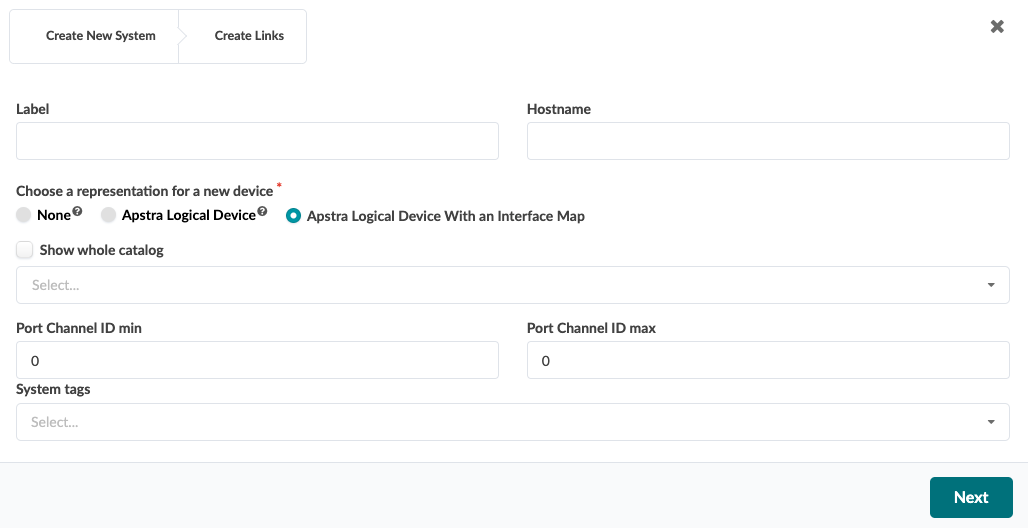

  3. Click Add access switch and enter a unique label and hostname.
  4. Select the appropriate interface map from the drop-down list.
  5. Enter the port channel ID min and max.
  6. Enter tags (optional) to identify the role(s) of the new access switch, then click Next.

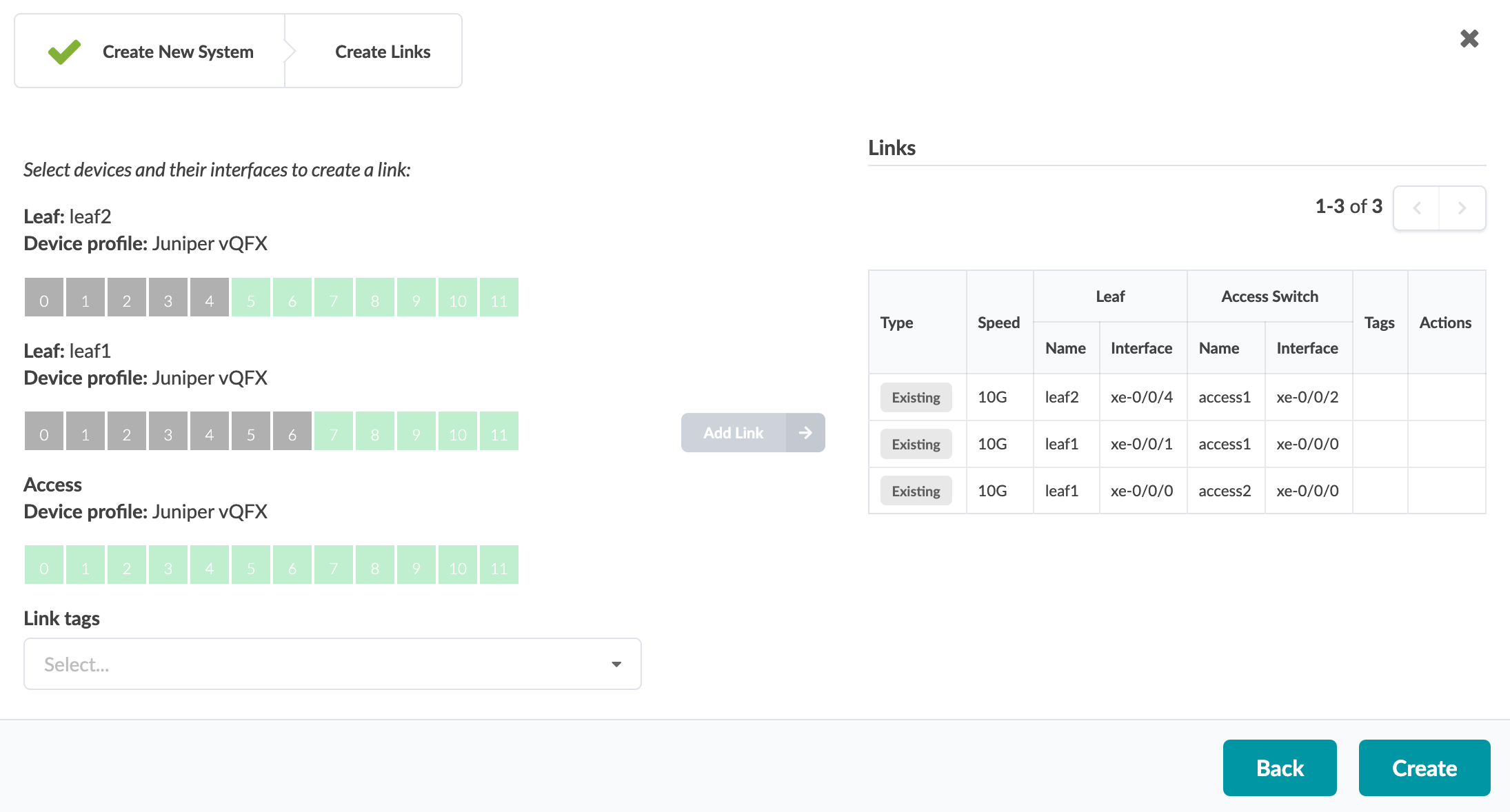

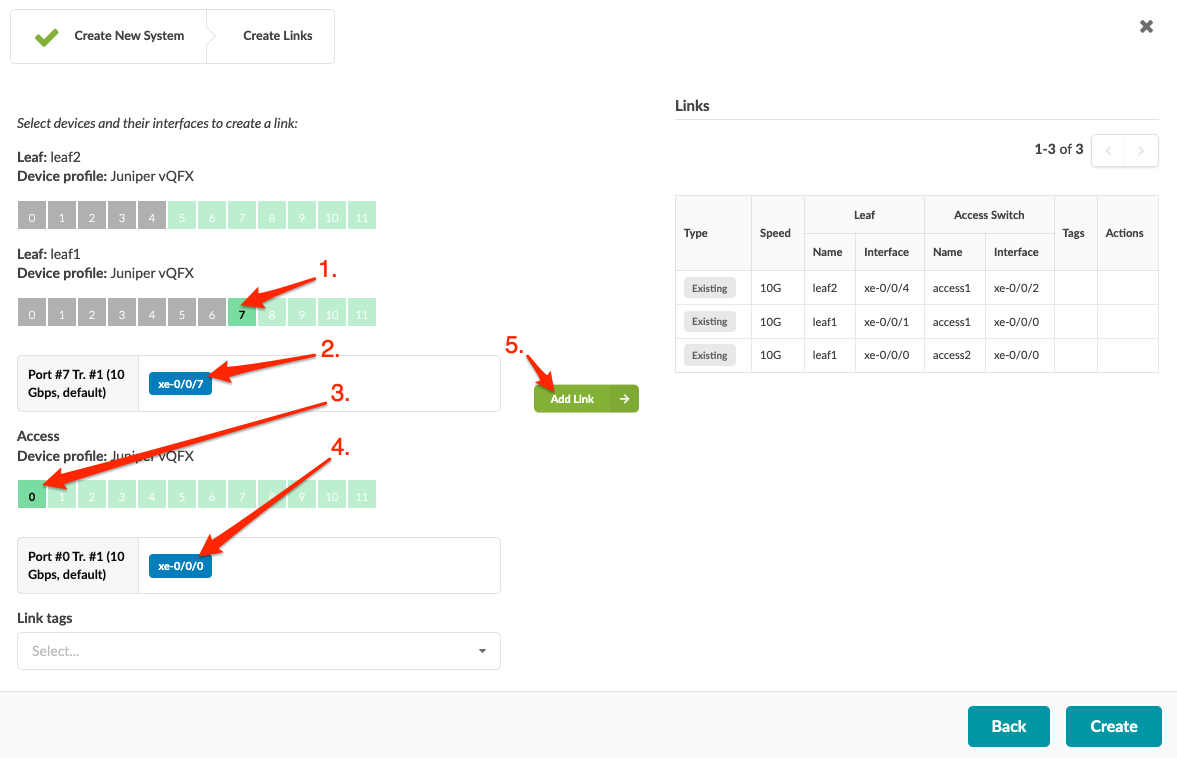

  7. Select available ports and transformations, as applicable. The gray Add Link button turns green.
  8. Click Add Link.

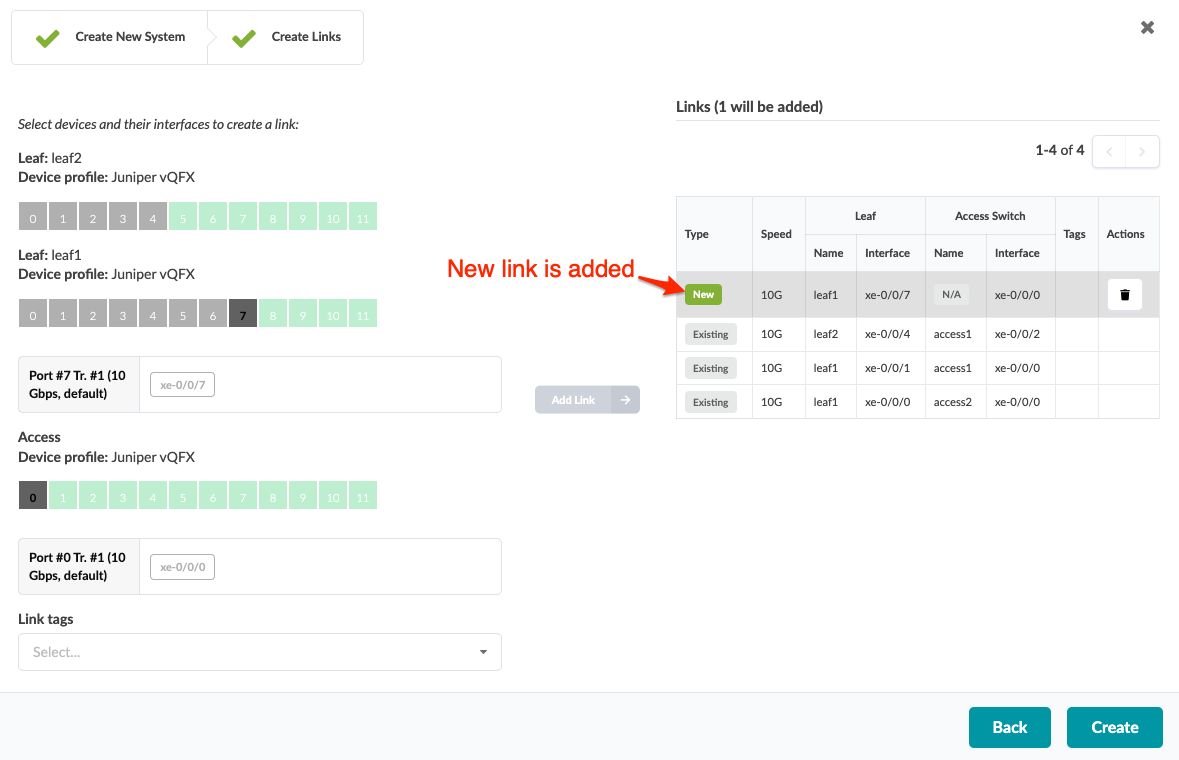

    The link is added to the link table.
  9. Click Create.
The change is staged and you're returned to the Topology view.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.
