VXLAN Floodlist Processor

The VXLAN Floodlist processor generates a configuration containing expectations of vxlan floodlist routes.

Parameter Description
Execution count Number of times the data is collected
Service input (service_input) Data to pass to telemetry collectors, if any. Can be an expression.
Service interval (service_interval) Telemetry collection interval in seconds. Can be an expression.
Service name (service_name) Name of the custom collector service.
Enable Streaming (enable_streaming) Makes samples of output stages streamed if enabled. An optional boolean that defaults to False. If set to True, all output stages of this processor are streamed in the generic protobuf schema.

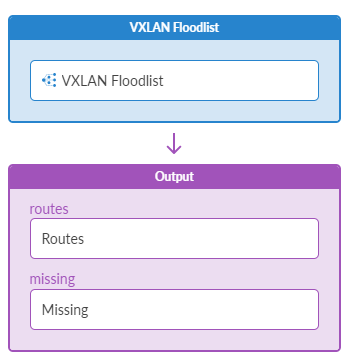

Flow diagram showing data transformation from VXLAN Floodlist to output with routes and missing elements.
Configuration options:

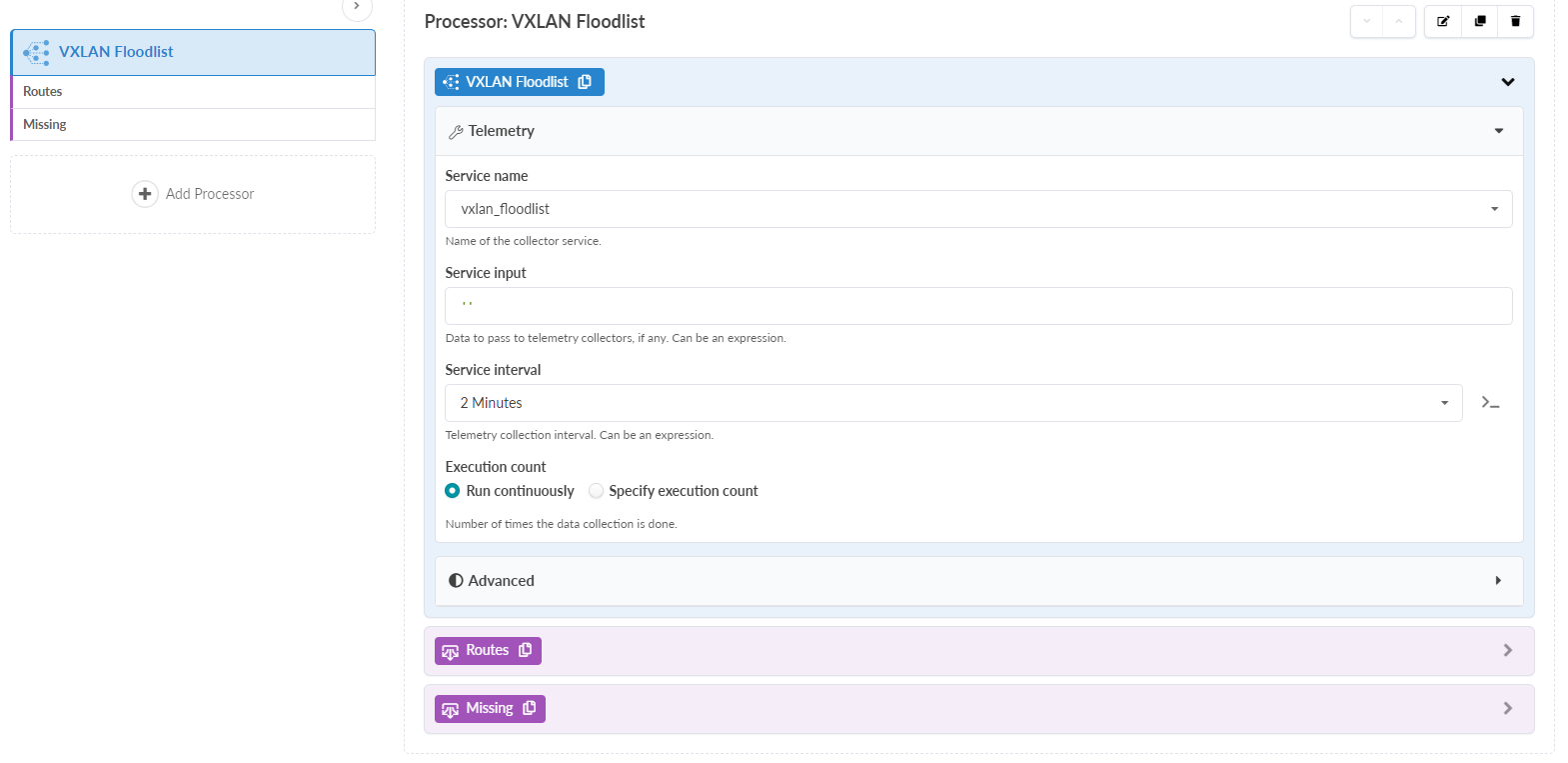

VXLAN Floodlist processor configuration interface showing telemetry settings with service name vxlan_floodlist, empty input, 2-minute interval, and continuous execution. Advanced, Routes, and Missing sections are collapsed. Top-right toolbar includes edit, duplicate, and delete options.
