MAC Monitor Probe

The MAC Monitor probe observes MAC address activity on switches and checks VTEP MAC Tables to ensure accurate EVPN type 2 MAC advertisement integration into the Forwarding Database (FDb). It identifies, validates, and flags missing MAC addresses across all VTEPs. This data is summarized by calculating MAC address discrepancies.

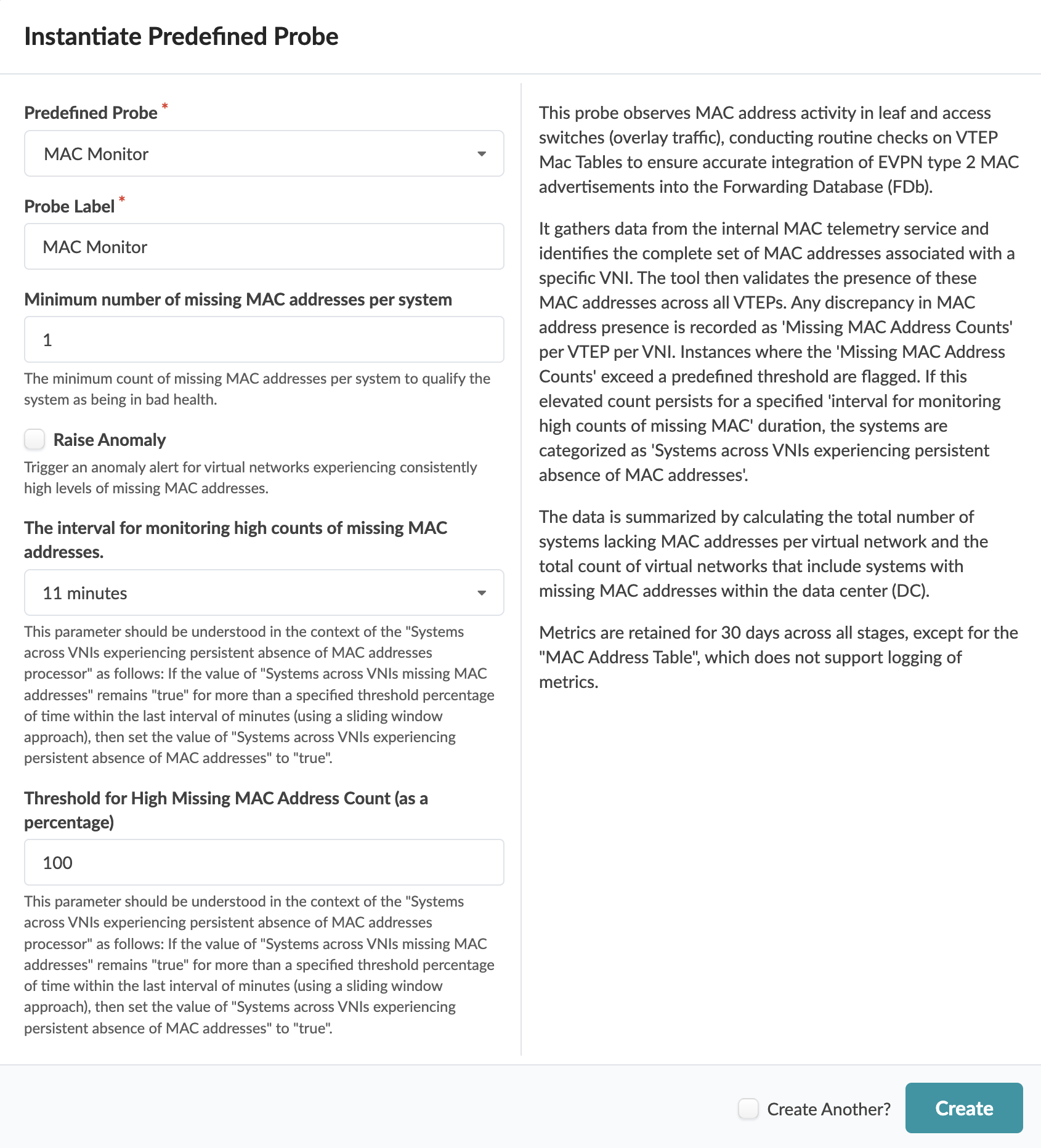

Configuration interface for MAC Monitor probe observing MAC address activity and discrepancies across VTEPs with settings for anomaly alerts and monitoring intervals.

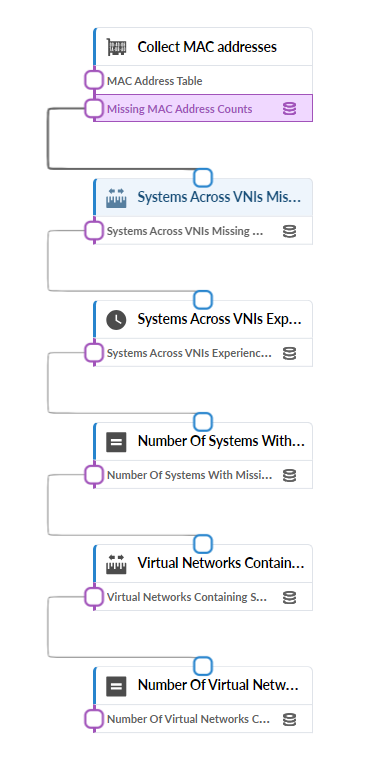

Flowchart showing data processing workflow for analyzing MAC addresses and virtual networks. Includes steps for collecting MAC addresses, analyzing systems across VNIs, identifying missing data, and calculating affected systems and networks.

For more information about this probe, from the blueprint, navigate to Analytics > Probes, click Create Probe, then select Instantiate Predefined Probe from the drop-down list. Select the probe from the Predefined Probe drop-down list to see details specific to the probe.
